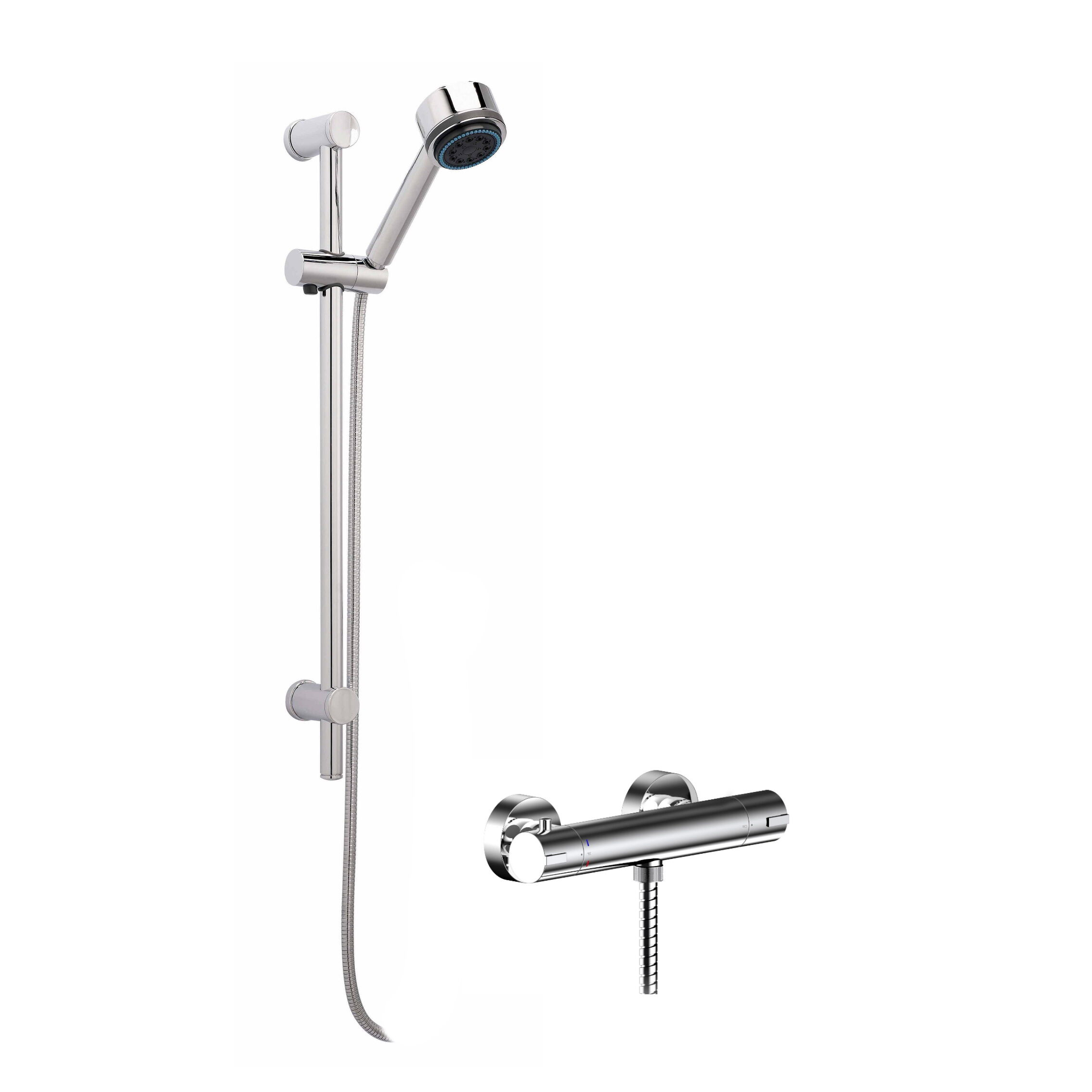

Nuie Exposed Bar Shower Valve and Multi-Function Shower Kit, SBR66BV1

Details

MFC: SBR66BV1

Nuie Exposed Bar Shower Valve with Slide Rail Kit - Multi-Function Handset - Chrome

Download Customer Data Sheet PDF File from the Additional Info Section
Refer to the Technical Drawing for Size Details
Specifications of Thermostatic Bar Valve:
1 Bottom Outlet and 2 Controls
Round Exposed Bar Shower Valve
Thermostatic Control
Made using Brass and ABS Material
Stain- and Rust-Resistant
Full Thermal Protection, which Prevents Scalding during Hot or Cold Water Shut-off
Suitable for Wall-Mounted Installation
Size: 260 x 72mm [Width x Depth]
Valve Cartridge: 1/4-Turn Ceramic Disc
Suitable for Low-Pressure Water System
Requires 0.2 Bar Operating Water Pressure
Specifications of Shower Kit:
Includes: Slide Rail, Shower Handset, Hose & Outlet Elbow
Brass & ABS Construction
Round Handset with Multiple Function Settings
Stain and Rust-Resistant
Adjustable Brackets - Ideal for Replacing an Existing Slide Rail
Easy-to-Clean Round Shower Head
Height of Rail: 660mm
1500mm Brass Flexible Shower Hose
Suitable for Medium-Pressure Water System
Requires 0.5 Bar Operating Water Pressure

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: 1/4-Turn Ceramic Disc
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Configuration
: Shower Valve & Slide Rail Kit

⤷ Temperature Control
: Thermostatic
⤷ Anti-Scald
: Yes
⤷ Plumbing System Compatibility
: Exposed
⤷ Water Entry Points
: Bottom
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: Multi-Function
⤷ Rail Length
: 660
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Technical Datasheet Pdf File

Nuie Exposed Bar Shower Valve with Slide Rail Kit - Multi-Function Handset - Chrome

£164.40

RRP: ~~£411.00~~

Stock Availablity: 2-3 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.
