Joseph Miles P-Shaped Whirlpool Bath with Leg Sets, 1600 x 850mm, JMAP105-J8W

Joseph Miles Details

MFC: JMAP105-J8W

Joseph Miles P-Shaped Whirlpool Bath with Leg Sets - 8 Jet - 1600 x 850mm.

Key Features

✔Choice of Jet Finishes: Chrome, White
✔Manufactured Using Acrylic Material
✔CE Certified Product
✔Supplied with Adjustable Leg Set
✔5-Year Guarantee from the Manufacturer Against any Manufacturing Defects

Choice of Variations: Left Hand and Right Hand Bath
It Comes in a White Finish
Material Thickness: 4mm
8 Whirlpool Jets [6 Large Directional, 2 Micro]
Size [mm]: 1600 x 850 x 415mm [Length x Width x Height]
Size [cm]: 160 x 85 x 41.5cm [Length x Width x Height]
Incorporates with Overflow
Contemporary P-Shaped Design
Waste Position: End of Bath
Water Capacity: 130 ltr [Displaced], 200 ltr [Literage]
Un-Drilled for Taps
Low-Noise, Energy-Efficient Pump
Flush-Fit Pneumatic Control System
Weight: 29kg
Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF File from the Additional Info Section
Bath Waste and Taps Shown in the Image are Not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Position of Drain
: End of Bath
⤷ Interior Shape
: P-Shaped
⤷ Bath Type
: Single Ended
⤷ External Length
: 1600
⤷ External Width
: 850
⤷ Tub Depth
: 420
⤷ Feets Included
: Yes
⤷ Colour
: White
⤷ Internal Top Length
: 1084
⤷ Internal Top Width
: 700
⤷ Height of Rim
: 40
⤷ Distance Tub edge to centre of drain hole
: 270
⤷ Diameter of Drain hole
: Ø52
⤷ Rim Width
: 70

⤷ Weight in kg
: 29
⤷ Shape
: L-Shape
⤷ Capacity in litres
: 200
⤷ Handed Type
: Left & Right Handed
⤷ Country of Origin
: United Kingdom
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Acrylic
⤷ No. of Bathers
: 1
⤷ Theme
: Modern
⤷ Bath Therapy Type
: Wirlpool
⤷ Number of Jets
: 8
⤷ Controls
: Yes
⤷ Waste Included
: Sold Separately
⤷ Barcode
: 5056817701499

Additional Info & Downloads

Download the Installation Instruction Pdf File

Technical Images

Joseph Miles P-Shaped Whirlpool Bath with Leg Sets - 8 Jet - 1600 x 850mm

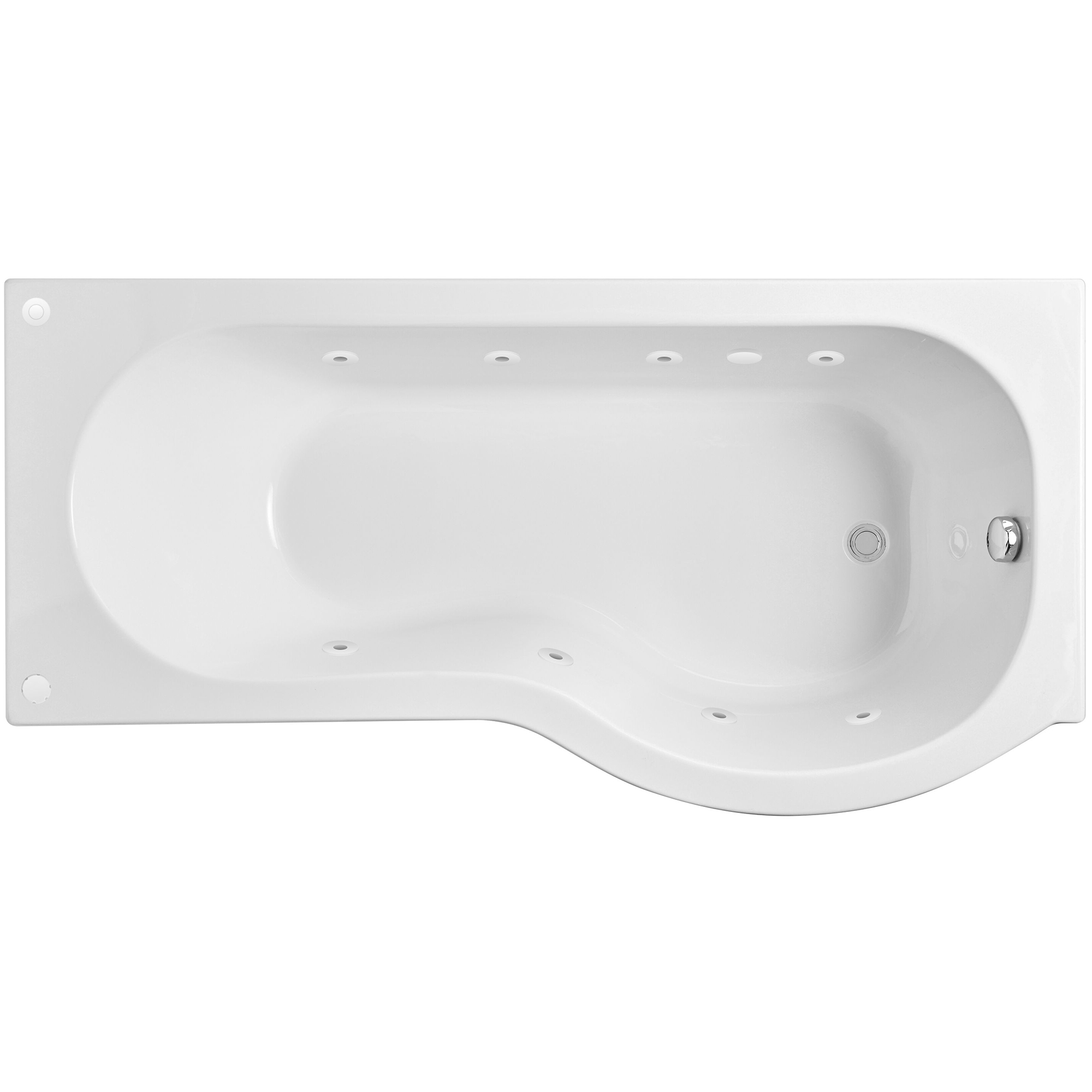

Left Hand

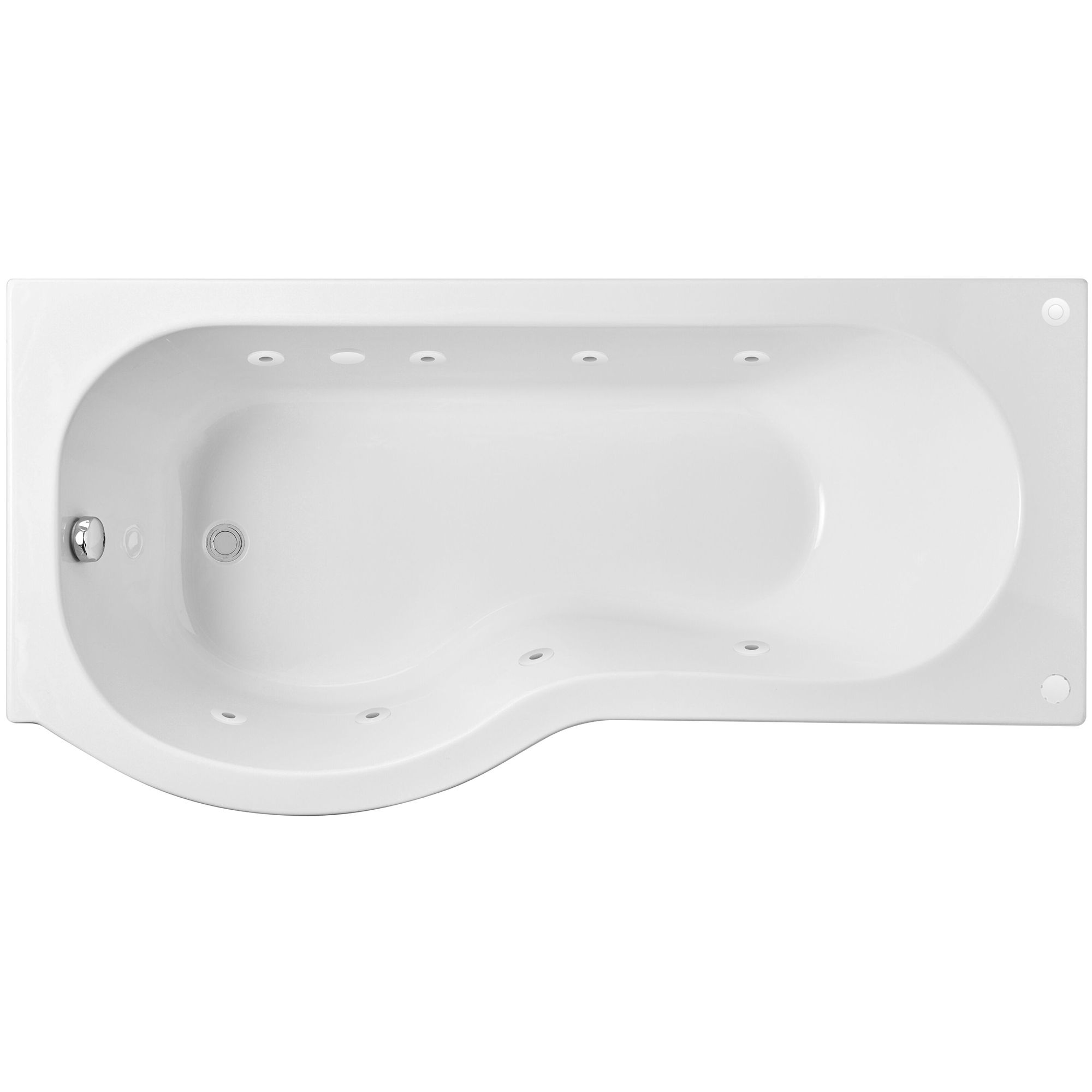

Right Hand

£763.20

RRP: ~~£636.00~~

STOCK AVAILABLITY: 10 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

Jet-System

Jet systems can provide relaxing sensations while you’re in the bath, and you can direct them for a massage-like experience. They raise the airflow’s velocity, providing more pressure from the bubbles, and since we most likely bathe using hot or warm water, the percussive action of the air system’s bubbles gives the muscles a relaxing and soothing experience.

Reversible Design

It is a design which allows the product to be fitted either to the right or left, depending on the dimensions of your space.

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.
