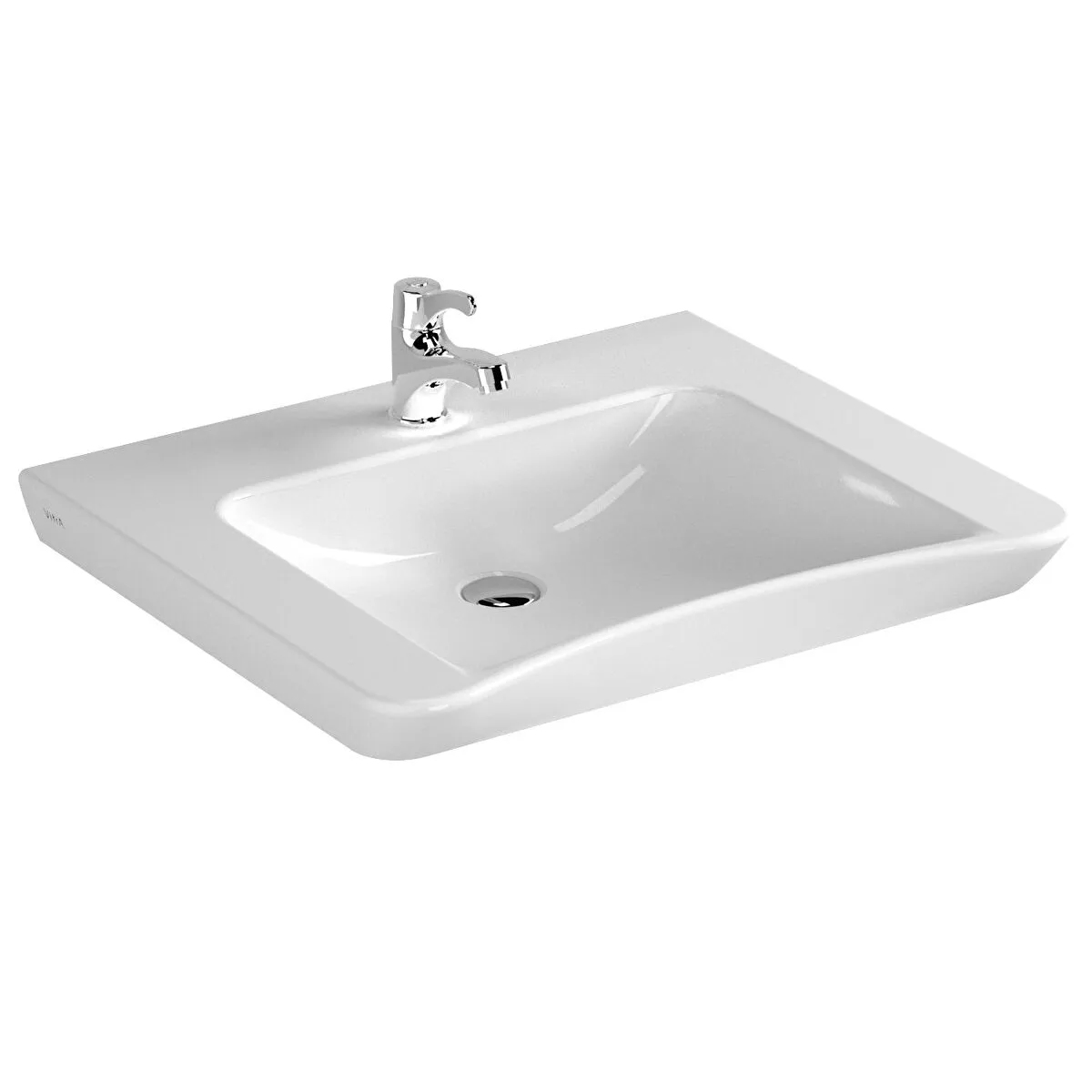

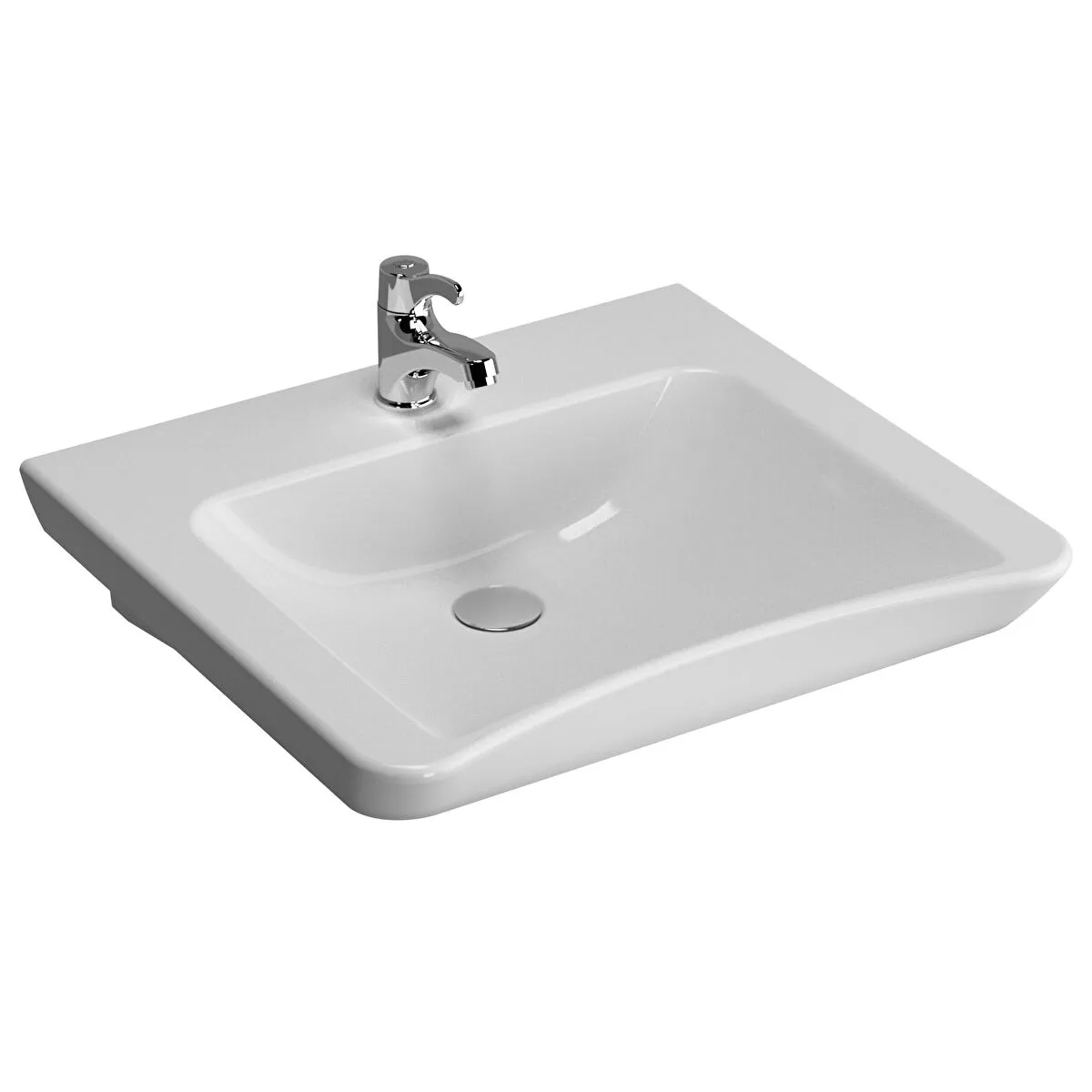

VitrA S20 Accessible 1 Taphole White Wall Hung Washbasin

VitrA S20 Details

MFC: 5289B003-0001

VitrA S20 Accessible 1 Taphole White Wall Hung Washbasin.

Key Features

✔It comes in a White Finish
✔Suitable for Access by Wheelchair
✔10-Year Guarantee from the Manufacturer
✔Manufactured using High-Quality Fine Fireclay Material

Choice of Widths: 600mm, 650mm
Choice of Overflow: With Overflow, Without Overflow
Wall-Mounted Installation
Supplied with a Single Taphole
Designed to Meet the Needs where Assistance May be Required
Refer to the Technical Diagram for Size Details
Download the Installation Instruction PDF File from the Additional Info Section
Brassware shown in the Image is Not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: S20
⤷ Colour
: White
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Fine Fireclay
⤷ Theme
: Modern
⤷ Projection (Depth)
: 545
⤷ Width
: 600
⤷ Height
: 165
⤷ Distance between centre holes
: 135
⤷ Distance rear edge to centre of waste hole
: 200
⤷ Fixing Holes Centre
: 280

⤷ Distance top edge to centre of fixing hole
: 40
⤷ Distance rear edge to centre of tap hole
: 65
⤷ Number of bowls
: 1
⤷ No. of Tap Holes
: 1
⤷ Tap Hole Position
: Centre
⤷ Barcode
: 5057199868756
⤷ Distance from floor to centre of fixing hole
: 760
⤷ Distance finished floor level to top edge
: 800
⤷ Distance from floor to centre of water inlet
: 600
⤷ Floor to centre of drain hole wall connection
: 540
⤷ Distance hot/cold water inlet
: 150
⤷ Product Type
: Wall Hung Basin

Additional Info & Downloads

Download the Installation Instruction Pdf File

Technical Images

VitrA S20 Accessible 1 Taphole White Wall Hung Washbasin

600mm Wide Basin

650mm Wide Basin

£87.06

RRP: ~~£196.99~~

STOCK AVAILABLITY: Only 4 in stock Order Now before stock ends

QS Supplies

2 Features Included In This Product Explained

Accessible Product

Products are designed for the disabled, wheelchair-bound and those with mobility issues.

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.
