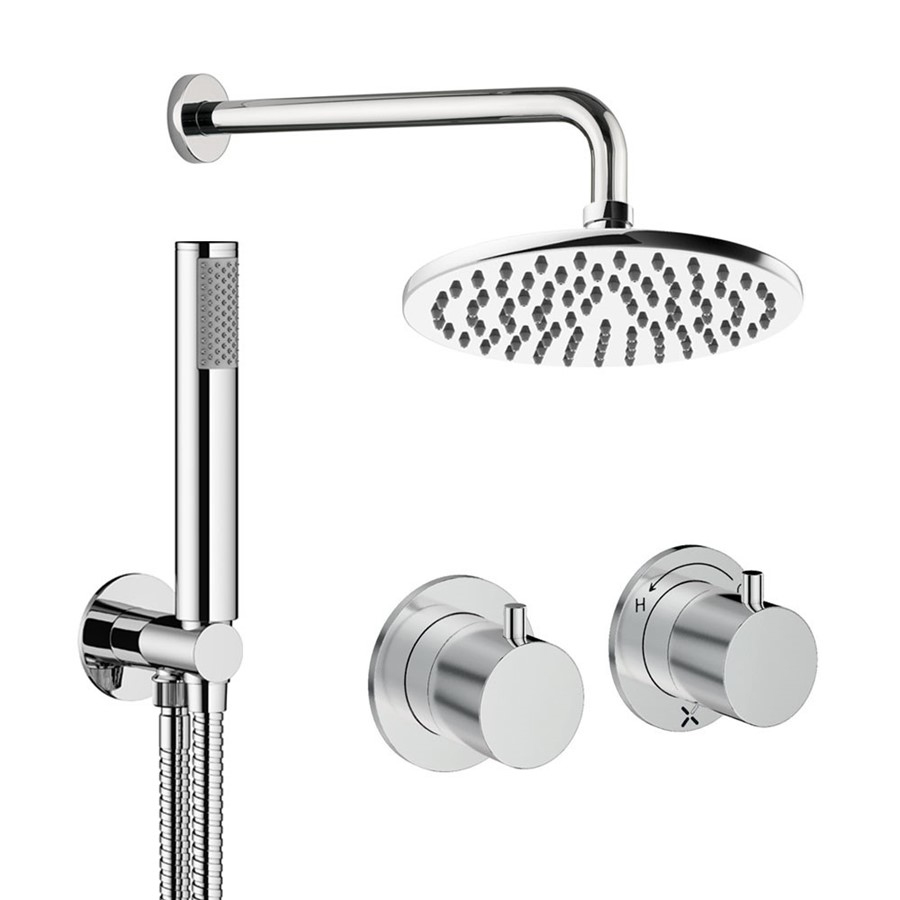

Crosswater Module Thermostatic Shower Pack with Wall Mounted Head and Arm

Crosswater Module Details

MFC: MODSET1C200

Crosswater Module Thermostatic Shower Pack with Wall Mounted Head and Arm

Key Features

✔Shower Head Size Available: Ø 200mm and Ø 300mm
✔Choice of Finishes Available: Chrome, Matt Black, Brushed Bronze, Brushed Brass, Brushed Nickel and Slate
✔15-Year Guarantee from the Manufacturer Against any Manufacturing Defects

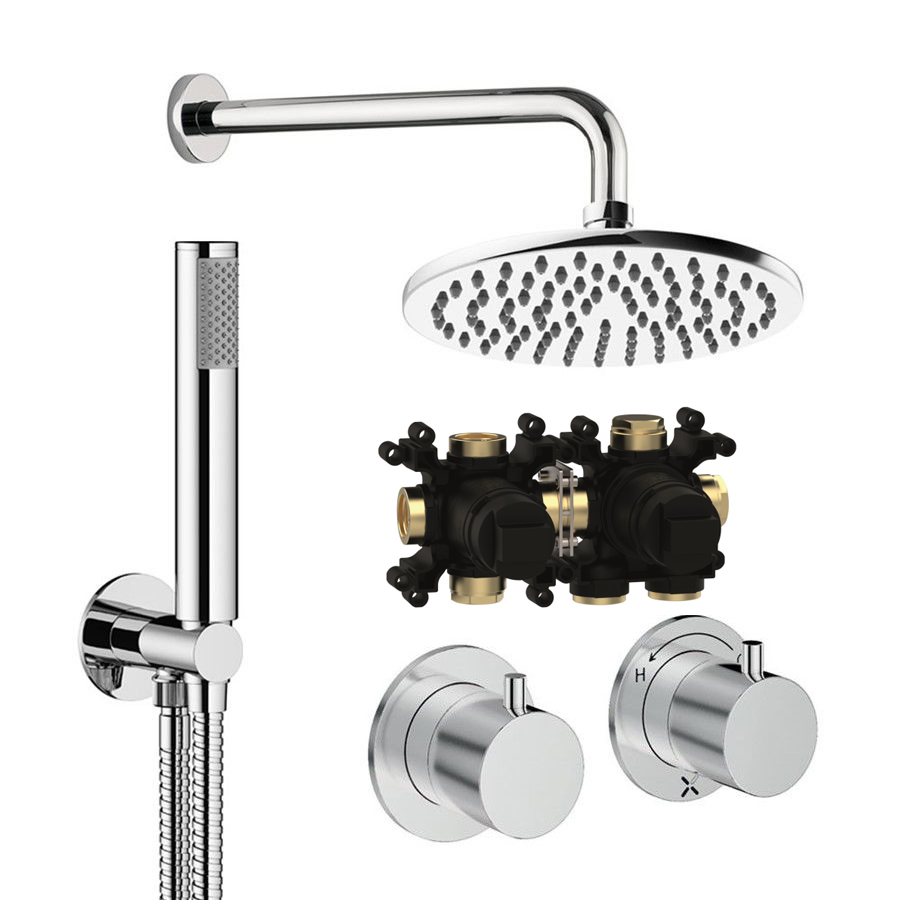

Pack Includes: Shower Valve, Trimset, Shower Kit with Wall Outlet, Fixed Head and Arm
Installation Type: Wall Mounted
Suitable for High Water Pressure System
Requires Min. 1.0 bar and Max. 5.0 bar Operating Water Pressure
Please Refer to the Technical Drawing For Size Details
Download the Data Sheet and Installation Instruction PDF Files from the Additional Info Section
Specifications of Trimset:
Finish Application: Immersion Plating
Material: Zamac
Size: 175 x 53 x 70mm [Width x Depth x Height]
No of Outlets: 2
No of Functions: 2
Weight Kg: 0.8
Standards: EN 1111:2017
Specifications of Shower Valve:
Finish Application: Raw/Natural
Material: Brass
Size: 222 x 141 x 119mm [Width x Depth x Height]
No of Outlets: 2
No of Functions: 2
Thermostatic Cartridge + Flow Controls
Inlet Connection Thread: G3/4”
Outlet Connection Thread: G3/4”
Anti-Scald System
Weight Kg: 2
Standards: EN 1111:2017
Approval: KIWA 2304701
Specifications of Shower Kit:
Handset and Hose with Wall Outlet
Hose Length: 1500mm
Finish Application: Electroplated
Material: Brass
Inlet Connection Thread: G1/2”
No of Outlets: 1
No of Functions: 1
Weight Kg: 1
Approval: KIWA 2503723
Specifications of Shower Head:
Finish Application: Electroplated
Material: Brass
Size: 200 x 200 x 58mm [Width x Depth x Height]
Inlet Connection Thread: G1/2”
No of Outlets: 1
No of Functions: 1
Weight Kg: 0.9
WRAS Approved 1909388
Specifications of Shower Arm:
Finish Application: Electroplated
Material: Brass
Wall Mounted
Size: 60 x 342 x 95mm [Width x Depth x Height]
Inlet Connection Thread: G1/2”
Outlet Connection Thread: G1/2”
No of Outlets: 1
No of Functions: 1
Weight Kg: 0.25
Approval: KIWA 2302755

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermostatic
⤷ Minimum Operating Pressure (Bar)
: 1
⤷ Hose Included
: Yes

⤷ Hose Length
: 1500
⤷ Showerhead Type
: Fixed
⤷ Showerhead Finish
: Chrome
⤷ Handset Included
: Yes
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 200
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

This item can also be found in:

Thermostatic Mixer Showers

Technical Images

Crosswater Module Thermostatic Shower Pack with Wall Mounted Head and Arm

Shower Trim & Valve

Shower Kit with Arm & Head

£839.20

RRP: ~~£1049.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...
