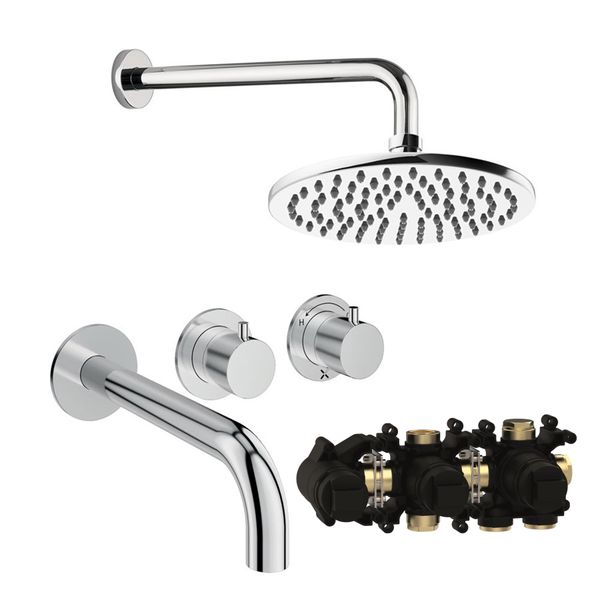

Crosswater Module 2 Outlet Thermostatic Shower Set with Head and Wall Mounted Arm

Crosswater Module 2 Outlet Thermostatic Shower Set with Head and Wall Mounted Arm

• Pack Includes: 2 Handle Shower Valve, Bath Spout, Shower Head amd Arm
• Installation Type: Wall Mounted
• Suitable for High Water Pressure System
• Requires Min. 1.0 bar and Max. 5.0 bar Operating Water Pressure
• Please Refer to the Technical Drawing For Size Details
• Download the Data Sheet PDF Files from the Additional Info Section
• Specifications of Shower Valve (Concealed Part):
• Material: Brass
• Size: 296 x 141 x 119mm [Width x Depth x Height]
• No of Outlets: 2
• No of Functions: 2
• Thermostatic Cartridge + Flow Controls
• Inlet Connection Thread: G3/4"
• Outlet Connection Thread: G3/4"
• Weight Kg: 4
• Standards: EN 1111:2017
• Specifications of Bath Spout Trim:
• 2 Control Trimset with Bath Spout
• Finish Application: Electroplating
• Material: Brass
• Weight Kg: 1.55
• Specifications of Shower Head:
• Finish Application: Electroplated
• Material: Brass
• Size: 200 x 200 x 58mm [Width x Depth x Height]
• Inlet Connection Thread: G1/2"
• No of Outlets: 1
• No of Functions: 1
• Weight Kg: 0.9
• WRAS Approved 1909388
• Specifications of Shower Arm:
• Finish Application: Electroplated
• Material: Brass
• Wall Mounted
• Overall Length: 342mm - (34.2cm)
• Inlet Connection Thread: G1/2"
• Outlet Connection Thread: G1/2"
• No of Outlets: 1
• No of Functions: 1
• Approval: KIWA 2302755
