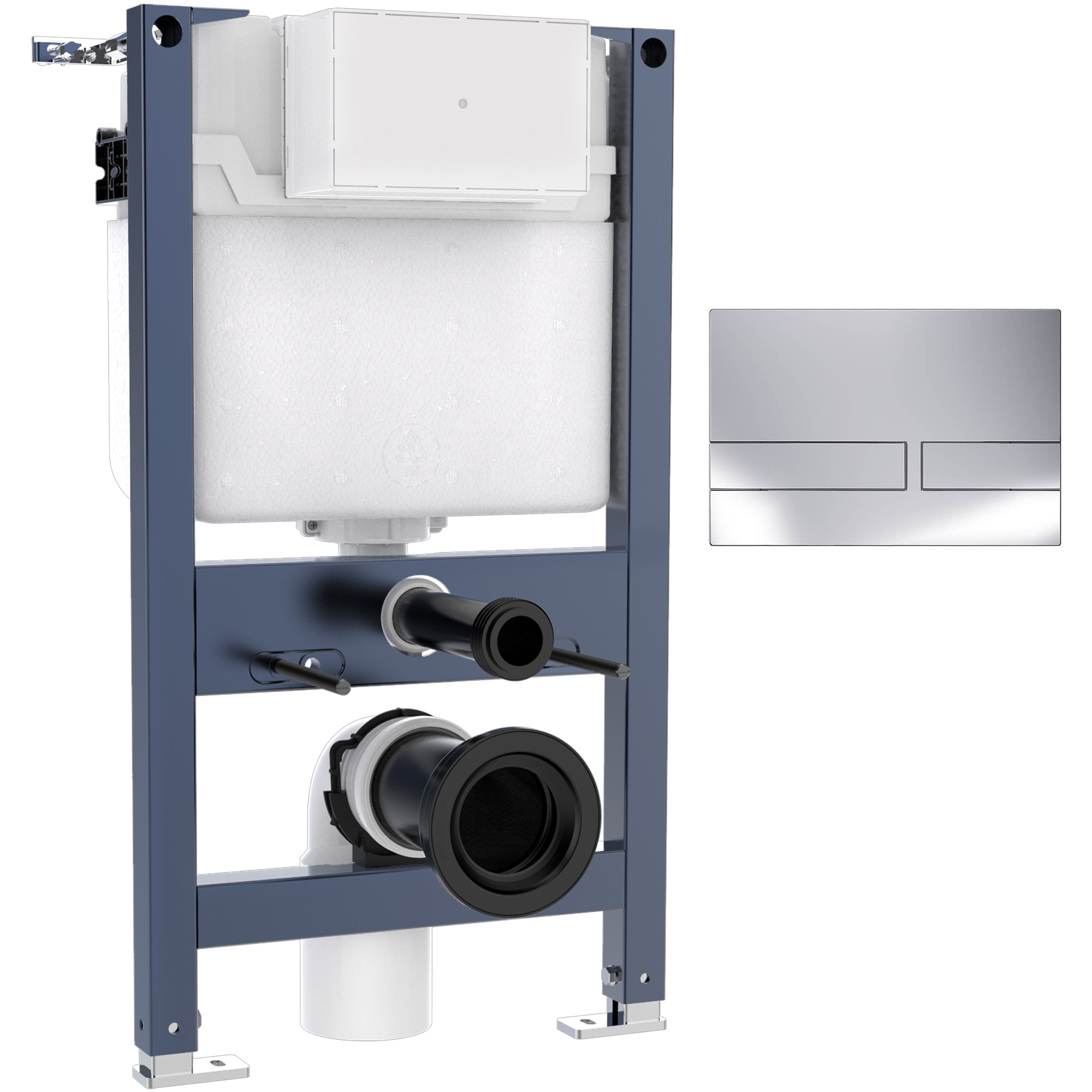

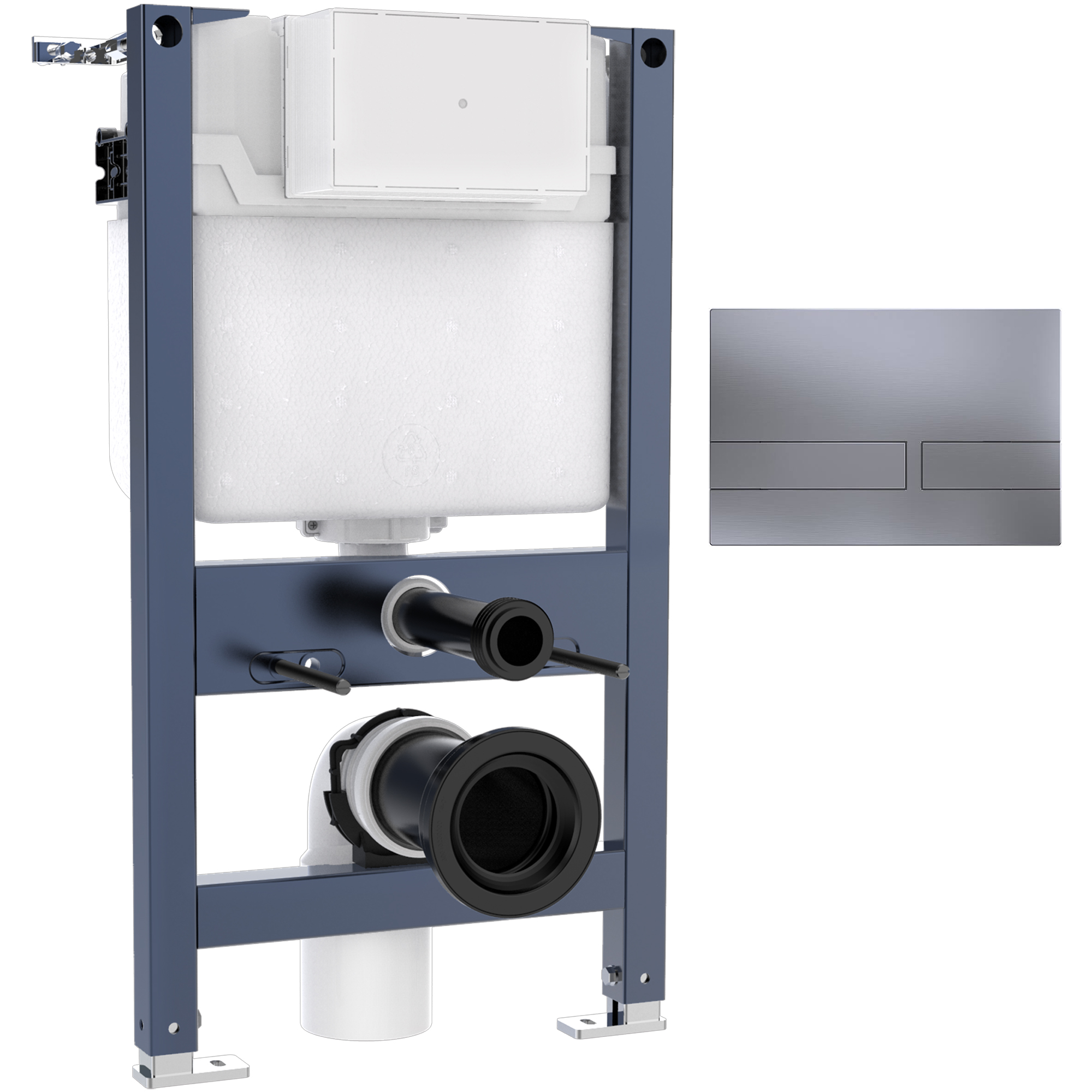

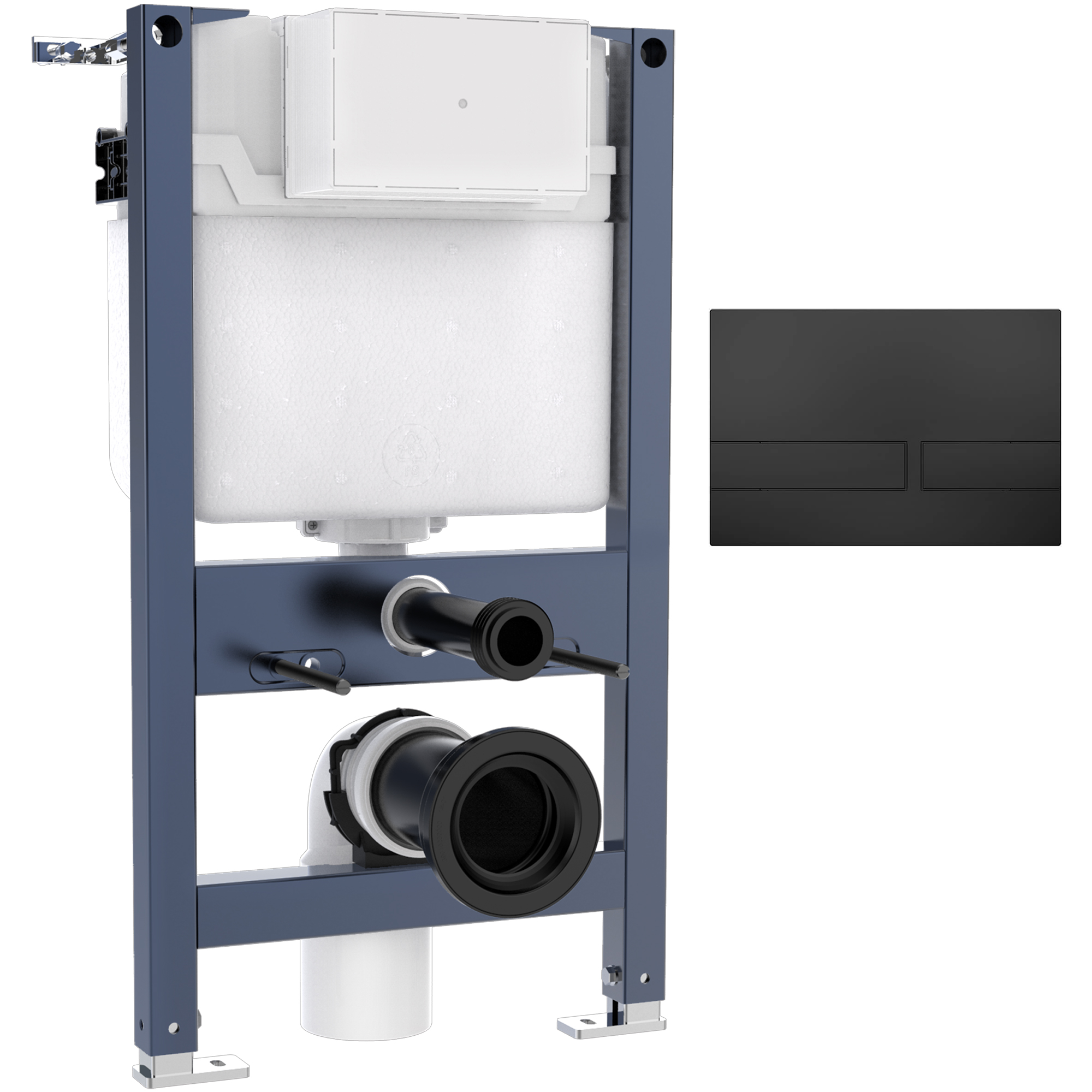

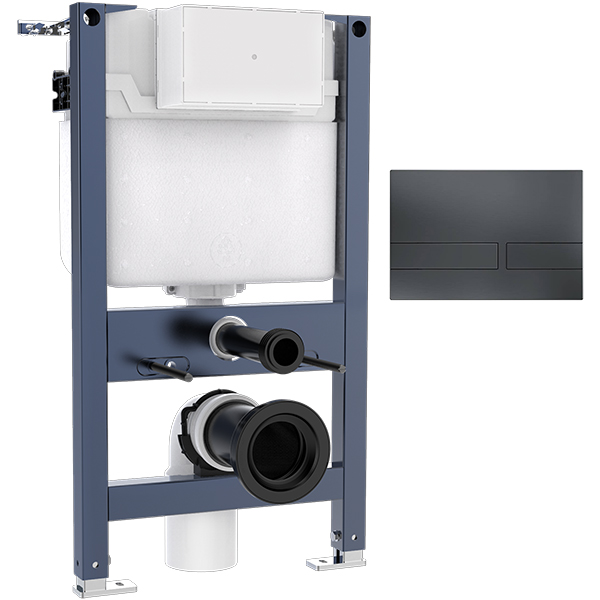

Crosswater Venue WC Frame with Dual Flush Concealed Cistern and Flush Plate - 450 x 820mm

Crosswater Venue WC Frame with Dual Flush Concealed Cistern and Flush Plate - 450 x 820mm.

• Pack Includes:
• WC Support Frame
• Dual Flush Concealed Cistern
• Flush Plate
• Refer to the Technical Drawing for Size Details
• Download The Installation Instruction PDF File from the Additional Info Section
• Features of Frame
• Flush volume: 6/4L
• Noise Class: Group I
• All fittings Included
• WRAS Approved Product
• Size [mm]: 450 x 159 x 820mm [Width x Depth x Height]
• Size [cm]: 45 x 15.9 x 82cm [Width x Depth x Height]
• Weight: 11.17kg
• Primary Material: Steel
• Secondary Material: Plastic
• Installation Type: Floor Standing
• Standards: BS EN 14055:2018
• Fixings Included: Yes
• Fixing Type: Floor Fixing
• Tested to Take Up to 400kg Weight
• Accordance with EN 33:2011
• Large Feet for Easy Rear Fixing - Specially Designed for UK Timber Floor
• Easy Install Wall Brackets for Vertical or Horizontal Fixing
• Adjustable feet with Rubber Sound Deadening Pads
• Full UK Specification to EN 14055 Class 2
• Features of Cistern
• Front and Top Actuation
• Mechanical Flush
• Comes with Dual Flush Concealed Cistern & Installation Kit
• Featuring a Dual Flush Mechanism
• Comes with Water-Saving Technology
• Maximum Supply Pressure 6 Bar
• The Design is Created with Smaller Wall Cavities
• Features of Flush Plate
• Primary Material: ABS
• Mechanical Flush Actuation
• Includes Water-Saving Technology
• Size [mm]: 245 x 13 x 165mm [Width x Depth x Height]
• Size [cm]: 24.5 x 1.3 x 16.5cm [Width x Depth x Height]
• Weight: 0.34kg
• Supplied Complete with Fixings
• Providing the Option of Either a Full or Partial Flush
