Crosswater Venue Slimline Cistern 4 and 6 Litres with Flush Plate, VENCISTSET2C

Crosswater Venue Details

MFC: VENCISTSET2C

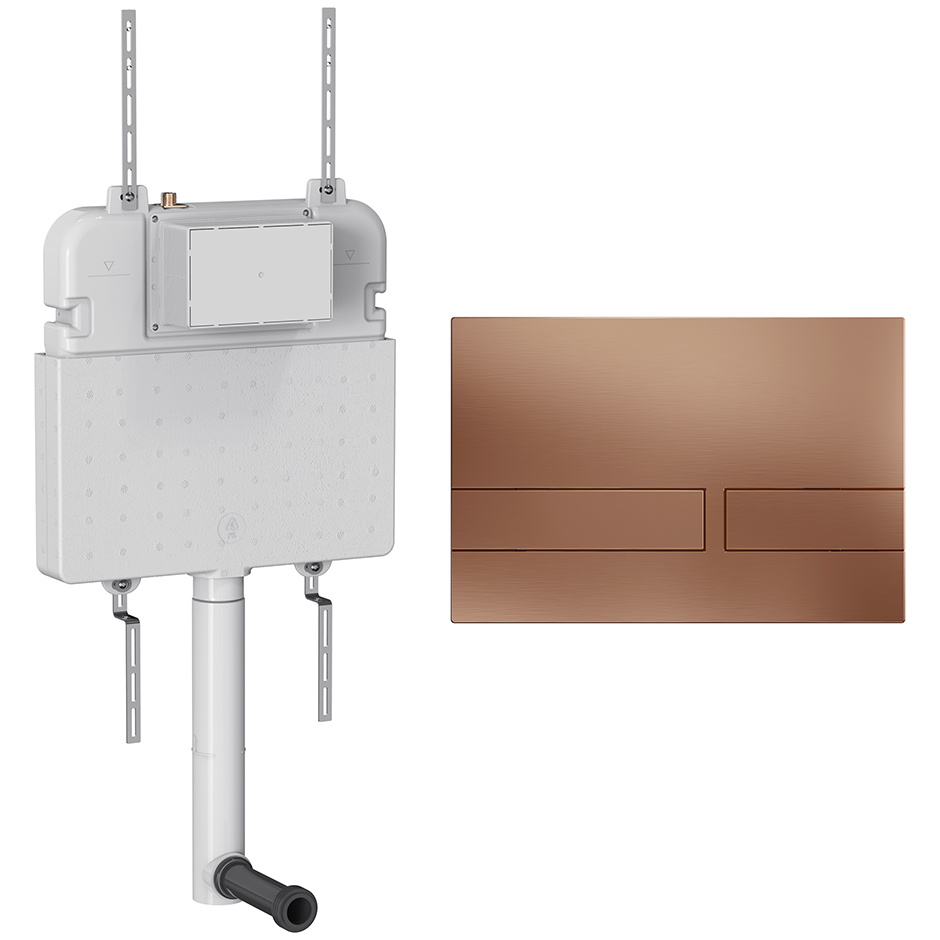

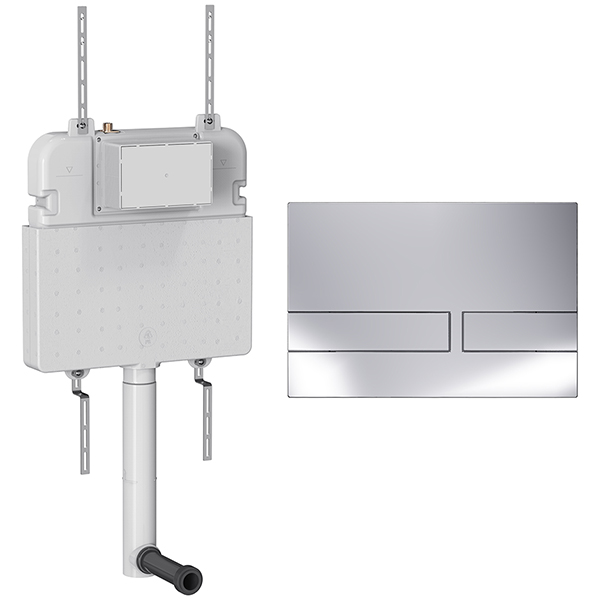

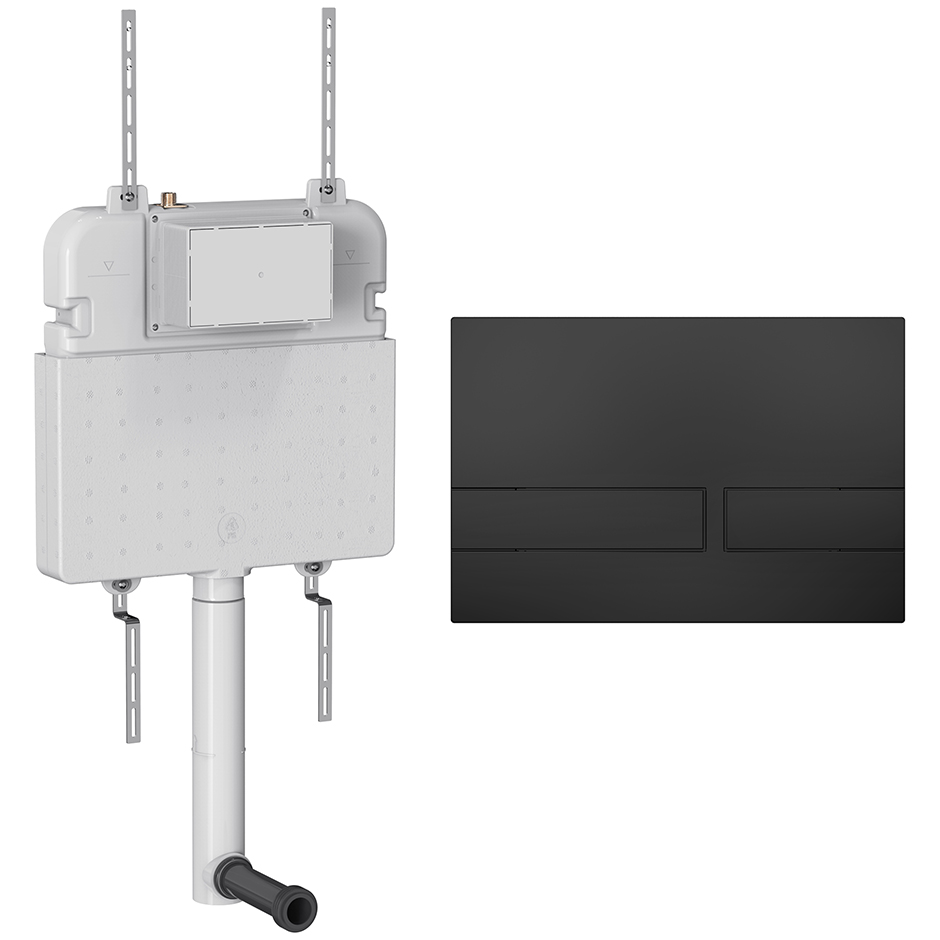

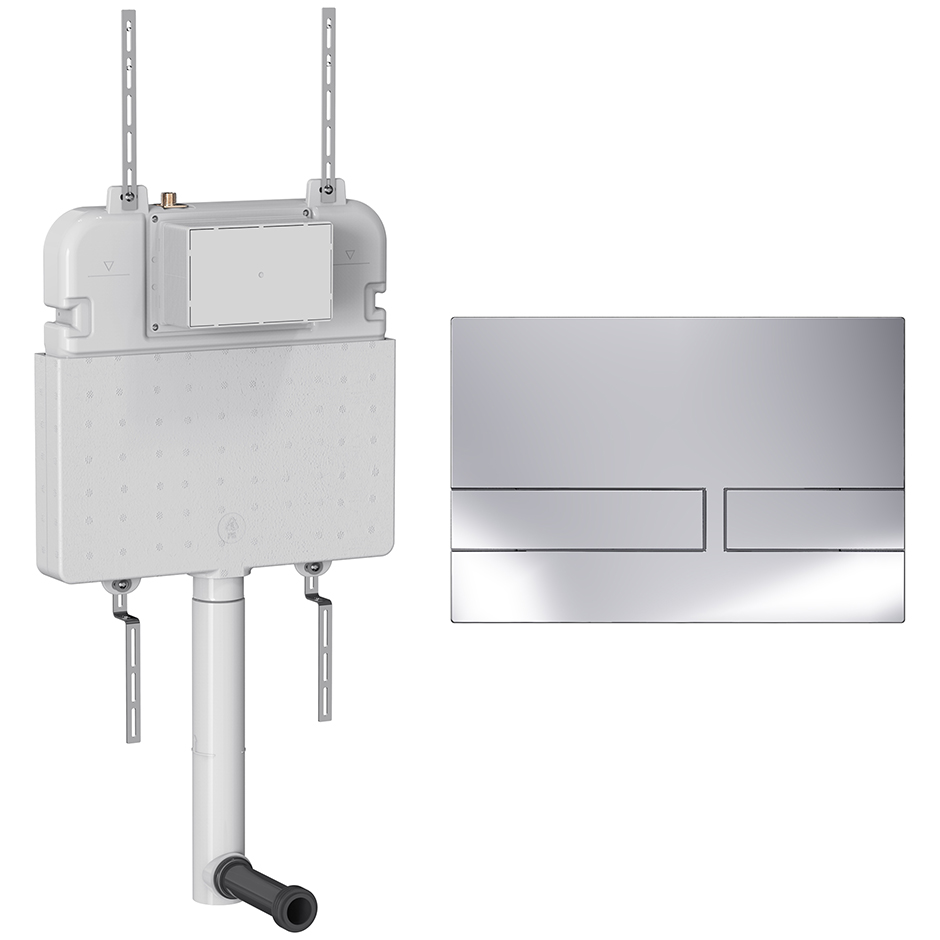

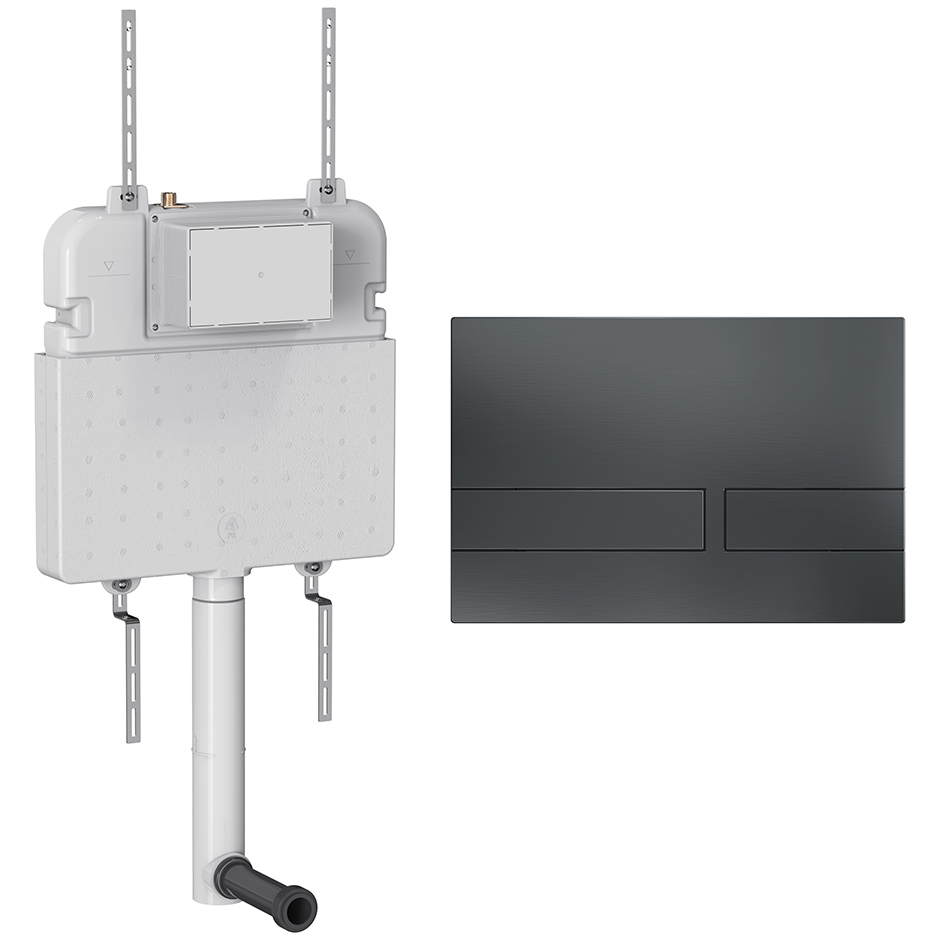

Crosswater Venue Slimline Dual Flush Concealed Cistern 4 and 6 Litres with Flush Plate.

Key Features

✔Available in Multiple Finishes
✔5-Year Guarantee from the Manufacturer

Pack Includes:
Dual Flush Concealed Cistern
Flush Plate
Refer to the Technical Drawing for Size Details
Download The Installation Instruction PDF File from the Additional Info Section
Features of Cistern
WRAS-Approved
Mechanical Flush
Featuring a Dual-Flush Mechanism
Manufactured Using Plastic Material
Noise Class: Group I
All Fittings Included
Front or Top Actuation
Incorporates with Discharge Pipe & Installation Kit
Size [mm]: 508 x 80 x 550mm [Width x Length x Height]
Size [cm]: 50.8 x 8 x 55cm [Width x Length x Height]
Weight: 4.29kg
Standards: BS EN 14055:2018
Flush Volume: 6/4 Litre
Maximum Supply Pressure 6 Bar
Fixing Type: Wall-Mounted Fixing
Designed for Use with Compatible Crosswater Back-to-Wall Toilets
Includes Water-Saving Technology by Providing Both 3 and 6 Litre Flush Capabilities when Installed with a Flush Plate
Features of Flushplate
Primary Material: ABS
Mechanical Flush Actuation
Includes Water-Saving Technology
Size [mm]: 245 x 13 x 165mm [Width x Depth x Height]
Size [cm]: 24.5 x 1.3 x 16.5cm [Width x Depth x Height]
Weight: 0.34kg
Supplied Complete with Fixings
Providing the Option of Either a Full or Partial Flush
Compatible with All Crosswater Concealed Cisterns

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Weight in kg
: 4.29
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Plastic
⤷ Water Saving
: Yes
⤷ Flush Type
: Dual
⤷ Full Flush Volume in litres
: 6

⤷ Half Flush Volume in litres
: 4
⤷ Width
: 508
⤷ Depth
: 80
⤷ Height
: 550
⤷ Fixings included
: Yes
⤷ Compliance/Approvals/Standard
: BS EN 14055:2018

Additional Info & Downloads

Download the Installation Instruction For Cistern Pdf File Download the Installation Instruction For Flush Plate Pdf File Download the Product Data Sheet For Cistern Pdf File Download the Product Data Sheet For Flush Plate Pdf File

Technical Images

Cistern

Flush Plate

£319.20

RRP: ~~£399.00~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.

Crosswater Venue Slimline Dual Flush Concealed Cistern 4 and 6 Litres with Flush Plate
