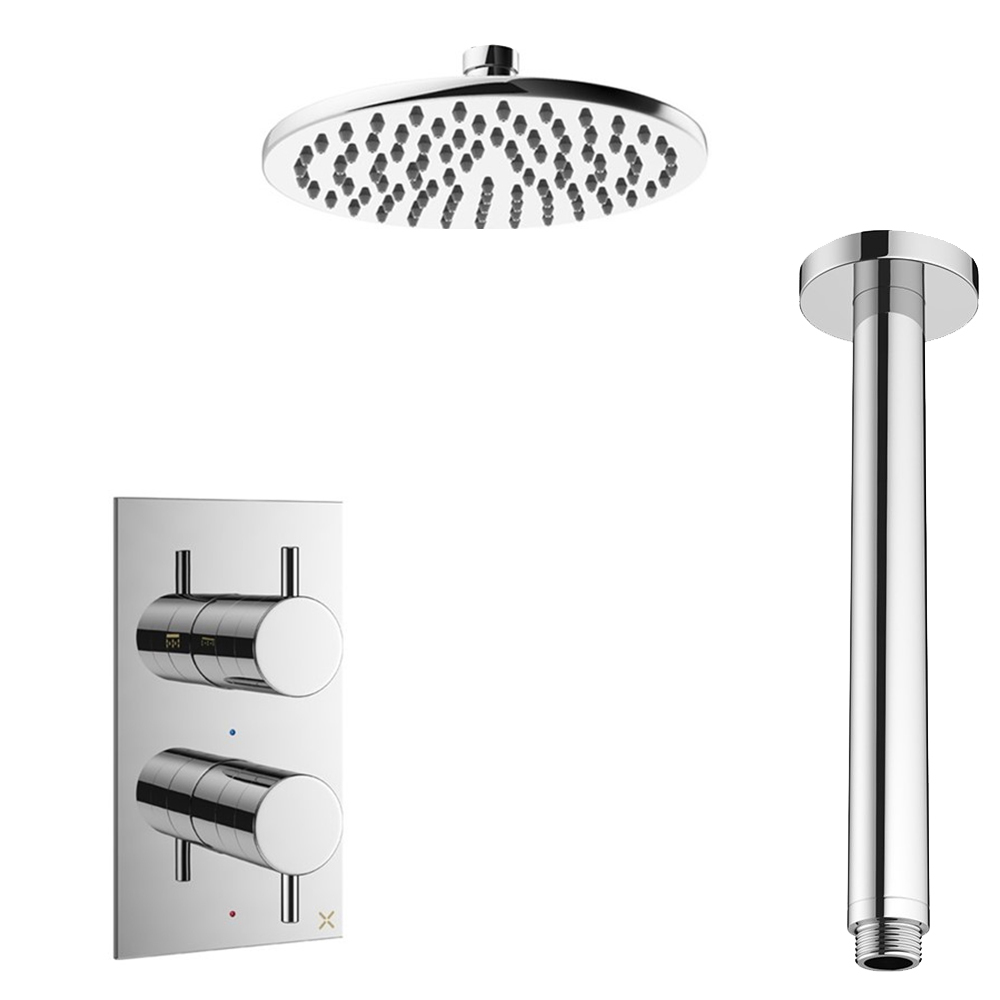

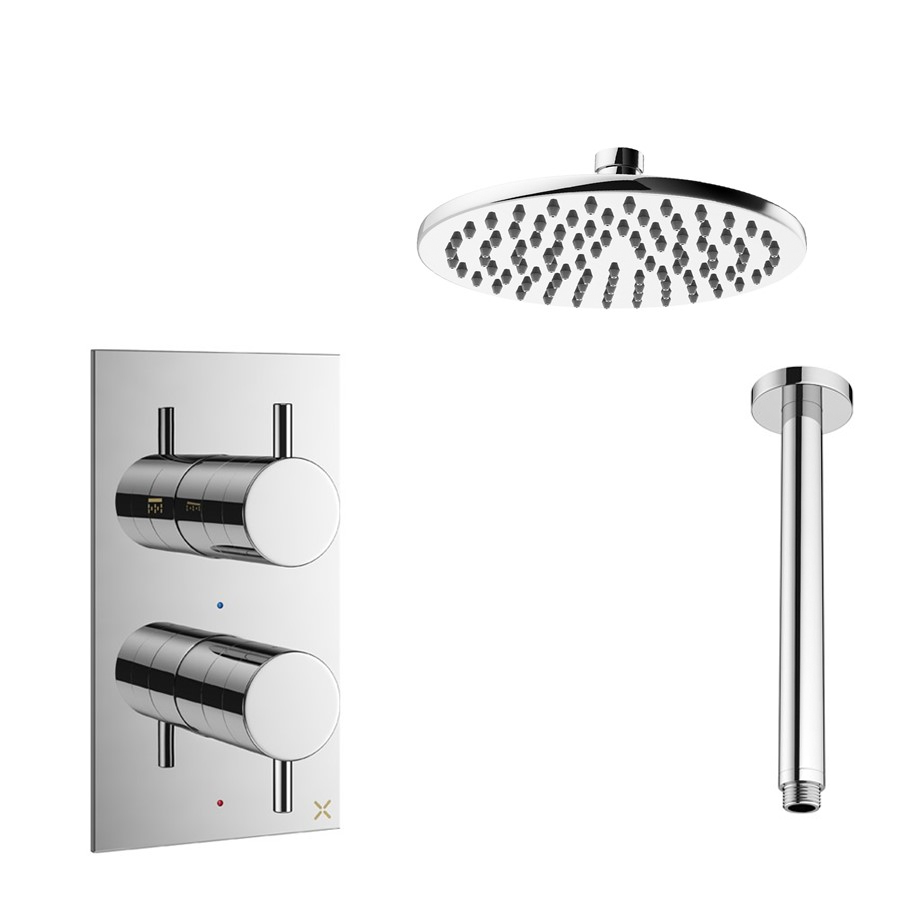

Crosswater MPRO Concealed Thermostatic Mixer Valve with Showerhead and Ceiling Mounted Arm

Not Yet Rated No Rating

£479.20

SKU: QS-V114192
Product Variants
Select Finish Step 1
Select Showerhead Size Step 2
Pay in 3-Interest Free Payments
Shipping

Shipping: £39.99

Stock Availability

Stock Availability:

7 Working Days Approx.

Crosswater MPRO Details

MFC: DESET1C200CL

Crosswater MPRO Concealed Thermostatic Mixer Valve with Showerhead and Ceiling Mounted Arm.

Key Features
  • Available in Chrome, Matt Black, Brushed Brass, Brushed Bronze, Brushed Nickel and Slate Finish [Optional]
  • Shower Set Includes - Trim Set, Valve Body, Shower Arm and Shower Head
  • Shower Head is available in 2 Size - 200mm and 300mm [Optional]
  • Long-lasting reliability, durability, and performance are ensured by premium solid brass and ABS construction
  • 15 Years Guarantee from Crosswater against manufacturing defects
  • Easy and accurate control of water flow and temperature is provided for consistent comfort
  • Protection against scalding and sudden temperature changes is built in for added safety
  • Front access is provided to allow easy servicing and maintenance
  • Refer to the Technical Drawing for more Technical details
  • Download the Customer Datasheet PDF from the Additional Info & Download section
  • Trim Set:
  • Shape Rectangular
  • Size of Backplate In [mm]: 120 x 215mm [Width x Height]
  • Size of Backplate In [cm]: 12 x 21.5cm [Width x Height]
  • Handle: 2
  • Handle Shape: Round with Stick lever
  • Comes with Collar
  • Weight: 2.3 Kg
  • Valve Body:
  • Installation type: Wall Mount / Concealed
  • Size: Width 66 x Depth 132 x Height 183mm
  • Protection against scalding and sudden temperature changes is built in for added safety
  • Front access is provided to allow easy servicing and maintenance
  • Inlet and Outlet Connection: G3/4 Inch
  • Outlet: 1
  • Function: 1
  • Diverter and Thermostatic Cartridge
  • WRAS: 2203300, KIWA Reg 4: 2201704 KIWA and TMV2:- 2203756
  • Standard BS EN 1111:2017
  • Suitable for Medium Pressure Water System
  • Requires a Minimum 0.5 bar and a Maximum 5.0 bar Operating Water Pressure
  • Shower Arm
  • Material: Brass
  • Suitable for Wall Mount Installation
  • Height: 200mm
  • Back Cover Plate: Ø55mm
  • G1/2" Inlet and Outlet Connection
  • Shower Head
  • Shape: Round
  • G1/2" Inlet Connection
  • Height: 58mm
  • Head Thickness: 200mm: 5.8 and 300mm: 8mm
  • KIWA Approved: 2312748
  • Suitable for Medium Pressure Water System
  • Requires a Minimum 0.5 bar and a Maximum 5.0 Bar operating Water Pressure
  • Number of Outlets: 1
  • Number of Functions: 1

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Colour
  • : Chrome
  • ⤷ Warranty/Guarantee
  • : 15 Years
  • ⤷ Material
  • : Brass
  • ⤷ Theme
  • : Modern
  • ⤷ Valve Included
  • : Yes
  • ⤷ Valve/Cartridge Type
  • : Thermostatic
  • ⤷ Inlet Connections
  • : G1/2
  • ⤷ Minimum Operating Pressure (Bar)
  • : 0.5
  • ⤷ Configuration
  • : Shower Valve | Shower Arm | Shower Head
  • ⤷ Backplate Width
  • : 120
  • ⤷ Backplate Height
  • : 215
  • ⤷ Compliance/Approvals/Standard
  • : TMV2 | KIWA | WRAS
  • ⤷ Shower Head Included
  • : Yes
  • ⤷ Shower Head Size
  • : 200

Additional Info & Downloads

Download PDFDownload the Customer Datasheet - 200mm Showerhead Pdf File Download PDFDownload the Customer Datasheet - 300mm Showerhead Pdf File Download PDFDownload the Valve Body Installation Instruction Pdf File Download PDFDownload the Showerhead - Installation Instructions Pdf File

£479.20
Stock Availablity: 7 Working Days Approx
QS Supplies

6 Features Included In This Product Explained

WRAS Approved Component

WRAS Approved Component

A WRAS-approved component refers to a product or fitting that can be used with the public mains water supply in the UK as it satisfies the conditions outlined by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such components can be whole products (valves or rubber) or materials used to manufacture products.

KIWA Approved

KIWA Approved

KIWA is a universally accepted Dutch approval standard at par with German DVGW, Austrian OVGW, Swiss SVGW, and French NF approval systems. The KIWA approval means that the products meet a high-quality standard for portable water and gas-related products.

TMV2 Approved Product

TMV2 Approved Product

TMV2 is an independent certification for thermostatic mixers, including shower valves, run by BuildCert that ensures national and international standards as specified under (BS EN 1111 and 1287) are met. These standards detail the exacting requirements that a thermostatic valve or product must comply with to guarantee a high thermostatic protection and safety standard. Products meeting this requirement carries the logo and protect against any scalding accidents.

Medium Water Pressure

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

Thermostatic Control

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

1-Outlet

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.
