Lecico Atlas Economy Close Coupled WC Pan DOC M Pack, EDOCM

Lecico Atlas Details

MFC: EDOCM

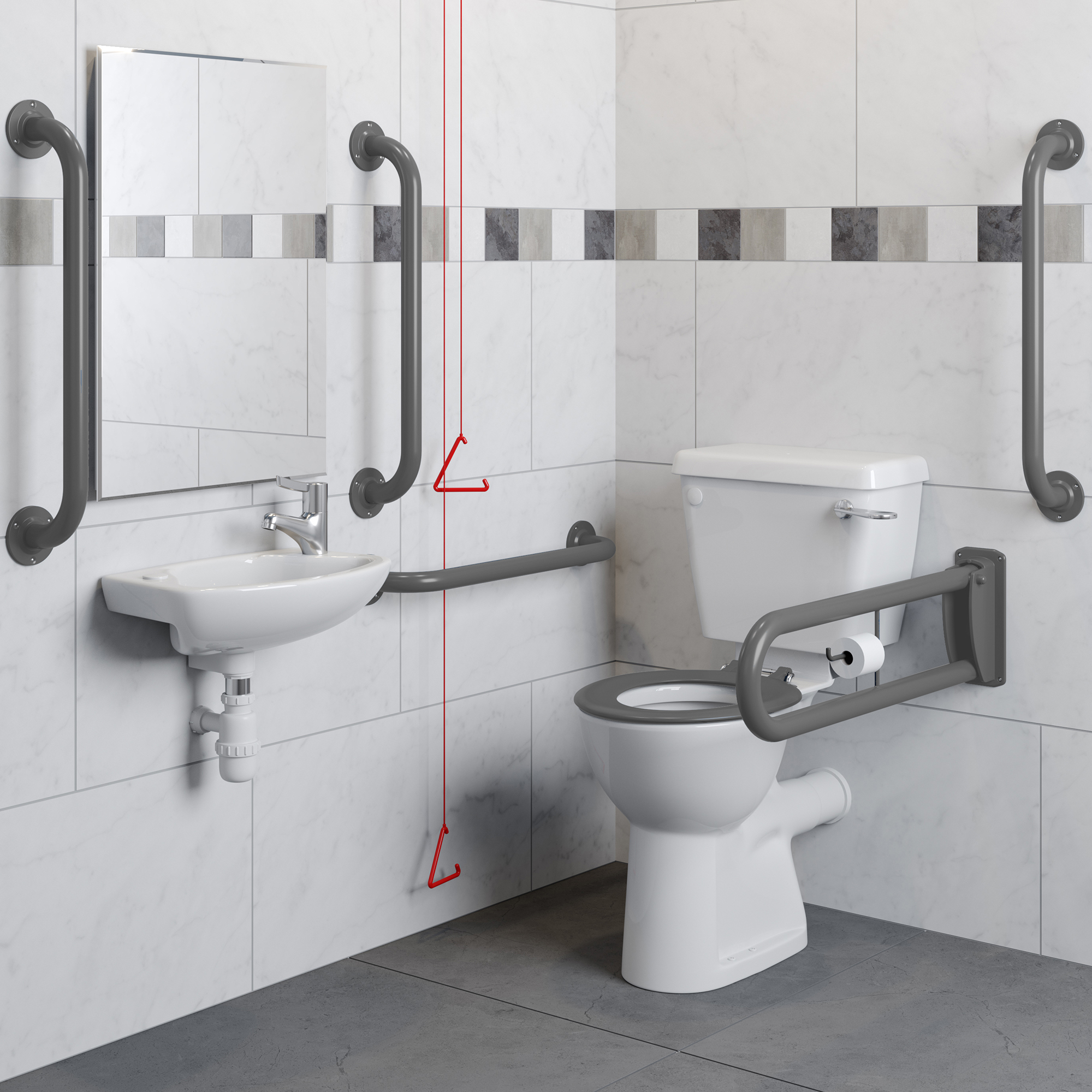

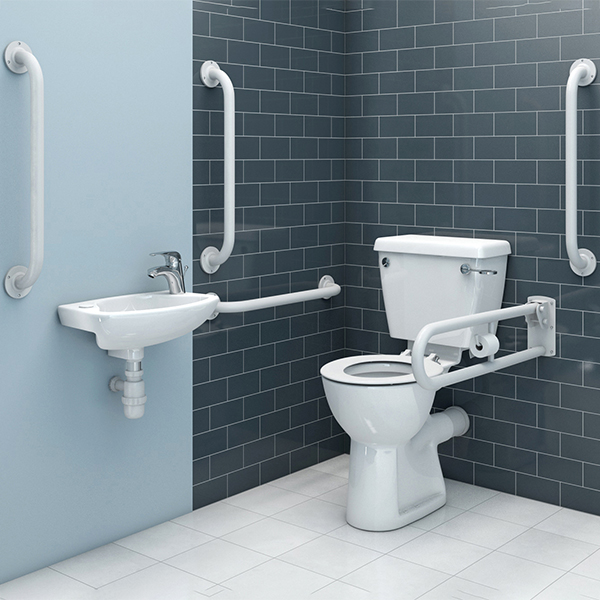

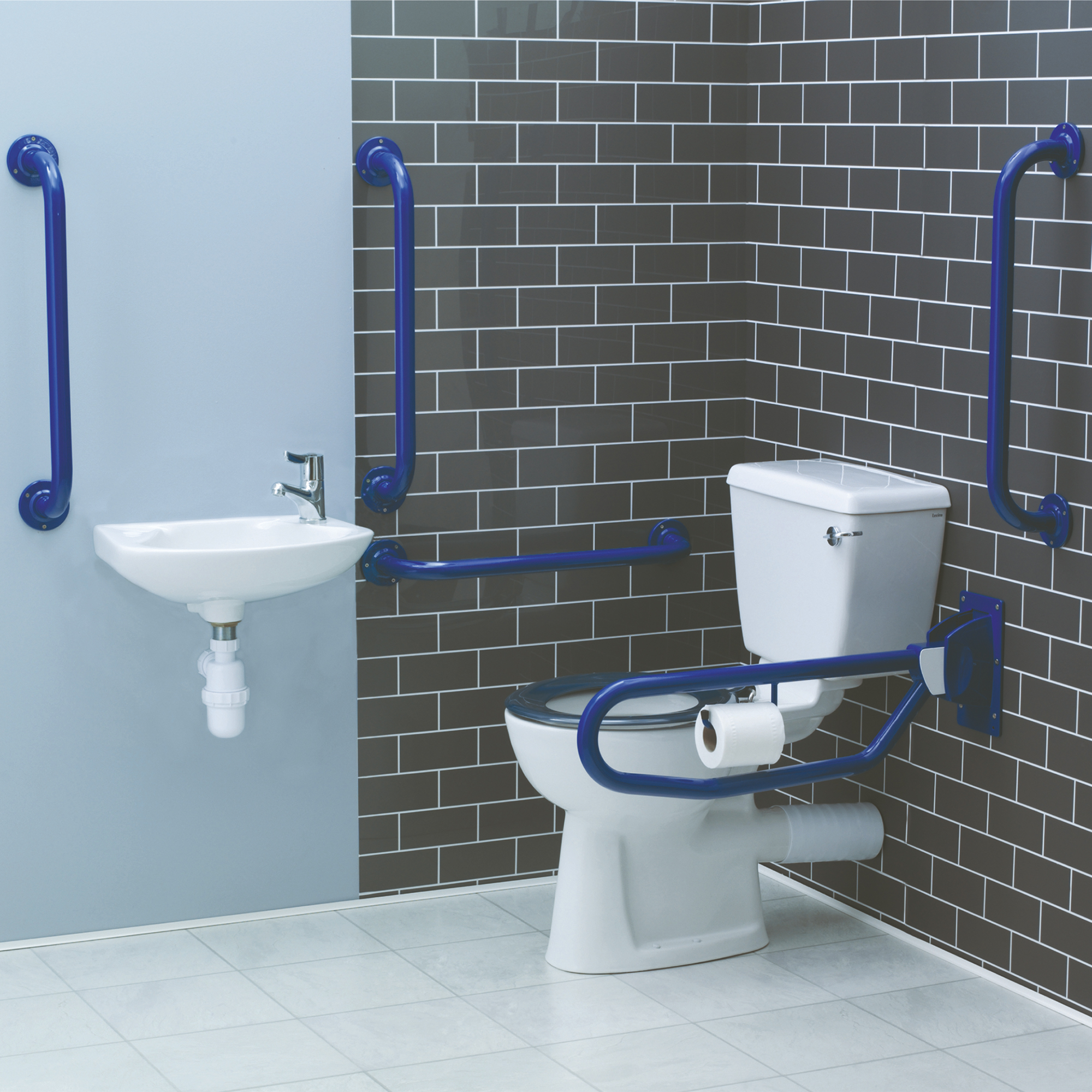

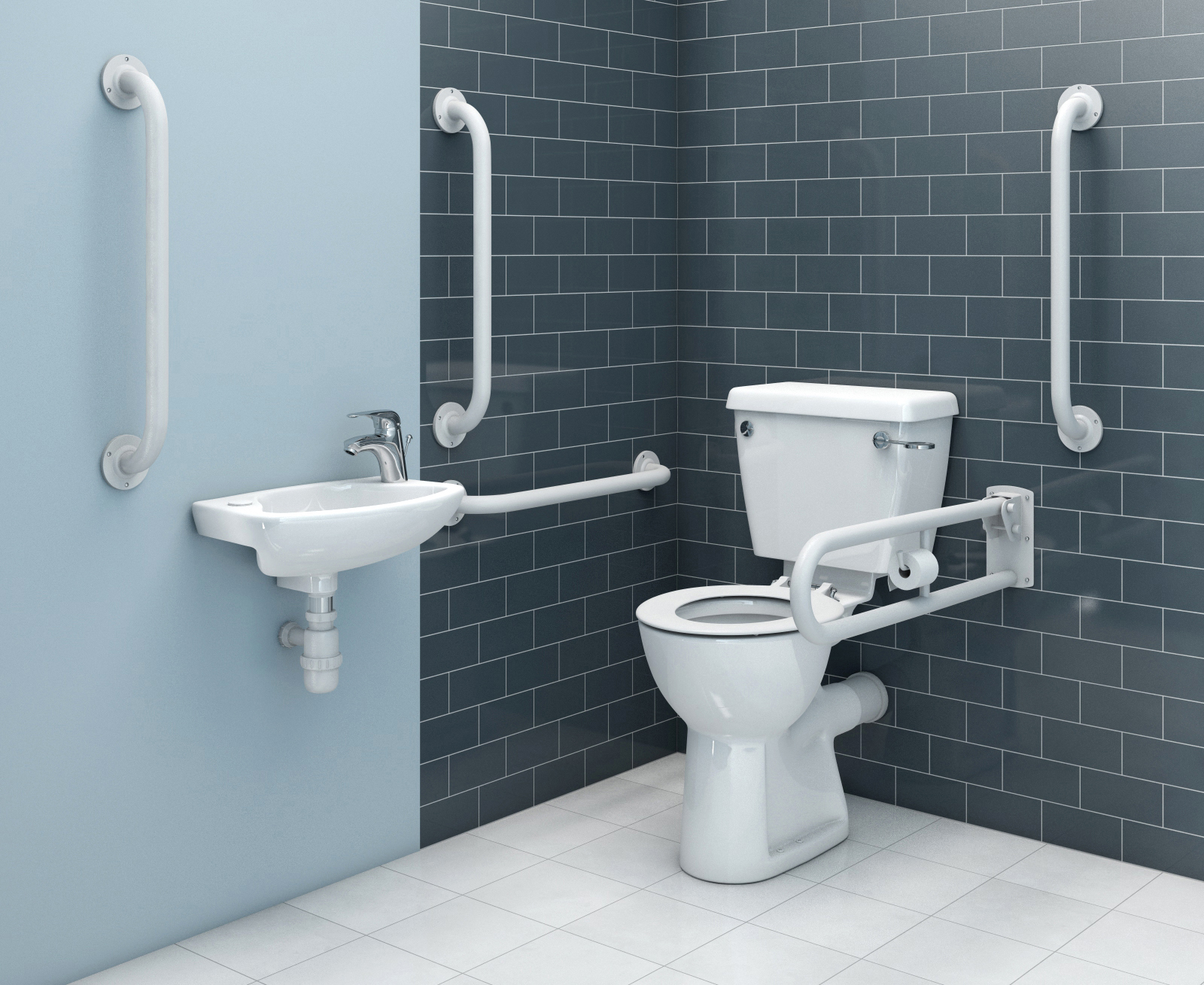

Lecico Atlas Economy Close Coupled WC Pan DOC M Pack.

Key Features

✔Choice of Finishes: White, Blue and Grey
✔Material: Vitreous China, Mixed Plastics and Metals
✔Sanitaryware Comes in a White Finish
✔Weight: 53.5kg
✔Guarantee: Lifetime for Ceramics and 5-Year for Tap from the Manufacturer

Pack Includes:
460mm Basin Without Overflow and Inc Grated Waste with Brackets
Sequential Lever Tap
5x 600mm Grab Rails and 1x 800mm Hinged Grab Rail and a Backrest
Raised Height WC Pan and Ringed Seat
Single Flush Cistern and Fittings and Inc Spatula Lever
Document M of the Building Regulations (2004) and BS8300-2009 Provide Government Guidance On the Layouts of an Accessible Washroom in Non-Domestic Settings
It Ensures Consistent Levels of Installation and Function Designed for All users
Features of WC Pan & Cistern:
UKCA Compliant
Outlet: Horizontal
Size of Pan [mm]: 365 x 471mm [Width x Height]
Size of Pan [cm]: 36.5 x 47.1cm [Width x Height]
Projection: 712mm [71.2cm]
Overall Height: 855mm [85.5cm]
Size of Cistern [mm]: 445 x 215 x 345mm [Width x Depth x Height]
Size of Cistern [cm]: 44.5 x 21.5 x 34.5cm [Width x Depth x Height]
Flushing Volume: 6ltr Single Flush
Flushing Mechanism Lever Action: Left or Right Hand
Inlet: Bottom Inlet
Dual Punched
Lockable Lid by Screw
Raised Height for More Comfort
Features of Basin:
UKCA Complaint
35mm Tap Holes
Size [mm]: 459 x 290 x 165mm [Width x Depth x Height]
Size [cm]: 45.9 x 29 x 16.5cm [Width x Depth x Height]
Includes a White Tap Hole Blanking Plug
Two Tap Hole Basin Supplied with a Tap Hole Stopper
Ideal for Commercial Applications and is Compliant with LANTAC
Can be Left or Right Handed, to Ensure the Tap is Closest to the WC
Features of Tap:
WRAS Approved
Comes in a Chrome Finish
Ceramic Disc Cartridge
Simple Lever Operation
Centre of the Inlet to Centre of the Outlet: 105mm [10.5cm]
Inlet Centre: 42mm [4.2cm]
Height: 132mm [13.2cm]
Reinforced Cartridge for Heavy-Duty Use
Suitable for Low and High Water Pressure System
Requires a Minimum of 0.2 Bar to a Maximum of 5.0 Bar of Water Pressure
Features of Grab Rail Pack:
5x 600mm Length Grab Rails
1x 800mm Hinged Rail [Without Toilet Roll Holder]
Exposed Fixings
Designed with the User in Mind
Features of Seat:
CE Compliant
Width: 373mm [37.3cm]
Fixing: Bottom Fix
Ring Supplied with Stainless Steel Hinges
Its Durable Design is Chemical, Flame and Scratch Resistant

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Suite Includes
: WC Pan, Cistern, Seat, Basin, Tap, Grab Rails
⤷ Basin Colour
: White
⤷ Basin Size - (Width x Depth x Height)
: 459 x 290 x 165
⤷ Sink Material
: Vitreous China
⤷ Basin Tap Included
: Yes
⤷ Basin Tap Holes
: 2
⤷ WC Colour
: White
⤷ WC Pan Size - (Width x Depth x Height)
: 365 x 471
⤷ Toilet Overall Height
: 855
⤷ Toilet Projection (Depth)
: 712
⤷ Cistern Included
: Yes
⤷ Cistern (Width x Height x Depth)
: 445 x 215 x 345

⤷ Flush Type
: Single Flush
⤷ Full Flush Volume in litres
: 6
⤷ Flush Mechanism
: Lever
⤷ Cistern Lever Or Button Placement
: Left / Right
⤷ Toilet Outlet
: Horizontal
⤷ Toilet Material
: Vitreous China
⤷ Seat Included
: Yes
⤷ Seat Type
: Ring Seat
⤷ Seat Finish
: White, Blue, Grey
⤷ Toilet Installation Type
: Floorstanding
⤷ Warranty/Guarantee
: Lifetime: Ceramic, Tap: 5 Years
⤷ Theme
: Modern

Technical Images

£804.40

RRP: ~~£1005.49~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

12 Features Included In This Product Explained

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Thermoplastic (Polypropylene)

Thermoplastic, specifically polypropylene is an injection moulded plastic material with a glossy finish. Products made with this material are easy to clean, warm to the touch, and flexible. Polypropylene is also resistant to chemicals and shatterproof under normal temperature conditions.

Comfort Height

These toilets are usually a little higher than regular toilets. They measure from 17 to 19 inches off the ground.

UKCA Certified

UKCA or the UK Conformity Assessed marking is a mandatory UK product marking for products sold across Great Britain, equivalent to the CE Marking in Europe. UKCA will be used to replace the CE Marking. CE marking will no longer be valid in England, Scotland and Wales except in Northern Ireland from the 1st of January 2021, and the CE mark will stay valid until the 1st of January 2023. A product with UKCA marking shows that the product complies with the UKCA Marking requirements.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

CE Certified Product

CE mark meets the prescribed safety, health and environmental protection requirements and all appropriate EU requirements. This mark is mandatory for products designed, made and sold in the European Economic Area.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called 'without-overflow' and will need a compatible drain.

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...
