Reina Albano Vertical Flat Bar Designer Radiator, Aluminium, A-ABN18018W

Reina Albano Details

MFC: A-ABN18018W

Compatible Valves

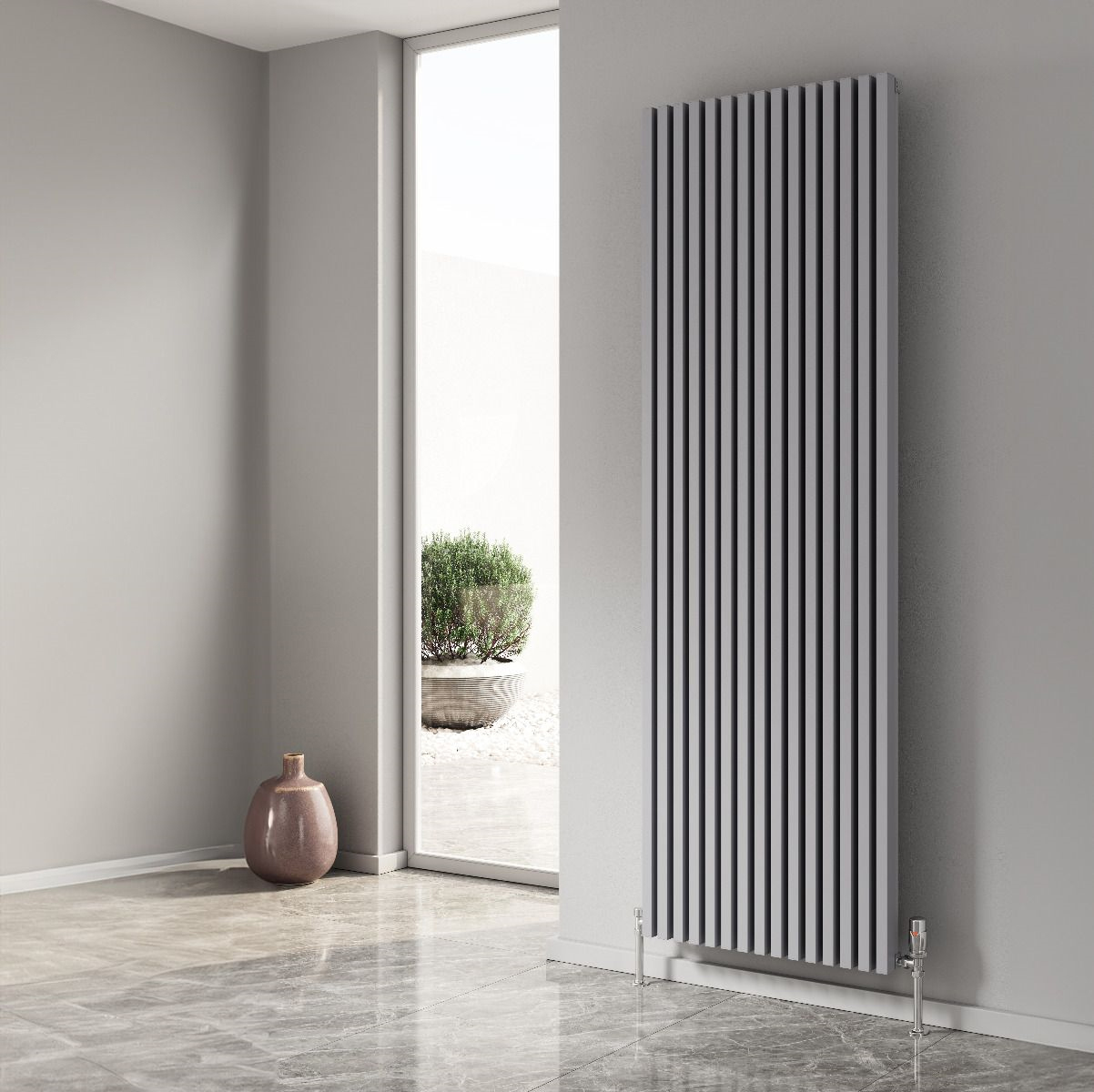

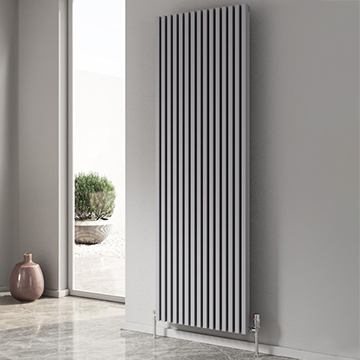

Reina Albano Vertical Flat Bar Designer Radiator with Brackets - Aluminium - 1800mm High.

Key Features

✔EN 442 Compliant Product
✔Brackets for Radiator Included
✔Constructed using Aluminium Material

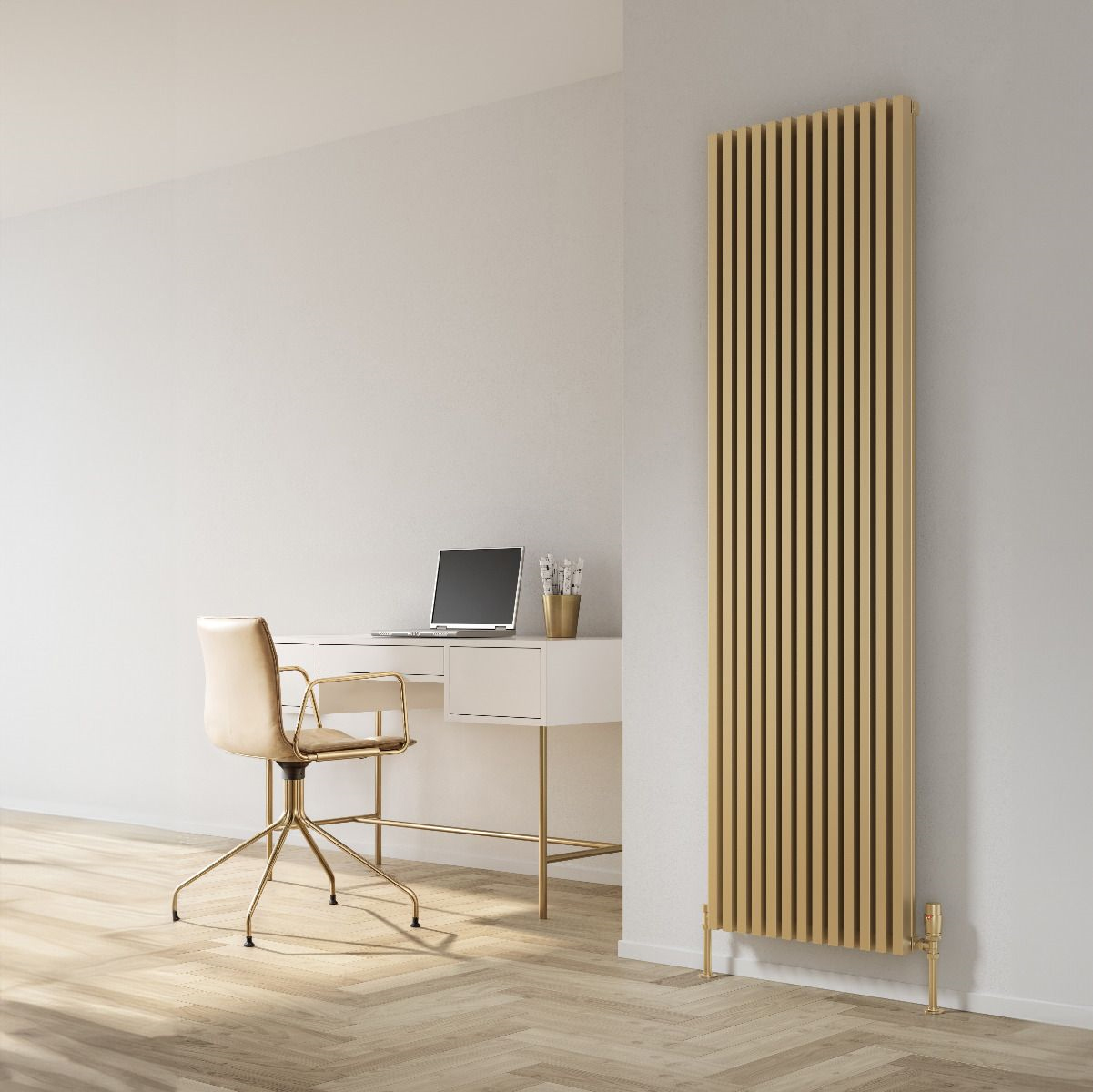

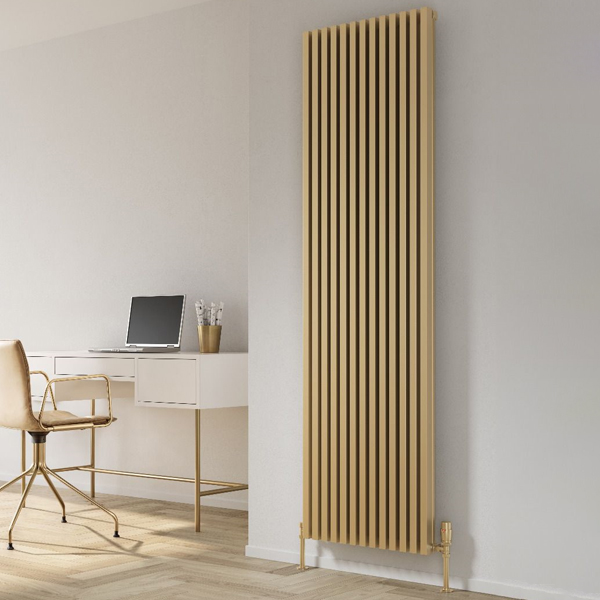

✔Choice of Finishes: White, Anthracite, Silver and Brass
✔5-Year Guarantee from Reina Against Manufacturing Defects

Choice of Widths: 190mm, 270mm, 350mm, 430mm, 510mm and 590mm
Height: 1800mm (180cm)
Wall to Pipe Centres: 50 (5cm)
Distance from Wall: 105mm (10.5cm)
Suitable for Central Heating Systems Only

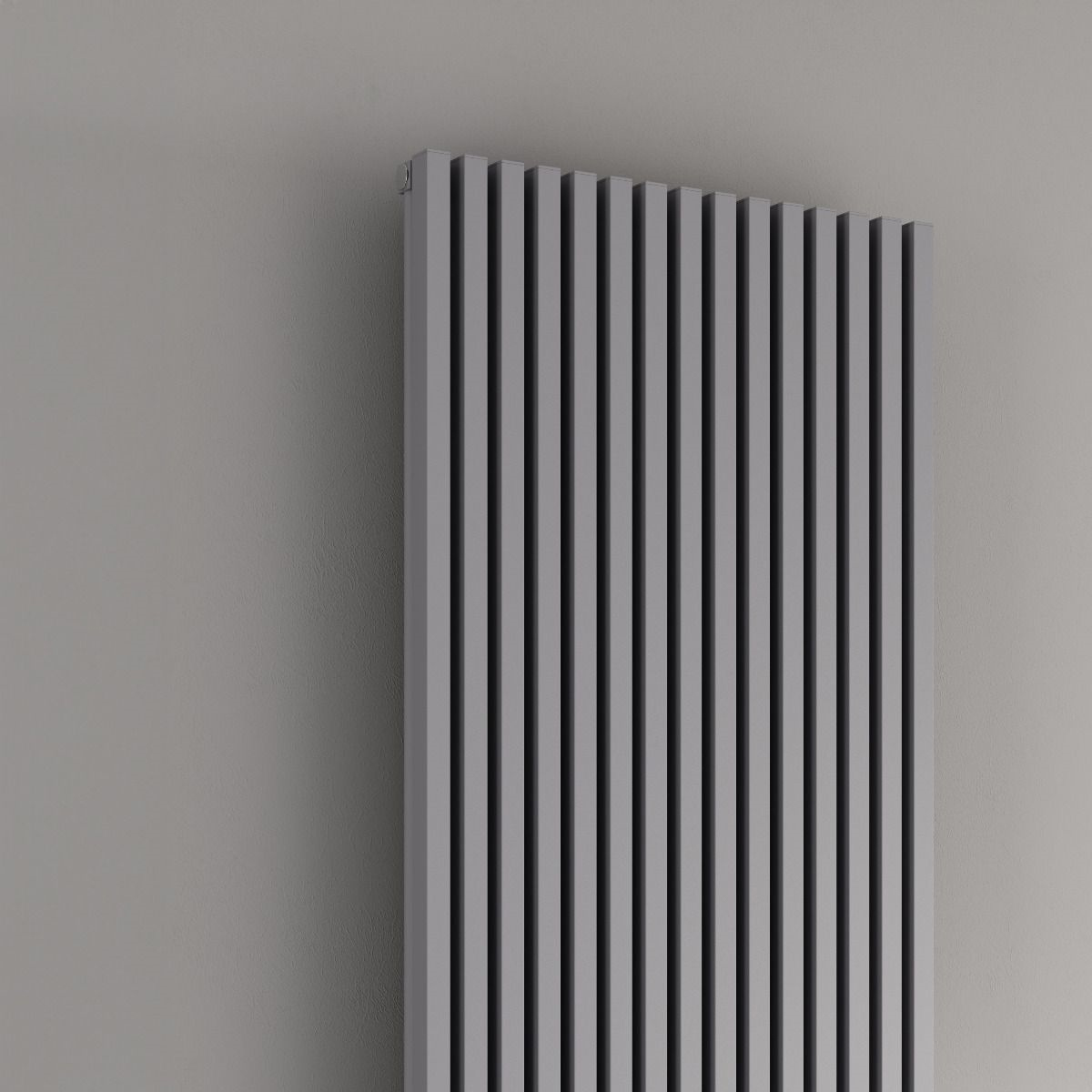

Featuring a sophisticated, Timeless Column Design
Supplied with Air Vent and End Plug
The Image Shown is for Illustration Purposes Only
For BTU and Watts, Please Refer to the Chart in the Product Variations Info and MFC Code Section
Valves, Sleeving Kit and Chrome Pipe Kit - [Optional]
Refer to the Radiator Valves Available in the Product
Technical Drawing Available for More Technical Details
Download the Customer Datasheet and Installation Instruction PDF Files from the Additional Info Section
The Valves Shown in the Image are not Included

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Albano
⤷ Colour
: White
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Aluminium
⤷ Installation Type
: Floor Standing
⤷ Projection (Depth)
: 105
⤷ Height
: 1800
⤷ Orientation
: Vertical

⤷ Barcode
: 8800161335605
⤷ BTU Output
: 60°C - 2599
⤷ Watts
: 60°C - 762
⤷ No. Of Bars
: 5
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating
⤷ Wall to Centre of Inlet
: 50

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Installation Instruction Pdf File

This item can also be found in:

Add-Ons

Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-243458 - 200mm Chrome Pipe Kit + £18.73
OP-243459 - 130mm Chrome Pipe Kit + £23.18
OP-243460 - 130mm Anthracite Pipe Kit + £23.18
OP-243461 - 130mm White Pipe Kit + £23.18
OP-243462 - 130mm Brushed Brass Pipe Kit + £23.18
OP-243463 - 130mm Black Pipe Kit + £23.18

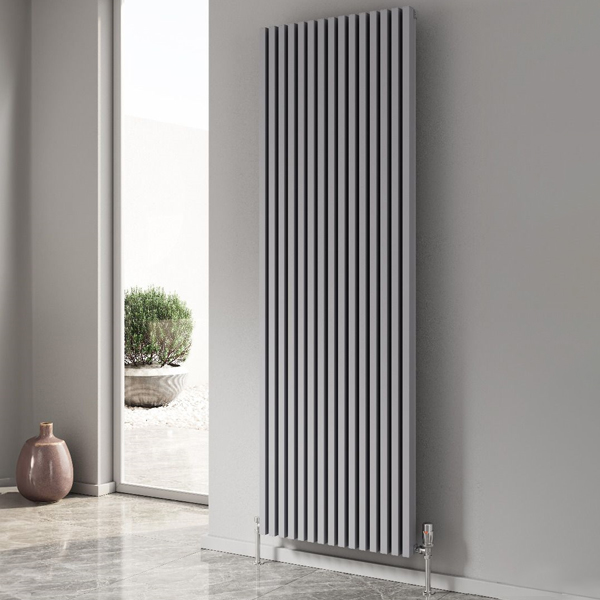

Reina Albano Vertical Flat Bar Designer Radiator with Brackets - Aluminium - 1800mm High

£229.82

RRP: ~~£403.20~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

Product Variations Info & MFC Code

Width	190mm	270mm	350mm	430mm	510mm	590mm
Finish	White	White	White	White	White	White
Pipe Centres	190	270	350	430	510	590
Wall to Pipe Centres	50	50	50	50	50	50
Wall Distance	105	105	105	105	105	105
Tube Quantity	5	7	9	11	13	15
Fuel Type	Central Heating	Central Heating	Central Heating	Central Heating	Central Heating	Central Heating
Watts - Delta-60	2599	3639	4679	5719	6758	7770
BTU - Delta-60	762	1067	1372	1677	1982	2279
Watts - Delta-50	635	889	1143	1398	1652	1899
BTU - Delta-50	2030	2843	3655	4468	5280	6070
MFC	A-ABN18018W	A-ABN18026W	A-ABN18034W	A-ABN18042W	A-ABN18050W	A-ABN18058W

Width	190mm	270mm	350mm	430mm	510mm	590mm
Finish	Anthracite	Anthracite	Anthracite	Anthracite	Anthracite	Anthracite
Pipe Centres	190	270	350	430	510	590
Wall to Pipe Centres	50	50	50	50	50	50
Wall Distance	105	105	105	105	105	105
Tube Quantity	5	7	9	11	13	15
Fuel Type	Central Heating	Central Heating	Central Heating	Central Heating	Central Heating	Central Heating
Watts - Delta-60	2599	3639	4679	5719	6758	7770
BTU - Delta-60	762	1067	1372	1677	1982	2279
Watts - Delta-50	635	889	1143	1398	1652	1899
BTU - Delta-50	2030	2843	3655	4468	5280	6070
MFC	A-ABN18018A	A-ABN18026A	A-ABN18034A	A-ABN18042A	A-ABN18050A	A-ABN18058A

Width	190mm	270mm	350mm	430mm	510mm	590mm
Finish	Silver	Silver	Silver	Silver	Silver	Silver
Pipe Centres	190	270	350	430	510	590
Wall to Pipe Centres	50	50	50	50	50	50
Wall Distance	105	105	105	105	105	105
Tube Quantity	5	7	9	11	13	15
Fuel Type	Central Heating	Central Heating	Central Heating	Central Heating	Central Heating	Central Heating
Watts - Delta-60	2599	3639	4679	5719	6758	7770
BTU - Delta-60	762	1067	1372	1677	1982	2279
Watts - Delta-50	635	889	1143	1398	1652	1899
BTU - Delta-50	2030	2843	3655	4468	5280	6070
MFC	A-ABN18018S	A-ABN18026S	A-ABN18034S	A-ABN18042S	A-ABN18050S	A-ABN18058S

Width	430mm	510mm
Finish	Brass	Brass
Pipe Centres	430	510
Wall to Pipe Centres	50	50
Wall Distance	105	105
Tube Quantity	11	13
Fuel Type	Central Heating	Central Heating
Watts - Delta-60	1677	1982
BTU - Delta-60	5719	6758
Watts - Delta-50	1398	1652
BTU - Delta-50	4468	5280
MFC	A-ABN18042B	A-ABN18050B

3 Features Included In This Product Explained

Optional: Radiator Valve

Radiator valves help control how much hot water enters and leave it, and the flow of water controls how much heat the radiator generates. These are usually found at the radiator's bottom left, and right corners, where the water pipes enter and exit, or can also be present at the bottom near the centre.
Read more...

Accordance With EN 442

This European Standard defines procedures for determining the standard thermal outputs and other characteristics of radiators and convectors fed with water or steam systems at temperatures lower than 120 degrees celsius from a remote energy source.

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
Read more...
