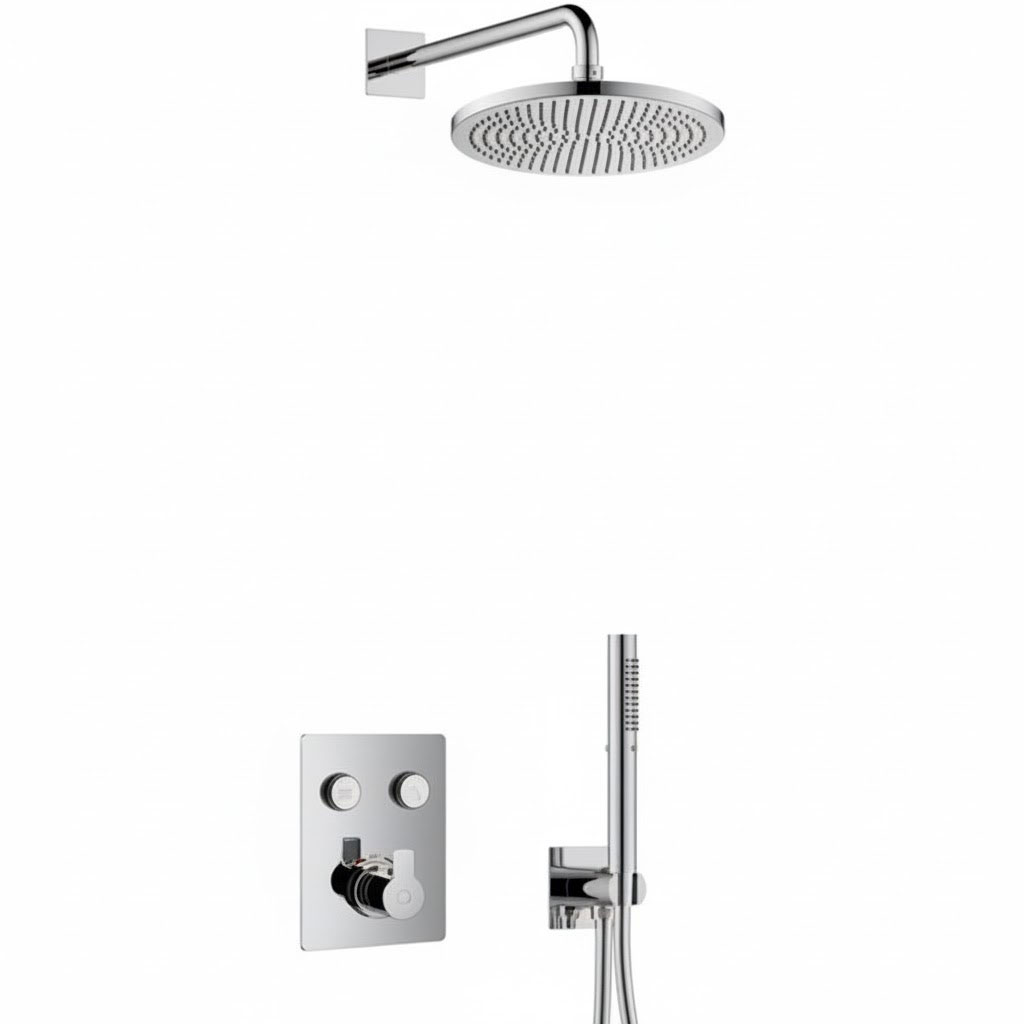

Flova Spring Concealed Thermostatic Valve, Rainshower Head & Handset Kit, SR2PK2

Flova Spring Details

MFC: SR2PK2

Flova Spring Chrome Concealed Thermostatic Valve with Rainshower Head and Handset Kit.

Pack Includes: 2 Outlet Thermostatic Concealed Shower Valve with GoClick Box, Overhead Shower, Arm, Outlet, Handset and Hose
Manufacturing Code of this Product: SR2PK2
Installation: Wall Mounted
Fully Compatible with UK Plumbing Systems
Refer to the Technical Image for Size Details
Details of Valve with GoClick Box:
WRAS Approved
Number of Outlets: 2
Orientation: Portrait
Shape: Rectangular
Installation Type: Concealed
Size of Backplate [mm]: 145 x 200mm [Width x Height]
Size of Backplate [cm]: 14.5 x 20cm [Width x Height]
Temperature Override Safety-Lock Button
Thermostatically Controlled to Maintain a Constant Temperature, for Safety and Peace of Mind
Anti Scald - Built-In Anti-Scald 38° Safety Button, Which Auto Shut-Off in Case of Cold Water Supply Failure
The Temperature is Kept Consistent Throughout the Shower by Compensating for Fluctuations Without User Interference
If the Cold Water Supply Fails, This Cartridge Reacts Immediately by Shutting Off Automatically to Avoid the Risk of Scalding
Supplied with GOBOX-UNI
Click & Go - Instant Flow and Smooth Operation. Have Full Flow Control of Your Outlets
Safety Override Button - 38° C Stop, Increase the Temperature by Pressing the Button to Keep Your Family Safe
High Flow - 3/4 Inch Inlets
Clear Hot & Cold Supply Indicators
85mm - 105mm Installation Depth Including a Clear Guideline for Ease of Installation
Offset Fixing points - Easy to Install with Front or Rear Access
Built in spirit Level for Precise Installation
When installing this Product with a Shower Pump, a Negative Head Pump is Recommend for Optimum Performance
Details of Round Overhead Shower
Installation: Wall or Ceiling Mounted
Easy to Clean with Silica Gel Nozzles
Diameter: 254mm [25.4cm]
Height: 65mm [6.5cm]
Inlet Connection: G 1/2 Inch
Comes with Rainshower Effect [20% Water Saving Air-Mix Shower Technology]
Details of Round Shower Handset
Two Spray Modes
Diameter: 24mm [2.4cm]
Height: 200mm [20cm]
Connection: G 1/2 Inch
Classic Pencil Handshower Boasts a Slim Body with Two Outlets
Effortlessly Transition to the Invigorating Power Spray by Simply Pressing the Button On Top, Ensuring User-Friendly Operation
Details Shower Arm
Square Shape
Diameter of Backplate: 65mm [6.5cm]
Length: 400mm [40cm]
Inlet and Outlet Connection: G 1/2 Inch
Details of Hose
Material: PVC
Smooth Exterior
Flexible Easy-To-Clean
Length: 1500mm [150cm]
Inlet and Outlet Connection: G 1/2 Inch
Details of Square Wall Outlet
Comes with Handset Holder
Backplate Diameter: 60mm [6cm]
Depth: 70mm [7cm]
Inlet and Outlet Connection: G 1/2 Inch

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Diamond Chrome
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Water Saving
: Yes
⤷ Hose Included
: Yes
⤷ Hose Length
: 1500
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 145
⤷ Backplate Height
: 200

⤷ Anti-Scald
: Yes
⤷ Compliance/Approvals/Standard
: WRAS
⤷ Product Type
: Shower Set
⤷ Showerhead Finish
: Diamond Chrome
⤷ Hose Type
: Flexible
⤷ Adjustable maximum temperature stop
: Yes
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Head)
: Air Mix Rainshower
⤷ Shower Head Included
: Yes
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

This item can also be found in:

Thermostatic Mixer Showers

Flova Spring Chrome Concealed Thermostatic Valve with Rainshower Head and Handset Kit

£830.82

RRP: ~~£1238.00~~

Stock Availablity: 6 Working Days Approx

QS Supplies

7 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Temperature control

The Thermostatic mixers have a temperature control mechanism that keeps the temperature constant at all times.

Easy Clean Nozzles

Shower heads and handsets can be easily cleaned with a damp cloth, preventing limescale build-up.

Air-Mix Rainshower

An Air-Mix Rainshower in a Flova bathroom aerates the water that flows through the showerhead for a softer showering experience.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

GoClick TECHNOLOGY

GoClick® technology in Flova makes life easy for the installer. The GoClick easy-fit box has been designed to allow accurate installation. It has 3/4 inch inlets for high-flow water pressure and a built-in spirit level, easy snap guides and offset fixing points for easing the installation process. The valve can be adjusted between 85 and 105mm to ease installation. The GoClick® mechanism enables water flow just with the click of a button. The user can enjoy a relaxing and intuitive showering experience. Products equipped with GoClick® are easy to operate, safe to use and offer consistent temperature without the risk of scalding. The built-in safety override button has been pre-set to 38 degrees Celcius and increases the temperature after the button is pressed. The button is within easy reach if you want to switch it back to 38 degrees Celcius.
