Bristan Buzz Black Finish Thermostatic Bar Shower With Rigid Riser

Buzz BUZ SHXDIVCTFF BLK Details

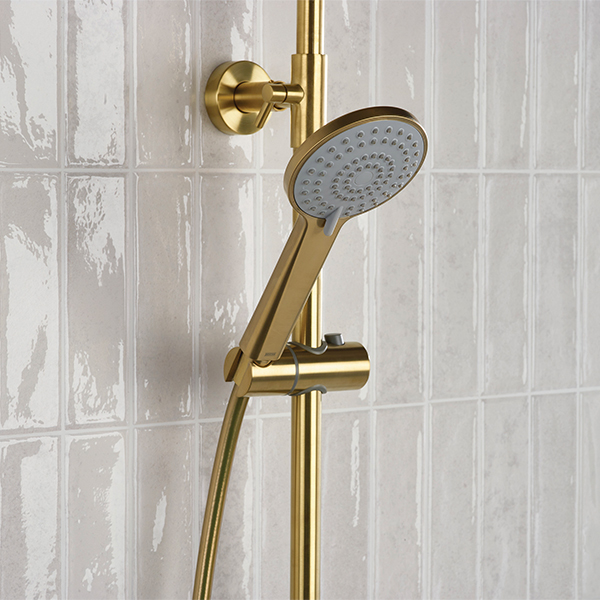

From Bristan comes another top-quality fixture, this time a thermostatic Bar Shower With Rigid Riser. A part of the brands Buzz range, this surface-mounted installation comes with a hose, height adjustable riser rail, and a rub-clean anti-limescale shower rose and multi-function handset.

The product, made using premium-grade material, is extremely durable and has been designed for high water pressure-so. Remember to inspect your home's water pressure system before purchasing. The mixer's spotless black finish adds to its visual appeal. For quick installation, it is recommended to use built-in front-of-wall isolation valves and 15mm inlet connections.

Manufacturing code of this product: BUZ SHXDIVCTFF BLK.
It comes in a black finish.
Supplied with wall mount 12 fixing kit.
The simplest solution for installing, maintaining and replacing bar mixer showers using built-in front-of-wall isolation valves and 15mm inlet connections.
Suitable for high-pressure water systems.
Works on minimum 1.0 bar to maximum 5.0 bar water pressure.
Connection Inlet: 1/2inch Compression.
Connection Outlet: G1/2inch & Riser Outlet.
Number of Controls: 2.
Flow Control Valve Type: 25mm Cartridge.
Minimum Dynamic Pressure: (Bar) 1.0.
Maximum Dynamic Pressure: (Bar) 5.0.
Maximum Static Pressure: (Bar) 10.

Maximum Hot Water Temperature: (°C) 65.
Pre-set Outlet Temperature: (°C) 38.
Isolation Included: Yes.
Check Valve Supplied: Yes.

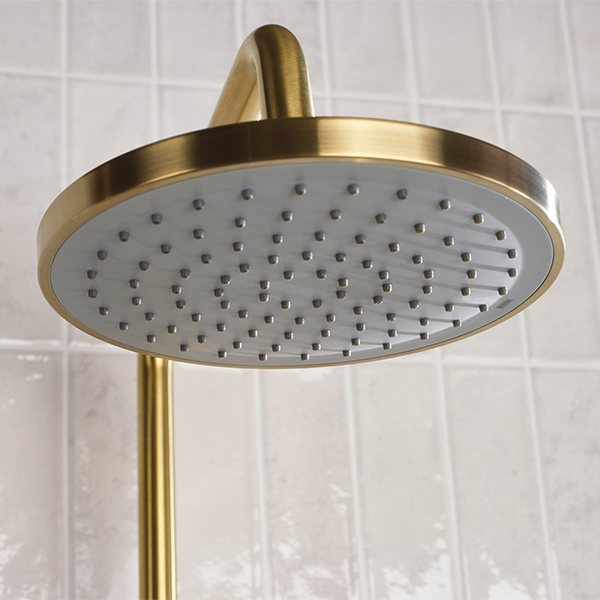

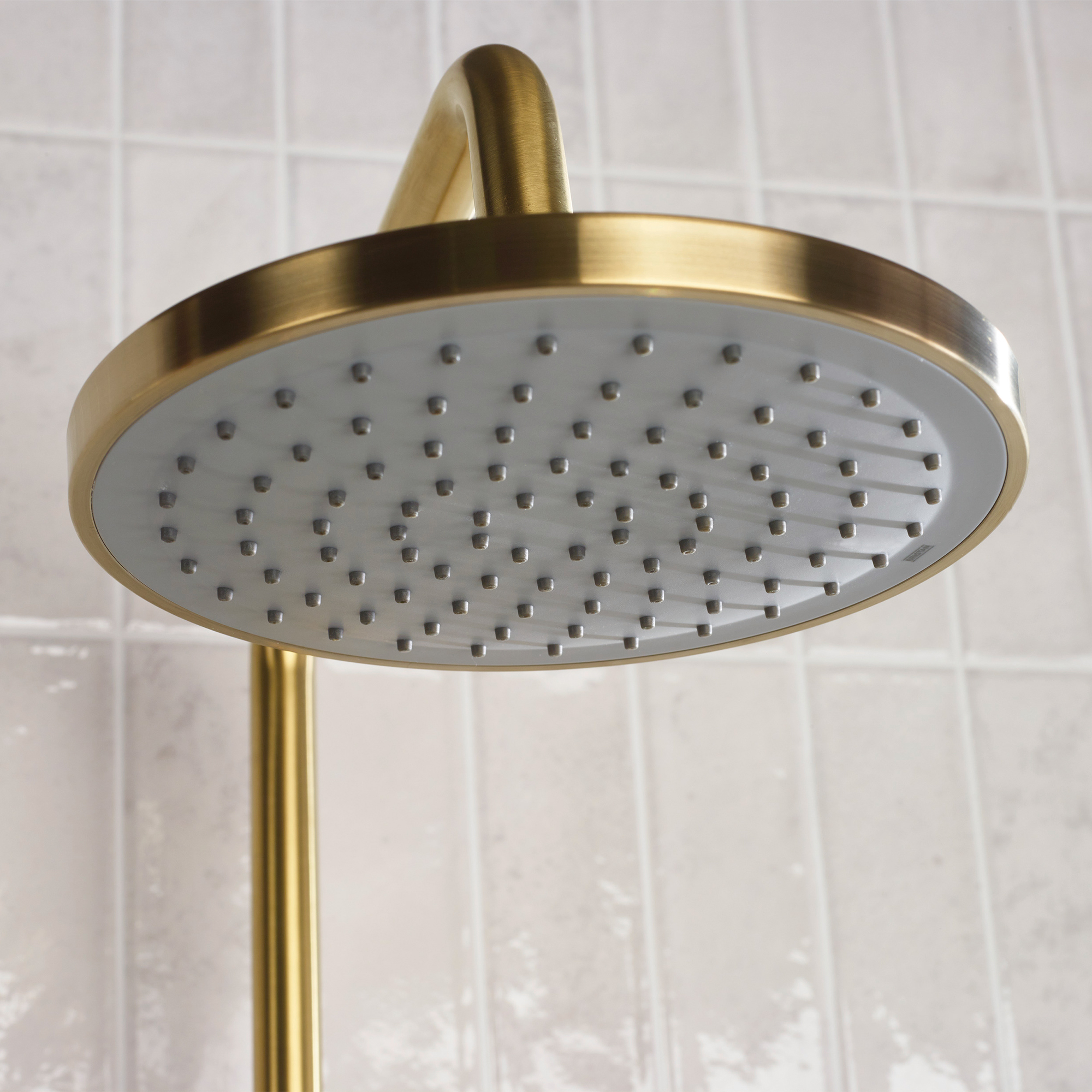

Shower head size: Ø200mm (20cm) Diameter.
Height of rail: 745mm - (74.5cm).
Width of a valve: 285mm - (28.5cm).
Inlet centre of a valve: 150mm - (15cm).

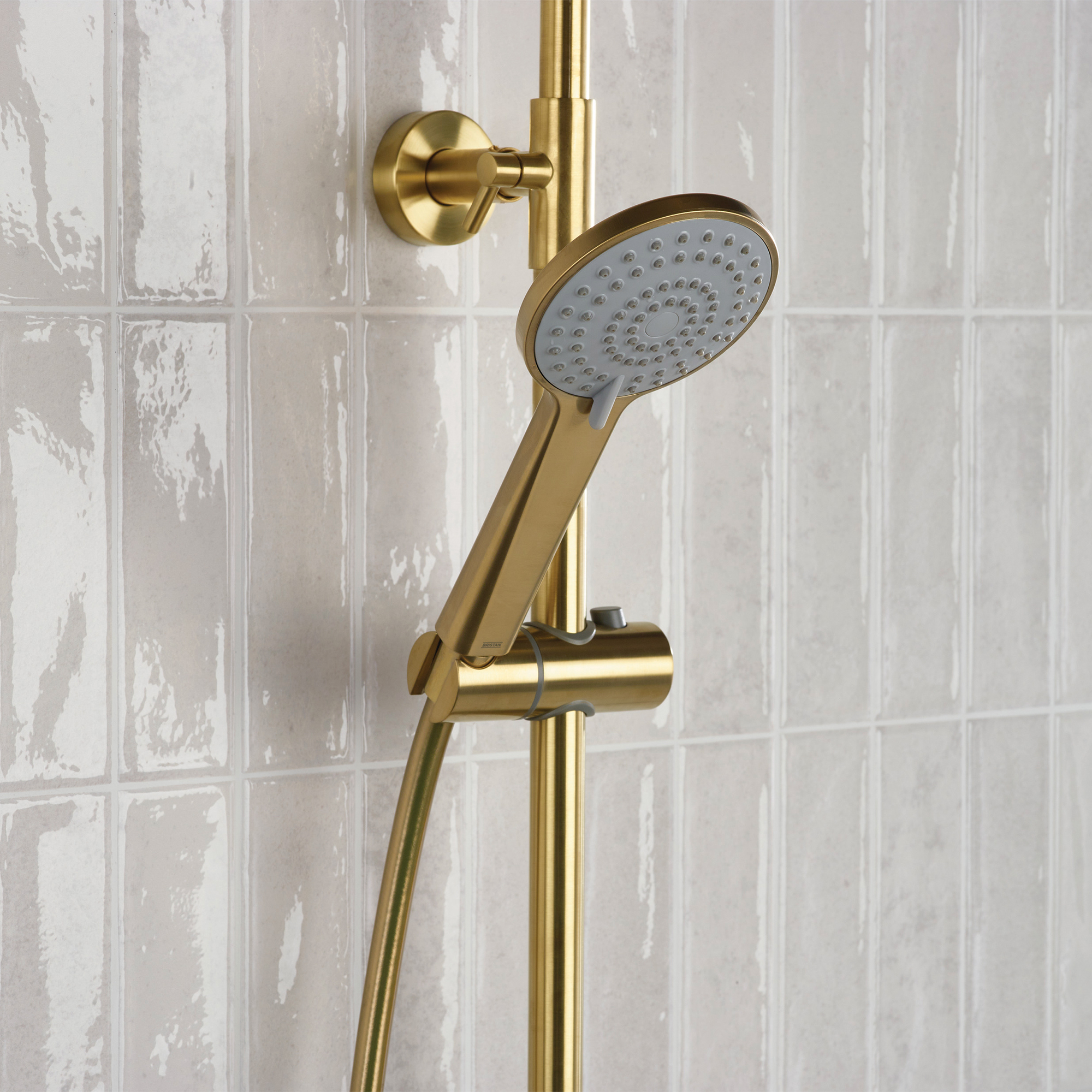

Size of handset in [mm]: 110mm x 240mm [Width x Height].
Size of handset in [cm]: 11cm x 24cm [Width x Height].
WRAS approved.
Refer to the technical diagram for complete technical dimensions.
Download the product data sheet and installations instructions PDF from the additional info section.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Black
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Zinc Alloy, ABS
⤷ Theme
: Modern
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Hose Included
: Yes
⤷ Configuration
: Bar Shower With Rigid Riser
⤷ Compliance/Approvals/Standard
: WRAS

⤷ Riser Rail & Kit Finish
: Black
⤷ Handset Included
: Yes
⤷ Spray Patterns (Shower Handset)
: Multi Function
⤷ Spray Patterns (Shower Head)
: Multi Function
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: Ø200mm
⤷ Adjustable Height
: Yes

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Total: £174.00 5-7 Working Days Approx QS Supplies

9 Features Included In This Product Explained

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Easy Fit Installation

The product is designed for fast and easy installation.

Rub Clean

Any limescale deposits can simply be wiped clean with a clean cloth - no need to scrub or use harsh cleaners.

Eco-Friendly

This feature saves you more on water consumption and bills. These showers save as much water as possible while showering without feeling low water pressure.

2 Outlets 1 On

There are two outlet connections, of which only one can be used at a given time.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.
