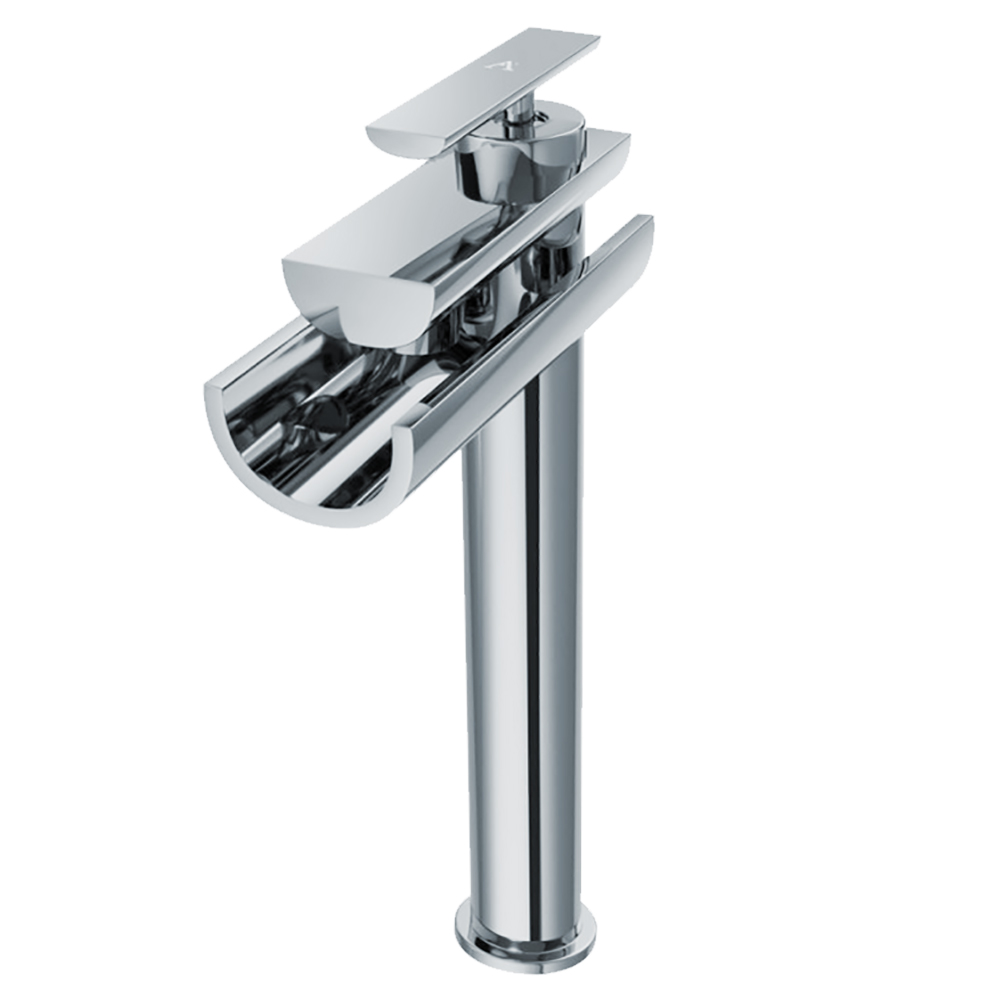

Jaquar Artize Confluence High Neck Chrome Basin Mixer Tap with Open Spout

Jaquar Artize Details

MFC: CNF-CHR-69009B

Jaquar Artize Confluence Deck Mounted High Neck Chrome Basin Mixer Tap with Open Spout - Lever Handle.

Key Features

✔WRAS Approved
✔600mm Long Braided Hoses
✔Suitable for High Pressure Water System
✔Open Spout without Pop-Up Waste

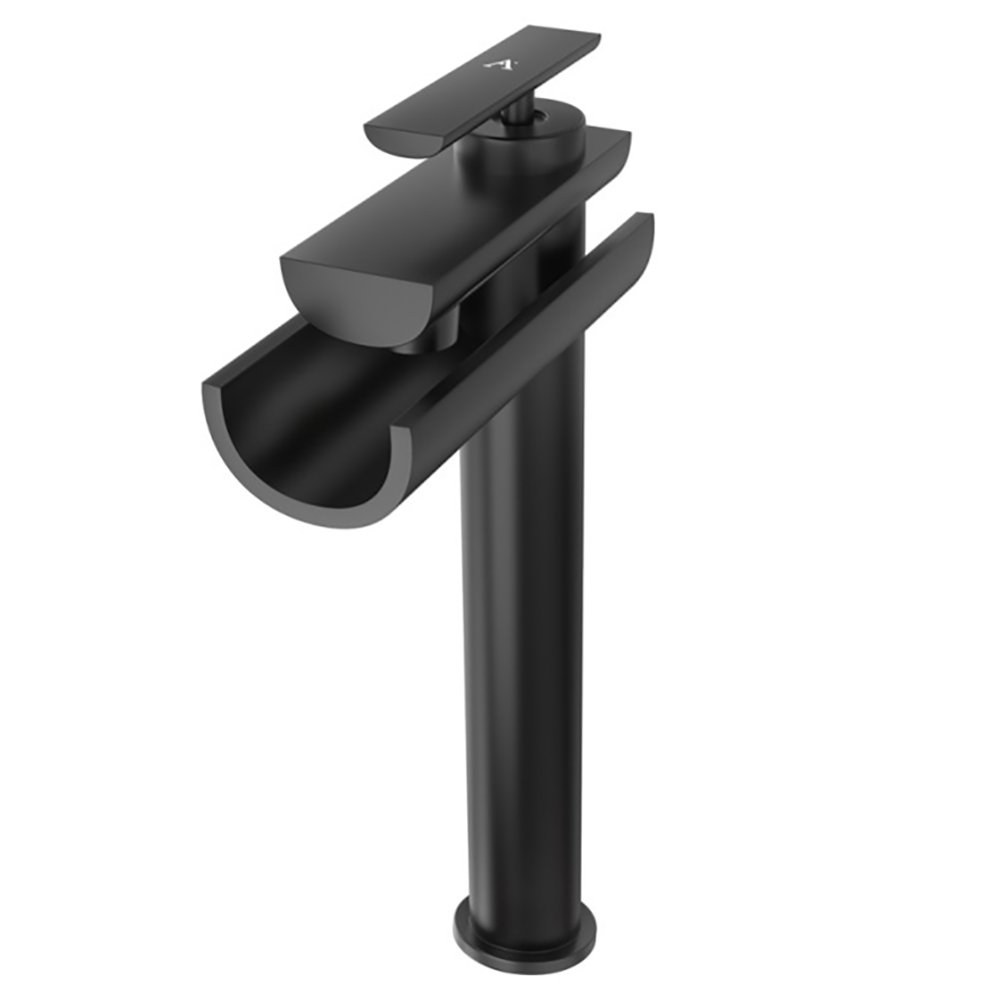

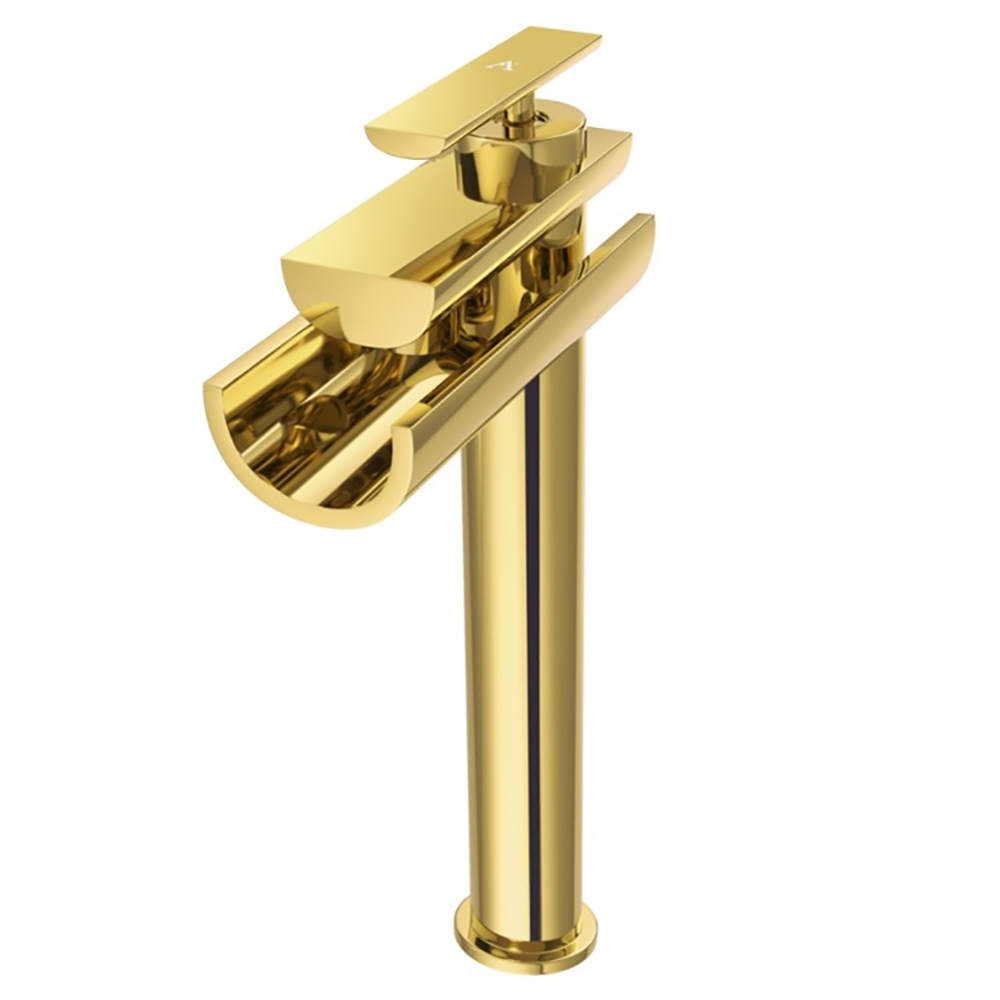

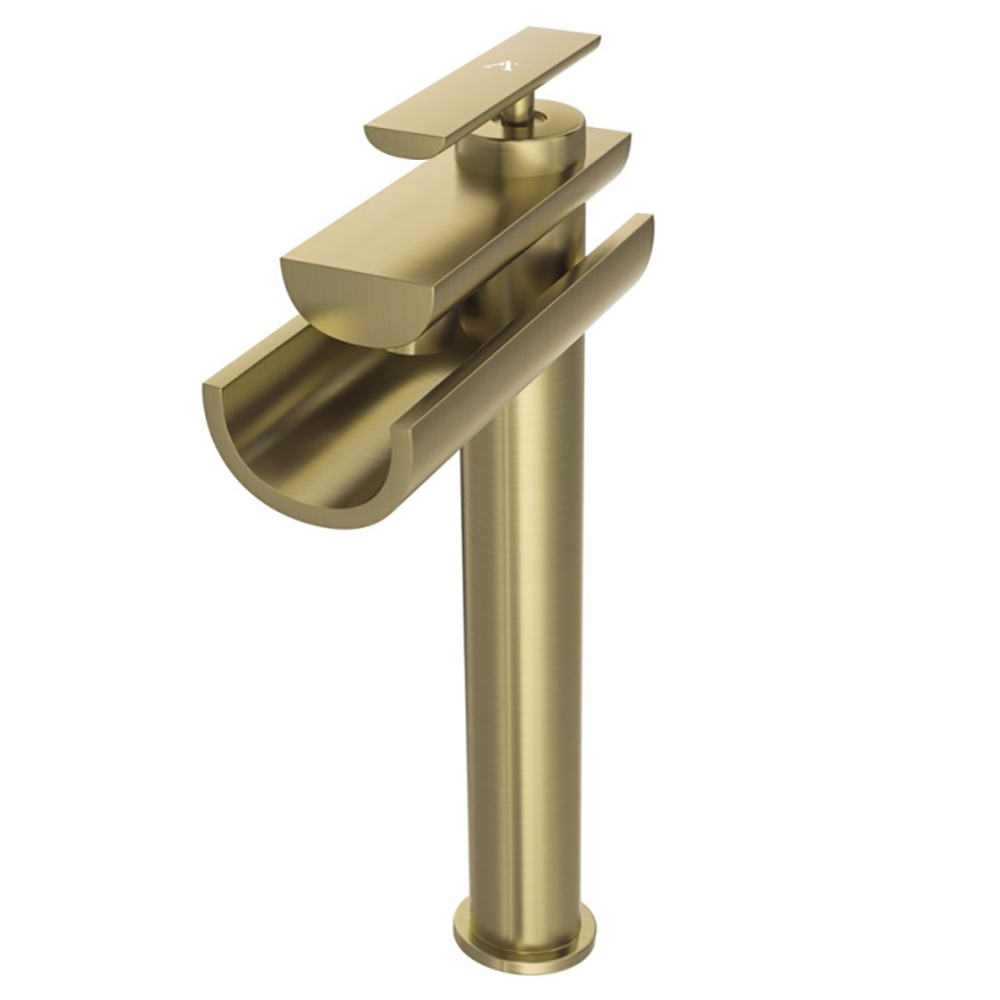

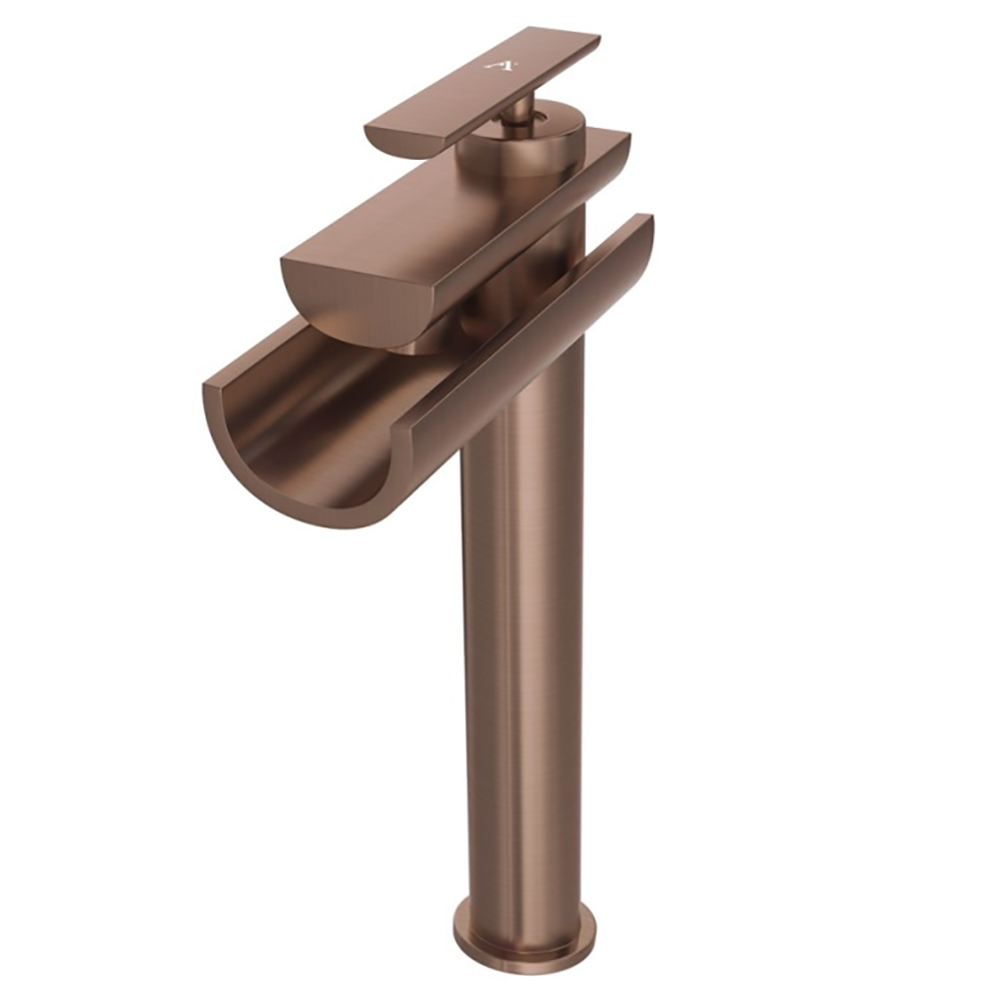

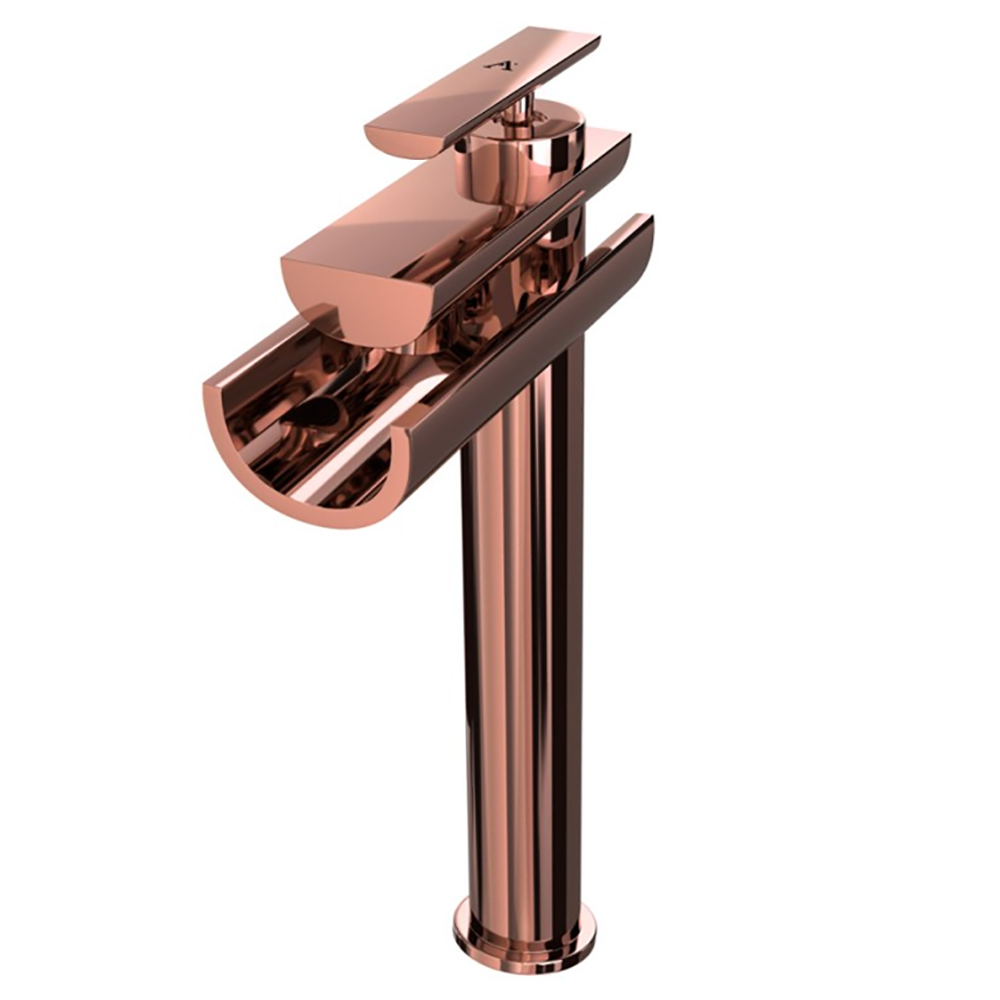

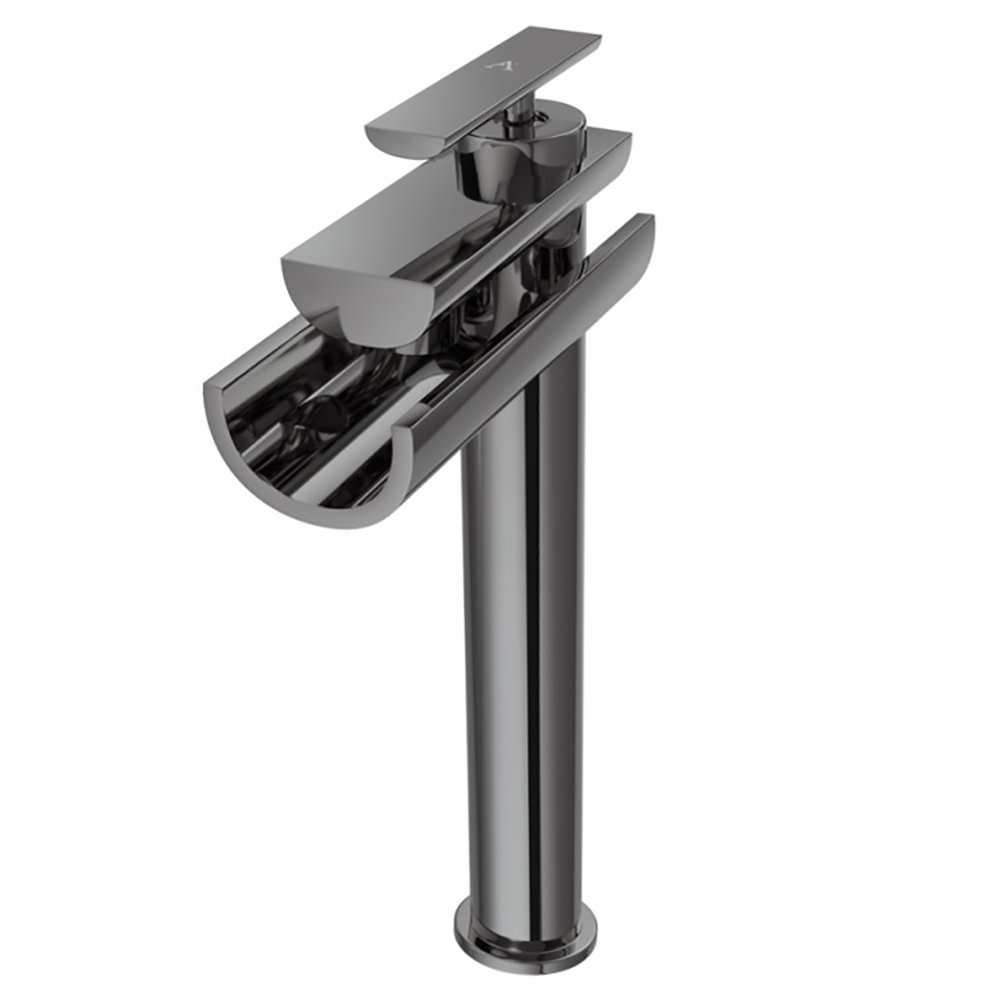

Available Finish: Antique Bronze, Antique Copper, Black Chrome, Black Matt, Blush Gold, Chrome, Gold Bright, Gold Matt [Optional]
Single Lever Control
1/2” FIP (WRAS Approved)
Height: 342mm
Base to Spout: 227mm
Centre of Inlet to centre of outlet is 165mm
Requires a minimum 1.0 bar to a maximum 5.0 bar operating water pressure
Brass Ingots as per IS:1264-1997
Brass Rod as per IS:319-1989
NSF-61 Approved Cartridge with Temperature Limiter
Cartridge with Brass Spindle
Life Cycle EN 817: 70,000 cycles (Standard)
2.1 LAC Cycles as per EN 817*
10.5 LAC Cycles (ON/OFF)*
Water Tightness: 16 bar (Pass)
Pressure Resistance: 25 bar (Pass)
1/2" Inlet Connection
Refer to the technical drawing for More technical details
Download Customer Datasheet PDF from the Additional Info & Download section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting / Tilting
⤷ Handle Position
: Ccentre
⤷ Range
: Confluence
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve/Cartridge Type
: NSF-61 Approved Cartridge

⤷ Base To Spout
: 227
⤷ Overall Height
: 342
⤷ Inlet Connections
: 1/2" BSP
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Flow Rates (l/min)
: 7.46 LPM @ 3 bar
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Barcode
: 5057199984197
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Customer Datasheet Pdf File

This item can also be found in:

Jaquar Artize Confluence High Neck Chrome Basin Mixer Tap with Open Spout - Lever Handle

£469.70

RRP: ~~£671.00~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
