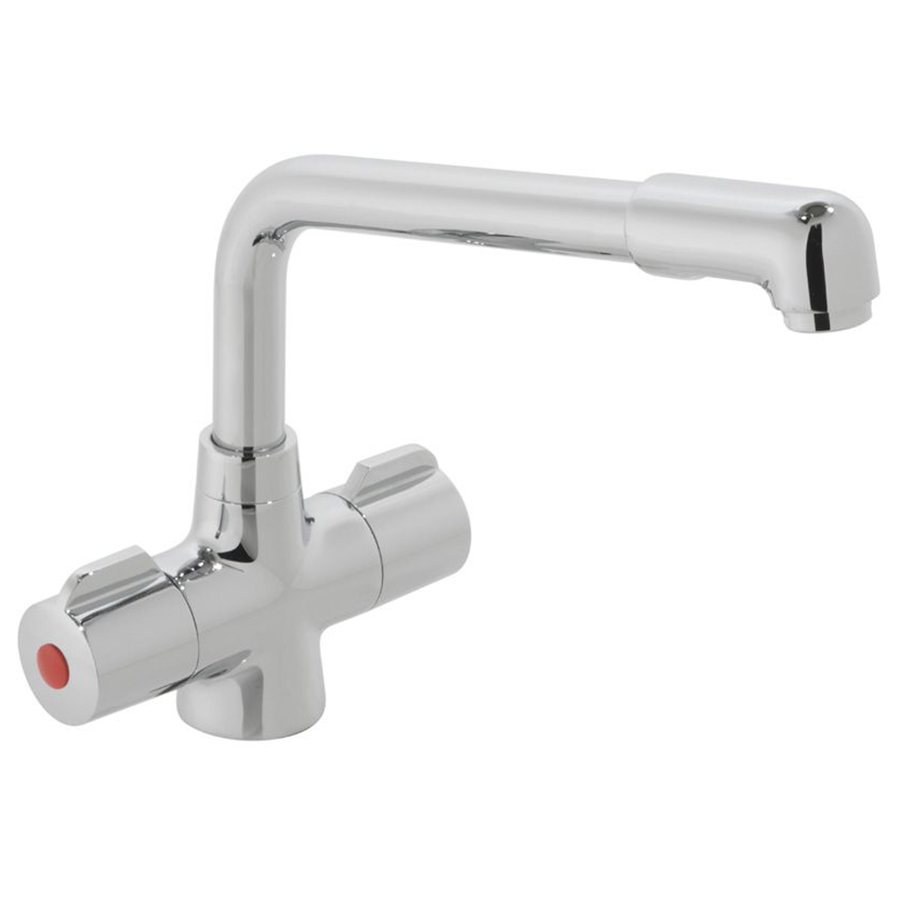

Vado Axces Base Chrome Mono Kitchen Mixer Tap with Swivel Spout, Knob Handle

Vado Axces Base Details

MFC: AX-CUC-1050-CP

Vado Axces Base Chrome Mono Kitchen Mixer Tap with Swivel Spout - Knob Handle.

The Manufacturing Code of this Product is AX-CUC-1050-CP
It Comes in a Chrome Finish
Mono kitchen Mixer with CD Valve
Installation Type: Deck-Mounted
Size [mm]: 156 x 278mm [Width x Height]
Size [cm]: 15.6 x 27.8cm [Width x Height]
Centre of the Inlet to the Outlet: 240mm (24cm)
Base to Spout: 242mm (24.2cm)
2 x 1/2-Inch Nut x 400mm Flexible Connections
Suitable for Low Water Pressure Systems
Requires a Minimum of 0.2 Bar to a Maximum of 5.0 Bar Operating Water Pressure
Download the Installation Instruction PDF File from the Additional Info Section

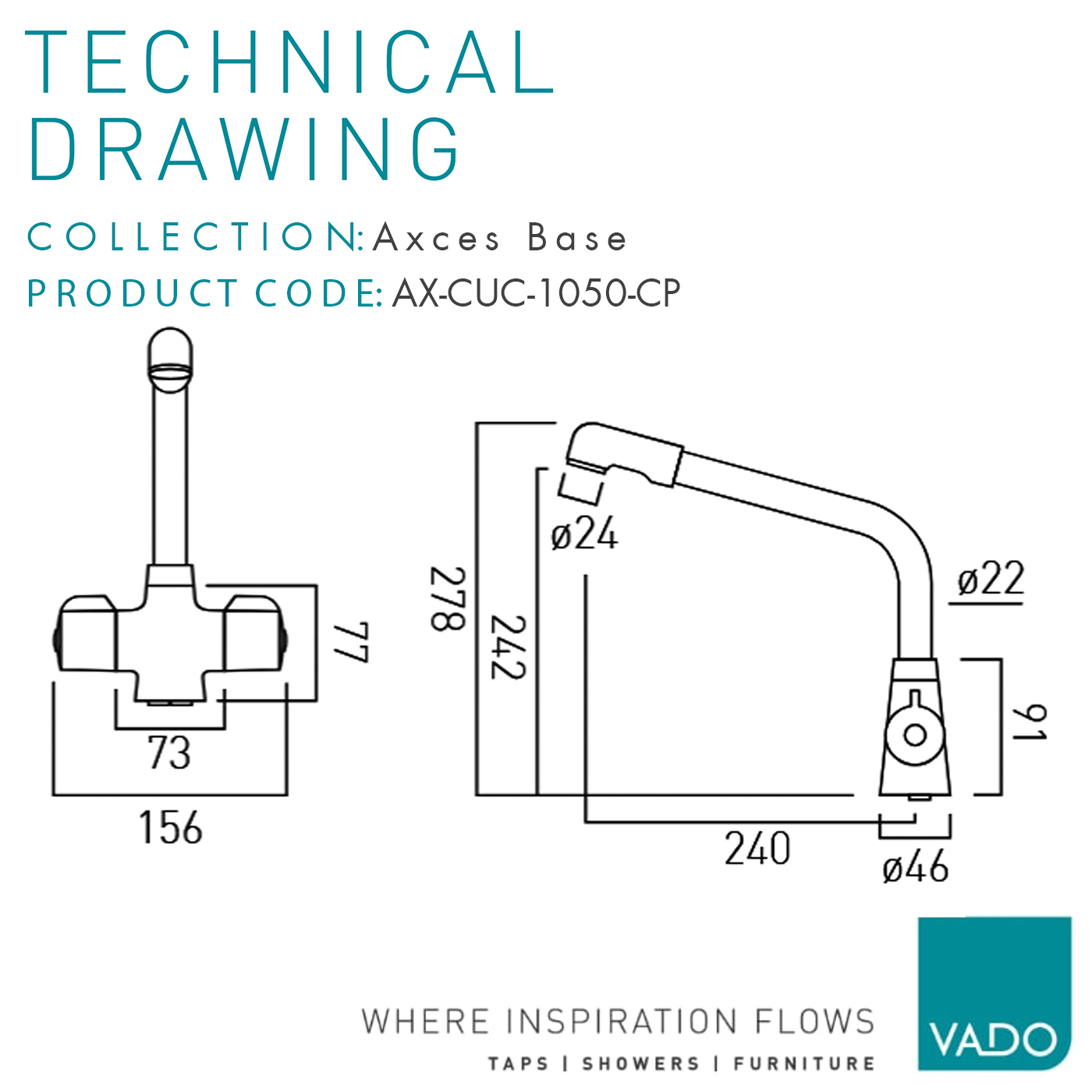

Refer to the Technical Drawing for Size Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Axces Base
⤷ Water Activation
: By Lifting/Tilting
⤷ Handle Position
: Left And Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Swivel
⤷ Valve Included
: Yes

⤷ Valve/Cartridge Type
: Ceramic Cartridge
⤷ Spout Swivel
: Yes
⤷ Base To Spout
: 242
⤷ Spout Reach
: 240
⤷ Overall Height
: 278
⤷ Width
: 156
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever
⤷ Barcode
: 5052120242377
⤷ Product Type
: Kitchen Sink Mixer Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Chrome

Vado Axces Base Chrome Mono Kitchen Mixer Tap with Swivel Spout - Knob Handle

£75.60

RRP: ~~£105.00~~

Stock Availablity: 5 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...
