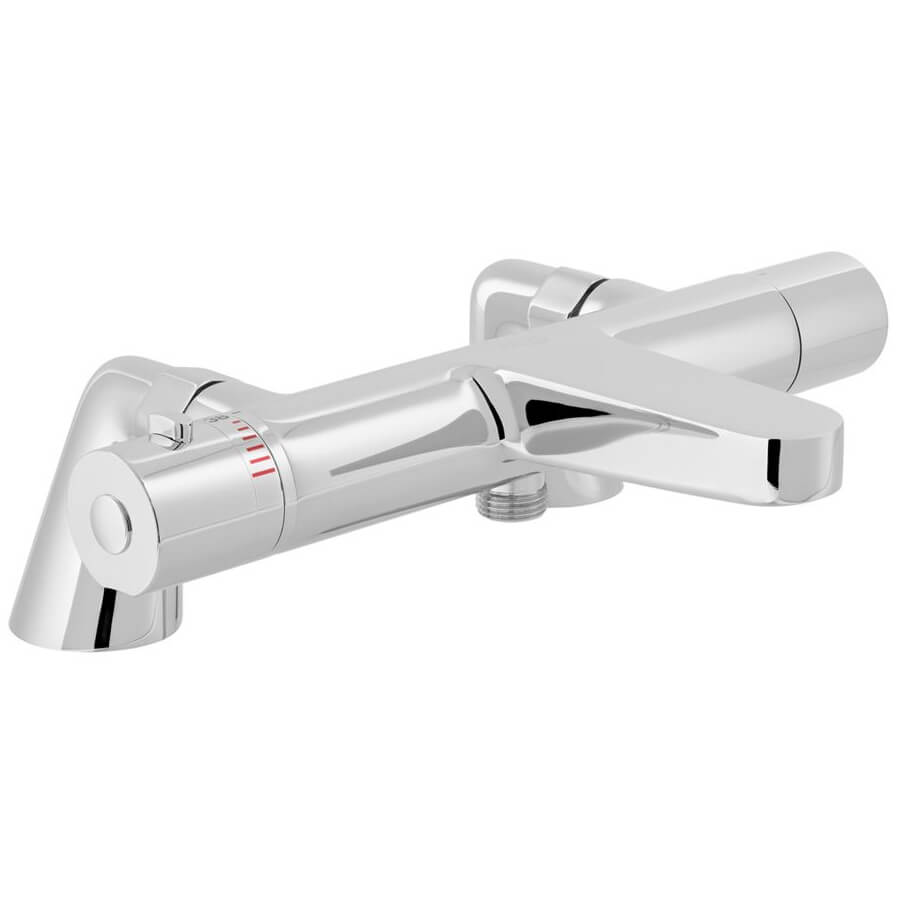

Vado Sirkel Thermostatic Chrome Bath Shower Mixer Tap, Knob Handles, Deck Mounted

Sirkel Details

MFC: AX-SIR-131T-CP

Vado Sirkel Thermostatic Chrome Bath Shower Mixer Tap - Knob Handles - Deck Mounted.

Manufacturing Code of this Item is AX-SIR-131T-CP
Suitable for High Water Pressure Systems
Works on a Minimum 1.5 Bar to a Maximum of 5.0 Bar Water Pressure
Installation Tolerances: Min-Max Deck Mount 28-30mm
Connections: 3/4 inch x 48mm Threaded Connection On Legs
Thermostatic Cartridge C-701-34S
Deck Hole Drill Diameter: 28-34mm
Inlet Centres: 180mm [18cm]
Centre of Inlet to Centre of Outlet: 209mm [20.9cm]
Size in [mm]: 282 x 218 x 86mm [Width x Depth x Height]
Size in [cm]: 28.2 x 21.8 x 8.6cm [Width x Depth x Height]
Plumbing System Suitability: Pumped System, Combination Boiler, Pressurised System

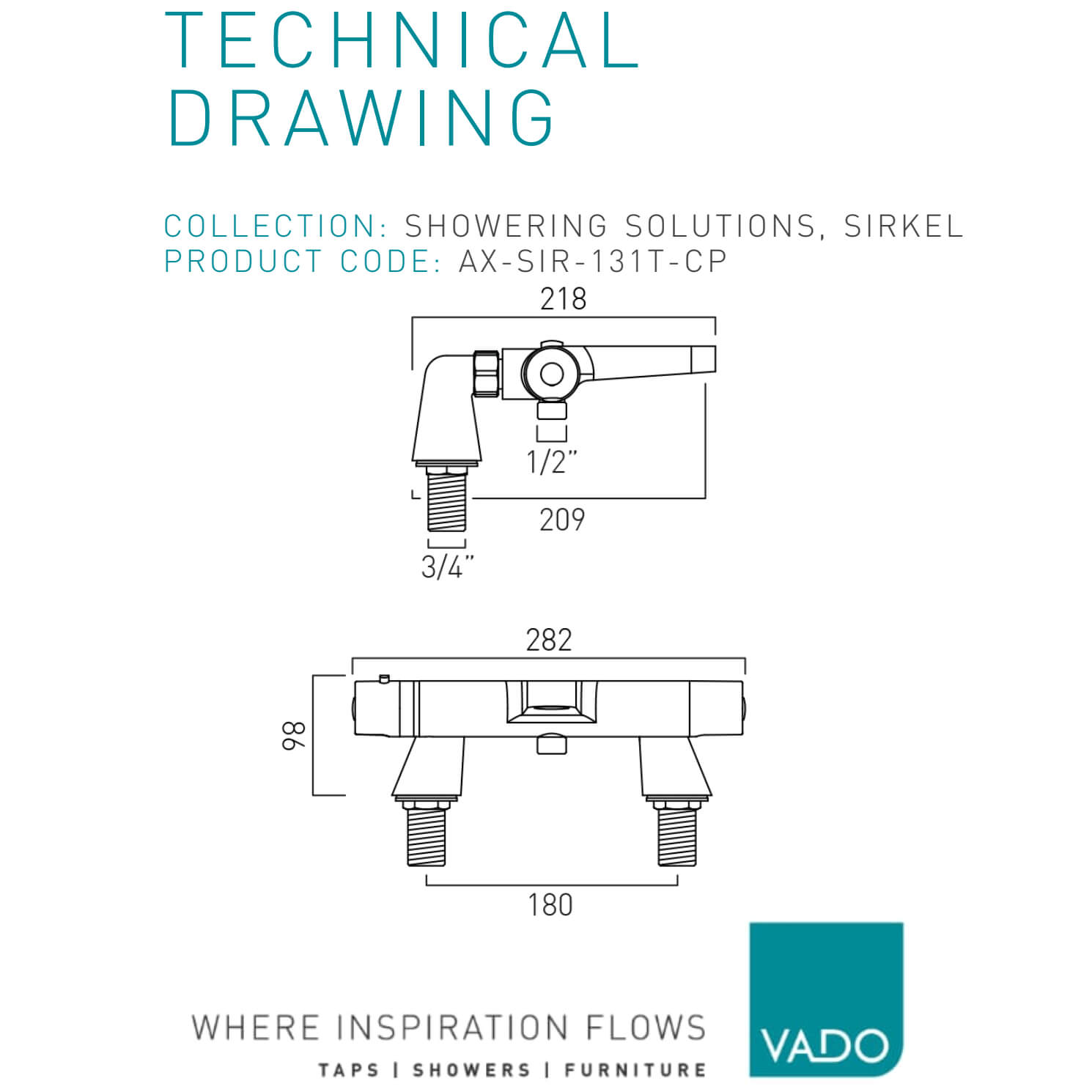

Refer to the Technical Diagram for Complete Technical Dimensions
Download the Installation Instruction PDF from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Handle Position
: Left, Right
⤷ Tap Body Shape
: Round
⤷ Range
: Sirkel
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Theme
: Modern
⤷ Installation Type
: De
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed

⤷ Valve/Cartridge Type
: Thermostatic Cartridge
⤷ Spout Reach
: 209
⤷ Inlet Centres
: 180
⤷ Overall Height
: 86
⤷ Width
: 282
⤷ Minimum Operating Pressure (Bar)
: 1.5
⤷ Handle Style
: Knob
⤷ Barcode
: 5052120258989
⤷ Product Type
: Bath Mixer Tap

Additional Info & Downloads

Download the Installation Instructions Pdf File

This item can also be found in:

Vado Sirkel Thermostatic Chrome Bath Shower Mixer Tap - Knob Handles - Deck Mounted

£153.00

RRP: ~~£255.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
