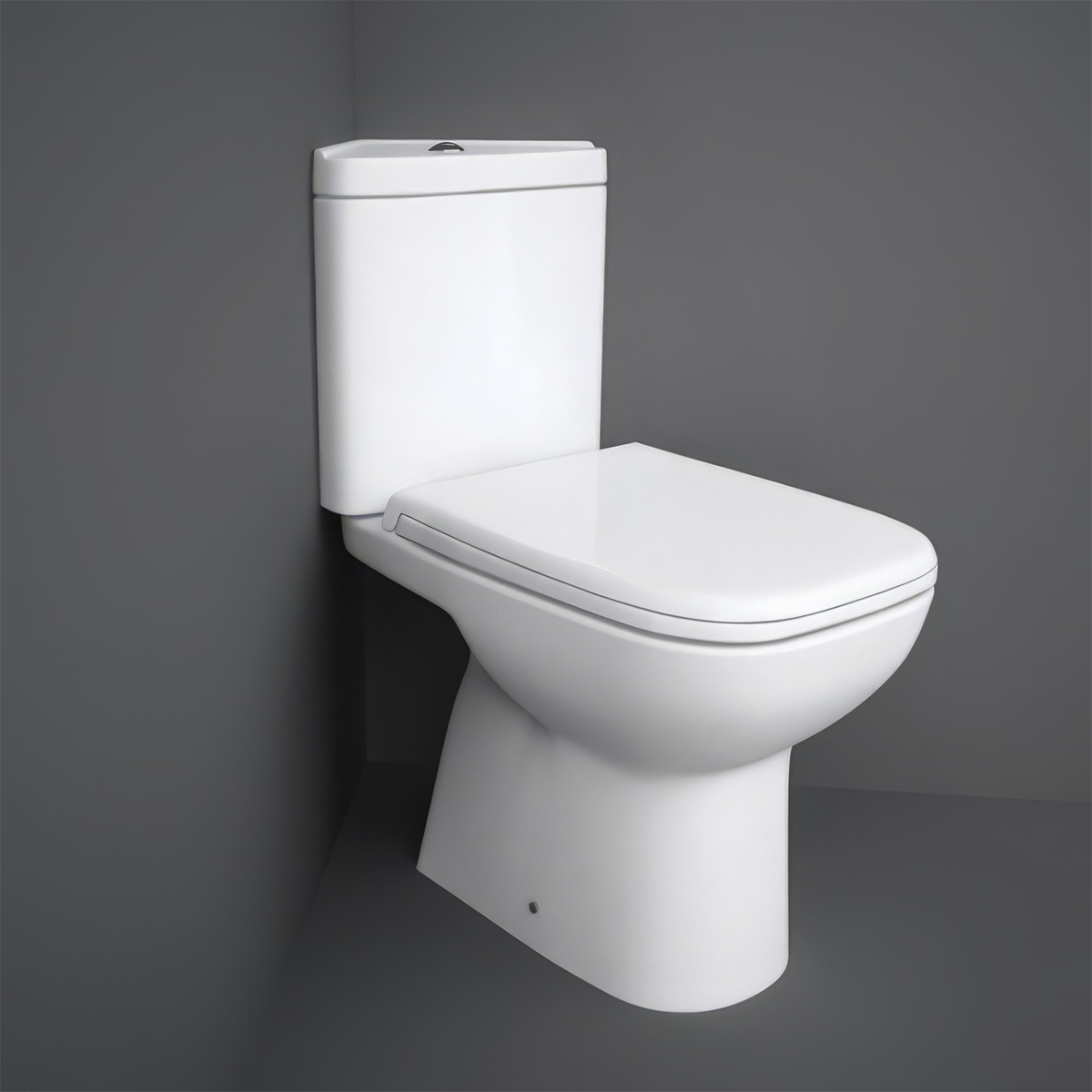

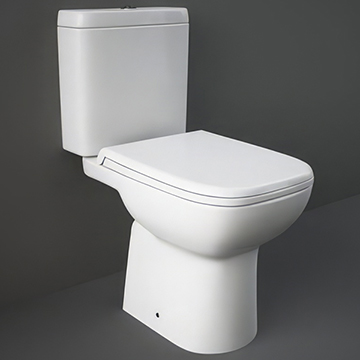

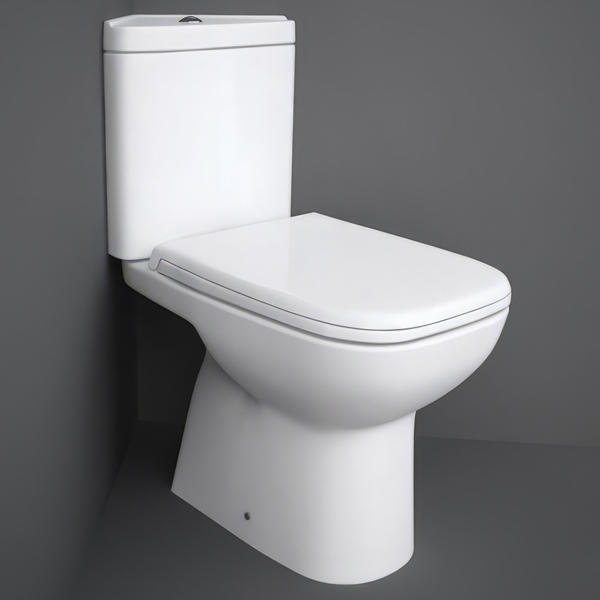

RAK Origin 360 x 730mm Full Access Close Coupled Corner Toilet With Cistern

RAK Origin Details

MFC: ORG11AWHA|ORG04AWHA

RAK Origin 360 x 730mm Full Access Close Coupled Corner Toilet With Cistern.

The Manufacturing Code of this Product is: ORG11AWHA|ORG04AWHA
Includes: WC Pan, Cistern
Overall Size [mm]: 360 x 775mm [Width x Height]
Overall Size [cm]: 36 x 77.5cm [Width x Height]
Projection (Depth): 730mm (73cm)
Weight: 31 Kg
Soft Close Toilet Seat [Optional]
Refer to the Technical Drawing for Size Details
Details For Pan:
Size [mm]: 360 x 400 [Width x Height]
Size [cm]: 36 x 40cm [Width x Height]
Full Access Open Back Design
Close-Coupled Toilet with Horizontal Pipe Outlet
Trap Style: P-rap
Trapway Type: Concealed
Details For Cistern:
Size [mm]: 250 x 360mm [Depth x Height]
Size [cm]: 25 x 36cm [Depth x Height]
3/6 Litre Dual Flush Cistern with Push Button

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Toilet Design
: Open Back
⤷ Range
: Origin
⤷ Coating
: Without Coating
⤷ Colour
: Alpine White
⤷ Weight in kg
: 31
⤷ Warranty/Guarantee
: 25 Years
⤷ Material
: Vitreous China
⤷ Theme
: Modern
⤷ Installation Type
: Floor Mounted
⤷ Pan Width
: 360
⤷ Pan Height
: 400
⤷ Toilet Overall Height
: 775
⤷ Projection (Depth)
: 730
⤷ Cistern Included
: Yes
⤷ Cistern Width
: 360
⤷ Cistern Height
: 360
⤷ Flush Type
: Dual Flush

⤷ Flush Mechanism
: Push Button
⤷ Cistern Lever Or Button Placement
: Top
⤷ Outlet
: Horizontal
⤷ Configuration
: Pan and Cistern
⤷ Seat Included
: Sold Separately
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Barcode
: 5056176002206
⤷ Product Type
: Closed Coupled
⤷ Cistern Depth (projection)
: 250
⤷ Seat Post Hole Centers
: 155
⤷ Front Of Bowl To Centre Of Seat Holes
: 435
⤷ Base width
: 235
⤷ Base Depth (projection)
: 335
⤷ Outlet Diameter
: 102
⤷ Base to centre of outlet
: 180

Add-Ons

Optional Toilet-Seat

Compatible seat available; choose as per your choice from the option given below. Please Note: The image shown is for illustration purposes only.

No Option Selected
OP-226838 - Soft Close Quick Release Polypropylene Seat - ORI62SEATSC + £77.76
OP-226837 - Deluxe Quick Release Soft Close Urea Seat - ORI62DLSC + £104.64

RAK Origin 360 x 730mm Full Access Close Coupled Corner Toilet With Cistern

£132.89

RRP: ~~£307.99~~

Stock Availablity: 5 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Optional: Quick Release Toilet Seat

The hinge on a regular toilet seat makes it challenging to clean in some areas. As a result, some areas build up with hairs, grime, and dirt over time. Fortunately, the invention of a quick-release toilet seat means you can keep your entire toilet clean. The hinge mechanism of these toilets allows you to remove the seat entirely, making it easier to wash the areas it covers on the toilet itself.
