Vado Notion 4 Hole Chrome Bath Mixer Tap with Shower Handset and Diverter - Deck Mounted

Not Yet Rated No Rating

£429.00

RRP: £780.00
SKU: QS-V112818
Key Features
  • Aerator Included
  • 15-Year Guarantee from the Manufacturer
  • It comes Finished in a High-Shine Polished Chrome
  • Manufactued using Premium-Quality Brass Material
Pay in 3-Interest Free Payments
Shipping

Shipping: £7.95

Stock Availability

Stock Availability:

5-7 Working Days Approx.

Vado Notion Details

MFC: NOT-232-CP

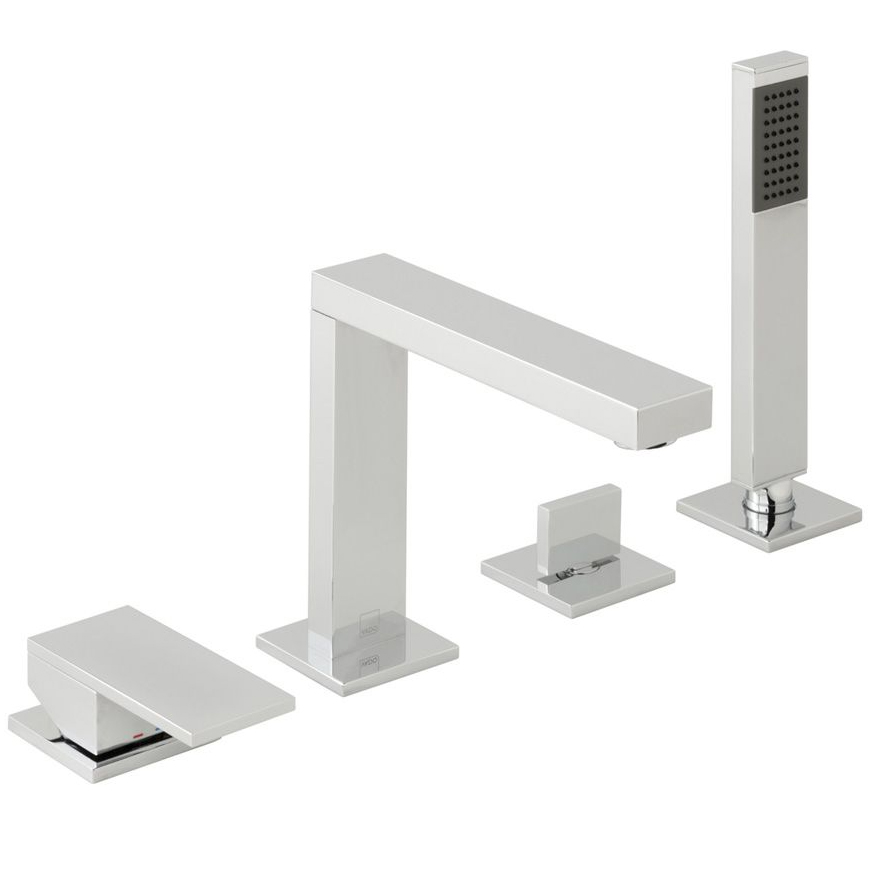

Vado Notion 4 Hole Chrome Bath Mixer Tap with Shower Handset and Diverter - Deck Mounted.

  • The Manufacturing Code of the Product is NOT-232-CP
  • Deck-Mounted Installation
  • Suitable for High-Pressure Water System
  • Requires a Minimum of 3.0 Bar and a Maximum of 5.0 Bar Water Pressure
  • Plumbing System Suitability: Pumped System, Pressurised System
  • Connections/Fittings: 2 x 3/4-Inch x 3/4-Inch 600mm Flexipipe Connectors, 1 x 2m Shower Hose, 2 x 400 1/2-Inch Female Flexipipe Connectors to Valve
  • Deck Hole Drill Diameter: Valve: 46mm, Spout: 28mm, Diverter: 44mm, Handset: 32mm
  • Diverter Catridge: F-803-33/2X
  • Ceramic Cartridge: CAR-KN40

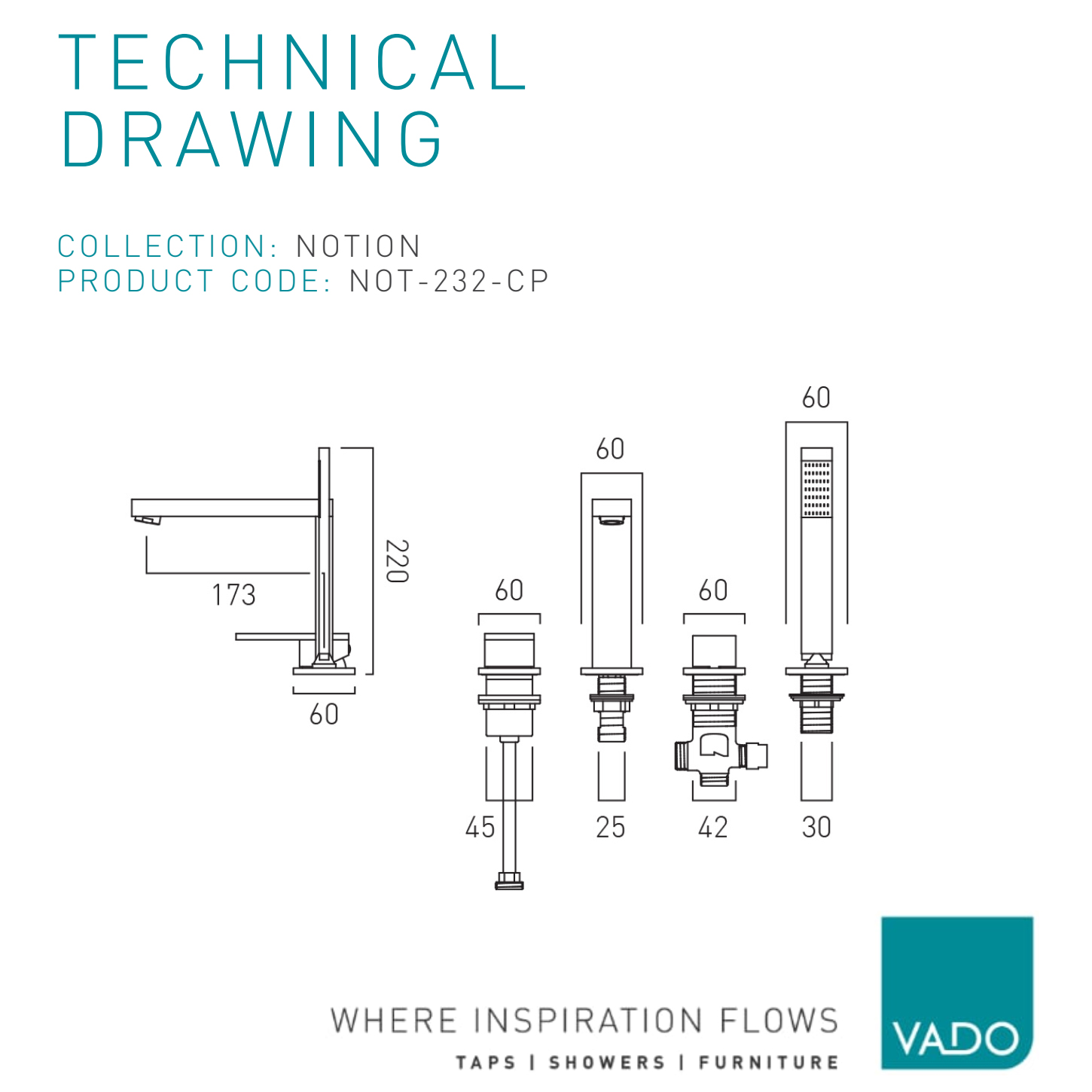

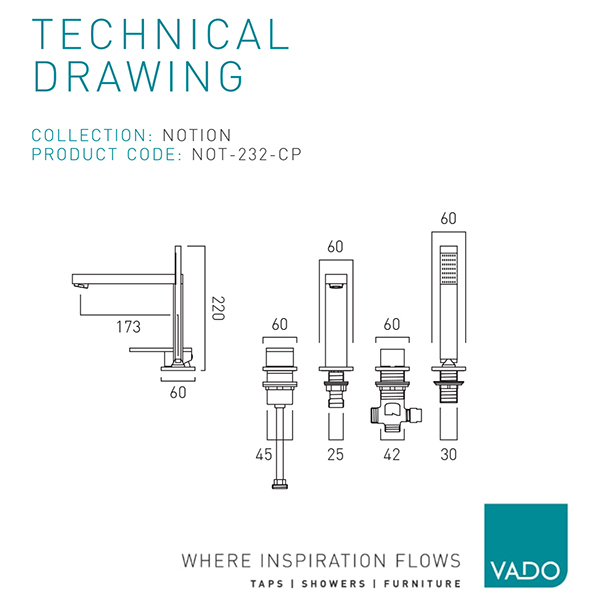

  • Refer to the Technical Drawing for Size Details

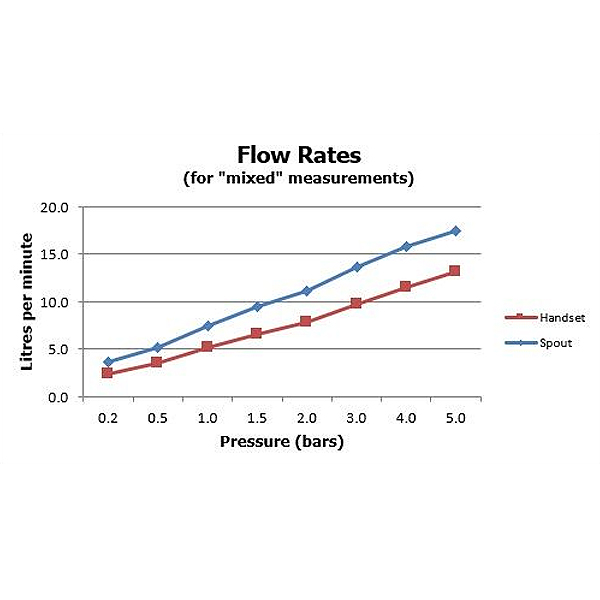

  • For Flow Rates, Refer to the Additional Images
  • Download the Installation Instructions PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Water Activation
  • : By Lifting/Tilting
  • ⤷ Handle Position
  • : Left & Right
  • ⤷ Range
  • : Notion
  • ⤷ Tap Body Shape
  • : Round
  • ⤷ Colour
  • : Polished Chrome
  • ⤷ Warranty/Guarantee
  • : 15 Years
  • ⤷ Material
  • : Brass
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Deck Mounted
  • ⤷ No. of Holes Required
  • : 4
  • ⤷ Spout type
  • : Fixed
  • ⤷ Spout Reach
  • : 173
  • ⤷ Overall Height
  • : 220
  • ⤷ Spout Deck Mount Drill Hole Diameter
  • : 28
  • ⤷ Minimum Operating Pressure (Bar)
  • : 3
  • ⤷ Handle Style
  • : Lever Handle
  • ⤷ Barcode
  • : 5052120206775
  • ⤷ Product Type
  • : Bath Showe Mixer Tap

Additional Info & Downloads

Download PDFDownload the Installation Instruction Pdf File

£429.00
RRP: £780.00
Stock Availablity: 5-7 Working Days Approx
QS Supplies

3 Features Included In This Product Explained

High Water Pressure

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Neoperl Aerator

Neoperl Aerator

Neoperl aerators control the flow stream's straightness and diameter while reducing splashes by adding air to the stream. This effectively saves water and, thereby, water bills. It is compliant with local plumbing standards and codes.

Ceramic Disc Cartridge

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
