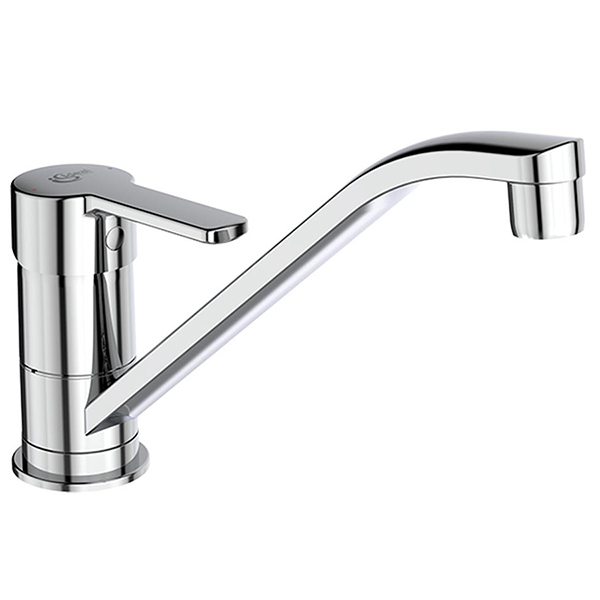

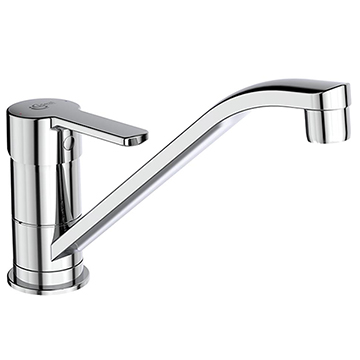

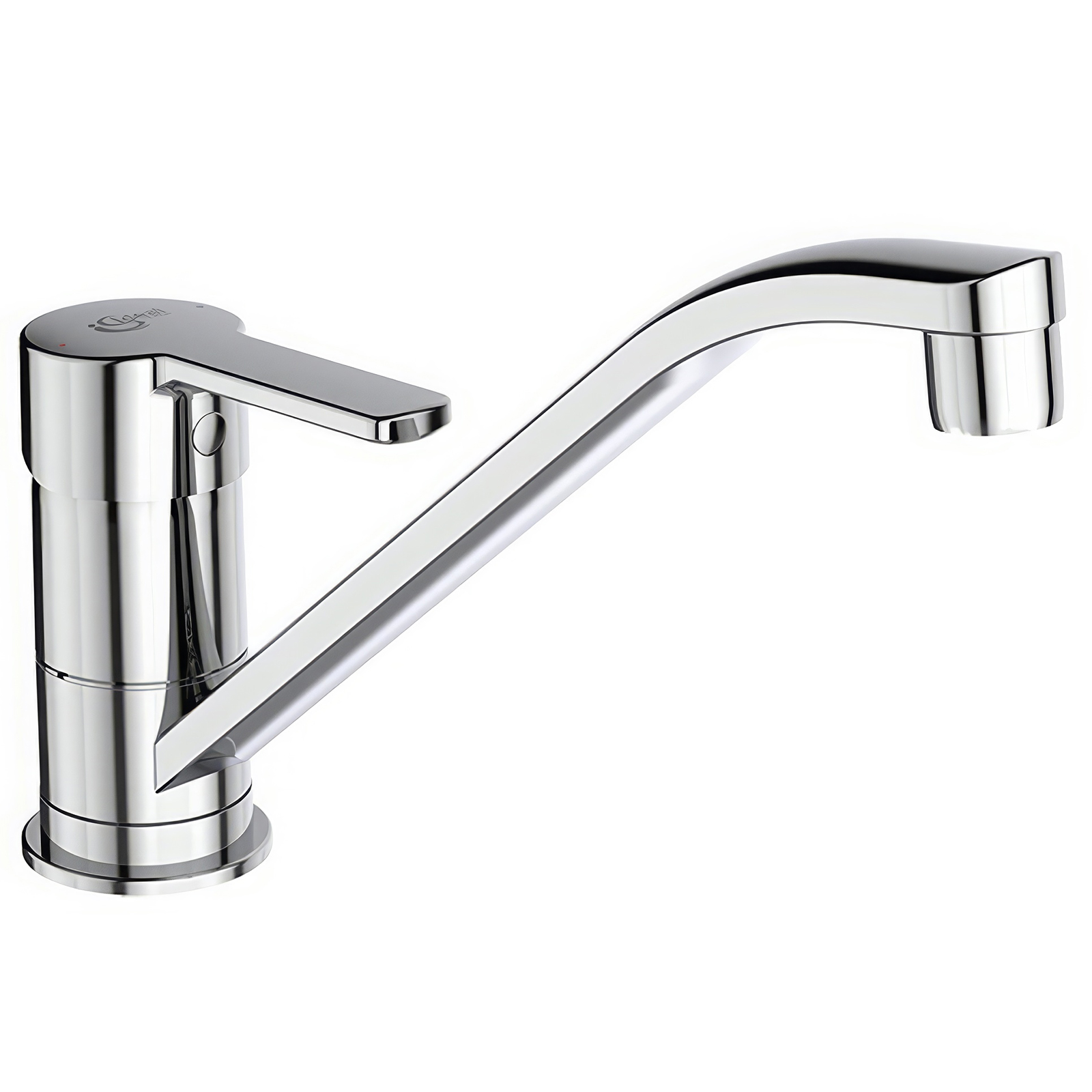

Ideal Standard Calista Chrome Kitchen Sink Mixer Tap, Swivel Spout

Ideal Standard Calista Details

MFC: B2136AA

Ideal Standard Calista Ergonomic Chrome Kitchen Sink Mixer Tap with Swivel Spout

The Manufacturing Code of this Product is B2136AA
It Comes in a Chrome Finish
Installation Type: Deck Mounted
Size [mm]: 52 x 257 x 175mm [Width x Depth x Height]
Size [cm]: 5.2 x 25.7 x x17.5cm [Width x Depth x Height]
Centre of the Inlet to the Centre of the Outlet: 224mm (22.4cm)
Base to Spout: 146mm (14.6cm)
Flexi Tails with 15mm Compression Fittings
A Modern, Easy-to-Operate Single-Lever Design with a Contemporary Style
Scratch-Resistant Surface Ensures Durability while Making Cleaning Quicker and Easier
Suitable for High Water Pressure Systems
The Minimum Required Water Pressure is 1 Bar
Flow Rates: 0.5 Bar - 6.7ltr, 1 Bar - 9.4ltr, 3 Bar - 16.3ltr
Standards: EN 248 | DIN 4109 | EN 817
Download the Installation Instruction and Flow Rate PDF File from the Additional Info Section
Refer to the Technical Drawing for More Technical Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Calista
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Swivel

⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Base To Spout
: 146
⤷ Spout Reach
: 224
⤷ Overall Height
: 175
⤷ Minimum Operating Pressure (Bar)
: 1
⤷ Flow Rates (l/min)
: 0.5 bar - 6.7 ltr | 1 bar - 9.4 ltr | 3 bar - 16.3 ltr
⤷ Handle Style
: Lever
⤷ Barcode
: 3800861061908
⤷ Product Type
: Kitchen Mixer Tap
⤷ Tails
: Flexible

Additional Info & Downloads

Download the Installation Instruction Pdf File Download the Flow Rate Pdf File

Ideal Standard Calista Ergonomic Chrome Kitchen Sink Mixer Tap with Swivel Spout - Flat Handle

£114.28

RRP: ~~£142.85~~

Stock Availablity: 5 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Easy-Fix Fixation System

With the easy-fix system, tap assembly is fast and easy. It is so simple that the tap can be assembled with one hand with the rubber membrane on the "screw-nut". Using the sealing component, you can secure the tap in the best possible way on the porcelain and get the perfect sealing.

Flexible Tail Pipes

Flexible Tails, or "Flexi" Tails, are one of the easiest methods to connect the plumbing pipework to the tap fitting. Mixers generally have two tails, one for the hot water supply and the other for the cold. These tailpipes consist of rubber inside a braided metal and come in many sizes.

Swivel-Spout

The respective apparatus is engineered to move sideways or at certain angles, which helps the spout cover a greater area than would be possible in a fixed position.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
