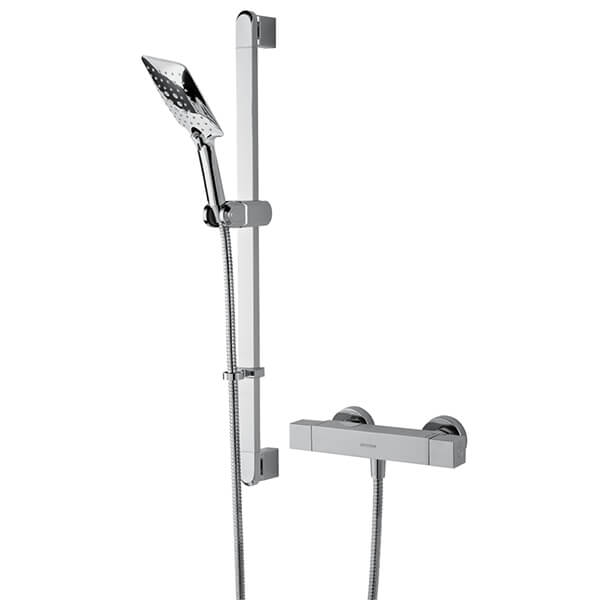

Bristan Qubo Exposed Chrome Thermostatic Bar Shower with Multi Function Handset and Kit

Bristan Qubo Details

MFC: QB SHXSMFF C

Bristan Qubo Exposed Chrome Thermostatic Bar Shower with Multi Function Handset and Kit

Manufacturing Code of this Product: QB SHXSMFF C
Pack Includes:
Bar Shower Valve, Hose, Riser Rail and a Rub-Clean Anti-Limescale Multi-Function Handset
Details of Kits:
It Comes in a Chrome-Plated Finish
Size of Valve [mm]: 265 x 70mm [Width x Depth]
Size of Valve [cm]: 26.5 x 7cm [Width x Depth]
Height of Riser Rail: 705mm [70.5cm]
Inlet Centre of Valve: 150mm [15cm]
No of Controls: 2
15mm Inlet Connections
Shower Type: Bar Shower
Shower Head Type: Multi-Function Handset
Shower Kit: Adjustable Riser
Valve/Cartridge Type: Thermostatic Cartridge
Maximum Hot Water Supply Temperature: 60°C
Maximum Static Pressure: 10 Bar
Connection Inlet: 15mm Compression
Connection Outlet: G 1/2 Inch
Check Valve Included: Yes
Isolation Valve Included: Yes
Suitable for Low and High Water Pressure Systems
Required Minimum 0.3 Bar to Maximum 5.0 Bar Water Pressure
Dual Control: Flow and Temperature are Controlled Separately
Automatic Shut-Off in the Event of Hot or Cold Water Supply Failure
A Hard-Wearing, Flawless Chrome Finish That Lasts for Years
Scratch-Resistant and Salt Spray Tested to Ensure Added Durability
Thermostatic Cartridge with a Preset Temperature Safety Stop at 38°C for Family-Safe Showering
A Higher Temperature Can be Selected, if Required, by selecting the Override Function
Multi-Function Rub Clean Handset: Limescale and Debris Build-Up is Quickly and Easily Removed by Rubbing a Finger or Cloth Over the Nozzles
Supplied with a Fast-Fit Wallmount 12 Fixing Kit with Built-In Front-of-Wall Isolation Valves On Both the Hot and Cold Feed, Making it Simple to Fit, Maintain and Replace
Refer to the Technical Image for the Technical Dimension
Download the Product datasheet and Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Themostatic Cartridge
⤷ Inlet Centres
: 150
⤷ Inlet Connections
: 15mm Compression
⤷ Minimum Operating Pressure (Bar)
: 0.3

⤷ Hose Included
: Yes
⤷ Temperature Control
: Thermostatic
⤷ Plumbing System Compatibility
: Exposed
⤷ Riser Rail & Kit Finish
: Chrome
⤷ Separate temperature and power controls
: Yes
⤷ Auto shutdown if hot or cold supplies fail
: Yes
⤷ Handset Included
: Yes
⤷ Valve Size
: W 265 x D 70
⤷ Hose Retainer Included
: Yes

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Bristan Qubo Exposed Chrome Thermostatic Bar Shower with Multi Function Handset and Kit

£241.20

RRP: ~~£393.00~~

IN-STOCK

Delivery in 3 Working Days Approx.

QS Supplies

9 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Thermostatic Control

Thermostatic shower control works behind the scenes to achieve or maintain water temperature output from a showerhead. With the built-in safety feature, the shower provides a consistent water temperature.
Read more...

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

Rub Clean

Any limescale deposits can simply be wiped clean with a clean cloth - no need to scrub or use harsh cleaners.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

Rejuvenating

Bristan's Rejuvenating Flow is powerful enough to leave you feeling refreshed by using the medium water flow. With this eco-friendly shower system, you can save more on your water bill and give yourself a powerful showering experience.

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.
