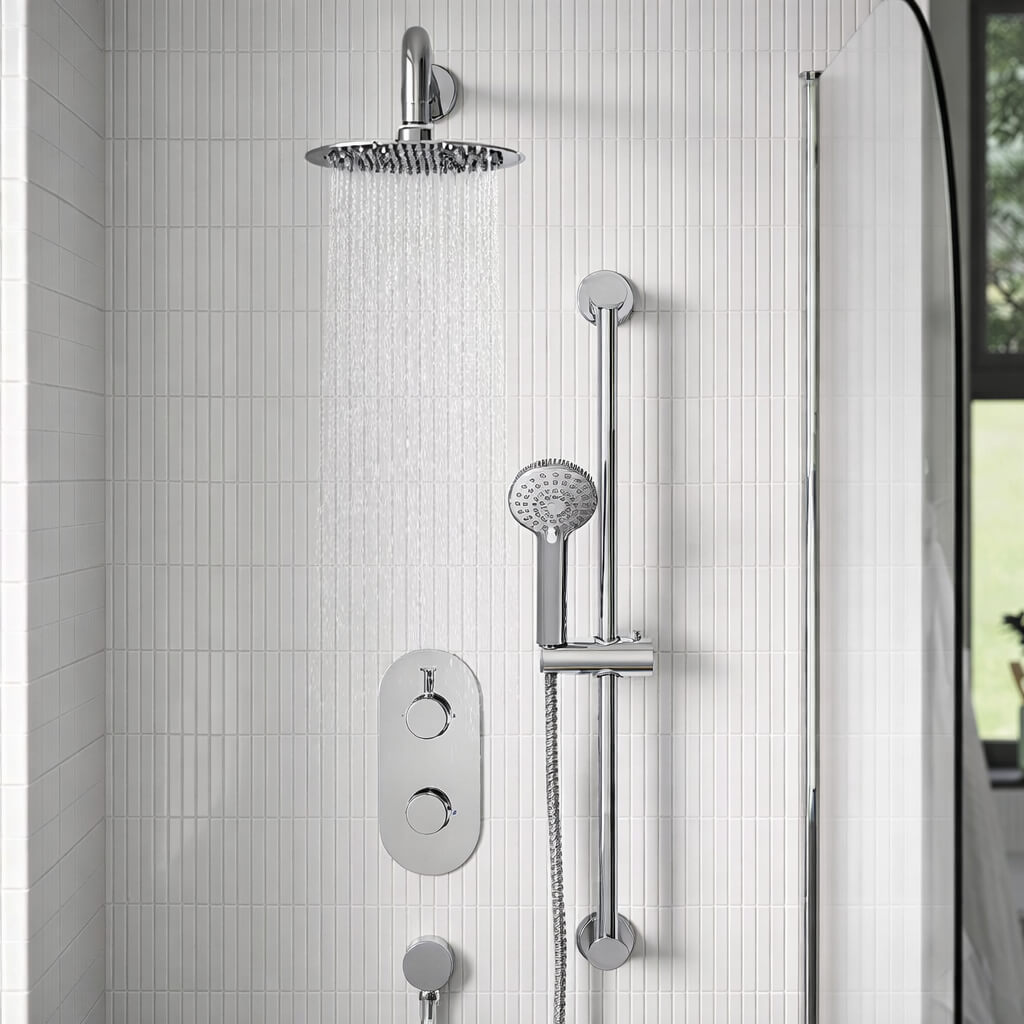

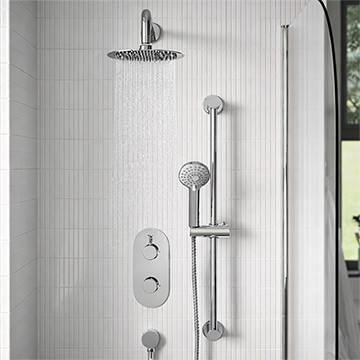

Bristan Molida Round Concealed 2 Outlet Thermostatic Dual Control Shower Set

Molida Details

MFC: MOLIDA SHWR PK

Bristan Molida Round Concealed 2 Outlet Thermostatic Dual Control Shower Set

Key Features

✔15mm Inlet Connections
✔Manufactured Using Brass and ABS Material

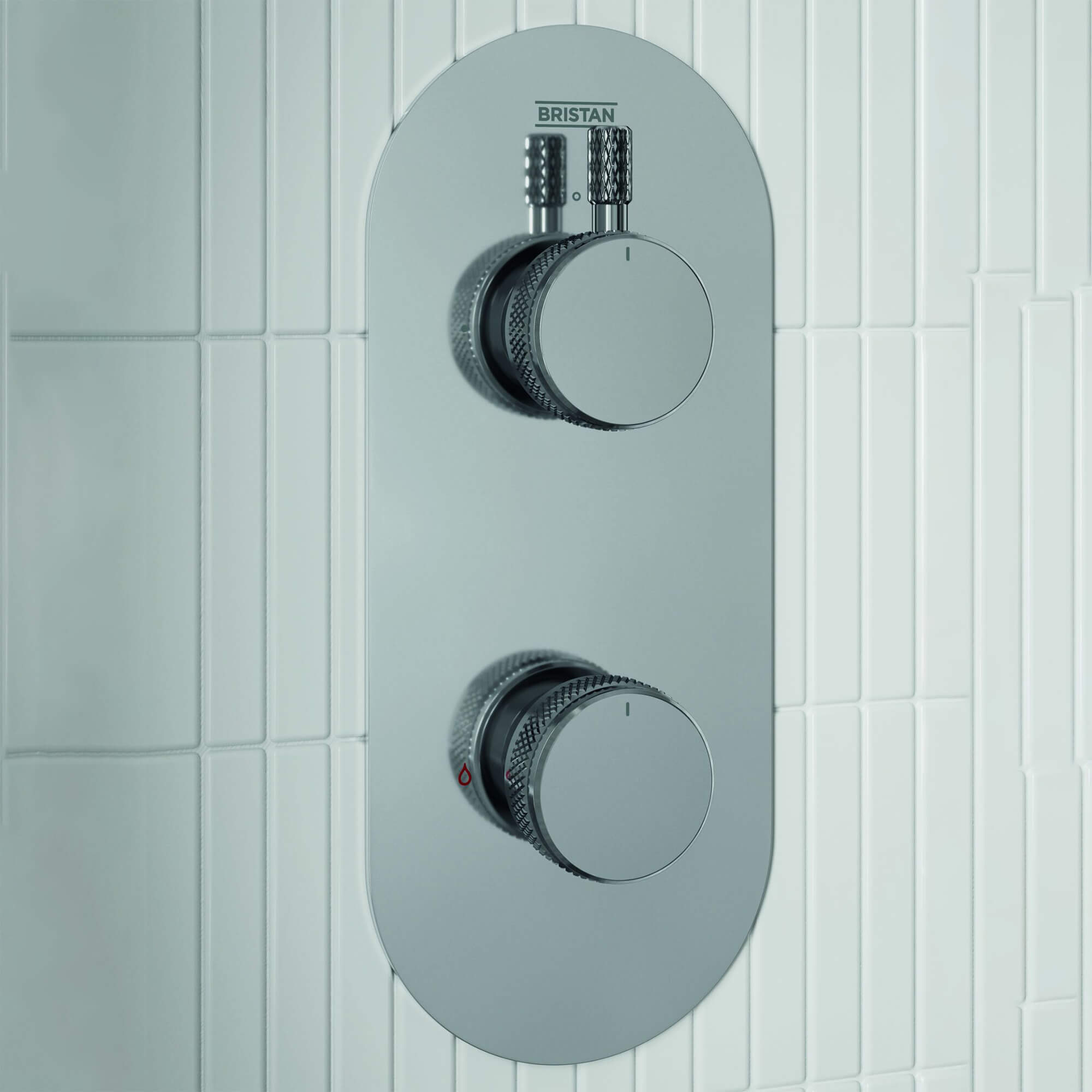

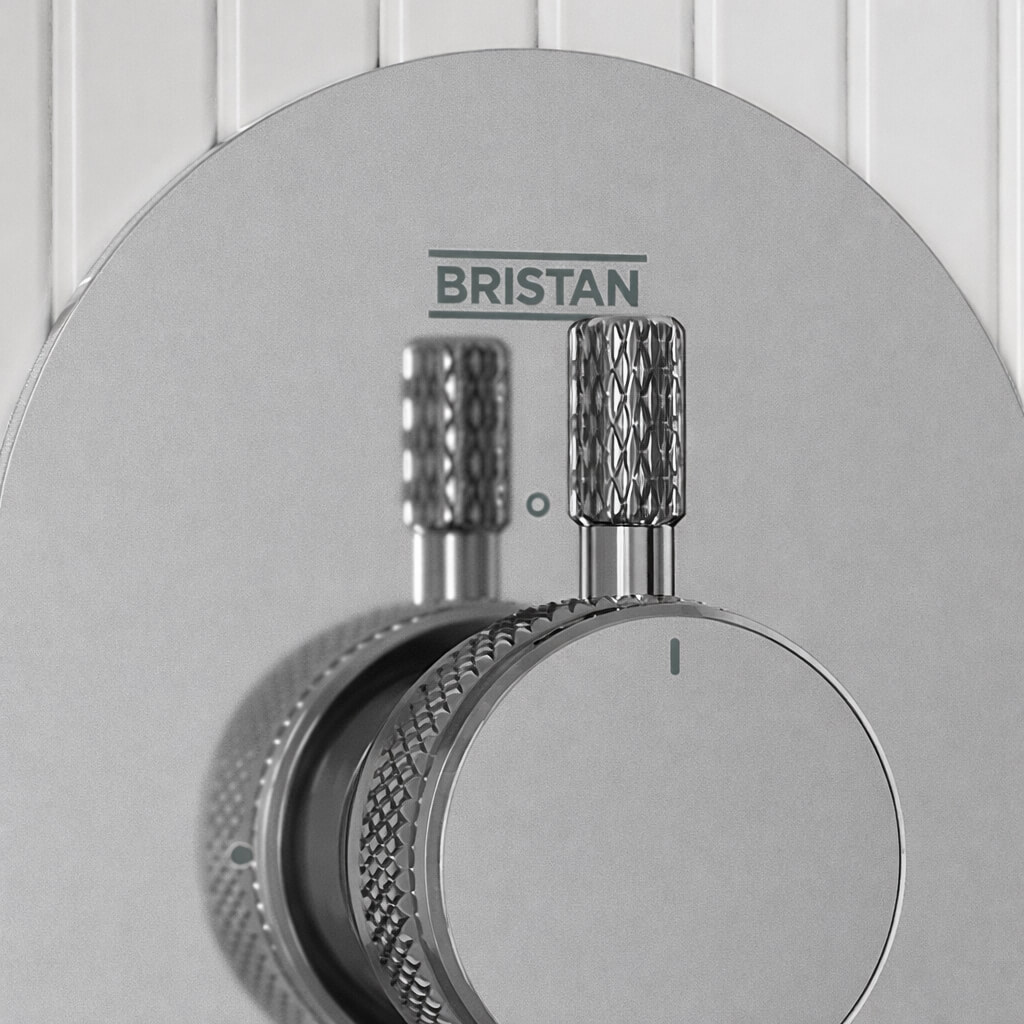

✔Featuring a Diamond knurling Pattern On the Handle
✔5 Years On Parts and 1 Year of Labour Guarantee from the Manufacturer

Pack Includes:

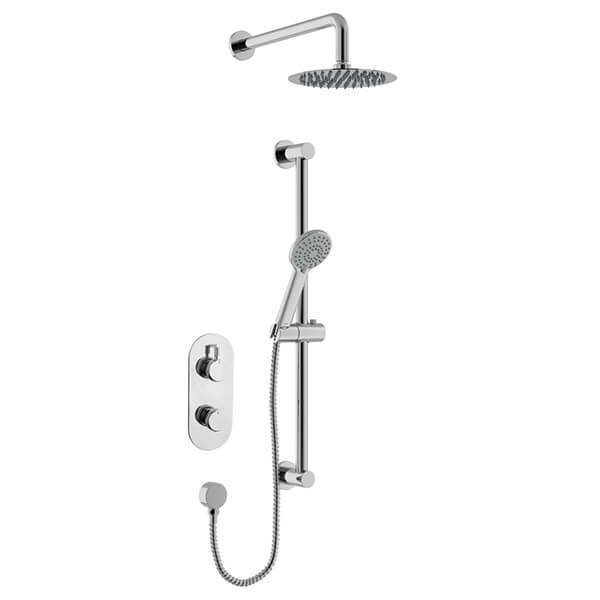

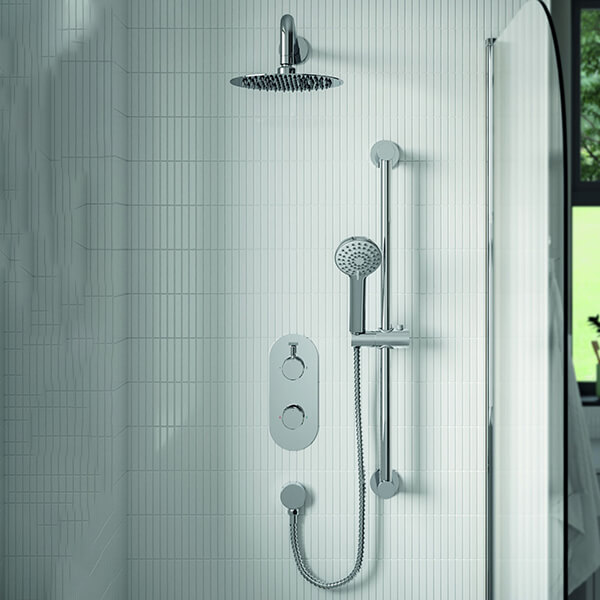

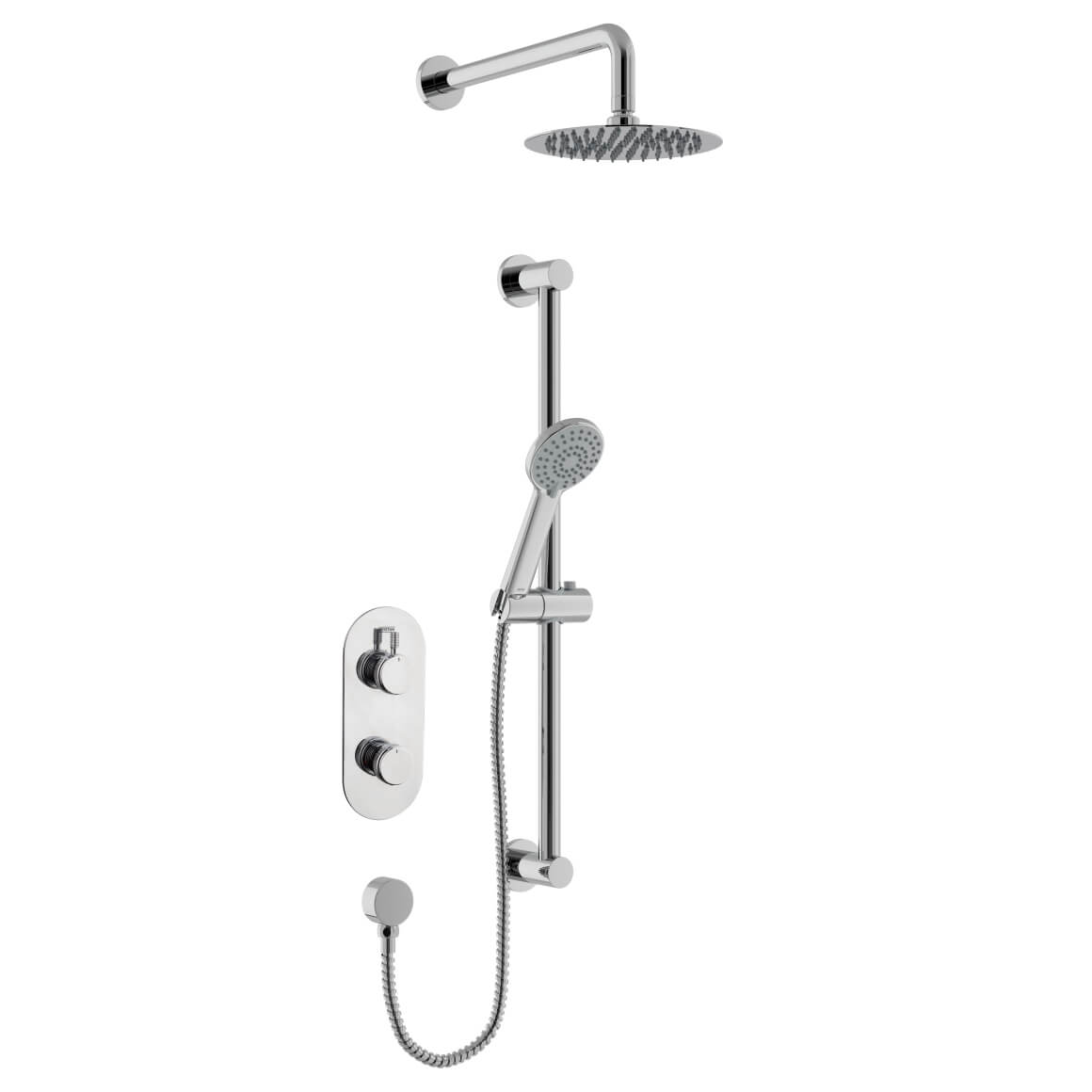

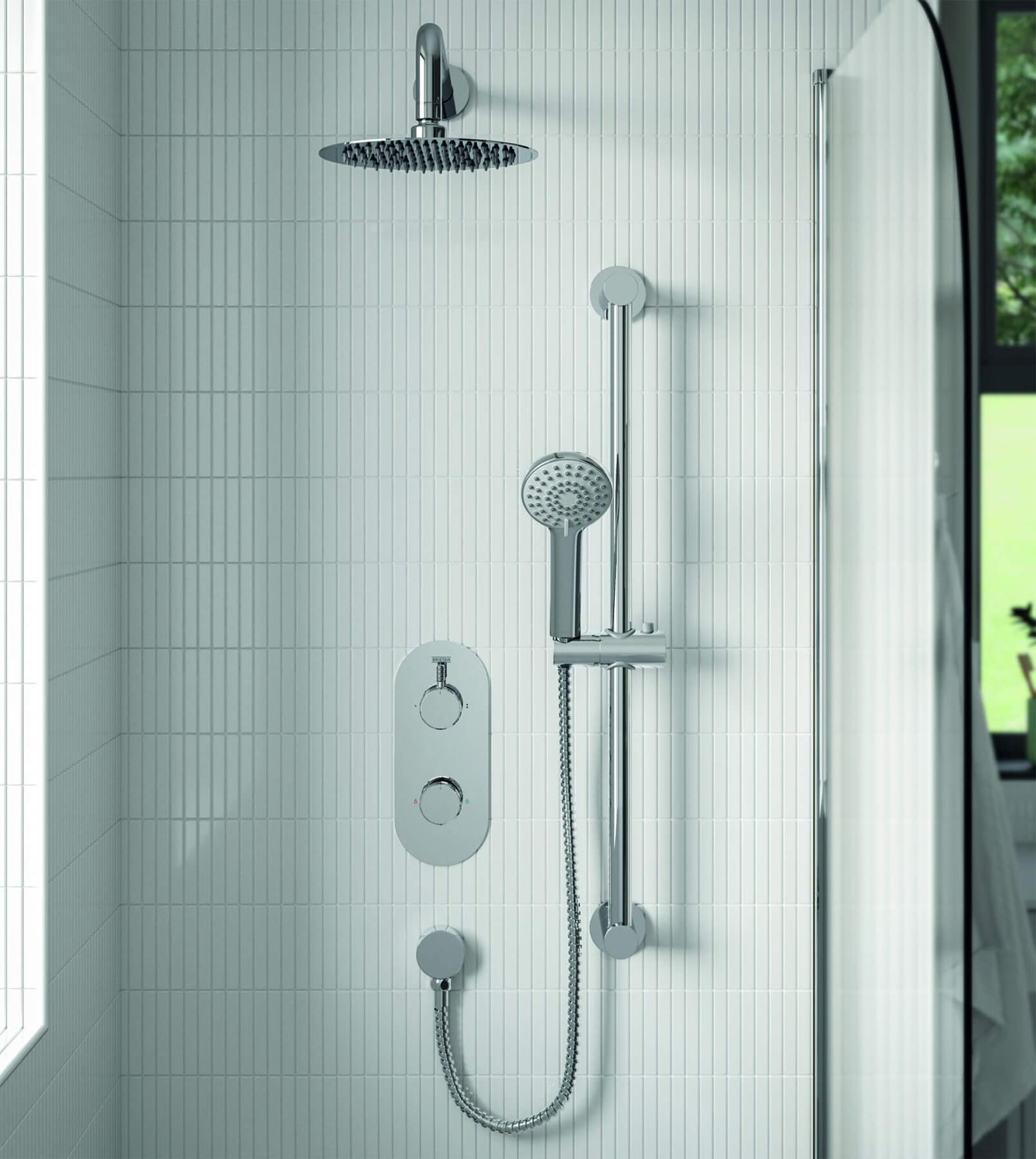

Shower Valve with Integral Two Outlet Diverter, Slimline 200mm Round Drench Head with Shower Arm, and Shower Kit with an Adjustable Riser Rail Plus a Multi-Function Handset and Wall Outlet
Details of Showerset:

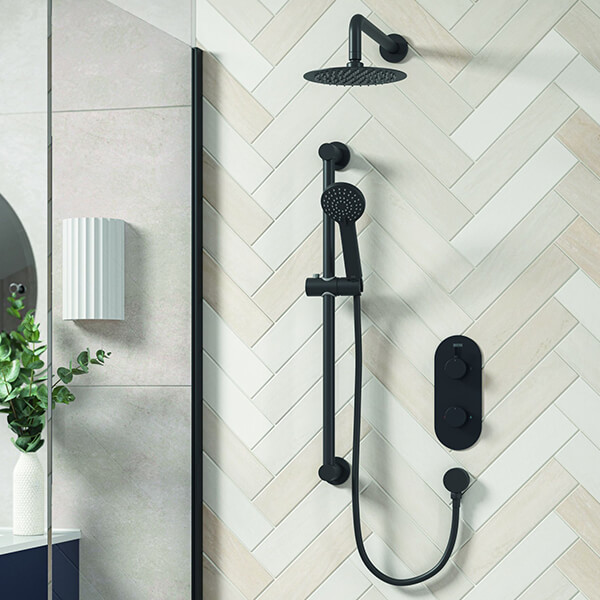

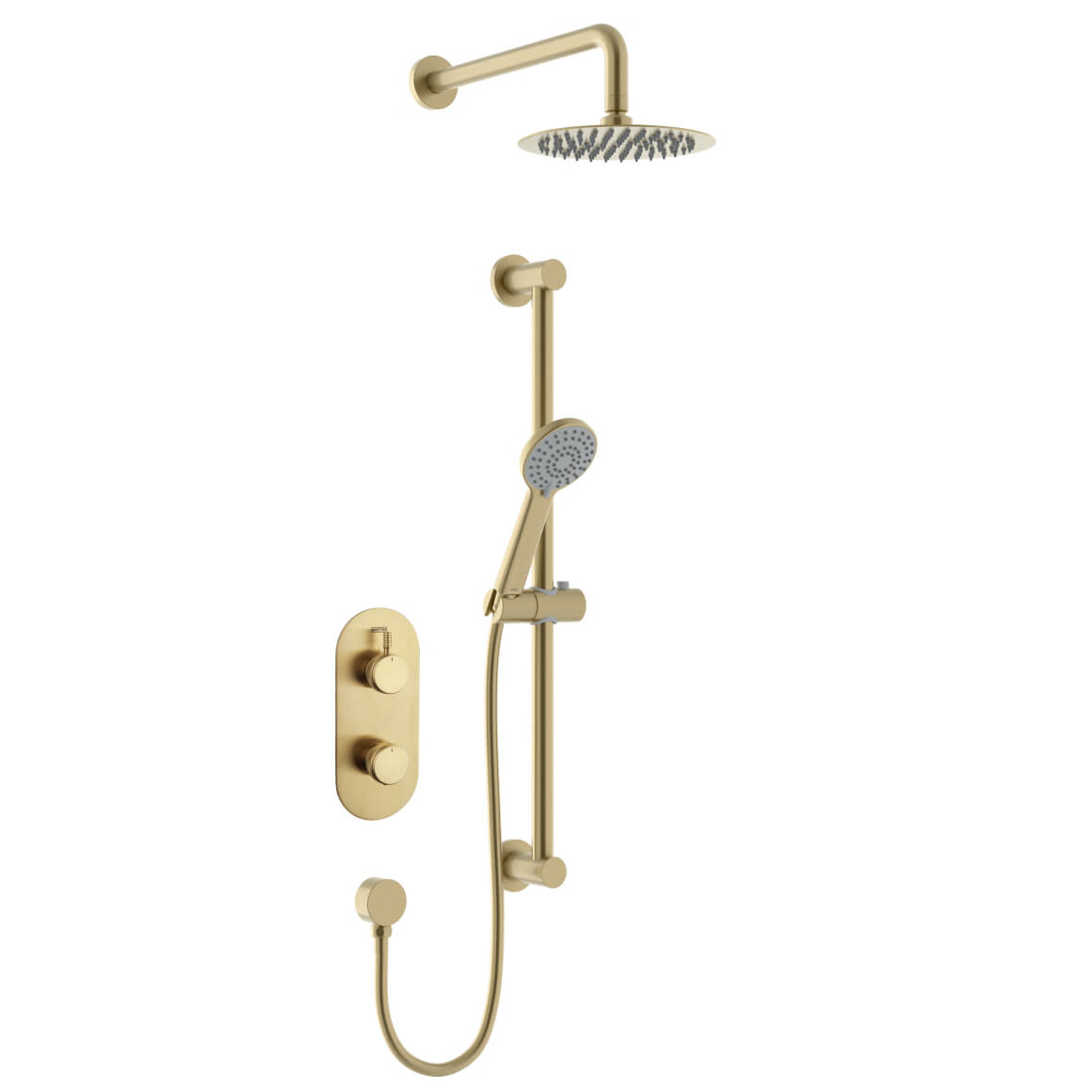

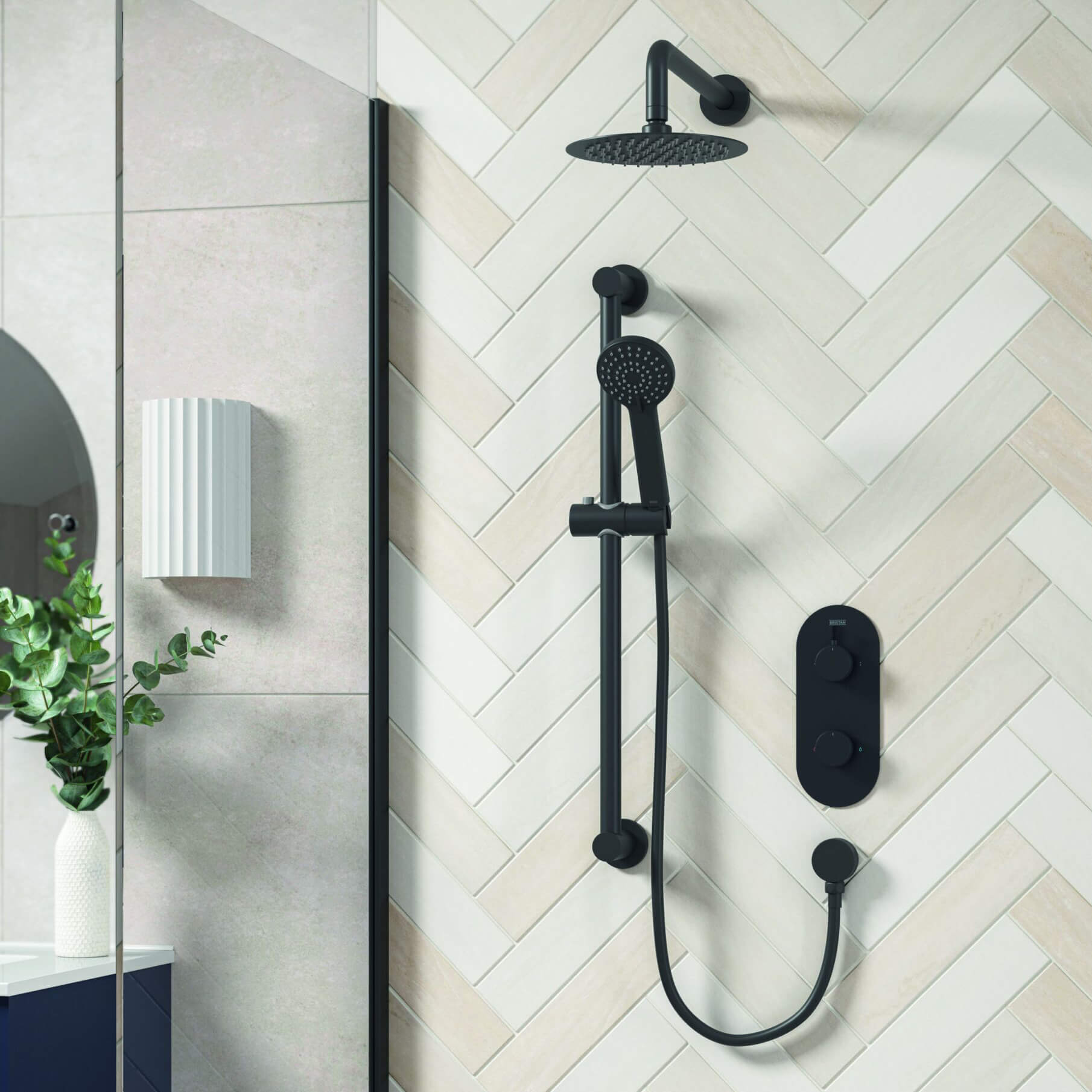

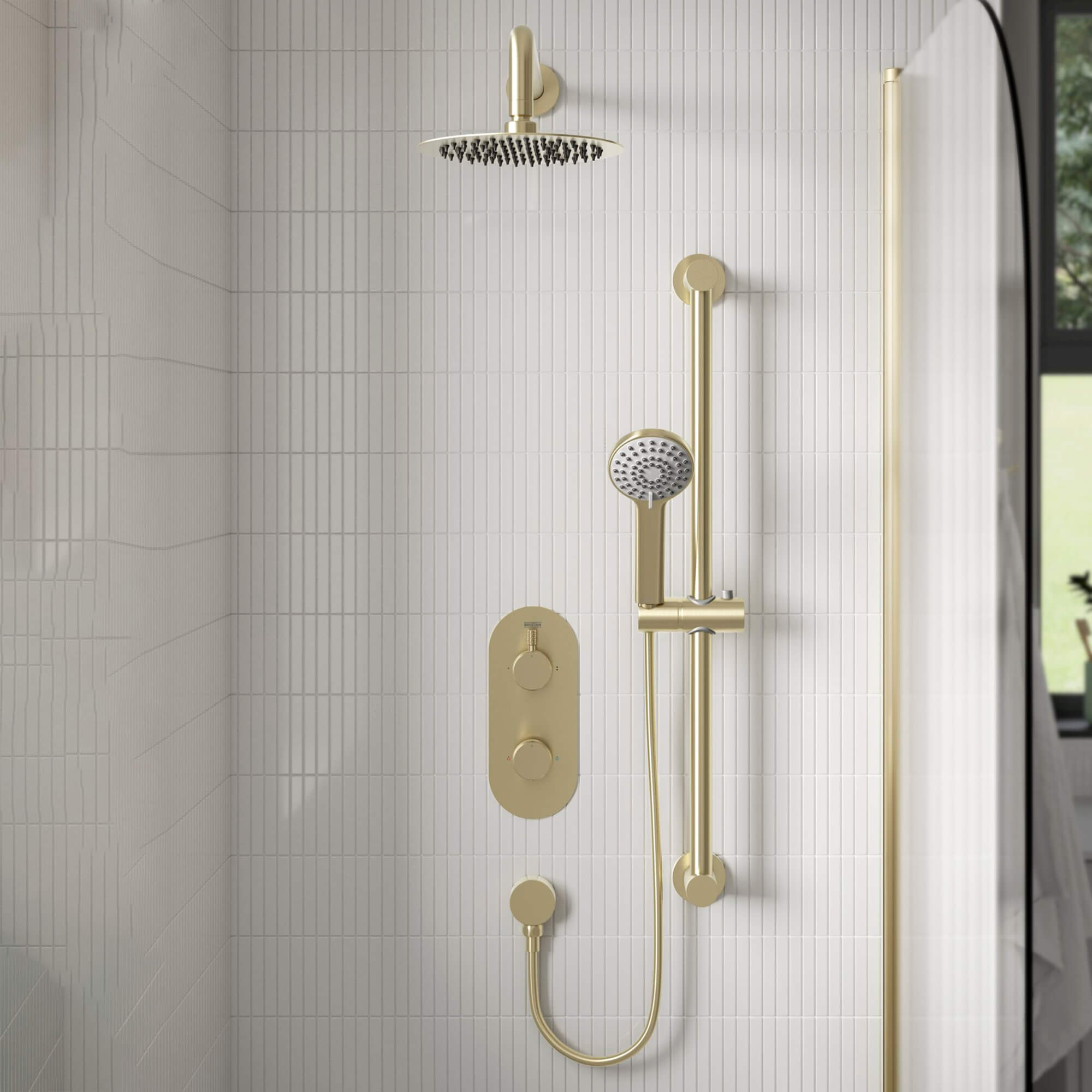

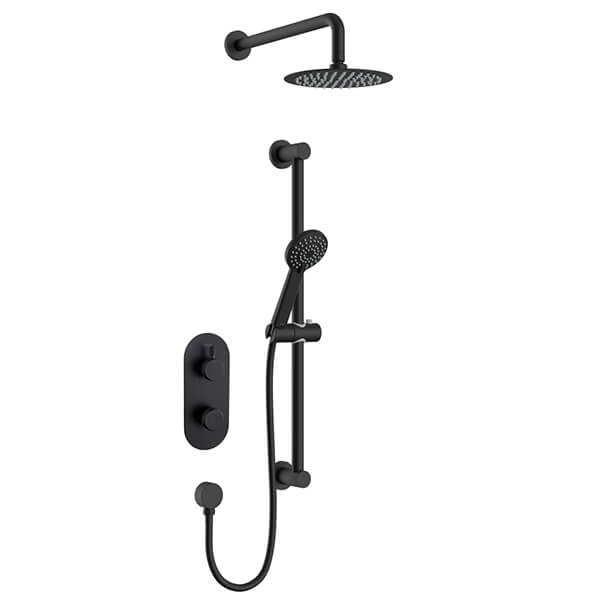

Available in 3 Finishes: Chrome, Black and Brushed Brass
Size of Valve [mm]: 100 x 105 x 240mm [Width x Depth x Height]
Size of Valve [cm]: 10 x 10.5 x 24cm [Width x Depth x Height]
Height of Riser Rail: 671mm [67.1cm]

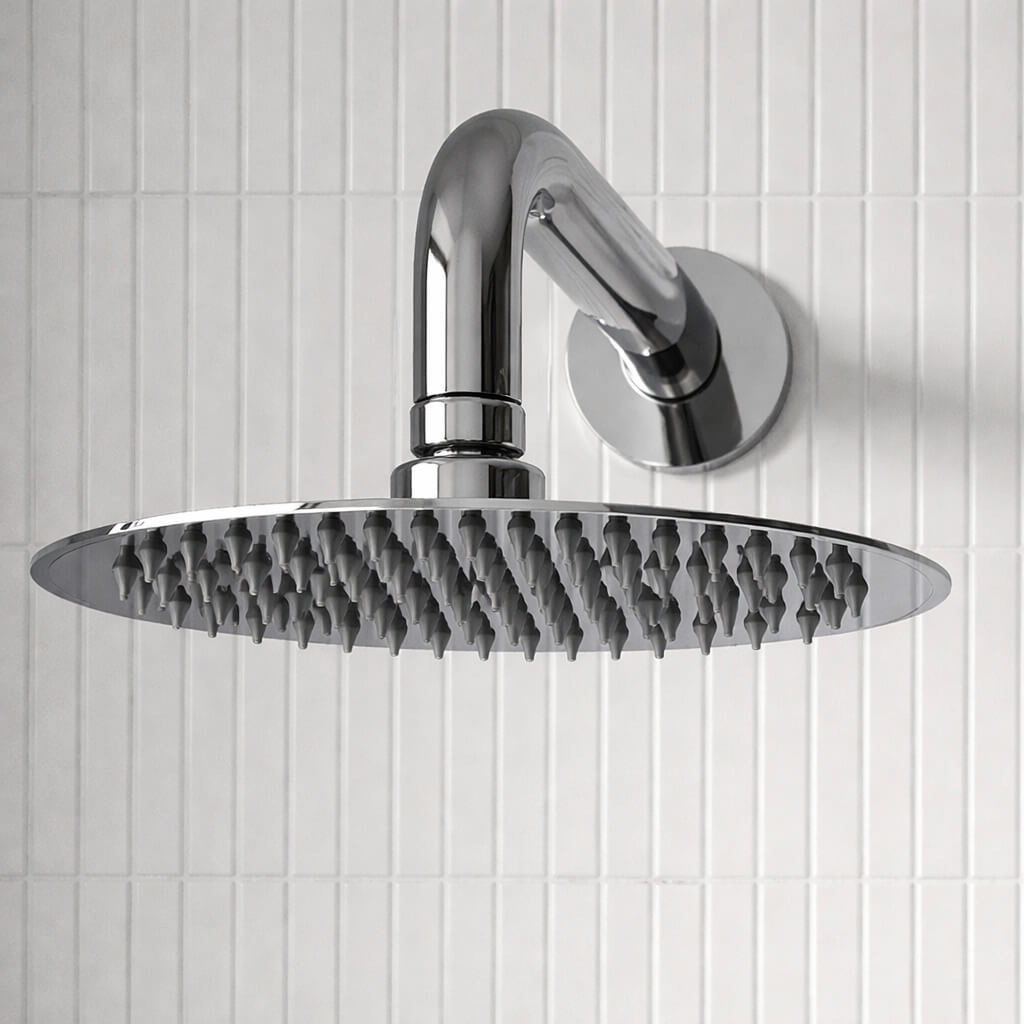

Diameter of Shower Head: 200mm [20cm]
Length of Shower Arm: 335mm [33.5cm]
No of Controls: 2
Shower Type: Dual Control
Shower Kit: Fixed Head and Adjustable Riser
Maximum Hot Water Supply Temperature: 60°C
Maximum Static Pressure: 10 Bar
Connection Inlet: 15mm Compression
Connection Outlet: G 1/2 Inch
Check Valve Included: Yes
Suitable for Low and High Water Pressure Systems
Required Minimum 0.2 Bar to Maximum 5.0 Bar Water Pressure
Salt Spray Tested to Ensure Added Durability
Multi-Function Rub Clean Handset and Drench Head
The Cartridge Can be Accessed from the Front for Easy Servicing
Plumbing System Suitability: Suitable for All Plumbing Systems
Valve/Cartridge Type: Thermostatic Cartridge & 40mm Single Lever Cartridge
Fitting Depth, Including Plasterboard and Tiles: 60-75mm [6-7.5cm]
A Hard-Wearing, Flawless, Scratch-Resistant Chrome Finish That Lasts for Years
Limescale and Debris Build-Up is Quickly and Easily Removed by Rubbing a Finger or Cloth Over the Nozzles
Slim Design Recessed Shower Valve Will Fit Into a Cavity Space as Small as 35mm for Hassle-Free Installation
Dual Control: Flow and Temperature are Operated Separately, Giving Accurate Control of Both
Refer to the Technical Image for the Technical Dimension
Download the Product datasheet and Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass And ABS
⤷ Theme
: Modern
⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Thermostatic Cartridge
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Temperature Control
: Thermostatic
⤷ Backplate Width
: 100

⤷ Backplate Height
: 240
⤷ Handset Included
: Yes
⤷ Valve Size
: 100 W x 240 H
⤷ Shower Head Included
: Yes
⤷ Shower Head Size
: 200
⤷ Rail Length
: 671
⤷ Hose Retainer Included
: Yes
⤷ Outlet Elbow Included
: Yes

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Bristan Molida Round Concealed 2 Outlet Thermostatic Dual Control Shower Set

£385.20

RRP: ~~£650.00~~

STOCK AVAILABLITY: 8 Working Days Approx

QS Supplies

7 Features Included In This Product Explained

2 Outlets 1 On

There are two outlet connections, of which only one can be used at a given time.

Rub Clean

Any limescale deposits can simply be wiped clean with a clean cloth - no need to scrub or use harsh cleaners.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Family Safe

This feature corresponds with the Thermostatic mechanism and automatic safety stops, preventing running water from getting either too hot or too cold.

ABS Plastic

ABS, or Acrylonitrile butadiene styrene, is a thermoplastic polymer used to manufacture many non-food products. It is inexpensive and can be easily shaped and machined. It also features high strength, stiffness, increased chemical and temperature resistance, electrical insulation and a glossy look.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.
