Reina Flora Designer Heated Towel Rail with Brackets, Mild Steel, RND-FLA0805B

Reina Flora Details

MFC: RND-FLA0805B

Compatible Valves

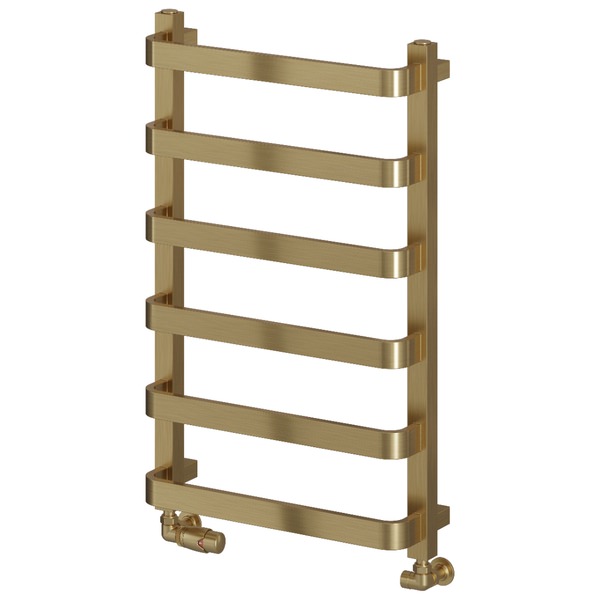

Reina Flora Designer Heated Towel Rail with Brackets - 500mm Wide - Mild Steel.

Key Features

✔EN 442 Compliant Product
✔Brackets for Radiator Included
✔Supplied with Air Vent and End Plug
✔Manufactured using Mild Steel Material

Choice of Finishes: Brushed Brass and Brushed Gun Metal
Choice of Heights: 800mm, 1200mm and 1500mm
Choice of Variants: Central Heating, Dual Fuel and Electric
Choice of Heating Elements: Standard, On/Off Touch, Thermostatic: LST Mini Round, Mini Round, Touch, LST Weekly, Weekly and Square Thermostatic Wifi
Width: 500mm [50cm]
Pipe Centres: 465mm [46.5cm]
Wall to Pipe Centres: 63.5mm [6.35cm]
Distance from Wall: 151mm [15.1cm]
Suitable for Central, Electric and Dual Fuel Heating Systems
For the Dual Fuel and Electric Model, Heating Elements are Highly Recommended in Combination with the T-Piece
For Electric Models, Optional Liquid Filling is Required with the Heating Element
Modern Hybrid Square-Rounded Bar Design Delivers Strong Heat Output and Style, Adding a Refined, Luxurious Touch to any Bathroom
Valves, Sleeving Kit and Chrome Pipe Kit - [Optional]
For BTU and Watts, Please Refer to the Chart in the Product Variations Info and MFC Code Section
For More Information on Elements, Options, Download the Elements PDF File from the Additional Info Section
Download the Heating Element PDF Files from the Additional Info Section
Refer to the Technical Diagram for Complete Technical Details
5-Year Guarantee from Reina Against Manufacturing Defects
The Valves Shown in the Image are not Included

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Flora
⤷ Colour
: Brushed Brass
⤷ Shape
: Straight
⤷ Country of Origin
: Turkey
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Mild Steel
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Width
: 500
⤷ Height
: 800
⤷ Orientation
: Vertical
⤷ Compliance/Approvals/Standard
: EN 442

⤷ Barcode
: 8800161309675
⤷ BTU Output
: 1142
⤷ Watts
: 335
⤷ No. Of Bars
: 6
⤷ Tapping / Pipe Centres
: 465
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating | Electric | Dual Fuel
⤷ Wall to Centre of Inlet
: 63.5
⤷ Heating Element Included
: Sold Separately
⤷ Element Type
: Standard | Thermostatic
⤷ Brackets Included
: Yes

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Installation Guide Pdf File Download the Detail For Heating Elements Pdf File Download the Heating Element Manual Instructions Pdf File

This item can also be found in:

Add-Ons

Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-243458 - 200mm Chrome Pipe Kit + £18.73
OP-243459 - 130mm Chrome Pipe Kit + £23.18
OP-243460 - 130mm Anthracite Pipe Kit + £23.18
OP-243461 - 130mm White Pipe Kit + £23.18
OP-243462 - 130mm Brushed Brass Pipe Kit + £23.18
OP-243463 - 130mm Black Pipe Kit + £23.18

Reina Flora Designer Heated Towel Rail with Brackets - 500mm Wide - Mild Steel

£187.92

RRP: ~~£324.00~~

Stock Availablity: 6 Working Days Approx

QS Supplies

Product Variations Info & MFC Code

Height	800mm	1200mm	1500mm
Fuel Type	Central Heating/Dual Fuel/Electric	Central Heating/Dual Fuel/Electric	Central Heating/Dual Fuel/Electric
Finish	Brushed Brass	Brushed Brass	Brushed Brass
Width	500mm	500mm	500mm
Pipe Centres	465mm	465mm	465mm
Wall To Pipe Centre	63.5mm	63.5mm	63.5mm
Wall Distance	151mm	151mm	151mm
Tube Quantity	6	9	11
Total Gap	5	8	10
BTU - Delta-50	892	1338	1635
Watts - Delta-50	262	392	480
BTU - Delta-60	1142	1713	2093
Watts - Delta-60	335	502	614
MFC	RND-FLA0805B	RND-FLA1205B	RND-FLA1505B

Height	800mm	1200mm	1500mm
Fuel Type	Central Heating/Dual Fuel/Electric	Central Heating/Dual Fuel/Electric	Central Heating/Dual Fuel/Electric
Finish	Brushed Gun Metal	Brushed Gun Metal	Brushed Gun Metal
Width	500mm	500mm	500mm
Pipe Centres	465mm	465mm	465mm
Wall To Pipe Centre	63.5mm	63.5mm	63.5mm
Wall Distance	151mm	151mm	151mm
Tube Quantity	6	9	11
Total Gap	5	8	10
BTU - Delta-50	892	1338	1635
Watts - Delta-50	262	392	480
BTU - Delta-60	1142	1713	2093
Watts - Delta-60	335	502	614
MFC	RND-FLA0805G	RND-FLA1205G	RND-FLA1505G

7 Features Included In This Product Explained

Mild Steel

Mild Steel is the most common radiator material. It is inexpensive, available in a variety of designs and finishes, lightweight and durable.

Optional: Dual Fuel

These radiators or towel warmers can run on a conventional gas-powered central heating system or via your mains electrical supply. You can choose whether or not you want your radiator or towel warmer to come on independently of your central heating system, which is especially useful in summer. These radiators are compatible with heating and hot water, whether the system is open (direct) or closed (indirect).

Electric Only

Electric Only options are independent units requiring a fused spur electric connection. These radiators and towel warmers are powered by the mains electrical supply instead of a gas boiler. You can turn on each radiator or towel warmer as and when you need them.
Read more...

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
Read more...

Accordance With EN 442

This European Standard defines procedures for determining the standard thermal outputs and other characteristics of radiators and convectors fed with water or steam systems at temperatures lower than 120 degrees celsius from a remote energy source.

Optional: Radiator Valve

Radiator valves help control how much hot water enters and leave it, and the flow of water controls how much heat the radiator generates. These are usually found at the radiator's bottom left, and right corners, where the water pipes enter and exit, or can also be present at the bottom near the centre.
Read more...

Optional Sleeving Kit

A sleeving kit in a radiator heating system are components or materials used to sleeve or insulate the pipes or tubes that circulate hot water or steam from the central heating source to the radiators or heating units. The sleeving kit provides thermal insulation and prevents heat loss, adding to the heating systems efficiency.
