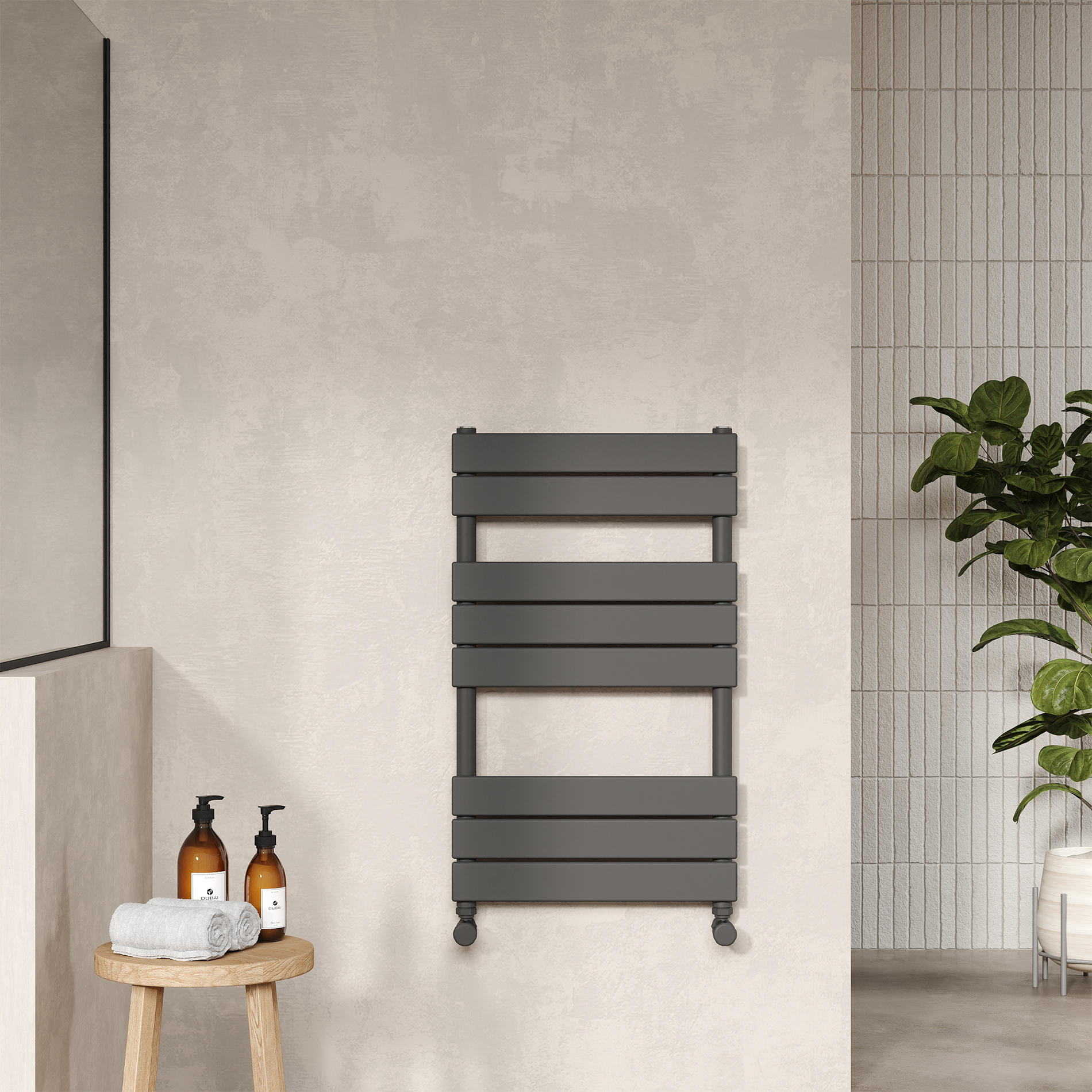

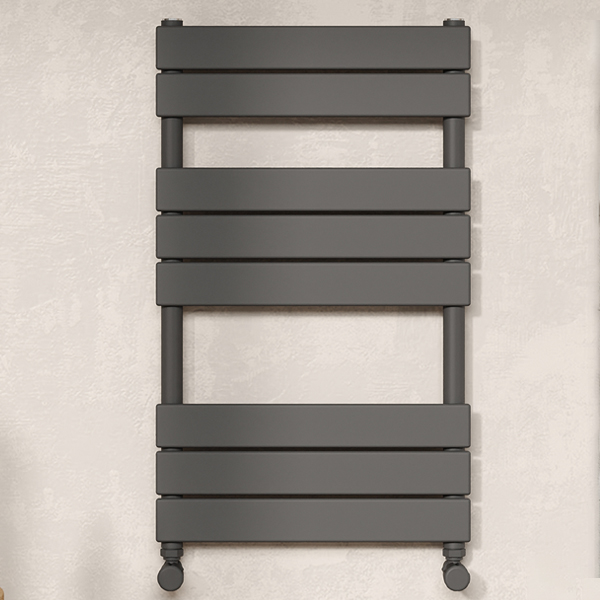

Nuie Piazza 500 x 840mm Square Flat Towel Radiator

Finishes: Anthracite, Brushed Brass

£157.50

STOCK AVAILABILITY

5-7 Working Days Approx

Not Yet Rated No Rating

Shipping: £20.00

Select Finishes
You've selected: OP-225058 - Anthracite
Key Features
  • Choice of different finishes available - Anthracite and Brushed Brass
  • Constructed using steel
  • IP Rating: Ip64 Ingress Protection
  • CE, RoHS and WEEE Certified product
  • Three-years guarantee from Nuie against manufacturing defects
SKU Code: QS-V108405

MFC Code: HLA82

Nuie Piazza HLA82 Details

Nuie Piazza Square Flat Towel Radiator is an intelligent purchase for those who desire both style and quality. It is expertly crafted from solid brass, which makes it highly durable and strong. Anthracite or brushed brass finish gives this piece a unique look of elegance. It resists corrosion and rust, making it perfect for damp spaces. You can mount this Unit with concealed fastening for a seamless, attractive look.

This towel radiator has a modern design made of steel which puts it miles ahead of its competitors regarding durability. Besides, steel is also very heat efficient, positively impacting your energy bills. We recommend pipework is installed when receiving the radiator or heated towel rail.

  • Modern design with a square profile.
  • Size: Width 500 x Depth 30 x Height 840mm.
  • It comes complete with fixing screws.
  • Wall to the centre of tappings: 200mm.
  • Pipe Centres: 450mm.
  • Maximum Projection from Wall: 95mm.
  • All tappings are 1/2" British Standard Pipe.
  • Bracket included.
  • Type Of Heat: Water.
  • Number Of Heat Settings: 1.
  • Number Of Sections/Panels 8.
  • Suitable for wall-mounted installation.
  • Valves and elements are not included.
  • Add a stylish feature to any room.
  • Suitable valve available in Compatible Valves tab below [Optional].
  • After installing any new radiators when refilling the system, it is recommended a suitable inhibitor is used.
  • We recommend pipework is not installed until receipt of the radiator or heated towel rail.
  • Download the Customer Data Sheet and Installation Instruction PDF File from the Additional Info Section.
  • Refer to the Technical drawing for more technical specifications.
  • Details For Anthracite Finish:.
  • BTU: 30 Deg. C - 744, 50 Deg. C - 683, 60 Deg. C - 1727.
  • Watts: 30 Deg. C - 217, 50 Deg. C - 405, 60 Deg. C - 506.

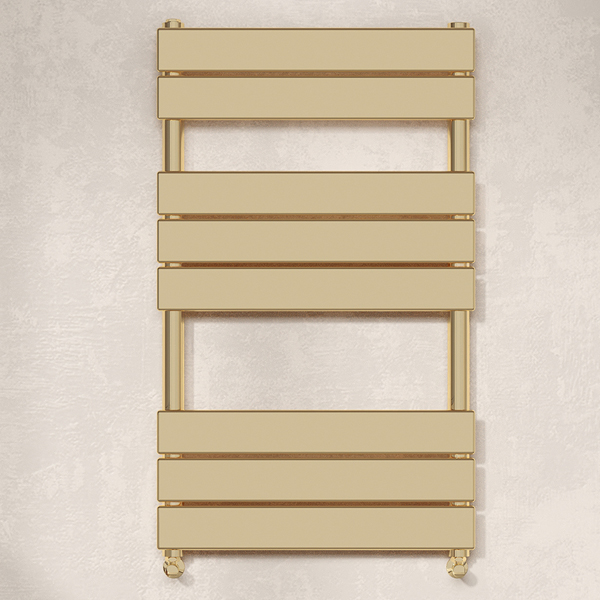

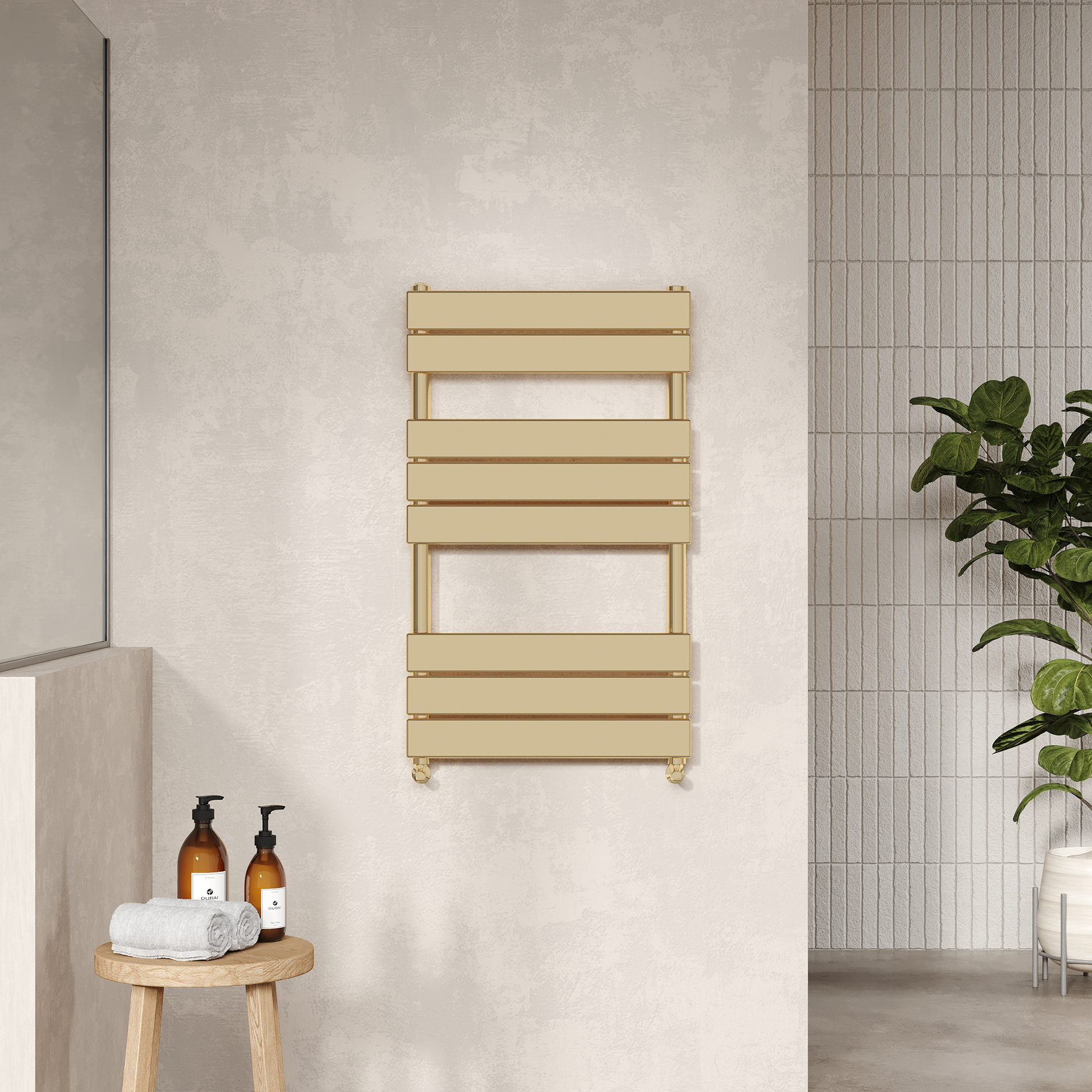

  • Details For Brushed Brass Finish:.
  • BTU: 30 Deg. C - 543, 50 Deg. C - 1021, 60 Deg. C - 1280.
  • Watts: 30 Deg. C - 159, 50 Deg. C - 299, 60 Deg. C - 375.

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Piazza
  • ⤷ Colour
  • : Anthracite
  • ⤷ Weight in kg
  • : 8.4
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Material
  • : Steel
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall Mounted
  • ⤷ Projection (Depth)
  • : 30
  • ⤷ Width
  • : 500
  • ⤷ Height
  • : 840
  • ⤷ Orientation
  • : Vertical
  • ⤷ Compliance/Approvals/Standard
  • : CE | RoHS | WEEE
  • ⤷ Barcode
  • : 5056462658797
  • ⤷ BTU Output
  • : 30° 744 | 50° - 683
  • ⤷ Watts
  • : 30° - 217 | 50° - 405
  • ⤷ Tapping / Pipe Centres
  • : 200
  • ⤷ Valves Included
  • : Sold Separately
  • ⤷ Fuel Type
  • : Central Heating
  • ⤷ Brackets Included
  • : Yes
