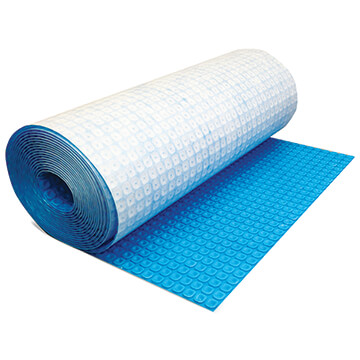

ThermoSphere Decoupling Membrane Mat


RRP: £29.40

Delivery In:

3-4 Working Days Approx.

Not Yet Rated No Rating

Shipping: £7.95

Select Variations
You've Selected: OP-235562 - Decoupling Membrane 1 sqm
Key Features
  • Material: Polypropylene
  • Simple and flexible installation process
  • Lifetime warranty from the manufacturer
  • A combined electric underfloor heating and decoupling membrane tested for extra heavy use under tiled floors
  • ThermoSphere Membrane is an award-winning electric underfloor heating system for tile and stone floors
SKU Code: QS-V109394

MFC Code: HDM-001

HDM-001 Details

ThermoSphere Decoupling Membrane Mat

  • Heat and protect hard floors easily.
  • It is a patented polypropylene membrane with rounded square-shaped studs that form channels specifically designed to hold ThermoSphere Membrane Heating Cable.
  • Decoupling properties neutralise lateral movement in tiled floors and minimise the risk of cracking.
  • It can also be used under tiled walls.
  • IP68 rated, means it's impervious to moisture and safe to use in bathrooms and wet rooms.
  • Only 5.5mm thick and with the jointless cold tail technology, it makes a great option if you are looking to minimise floor height.
  • Easy to install.
  • Heating cables, waterproofing paste, and tape are not included.
  • Download the Installation guide and Datasheet PDF File from the Additional Info Section..
  • Technical Data:.
  • Voltage: 230V 50Hz.
  • Protection rating: IP68.
  • Max thickness: 5.5mm.
  • Cable Length: 12 to 200m.
  • Outputs 130 or 195W/m2.
  • Robinson test rating: Extra heavy use.
  • Cable insulation: FEP and HR-PVC.
  • Recommended max temp: 27 degrees Celsius (limited by controls).

Additional Info & Downloads

Customise Your Product

Membrane Adhesive
Membrane Adhesive

An essential part for your Membrane installation used to secure your flooring. Use a trowel to spread in metre square sections to ensure the adhesive doesn‘t dry before laying your flooring

Waterproofing Solution
Waterproofing Solution

ThermoSphere water proofing paste and waterproofing tape can be used together to seal joints between sections of ThermoSphere membrane. It can also be used to create a watertight seal in internal corners and joints between floors and walls

Perimeter Insulation Foam
Perimeter Insulation Foam

It can be installed around the perimeter of room to act as a cushion for slight expansion/ contraction your floor will experience during heating and cooling. It also acts as a thermal barrier around the edge of the floor,reducing heat loss into the walls
