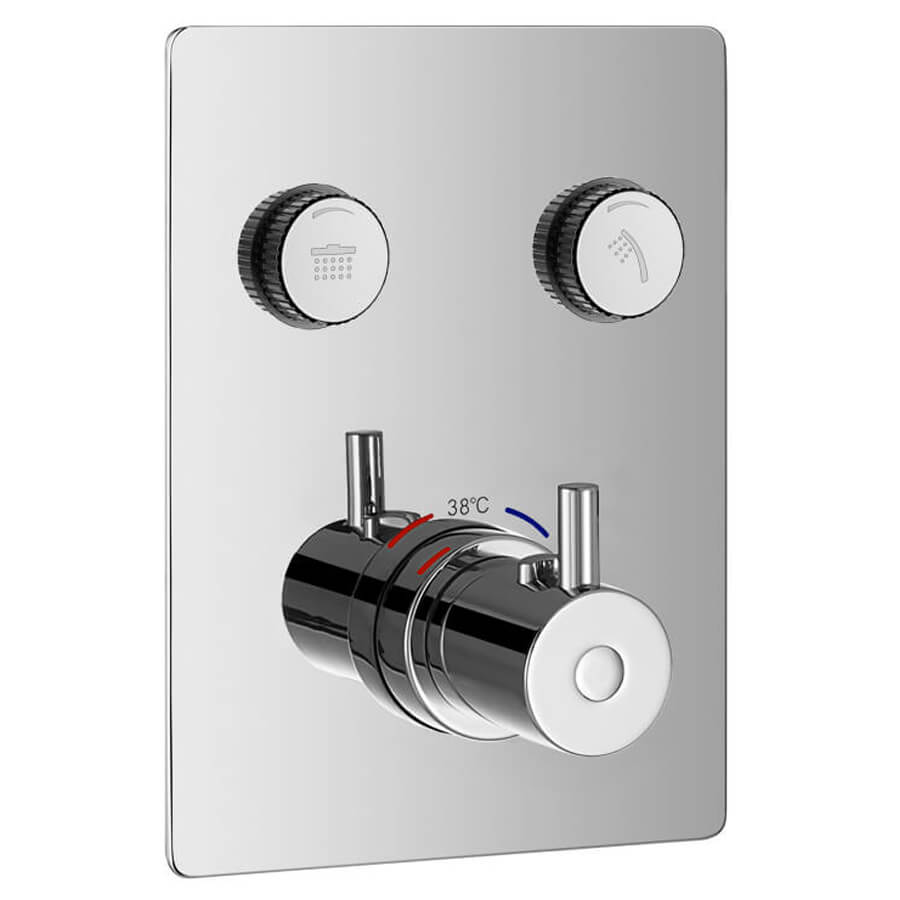

Flova Levo Thermostatic Concealed Shower Valve With GoBox

Flova Levo LVGO-2-RO Details

Update the bathroom with a minimalistic unit that delivers a comfortable and efficient showering experience with this Levo Thermostatic Concealed 2-Outlet Shower Valve With GoBox from Flova. The product boasts a Thermostatic control feature that ensures safe showering while the make is solid brass, giving it assured durability.

You can get this in diamond chrome, matt black, brushed brass, and brushed nickel, in either round or square shape. Installation is super simple with the easy-to-fit installation box that comes with a built-in spirit level allowing front and back access. This is just the perfect showering product if you have a high-pressure system at your home. No wonder this is such a hit with customers.

Key Features

✔WRAS approved
✔Constructed using solid brass material
✔Ten years of guarantee from the manufacturer against any manufacturing defects
✔Thermostatic control feature to maintain fluctuating temperature with safety override
✔Available in 4 finishes: Diamond Chrome, Matt Black, Brushed Black, Brushed Nickel

Available in 2 variations: Round, Square.
Suitable to use with HP- High Pressure [1 bar].
Recommended minimum water pressure of 1 bar.
Refer to the technical image for more technical details.
Images shown are only for illustration purposes.
Please download the product aftercare guide PDF file from the Additional Info section below.
Specification for round finishing kit:.
Diameter of backplate: 200mm [20cm].
Specification for square finishing kit:.
Height of backplate: 200mm [20cm].

Width of backplate: 145mm [14.5cm].
Specification for GoClick:.
Comes in a diamond chrome finish.
High flow inlets connection of 3/4 inch with additional mixed outlet.
Suitable to use with HP- High pressure [more than 1 Bar].
Recommended minimum water pressure of 1 bar for better flow.
GoClick technology - [See Features Explained Section].
Complete peace of mind with thermostatic anti-scald technology, which controls fluctuating temperature with a safety override feature.
Easy-to-fit installation box with a built-in spirit level which makes it easy to access from the front and back.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Diamond Chrome
⤷ Shape
: Round
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Min-Max Wall Mount
: 157
⤷ Inlet Connections
: G 3/4
⤷ Minimum Operating Pressure (Bar)
: 1
⤷ Handle Style
: Stick
⤷ WRAS Approved
: Yes

⤷ Temperature Control
: Yes
⤷ Backplate Width
: 200
⤷ Backplate Height
: 200
⤷ Anti-Scald
: Yes
⤷ Number of Handles
: 1
⤷ Number of Outlet
: 2
⤷ Outlet Connection
: G 1/2
⤷ Orientation
: Portrait
⤷ Concealed Body Included
: Yes
⤷ Cartridge Included
: Yes
⤷ Cartridge Type
: Thermostatic

Additional Info & Downloads

Download the Aftercare Instruction Pdf File

Technical Images

Flova Levo Thermostatic Concealed 2-Outlet Shower Valve With GoBox

Total: £552.86 5-7 Working Days Approx QS Supplies

4 Features Included In This Product Explained

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

GoClick TECHNOLOGY

GoClick® technology in Flova makes life easy for the installer. The GoClick easy-fit box has been designed to allow accurate installation. It has 3/4 inch inlets for high-flow water pressure and a built-in spirit level, easy snap guides and offset fixing points for easing the installation process. The valve can be adjusted between 85 and 105mm to ease installation. The GoClick® mechanism enables water flow just with the click of a button. The user can enjoy a relaxing and intuitive showering experience. Products equipped with GoClick® are easy to operate, safe to use and offer consistent temperature without the risk of scalding. The built-in safety override button has been pre-set to 38 degrees Celcius and increases the temperature after the button is pressed. The button is within easy reach if you want to switch it back to 38 degrees Celcius.

Bar Pressure

Bar is a unit of pressure, which is accepted for use with SI by The International Bureau of Weights and Measures. The bar is used as it is almost equal in value as the standard atmosphere which is 1.01325 bar.
