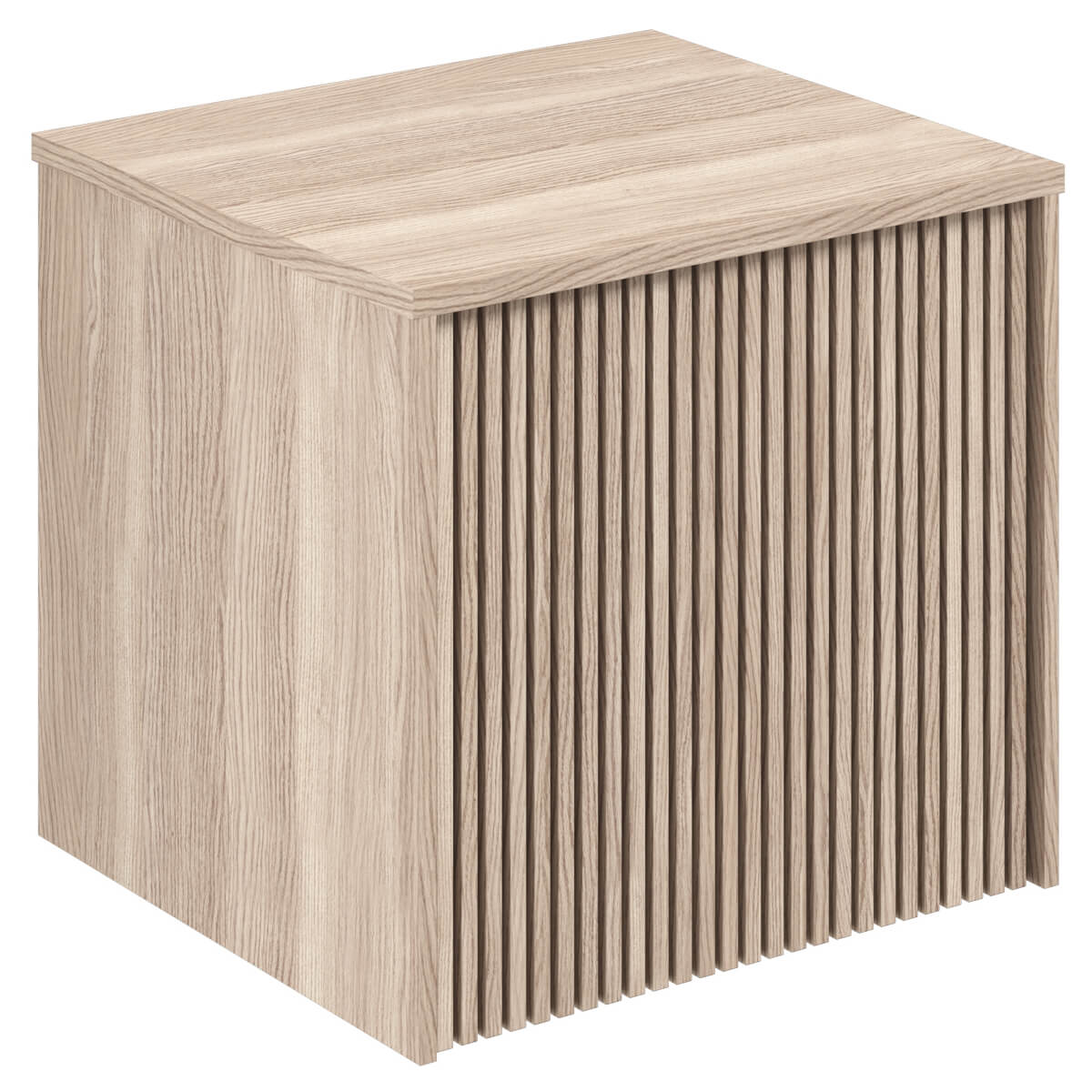

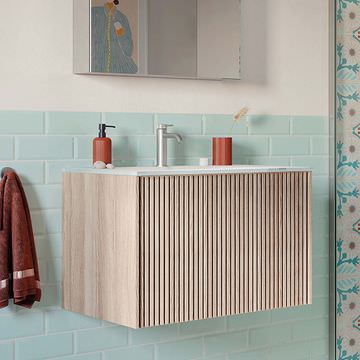

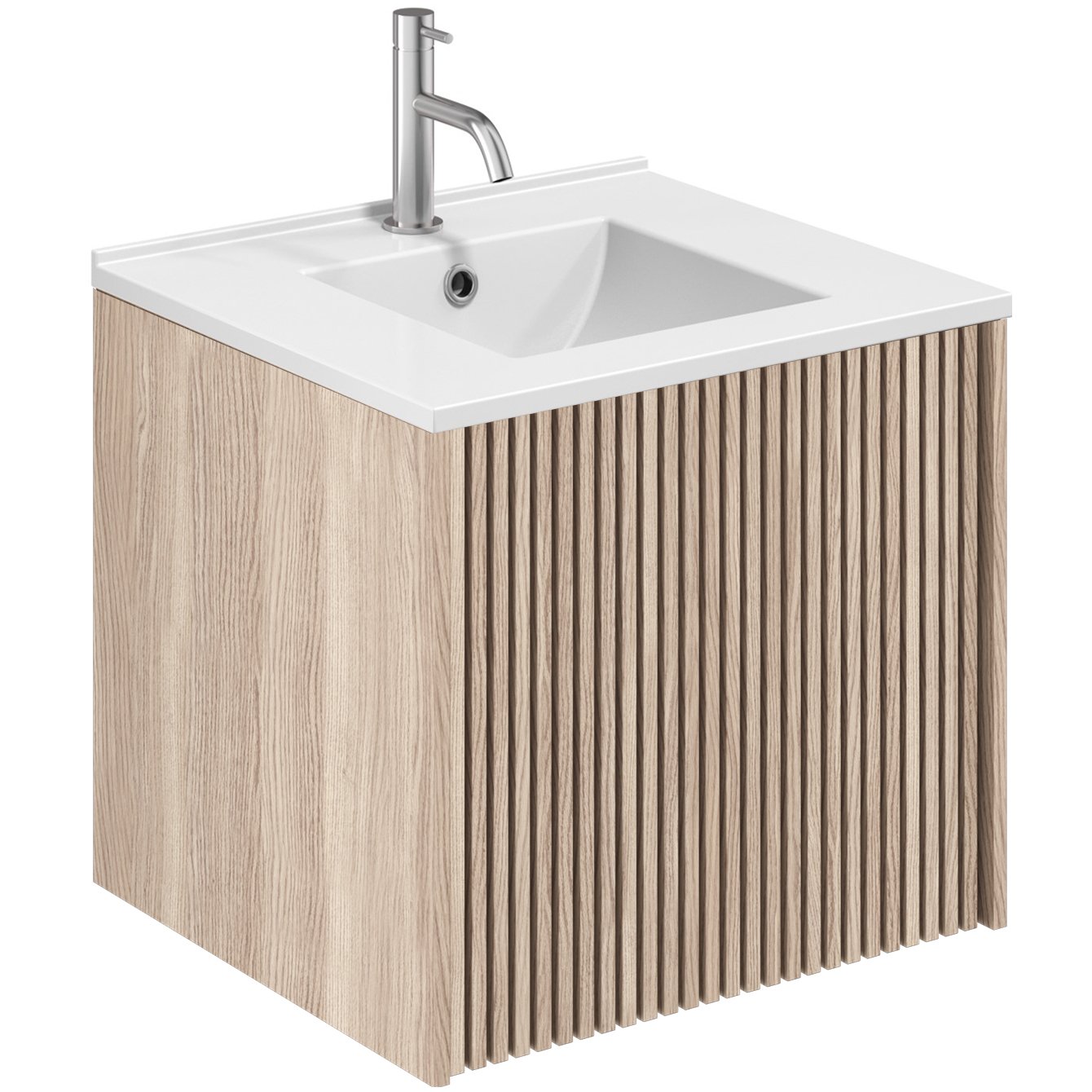

Crosswater Limit Single Drawer Wall Hung Vanity Unit


RRP: £995.00


In-Stock In Stock

4.0 out of 5 4.0 out of 5

Based on 6 Ratings.

Shipping: £34.95

Delivery in 5 Working Days Approx.
Product Variants
Select Unit Finishes Step 1
Select Unit Sizes Step 2
Select Basin Or Worktop Step 3
Overflow Cover Step 4
Select Internal Drawer Step 5
Furniture Basin Trap Step 6
SKU Code: QS-V109821


Crosswater Limit LM5000DSTAN Details

Crosswater, as part of its Limit range, has come out with a Vanity Basin that is very, very impressive. The product, well appreciated by buyers, is reasonably priced. It is supplied in two natural wood finish choices of Steel Wood or Modern Oak. The model owes its stunning looks to a well-thought-out design, made using engineered wood. It features 12mm slats precision pressed, and PU bonded to the carcass for an attractive facade. It comes fully assembled and ready to install. Order it from your favourite online store to enjoy a good discount.

Key Features
  • Manufactured using MFC material
  • Available Finishes: Steel Wood, Modern Oak
  • Ten years warranty from the manufacturer
  • 12mm slats are precision pressed, PU bonded to the carcass
  • Soft close, push to open, full extension Hettich drawers with 4-way adjustment (30kg weight capacity)
  • Available Unit Sizes: 500mm, 700mm.
  • Internal Drawer, Short Furniture Trap (Optional).
  • Tap, Basin and worktop shown in the are not included.
  • Download Installation Instruction PDF File from the Additional Info Section.
  • Refer to the technical diagram for the complete technical dimension.
  • Features Of Single Drawer Vanity Unit:.
  • Suitable for wall-mounted installation.
  • Anthracite interior and behind slats.
  • Wall hangers with 3-way adjustment and safety lock (120kg weight capacity when fitted to solid wall).
  • Fully assembled.
  • Standards: EN 13986, EN 14749.
  • Sizes:.
  • 500mm Wide: 500mm x 453mm x 450mm (Width x Depth x Height).
  • 700mm Wide: 700mm x 465mm x 450mm (Width x Depth x Height).
  • Features Of Ceramic Basin:.
  • Manufactured using white vitreous china material.
  • Single Tap-hole basin.
  • Supplied with overflow.
  • Waste Required: Slotted.
  • Lifetime guarantee from the manufacturer.
  • Sizes:.
  • 510mm Basin: 510mm x 460mm x 180mm (Width x Depth x Height).
  • 710mm Basin: 710mm x 460mm x 180mm (Width x Depth x Height).
  • Features Of Ice White And Midnight Black Glass Basin:.
  • It comes in a gloss finish Ice White and Midnight Black.
  • Supplied with overflow, including chrome overflow cover (Ice White).
  • Supplied with overflow, including matt black overflow cover (Midnight Black).
  • Material: Low Iron Soda Lime Silicate Glass EN572-9:2005.
  • Standards: EN 14688 – CL 0EN31.
  • Weight: 7kg(506mm), 10kg(706mm).
  • Ten years warranty from the manufacturer.
  • Sizes:.
  • 506mm Basin: 506mm x 455mm x 139mm (Width x Depth x Height).
  • 706mm Basin: 706mm x 455mm x 139mm (Width x Depth x Height).
  • Features Of Worktop:.
  • Available Variations: Steel Wood, Modern Oak.
  • The surfaces are resistant to day-to-day wear and tear, impact, scratching and normal household cleaning agents.
  • Factory fitted aluminium reinforcing bar on the underside.
  • Supplied undrilled.
  • Ten years guarantee from the manufacturer.
  • Sizes:.
  • 510mm Wide: 510mm x 455mm x 25mm (Width x Depth x Height).
  • 710mm Wide: 710mm x 455mm x 25mm (Width x Depth x Height).

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Sink Height
  • : 180, 139
  • ⤷ Sink Projection
  • : 460, 455
  • ⤷ Sink Width
  • : 506, 510
  • ⤷ Range
  • : Limit
  • ⤷ Colour
  • : Steel Wood
  • ⤷ Warranty/Guarantee
  • : 10-Years
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall-Mounted
  • ⤷ Width
  • : 500
  • ⤷ Depth
  • : 453
  • ⤷ Height
  • : 450
  • ⤷ No. of Tap Holes
  • : 1
  • ⤷ Overflow Included
  • : Yes
  • ⤷ Barcode
  • : 5056553403756
  • ⤷ Product Type
  • : Wall-Hung Vanity Unit
  • ⤷ Furniture Material
  • : MFC
  • ⤷ Sink Included
  • : Sold Separately
  • ⤷ Sink Colour
  • : White, Black
  • ⤷ Worktop Included
  • : Sold Separately
  • ⤷ Worktop Colour
  • : Steel Wood, Modern-Oak
  • ⤷ Number Of Drawers
  • : 1
  • ⤷ Soft-Close Drawer
  • : Yes
  • ⤷ Sink Material
  • : Vitreous China

Additional Info & Downloads

Download PDF Download the Installation Instruction Pdf File

Technical Images

Total: £597.00 10 Working Days Approx QS Supplies

5 Features Included In This Product Explained

Rigid Furniture - Pre-Assembled

Rigid Furniture - Pre-Assembled

Rigid or pre-assembled furniture is any bathroom unit that is ready to install. These arrive entirely constructed with pre-drilled holes and labelled parts making the furniture installation process quick and easy. It helps you save money on labour, and you get a higher-quality product. These are also an excellent choice for anyone looking for a new storage unit that fits their bathroom decor.

Soft-Close Opening

Soft-Close Opening

This product has a mechanism for doors and drawers to open or close slowly, silently and without loud slamming.

Vitreous-China Material

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

With / Without Overflow

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called “without overflow” and will need a compatible drain.

Melamine Faced Chipboard

Melamine Faced Chipboard

Melamine Faced Chipboard or MFC is a type of engineered wood with a smooth surface. It is made using wood chips, then formed into particle board using heat and pressure and bonded to melamine resin impregnated paper. The Melamine layer makes it waterproof, and helps resist scratches, and increases the aesthetics. It is cheaper than MDF or Medium Density Fiberboard.
