Joseph Miles Kamada Tall Monobloc Basin Tap, Straight Spout, JMQS111494

Joseph Miles Kamada Details

MFC: JMQS111494

Joseph Miles Kamada Mono Tall Basin Tap impresses with its Tall, tubular profile, bending spout and straight single lever handle. Inspired by the cylindrical shape, this elegant mixer has an unmatched presence when finished in Chrome, Matte Black, Brushed Brass or Brushed Bronze. Its presence can define the style and decor of the washbasin as it is made for the long run using high-quality brass material. The product is made for medium-water pressure systems and can be operated using a minimum of 0.5 bar or above water pressure. The maker offers a guarantee of three years on the valve and five years on the body and finish.

Key Features

✔Choice of Finishes: Chrome, Matt Black, Brushed Brass, Brushed Bronze
✔Manufactured Using Brass Material
✔Operation: Single Lever Cartridge
✔Guarantee: 3-Year on Valve, 5-Year on Body and Finish

Suitable for Deck-Mounted Installation
Contemporary Style
Size [mm]: 50 x 166.5 x 314mm [Width x Depth x Height]
Size [cm]: 5 x 16.65 x 31.4cm [Width x Depth x Height]
Centre of the Inlet to the Centre of the Outlet: 120mm [12cm]
Base to Spout: 266.7mm [26.67cm]
Connection Type: Flexible Tails
Suitable for Medium Water Pressure System
Requires a Minimum of 0.5 Bar of Water Pressure System

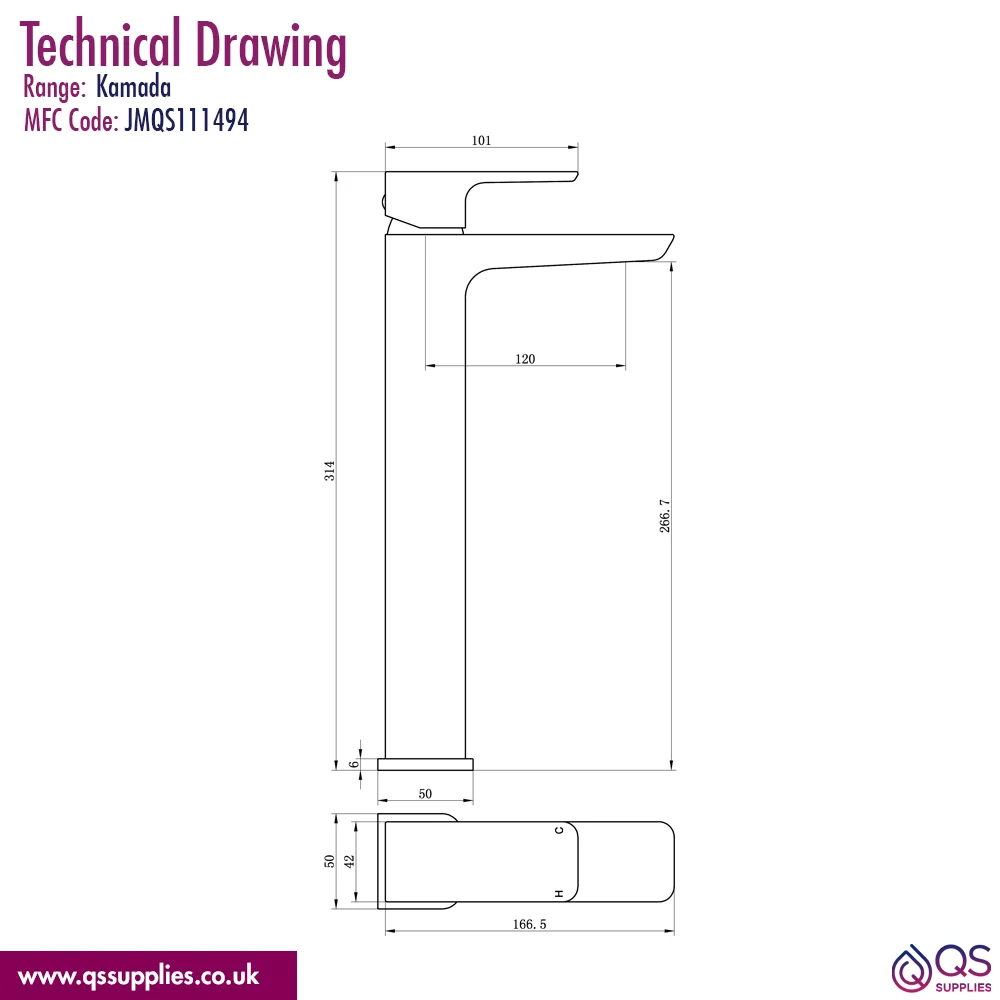

Refer to the Technical Drawing for Size Details
Download the Installation Instruction PDF File from the Additional Info Section

Info / Size (mm)

Taps
Pipe Center: 120 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Kamada
⤷ Tap Body Shape
: Square
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 3 Years On Valve & 5 Years On Body & Finish
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1

⤷ Spout type
: Fixed
⤷ Base To Spout
: 266.7
⤷ Spout Reach
: 120
⤷ Overall Height
: 314
⤷ Width
: 50
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Handle Style
: Flat
⤷ Barcode
: 5057199968678
⤷ Product Type
: Tall Basin Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

This item can also be found in:

Joseph Miles Kamada Tall Monobloc Basin Tap with Straight Spout - Flat Handle - Deck Mounted

£148.00

RRP: ~~£185.00~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Flexible Tail Pipes

Flexible Tails, or "Flexi" Tails, are one of the easiest methods to connect the plumbing pipework to the tap fitting. Mixers generally have two tails, one for the hot water supply and the other for the cold. These tailpipes consist of rubber inside a braided metal and come in many sizes.

Single Lever Taps

These taps are designed with a single lever or handle to control the water's temperature and flow. Extremely easy to operate, these also allow you to preset the water temperature by leaving it in the position with your preferred water temperature. Besides, it is simple to control the flow of water; the higher you lift the lever or move it to the end, the stronger the water flow.
