Jaquar Kubix Prime Sensor Activated Tall Basin Mixer Tap, Battery Operated

Jaquar Kubix Prime Details

MFC: SNR-CHR-35017PMEBPK

Jaquar Kubix Prime Sensor Activated Tall Basin Mixer Tap - Deck Mounted - Battery Operated.

Key Features

✔IP66-Rated

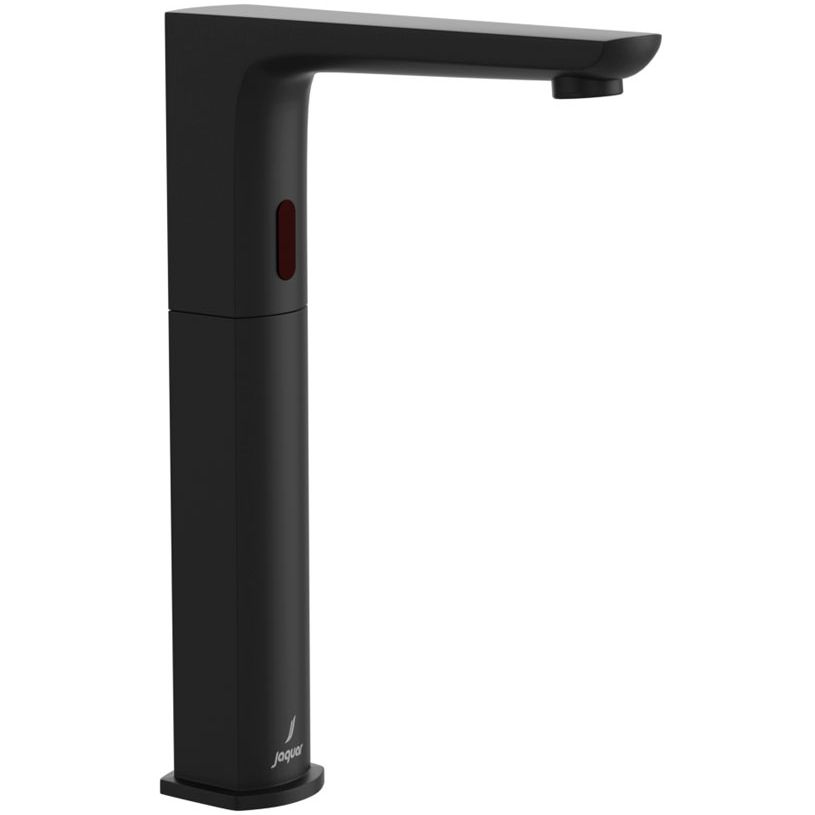

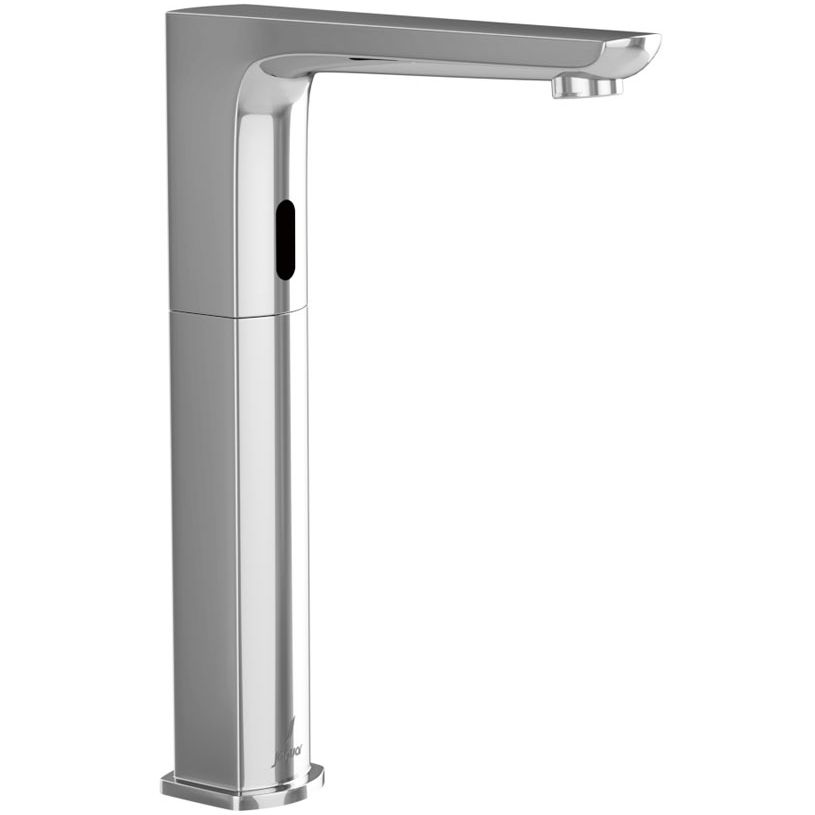

✔Choice of Finishes: Chrome, Matt Black
✔Manufactured using High-Quality Brass Material
✔10-Year Warranty Against Any Manufacturing Defect
✔Includes Control Box and Pre-Mixed Water Supply Kit (9V Transformer)

Sensor Tap for Wash Basin
Battery Operated
Deck-Mounted Installation
Height: 285mm (28.5cm)
Base to Spout: 265mm (26.5cm)
Spout Reach: 150mm (15cm)
Inlet Water Connection: 1/2-Inch BSP (15mm)
Water Supply: Hot And Cold (2 Inlets)
Environment Working Temperature: 0 to 40 Degree C
Recommended Water Pressure: 1.0 Bar - 5.0 Bar
Flow Rate: 11.90 LPM @ 3 Bar
Light Indicator on Usage: Red LED Indicator
Water Temperature: Maximum 65 Degree C
Self-Close Over Ride Time: 12 Sec
Refer to the Technical Drawing for More Size Details

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Kubix Prime
⤷ Water Activation
: Sensor
⤷ Tap Body Shape
: Square
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1

⤷ Spout type
: Fixed
⤷ Base To Spout
: 265
⤷ Spout Reach
: 150
⤷ Overall Height
: 285
⤷ Inlet Connections
: 1/2-Inch BSP
⤷ Minimum Operating Pressure (Bar)
: 1.0
⤷ Flow Rates (l/min)
: 11.90 - 3 Bar
⤷ Barcode
: 5057199986672
⤷ Product Type
: Sensor Tap

Additional Info & Downloads

This item can also be found in:

Jaquar Kubix Prime Sensor Activated Tall Basin Mixer Tap - Deck Mounted - Battery Operated

£255.19

RRP: ~~£319.00~~

STOCK AVAILABLITY: 5-7 Working Days Approx

QS Supplies

2 Features Included In This Product Explained

Battery Operated

Battery-operated devices are smaller and have the advantage of portability. Once the power has run out, battery-powered devices need recharging or replacement.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.
