Clearwater Okio 1000mm Length 1.5 Bowl And Drainer

Clearwater Okio 1000mm Length 1.5 Bowl And Drainer

Clearwater Okio 1000mm Length 1.5 Bowl And Drainer

Technical drawing QS-V104650 / 7510423

QS-V104650 small Image 1

QS-V104650 small Image 2

£213.77

STOCK AVAILABILITY

5-7 Working Days Approx

No Rating

Shipping: FREE* Check Postcodes

Key Features

✔Manufactured from 0.7mm gauge stainless steel
✔Twenty years of warranty from the manufacturer

QTY

SKU Code: QS-V104650

MFC Code: 7510423

+ Review this Product

Okio 7510423 Details

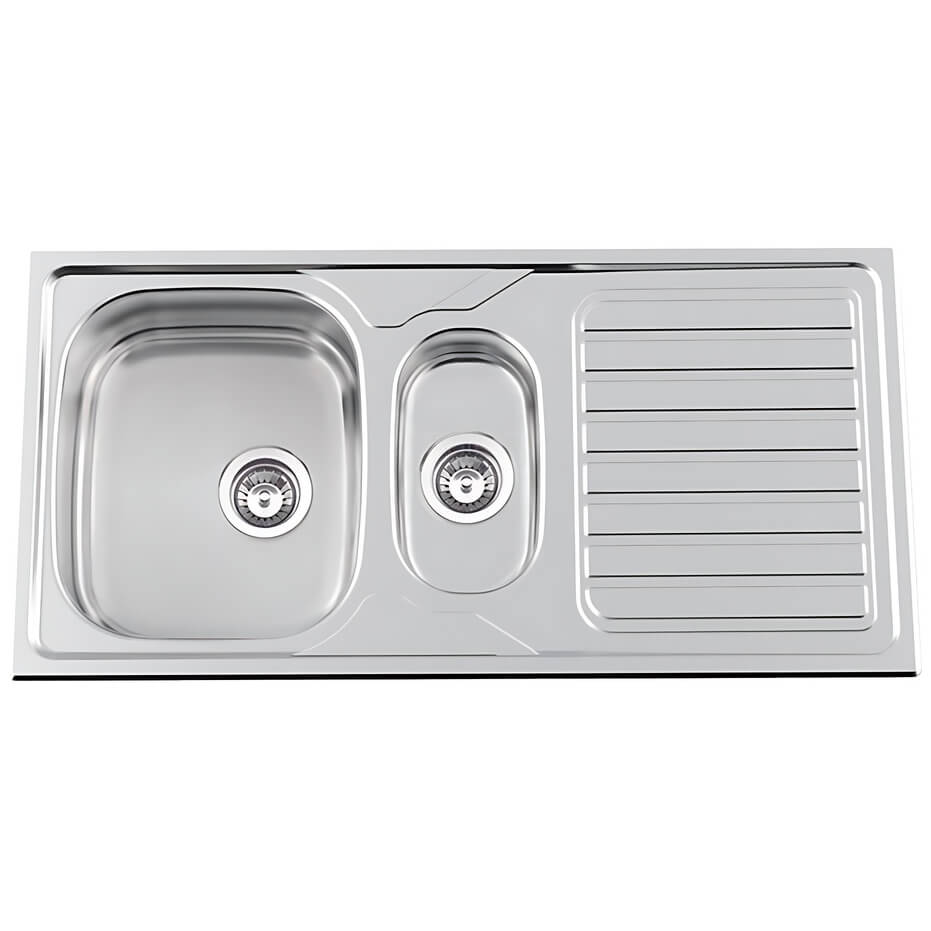

Clearwater Okio 1000mm Length 1.5 Bowl And Drainer an amazing product that is well-designed, sturdy and practical. The pack includes a stainless-steel bowl with a drainer and a 2 x 90mm waste. Specially designed to complement one and a half bowl sinks, it is best suited for modern kitchens and is most easy to install. It comes with a 0.7mm gauge stainless steel construction and has a satin finish. It can be fitted as left or right-hand drainers and has a length of 1000mm and a width of 500mm. It is backed by 20 years of warranty from the manufacturer.

The manufacturing code of this product is 7510423.
Waste included: 2 x 90mm BSW.
It comes in a satin finish.
Can be fitted as left or right-hand drainers.
Overall size: 1000mm x 500mm [Length x Width].

Bowl size: 340mm x 400mm x 160mm [Length x Width x Depth].
Half bowl: 160mm x 350mm x 90mm [Length x Width x Depth].
Cut-out size: 976mm x 476mm [Length x Width].
Minimum cabinet size: 600mm.
Refer to the technical diagram for the complete technical dimension.

Info / Size (mm)

Sink
Length: 1000 mm
Width: 500 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Satin
⤷ Installation/Style
: Inset
⤷ Overall Length
: 1000
⤷ Overall Width
: 500
⤷ Length of Main Bowl
: 340
⤷ Width of Main Bowl
: 400
⤷ Depth of Main Bowl
: 160
⤷ Length of Small Bowl
: 160

⤷ Width of Small Bowl
: 350
⤷ Depth of Small Bowl
: 90
⤷ Cut-Out Length
: 976
⤷ Cut-Out Width
: 476
⤷ Gauge / Thickness
: 0.7
⤷ Tap Included
: No
⤷ Waste Included
: Yes
⤷ Warranty/Guarantee
: 20 years
