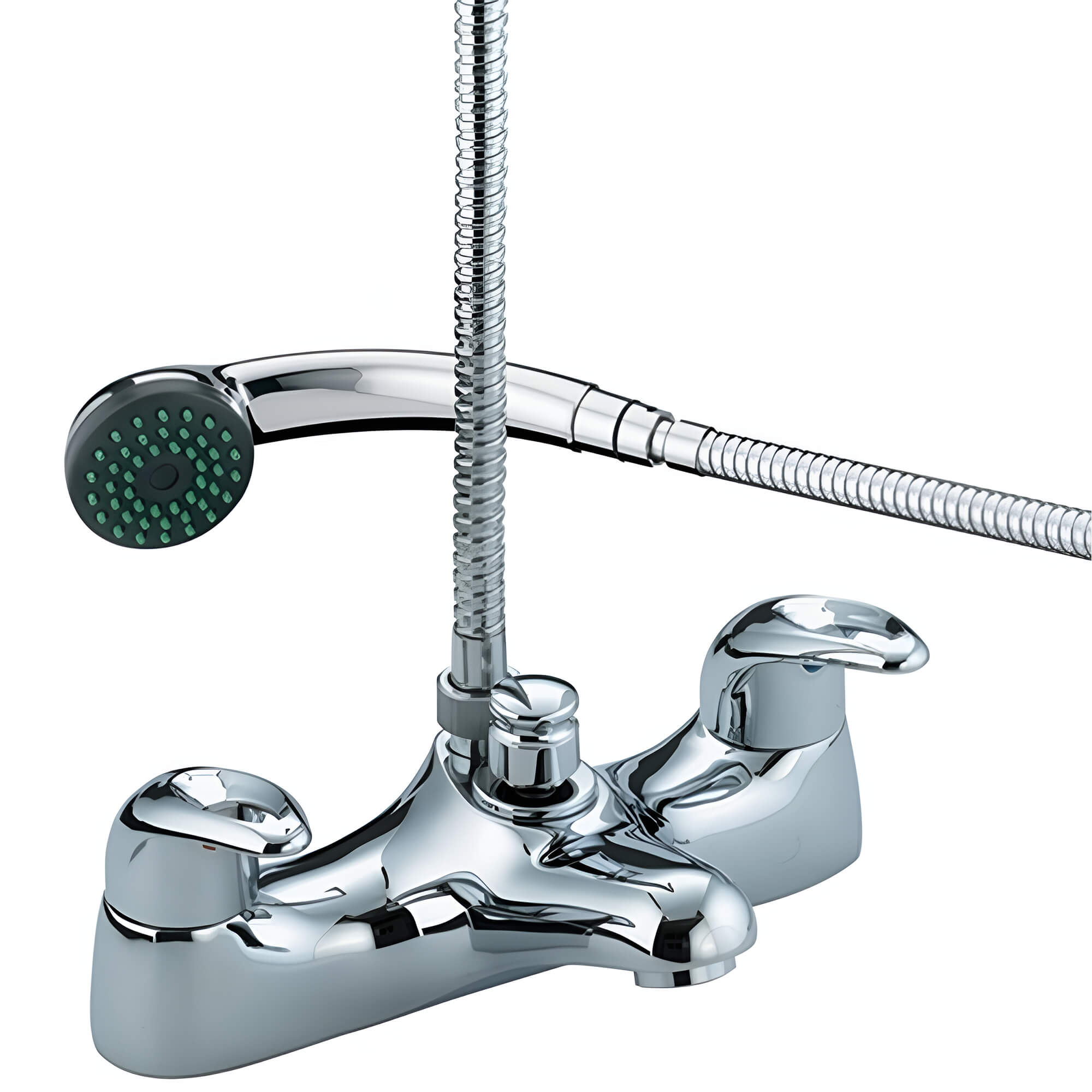

Bristan Java Eco-6 Bath Shower Mixer Tap with Handset

Java Details

MFC: J BSM E6 C

Bristan Java Bath Shower Mixer Taps will have no dearth of admirers when fitted in your contemporary kitchen. The product, which is supplied with a beautifully designed body with lever handles, can be easily installed on your bathroom wall. It boasts high quality ceramic disc valves and looks fetching in chrome finish. This model is designed to function with a minimum 0.2 bar to a maximum 5.0 bar water pressure and comes with M28 Flow Straightener. It features a 1/4 Turn 3/4 inch Ceramic Disc Valve and is backed by a five-year guarantee from the manufacturer. Place an order at your favourite online store for quick delivery.

Manufacturing Code of this Product: J BSM E6 C
It Comes in a Chrome Finish
Flow Type: Single
Size [mm]: 230 x 145 x 90mm [Width x Depth x Height]
Size [cm]: 23 x 14.5 x 9cm [Width x Depth x Height]
Base to Spout: 30mm [3cm]
Centre of Inlet to Centre of Outlet: 100mm [10cm]
Easy-to-Use Lever Handles
Suitable for Low and High Water Pressure Systems
Requires Minimum 0.2 Bar to Maximum 5.0 Bar Water Pressure
Mount Type: Deck Mounted
Handle Type: Loop Lever
Connection Inlet: 3/4 Inch BSP
Connection Outlet: M28 Flow Straightener
Number of Tap Holes: 2
Valve/Cartridge Type: 3/4 Inch Ceramic Disc Valve
Plumbing System Requirements: Suitable for All Plumbing Systems
Maximum Hot Water Temperature: 65°C
Maximum Static Pressure: 10 Bar
Refer to the Technical Diagram for Complete Technical Dimensions
Download the Product Datasheet and Installation Instruction PDF File from the Additional Info Section

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Material
: Brass
⤷ Base To Spout
: 30
⤷ Spout Reach
: 100
⤷ Overall Height
: 90

⤷ Inlet Connections
: 3/4 Inch BSP
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Loop Lever

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Bristan Java Eco-6 Deck Mounted Chrome Bath Shower Mixer Tap with Handset - Loop Handles and Hose

£285.00

RRP: ~~£471.74~~

Stock Availablity: 6 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Quarter Turn

Operating these taps is almost effortless; it can be turned on and off by rotating the lever at 90 degrees. These taps have such low friction that they are perfect for people with arthritis, weak grip, the elderly and the young.

Flow Straightener

A flow straightener, also called Honeycomb, is a fitting which directs the flow of water from the outlet in a way as to straighten the stream. They are generally not flow-regulated and differ in design from the pressure-compensating aerator.
