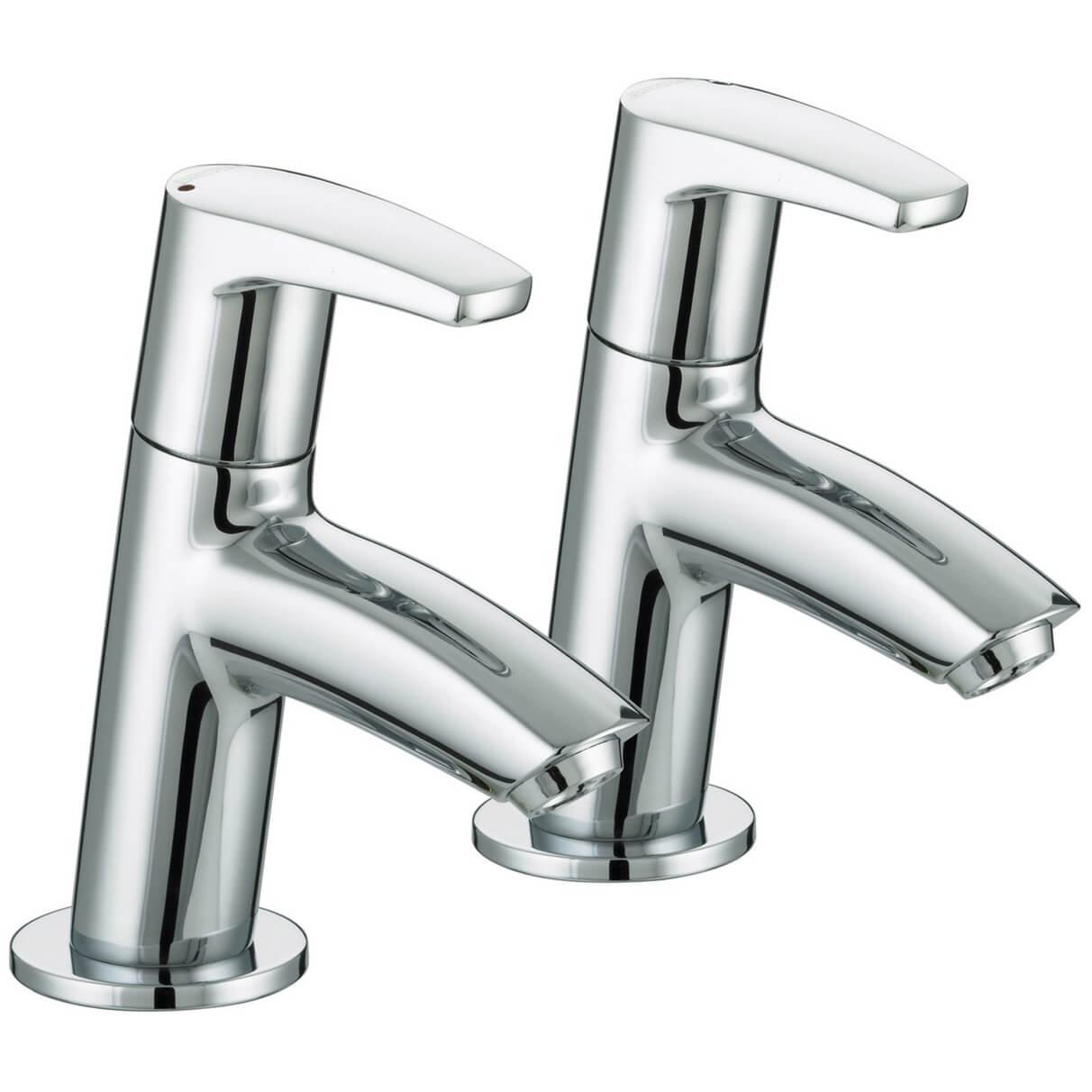

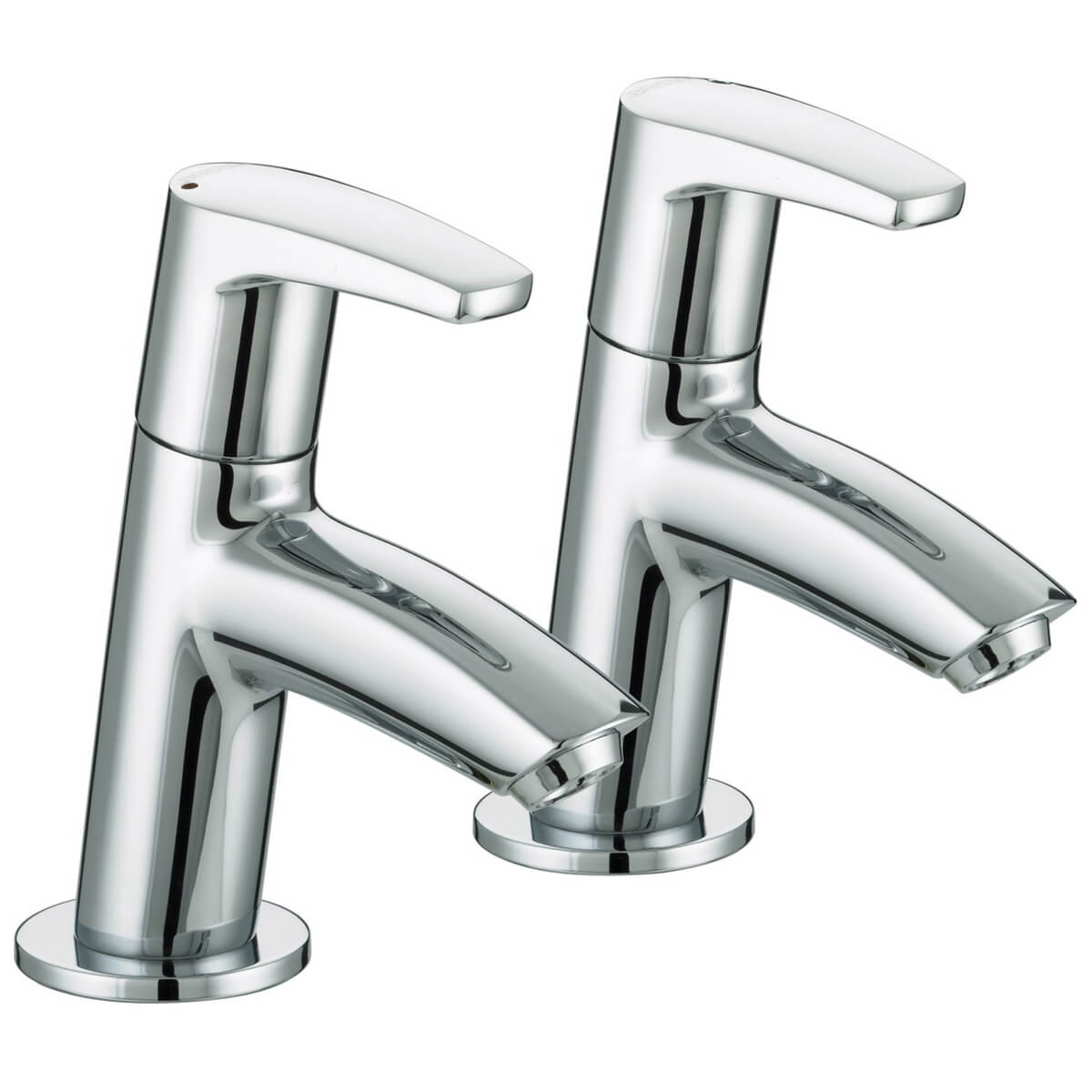

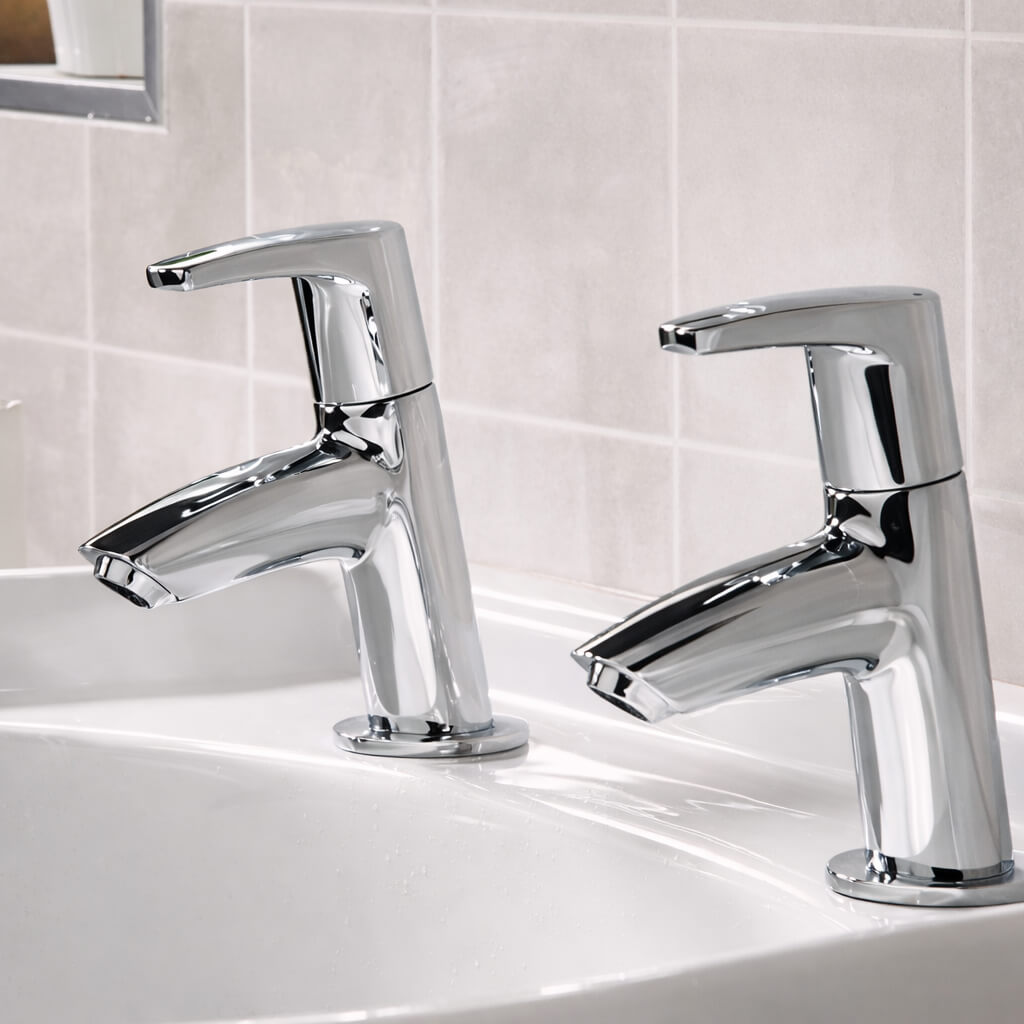

Bristan Orta Contemporary Pair Of Chrome Basin Pillar Taps

Orta Details

MFC: OR 1/2 E4 C

Bristan Orta Pair Of Basin Pillar Taps is complete in 2 variations for easy installation. With a superb traditional design and a fabulous finish, it notches a higher standard of elegance and is suitable for any stylish bathroom. It comes with metal handles, back nuts, and flow regulators. The brass wonder requires a minimum of 0.2 bar to a maximum of 5.0 bar water pressure for smooth functioning. Strong, enduring and made for long-term use, it comes with a guarantee of 10 years against manufacturing defects and is most simple to install and maintain.

Key Features

✔Supplied with Metal Handles
✔Manufactured Using Brass Material
✔10-Year Guarantee from the Manufacturer

Available in 2 Variations: Eco-4 Tap and Eco-6 Tap
Mount Type: Deck Mounted
Handle Type: Lever
Size [mm]: 50 x 115 x 120mm [Width x Depth x Height]
Size [cm]: 5 x 11.5 x 12cm [Width x Depth x Height]
Base to Spout: 41mm [4.1cm]
Centre of Inlet to Centre of Outlet: 82mm [8.2cm]
Supplied with Metal Back Nuts
Connection Inlet: 1/2 Inch BSP
Connection Outlet: M16 Aerator
Number of Tap Holes: 2
Valve/Cartridge Type: 1/2 Inch Ceramic Disc Valve
Suitable for Low and High Water Pressure Systems
Requires Minimum 0.2 Bar to Maximum 5.0 Bar Water Pressure
Maximum Hot Water Temperature: 65°C
Maximum Static Pressure: 10 Bar
Refer to the Technical Diagram for the Complete Technical Dimension
Details of Eco 4 Tap:
Supplied with 2 x 2 Litre Per Minute Flow Regulators
Details of Eco 6 Tap:
Supplied with 2 x 3 Litre Per Minute Flow Regulators

Info / Size (mm)

Taps
Pipe Center: 82 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Orta
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Valve Included
: Yes

⤷ Valve/Cartridge Type
: Ceramic Disc Valve
⤷ Base To Spout
: 41
⤷ Spout Reach
: 82
⤷ Overall Height
: 120
⤷ Width
: 50
⤷ Inlet Connections
: 1/2 Inch BSP
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Handle Style
: Lever
⤷ Barcode
: 5014868012414
⤷ Product Type
: Basin Pillar Taps

Additional Info & Downloads

Download the Product Data Sheet Pdf File Download the Installation Instructions Pdf File

Bristan Orta Contemporary Deck Mounted Pair Of Chrome Basin Pillar Taps - Lever Handles

£80.05

RRP: ~~£138.02~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Flow Regulator

As the name suggests, a flow regulator is a simple device designed to regulate water flow to a predetermined level. The job of a flow regulator is to stop water wastage. For instance, if the regular flow rate through a tap is 20 litres per minute, a flow regulator can reduce the flow rate between 6 to 12 litres per minute to complete the desired chore without feeling low pressure.
