Duravit D-Neo 540mm Projection Wall Mounted Bidet

D-Neo 2295150000 Details

Duravit D-Neo 540mm Projection Wall Mounted Bidet not only has a revolutionary new look but is also most easy to install and comes in 2 variations. Fabricated from high-grade ceramic, it is assuredly stained and impact resistant and comes with an eye-catching White Alpin finish. Supplied with a punched taphole, it can be used with an optional bidet mixer, available at an attractive price. It can be installed with the Durafix attachment system for a quick and seamless finish.

Available in 2 variations: Without and With Durafix.
It comes in a white Alpin finish.
Incorporates with tap platform.
Size: 370mm x 400mm [Width x Height].
Projection: 540mm.
Chrome or White Fixing Kit [Optional].

Chrome Siphon - 0050270000 [Optional].

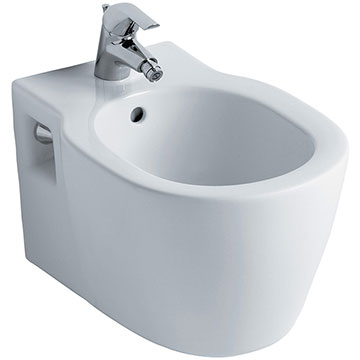

The tap shown in the image is omitted and is sold separately.
Refer to the technical diagram for complete technical dimensions.
Features Of Durafix:.
Duravit's patented Durafix attachment system is rapid and easy to install and also completely invisible.
The result is a concealed toilet installation without visible assembly holes.

Info / Size (mm)

Bidet
Width: 370 mm
Projection: 540 mm
Height: 400 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: D-Neo
⤷ Coating
: Without Coating
⤷ Colour
: White Alpin
⤷ Country of Origin
: Germany
⤷ Warranty/Guarantee
: 5 Years
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Projection (Depth)
: 540
⤷ Width
: 370
⤷ Height
: 400
⤷ Fixings included
: Sold Separately
⤷ Distance centre of waste hole to backwall
: 230
⤷ Distance centre of tap hole to backwall
: 80
⤷ Inner Bowl Width
: 290
⤷ Inner Bowl Depth
: 350

⤷ Fixing Holes Centre
: 180
⤷ Distance top edge to centre of fixing hole
: 90
⤷ Depth of tap platform
: 80
⤷ No. of Tap Holes
: 1
⤷ Overflow Included
: Yes
⤷ Barcode
: 4063382017246
⤷ Distance from floor to centre of fixing hole
: 310
⤷ Distance from floor to centre of water inlet
: 195
⤷ Floor to centre of drain hole wall connection
: 145
⤷ Distance hot/cold water inlet
: 80
⤷ Bowl Shape
: Round
⤷ Product Type
: Bidet
⤷ Base width
: 260
⤷ Base Depth (projection)
: 405
⤷ Outlet Diameter
: 80

Customise Your Product

Fixing Kit

Fixing kit suitable for wall mounted toilet and wall-mounted bidet. It is recommended to use if the pre-wall carrier is not used. Please Note: The image shown is for illustration purposes only.

None
OP-55016 - Fixing With White Caps + £12.78
OP-25117 - Fixing With Chrome Caps + £18.44

Duravit Optional Siphon

Duravit Optional Siphon. Note: Image is for illustration purpose only.

None
OP-64841 - Chrome Siphon With Extended Outlet Pipe + £24.94

Total: £200.50 7 Working Days Approx QS Supplies

1 Features Included In This Product Explained

With / Without Overflow

An overflow is a small hole or opening at the upper part of a sink, basin, bidet or tub that drains away water upon reaching its level so that no water is spilt. When a basin or bath does not come with this design feature, it is called “without overflow” and will need a compatible drain.
