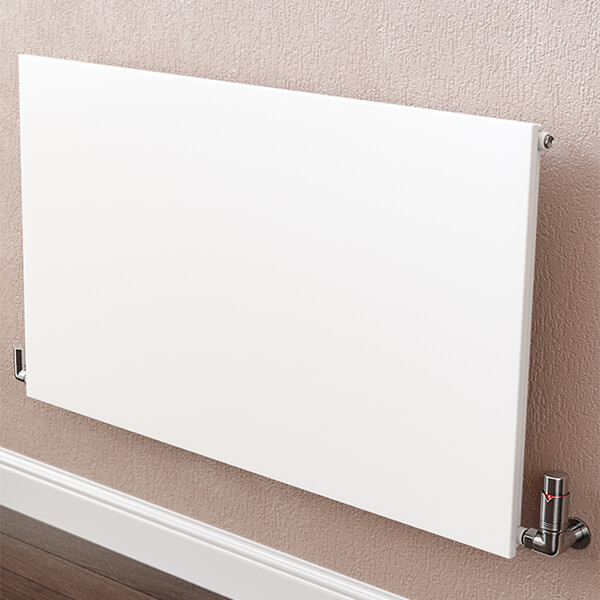

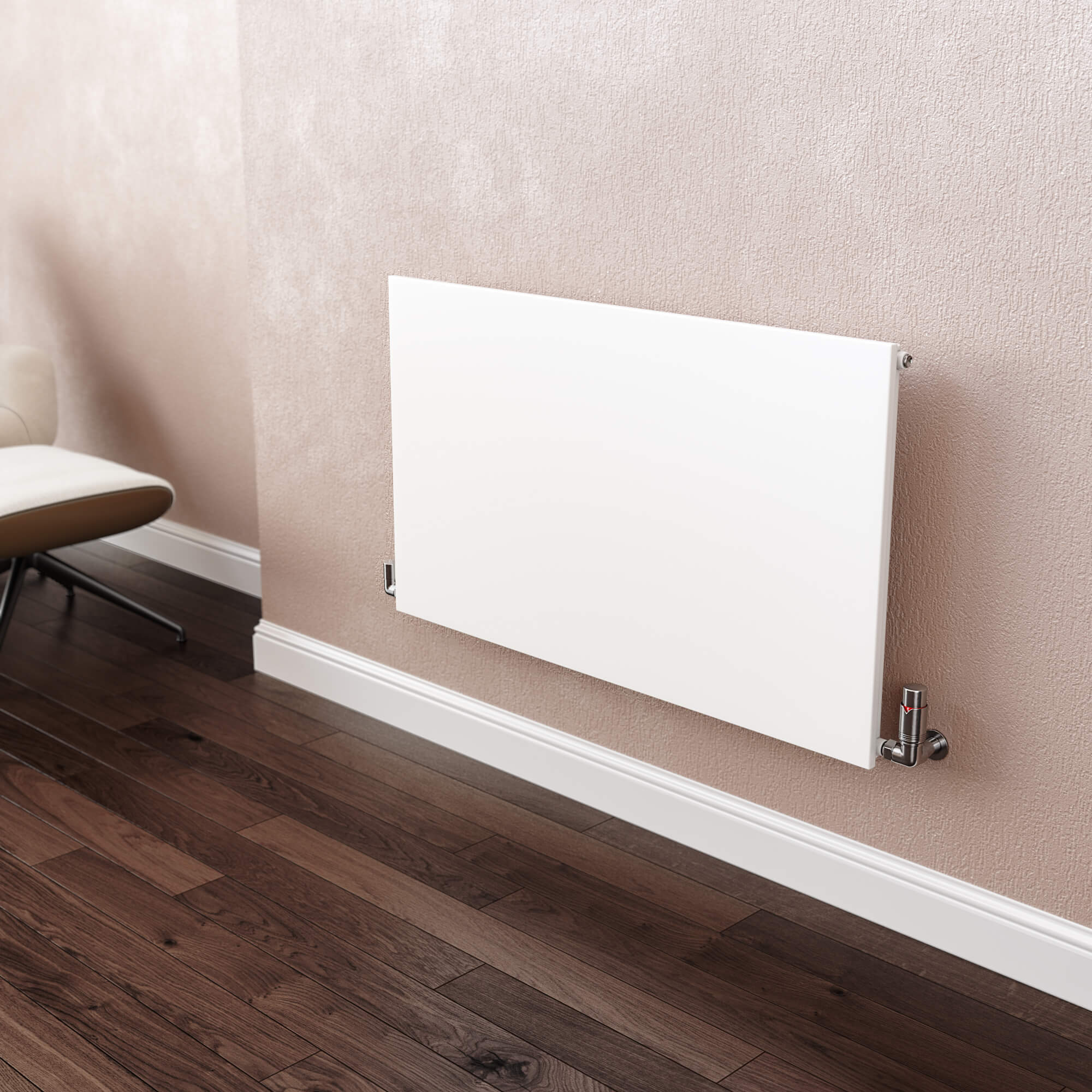

Zehnder Arteplano 601mm Height White Finish Horizontal Radiator


RRP: £1194.50


2 to 3 Weeks.

Not Yet Rated No Rating

Shipping: FREE* Check Postcodes

Select Variations
You've Selected: OP-184932 - 1013mm Width
Key Features
  • Five years of warranty against any manufacturing defects
  • Heat output determined in accordance with EN 442
  • Projection from wall to front face: 74-79mm
  • All steel construction: 32mm x 37mm steel headers, 8mm x 70mm steel ribs, 1.2mm thick panel - aluminium, copper, brass or stainless steel
SKU Code: QS-V102751

MFC Code: HZA056-100

Zehnder Arteplano HZA056-100 Details

Zehnder Arteplano 601mm Height White Finish Horizontal Radiator has attractive design aesthetic, attention to detail and a commitment to quality, making it a fine companion with any interior. Its gorgeous design consists of smooth flowing, sweeping contemporary profile that is visually pleasing and captivating. It is fashionably crafted in 3 sizes. The efficient radiator is backed by 5 years of warranty against any manufacturing defects.

  • Available in 3 different sizes.
  • It comes in a white finish.
  • This is a special order; once ordered it cannot be cancelled or returned.
  • Height: 601mm [60.1cm].
  • Test pressure: 5.2 bar.
  • Max working pressure: 4.6 bar.
  • Max working temperature: 85 Deg C.
  • Connections: ½ inch BSP bottom opposite end tappings.
  • Details Of 1013mm Width:.
  • BTU: 1058 (At 30K), 2016 (At 50K).
  • Watts: 310 (At 30K), 591 (At 50K).
  • Weight: 23.9kg.
  • Water Content: 3.5 Litre.
  • Details Of 1213mm Width:.
  • BTU: 1269 (At 30K), 2423 (At 50K).
  • Watts: 372 (At 30K), 710 (At 50K).
  • Weight: 28.7kg.
  • Water Content: 4.3 Litre.
  • Details Of 1413mm Width:.
  • BTU: 1481 (At 30K), 2825 (At 50K).
  • Watts: 434 (At 30K), 828 (At 50K).
  • Weight: 33.5kg.
  • Water Content: 5.0 Litre.
  • Valve is not included and is sold separately.
  • For pipes from the wall, we recommend valve set 10 for horizontal models.
  • Please select from compatible valve sections.
  • Download the installation instructions PDF from the Additional Info section.

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ Range
  • : Arteplano
  • ⤷ Colour
  • : White
  • ⤷ Country of Origin
  • : Upwards
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall Mounted
  • ⤷ Width
  • : 1013, 1213, 1413
  • ⤷ Projection (Depth)
  • : 74-79
  • ⤷ Height
  • : 601
  • ⤷ Orientation
  • : Horizontal
  • ⤷ BTU Output
  • : 2017, 2423, 2825
  • ⤷ Watts
  • : 591, 710, 828
  • ⤷ Valves Included
  • : Sold Separately
  • ⤷ Fuel Type
  • : Central Heating
