Flova Spring Concealed Manual Chrome Shower Valve, 1 Control, SRSHVO

Flova Spring Details

MFC: SRSHVO

The Flova Spring Concealed Manual Shower Mixer Valve is available for purchase with, or without, a 2-way diverter valve and offers full flow control either way. Suitable for installation within any compatible high-pressure water system, this product requires 1.0 bar of water pressure to operate smoothly with every single use. Constructed from solid brass material and coated in a shining diamond chrome finish, this model is meant for placement within any modern or contemporary bathroom layout. Simple to install and easy to use, this unit provides a smooth and efficient flow for years of usage.

Key Features

✔Manufacturing using Brass Material
✔Rectangular Backplate
✔Full Flow Control
✔Fully Compatible with UK Plumbing Systems
✔15-Year Guarantee from the Manufacturer Against any Manufacturing Defects

Choice of Outlet: 1 Outlet, 2 Outlets
Choice of Variations: With or Without Diverter
Comes in a Diamond Chrome Finish
Size [mm]: 120 x 180mm [Width x Height]
Size [cm]: 12 x 18cm [Width x Height]
Wall-Mounted Installation
Refer to the Technical Diagram for Size Details
Specification for Without Diverter
Number of Outlet: 1 Outlet
Minimum-Maximum Wall Mount: 40-65mm
Suitable for Medium Water Pressure
Recommended Minimum Water Pressure: 0.5 Bar
Specification for With Diverter
Number of Outlets: 2 Outlets
Push/Pull Divert Mechanism
Easyfix Manual SmartBox
SmartBox Included
Minimum-Maximum Wall Mount: 40-65mm
Suitable for High Water Pressure
Recommended Minimum Water Pressure: 1.0 Bar

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Colour
: Diamond Chrome
⤷ Shape
: Rectangular
⤷ Warranty/Guarantee
: 15 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Min-Max Wall Mount
: 30-55
⤷ Inlet Connections
: G 1/2"
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Handle Style
: Flat

⤷ Backplate Width
: 120
⤷ Backplate Height
: 180
⤷ Number of Handles
: 1
⤷ Number of Outlet
: 1, 2
⤷ Outlet Connection
: 2x G 1/2"
⤷ Orientation
: Portrait
⤷ Plumbing Option
: Concealed
⤷ Maximum Operating Pressure (Bar)
: 1.0
⤷ Concealed Body Included
: Yes

Additional Info & Downloads

This item can also be found in:

Concealed Shower Valves

Technical Images

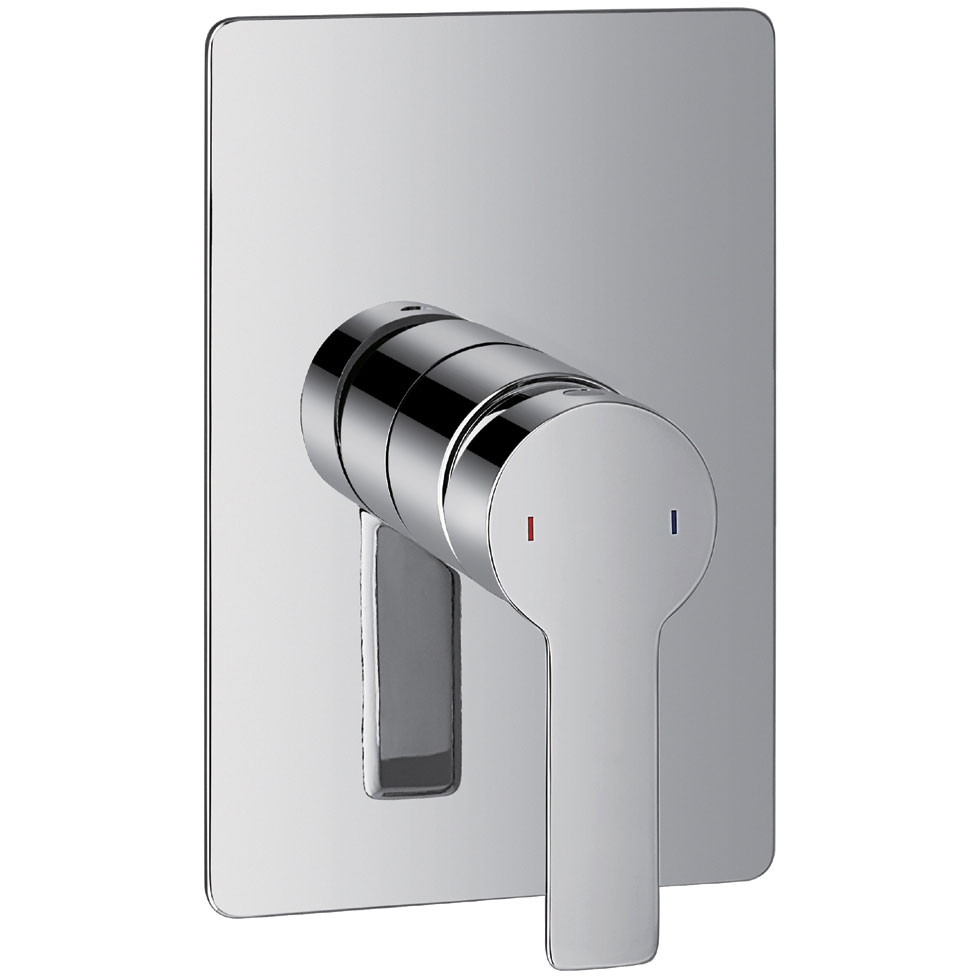

Flova Spring Concealed Manual Chrome Shower Valve - Rectangular Trim - 1 Control

Without Diverter

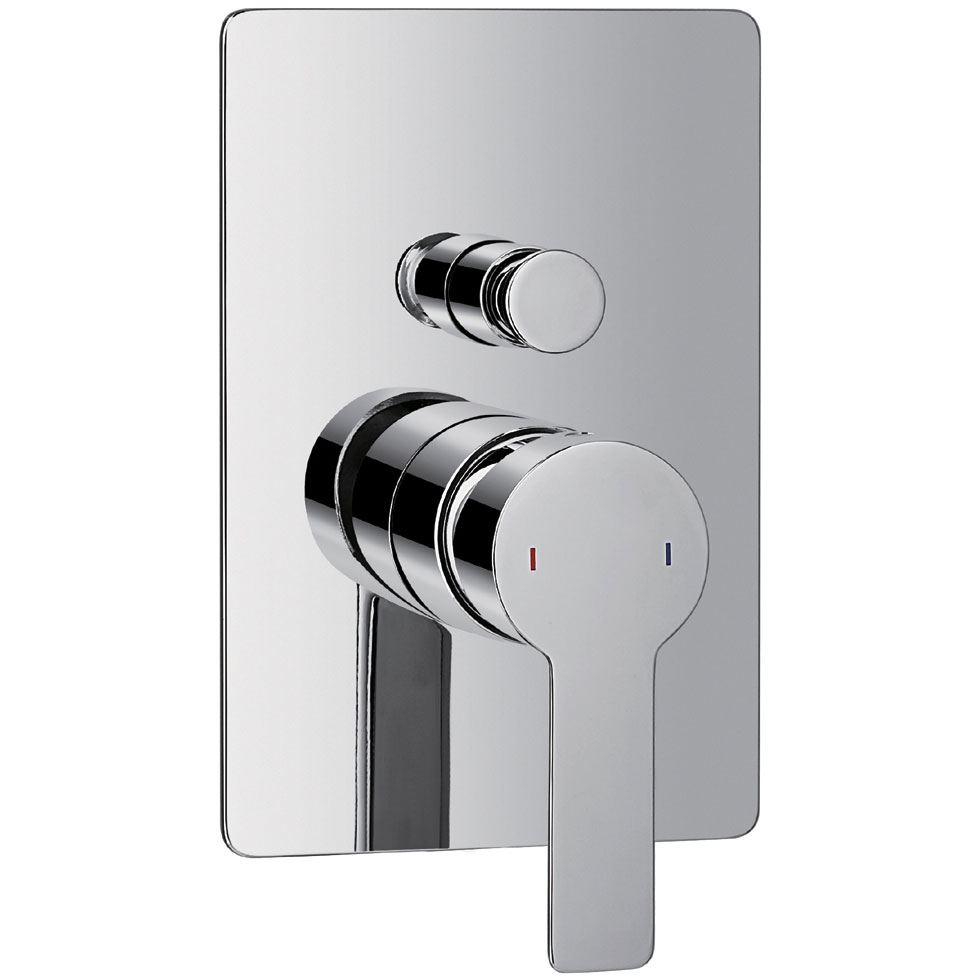

With Diverter

£161.60

RRP: ~~£202.00~~

STOCK AVAILABLITY: 6 Working Days Approx

QS Supplies

5 Features Included In This Product Explained

1-Outlet

One outlet in a shower system means that hot and cold water flows from a single opening.

Optional - Dual Outlet Valve - 2-Outlet

The dual outlet Valve comes with a connection for two outlets, so you can use two different fixtures one at a time, such as using the showerhead and shower handset. These Dual outlet shower valves come in various styles and can be used with varying shower fittings. Some come with diverters for switching between the two outlets.

Medium Water Pressure

Water systems operating at a pressure between 0.5 and 0.9 bar are considered medium pressure. Products usually come labelled if they are suitable for use in medium pressure.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

Optional: Diverter In Showers

A diverter, specifically in bath-shower combos, redirects the water flow from the bathtub spout to the showerhead. You can activate it using the nozzle in the bath shower mixer tap.
