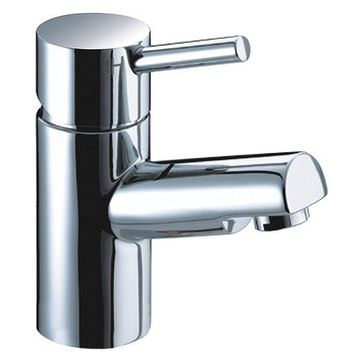

Niagara Harrow Single Lever Basin Mixer Tap With Click Clack Waste

Niagara Harrow 9089 Details

The Niagara Harrow Single Lever Mono Basin Mixer Tap with Click Clack Waste is offered in a compact and sleek design that is suitable for deck-mounted installation within any compatible basin form. Complete with a flexible inlet with ½” BSP inlet connection, this product is constructed from an incredibly durable brass material in the body as well as a long-lasting zinc material that makes up the handle. Coated in a striking chrome finish and suitable for placement within any modern bathroom design, this unit is made to last through years of use with absolute ease.

Available in 2 Variants - Mini Mono (138mm high) and Mono (145mm high) Version [Optional].
Suitable for deck-mounted installation.
Flexible inlets.
Inlet connections: 1/2 Inch BSP.

Centre of the inlet to centre of outlet: Mono 72.5mm (7.25cm) and Mini Mono: 100mm (10cm).
Suitable for low water pressure system.
The pressure required: Min. 0.2 bar and max. 6 bar.
Technical drawing available for more technical details.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting | Tilting
⤷ Range
: Harrow
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upward
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed

⤷ Handle Material
: Zinc
⤷ Base To Spout
: 68 | 75
⤷ Spout Reach
: 100 | 72.5
⤷ Overall Height
: 138 | 145
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Waste Type
: Click-Clack
⤷ Flow Rates (l/min)
: 0.5 bar - 7.7 | 1 bar - 10.7 | 3 bar - 18.1
⤷ Handle Style
: Lever
⤷ Waste Included
: Yes
⤷ Barcode
: 5031978069398
⤷ Product Type
: Basin Mixer Tap

Total: £42.65 3-4 Working Days Approx QS Supplies

3 Features Included In This Product Explained

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

Monobloc Tap

A Monobloc/Mono tap has a single control lever that adjusts the mix of hot and cold water supplies and the flow rate. A mixer tap has two separate controls for hot and cold water. Both work equally well, and your choice will come down to aesthetics and how many tap holes your sink has. Monobloc taps are a neater solution and more modern in appearance.

Zinc

Zinc is a versatile lustrous, relatively brittle metal which finds many applications, as it is corrosion resistant and alloys easily with other metals to enhance their properties. Its important applications are galvanisation, and battery production. It is a good electrical conductor and also malleable so it can take on different shapes.
