Hudson Reed Revolution 3 Hole Industrial Basin Mixer Tap, Wheel Handles

Hudson Reed Revolution Details

MFC: TIW317

Hudson Reed Revolution Industrial 3 Tap Hole Wall Mounted Basin Mixer Tap has an industrial style design and can be used with basins such as countertop as it mounts to a wall. It is made from solid brass and comes with an impressive chrome finish. It needs 3 tapholes to install thanks to the central long spout and 2 circular knobs for adjustment. Suitable for low water pressure system, it needs a minimum 0.1 bar of water pressure for smooth working.

Key Features

✔Cartridge type: 1/4 turn
✔Manufactured using brass material
✔Features ceramic disc technology for long life and smooth operation
✔Choice of different finish: Chrome, Matt Black and Brushed Brass [Optional]
✔Twenty years guarantee from Hudson Reed against any manufacturing defects

Size [mm]: 220mm x 110mm [Depth x Height]
Size [cm]: 22cm x 11cm [Depth x Height]
The centre of the inlet to the centre of the outlet: 209mm (20.9cm)
Weight: 2.1 kg
Industrial style wall mounted basin mixer giving a unique design
Number of tap holes required: 3
Suitable for low water pressure system
Required minimum 0.1 bar of water pressure for smooth flow
WRAS approved product
For complete size details, please refer to technical drawing
During installation, extra care must be taken to avoid damaging the fittings

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Handle Position
: Left | Right
⤷ Range
: Revolution
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 20 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed

⤷ Valve Included
: Yes
⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Spout Reach
: 209
⤷ Overall Height
: 110
⤷ Spout Deck Mount Drill Hole Diameter
: 35
⤷ Handle Height
: 87.5
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Flow Rates (l/min)
: 0.1 bar - 5 | 0.5 bar - 12 | 1 bar - 16 | 2 bar - 22 | 3 bar - 27
⤷ Handle Style
: Round
⤷ Barcode
: 5056211855033
⤷ Product Type
: Basin Mixer Tap

Additional Info & Downloads

Download the Customer Data Sheet Pdf File

Hudson Reed Revolution 3 Hole Industrial Basin Mixer Tap with Wheel Handles - Wall Mounted

£114.25

RRP: ~~£350.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

3 Features Included In This Product Explained

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws.
Read more...

Reviews & Ratings

By: Alistair From : LISBURN Overall Rating: Date: September 21, 2020 Hudson Wall mounted taps

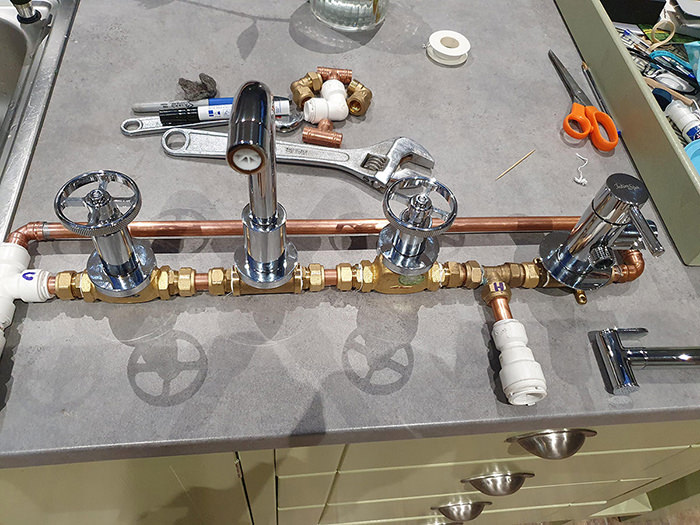

These are well made heavy chrome covered brass taps. Looks great and is of solid construction. The only negative was that they don't have any mounting screw points on the valves or spout, no big deal, as just used metal U brackets to secure (see photo) to wall pre plastering and tiling.

Images Uploaded by the users:

Helpful?

5 of 8 People have found this Review useful

Quality:

Style

Value for Money
