Hudson Reed Revolution Industrial Deck Mounted Bath Mixer Tap

Hudson Reed Revolution TIW353 Details

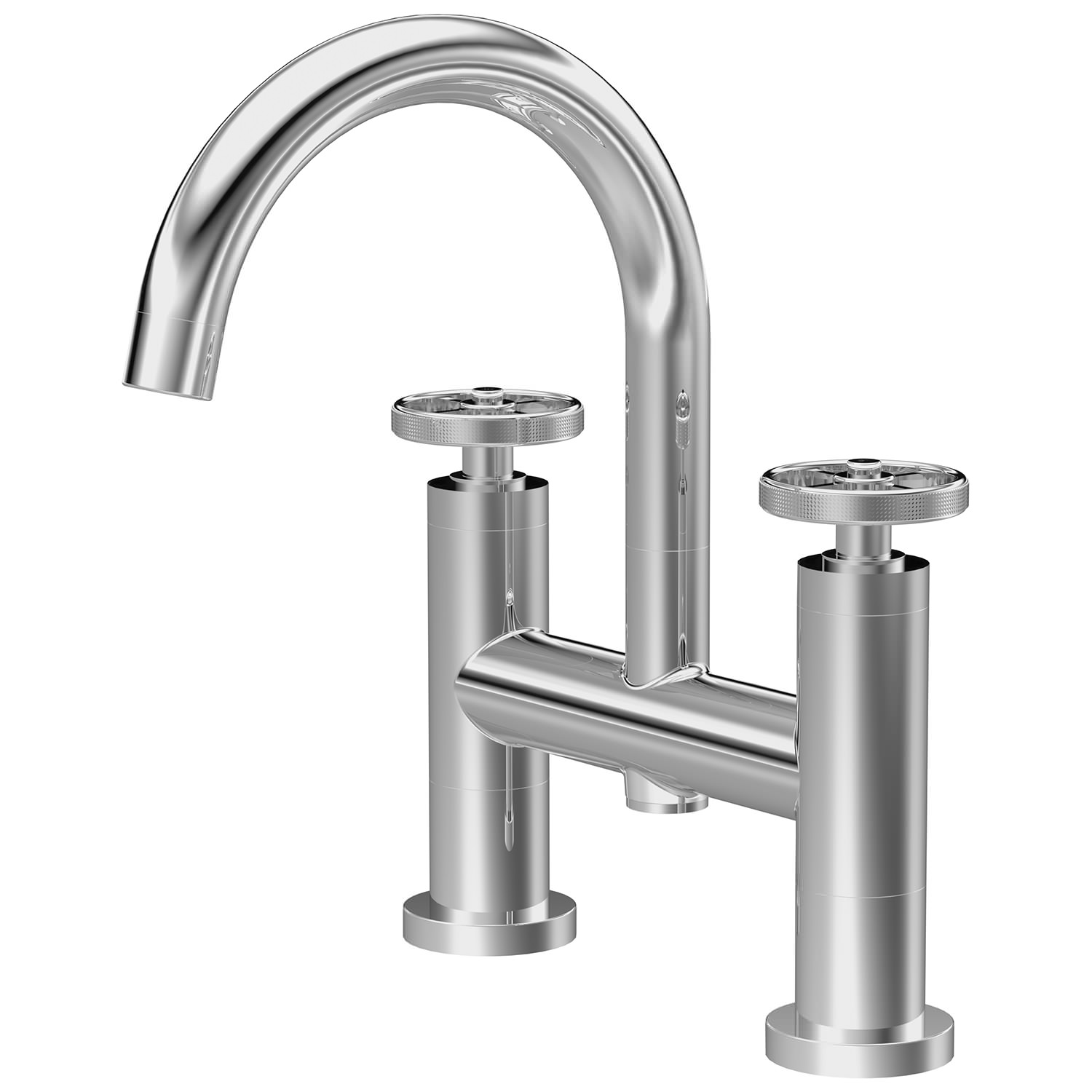

Using this Hudson Reed Revolution Industrial Deck Mounted Bath Mixer Tap, you can elevate your kitchen's look to one that is urban-industrial and modern. This product features two flat circular knobs that control the water separately on either side with a tall, swooping curved spout in the centre. The industrial deck style mounting offers the tap a one-of-a-kind silhouette. The product is crafted using strong solid brass internal pieces and is finished in chrome to resist fingerprints on the exterior. The measurements of the tap are 218 mm in depth by 319 mm in height.

Key Features

✔Choice of different finish: Chrome, Matt Black and Brushed Brass - [Optional]
✔Features ceramic disc technology for long life and smooth operation
✔Cartridge type: 1/4 turn ceramic disc
✔Twenty years guarantee from Hudson Reed against manufacturing defects

Available in different variants: Without Shower Kit and With Shower Kit - [Optional].
Industrial-style deck-mounted bath shower mixer offering a unique design.
WRAS approved product.
Height: 319mm (31.9cm).
Centre of the inlet to centre of outlet: 175mm (17.5cm).
Inlet centre: 180mm (18cm).
Base to spout: 227mm (22.7cm).
Pipe size: 22mm (2.2cm) (3/4inch BSP).
Suitable for low water pressure system.
Required minimum 0.2 bar of water pressure for smooth flow.
For complete size details, please refer to technical drawing.

During installation, extra care must be taken to avoid damaging the fittings.
Download the Fitting Instruction PDF and Customer DataSheet PDF from the Additional Info Section.
Details For Without Shower Kit:.
Manufactured using brass material.
Weight: 3kg.
Flow Rates : (Litres Per Min) 0.1 bar: 8, 0.5 bar: 29, 1 bar: 40, 2 bar: 48, 3 bar: 0.
Details For With Shower Kit:.
Manufactured using brass and ABS material.
Weight: 4.3kg.
Flow Rates: (Litres Per Min) 0.1 bar: 7, 0.5 bar: 22, 1 bar: 29, 2 bar: 39, 3 bar: 44.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Handle Position
: Left | Right
⤷ Range
: Revolution
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 20 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 2
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes

⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Base To Spout
: 227
⤷ Spout Reach
: 175
⤷ Inlet Centres
: 180
⤷ Overall Height
: 319
⤷ Minimum Operating Pressure (Bar)
: 0.2
⤷ Hose Included
: Sold Separately
⤷ Hand-Shower Included
: Sold Separately
⤷ Flow Rates (l/min)
: 0.1 bar - 8 | 0.5 bar - 29 | 1 bar - 40 | 2 bar - 48
⤷ Handle Style
: Crosshead
⤷ Barcode
: 5056211855026
⤷ Product Type
: Bath Shower Mixer Tap

Additional Info & Downloads

Download the Customer Data Sheet Pdf File Download the Fitting Instructions Pdf File

Technical Images

Hudson Reed Revolution Industrial Deck Mounted Bath Mixer Tap

Total: £109.33 5 Working Days Approx QS Supplies

3 Features Included In This Product Explained

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...
