Crosswater Design-8 Double Panel Fully Folding Hinged Bath Screen

Crosswater Design-8 Details

MFC: DBVSC1060_V2

The Crosswater Design-8 Double Bath Screen is constructed from remarkably strong and crystal-clear 6mm thick glass material and features a frame around it in a stunning silver finish. Complete with a reversible design and power shower proof, this product comes in a lovely contemporary look that makes an extraordinary addition to any modern bathroom layout. Created with 20mm adjustment to make installation as easy as possible, this product also rotates 180-degrees to open inwards, or outwards, to allow for more room as the user enters and exits the bath area behind it.

It Comes in a Silver Finish
Size [mm]: 1060 x 1500mm [Width x Height]
Size [cm]: 106 x 150cm [Width x Height]
Weight: 27.4kg
Concealed Profile
Adjustment: 1060-1080mm - [106-108cm]
20mm Adjustment for Easy Fitting
The Screen Folds Away Flat to the Wall
Semi-Frameless Modern Design
Glass Thickness: 6mm - [0.6cm]
Reversible Door for Left or Right-Hand Entry
Easy to Clean, Clear as Standard
Rotates 180°, Opening Inwards and Outwards
The Second Panel has 90° Hinge Rotation, Outward Opening
Refer to the Technical Diagram for Complete Technical Dimensions
Download the Installation Instructions PDF from the Additional Info Section
Towel Rail, Bath Tub and Shower Pack Shown in the Image are Not Included

Info / Size (mm)

Bath Screen
Width: 1060 mm
Height: 1500 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Design-8
⤷ Weight in kg
: 27.4
⤷ Warranty/Guarantee
: Lifetime
⤷ Width
: 1060
⤷ Height
: 1500
⤷ Barcode
: 5055833684991

⤷ Frame Design
: Semi Frameless
⤷ Frame / Profile Finish
: Silver
⤷ Glass Type
: Toughened
⤷ Profile Adjustment
: 1060-1080
⤷ Easy to Clean Glass
: Yes
⤷ Thickness
: 6

Additional Info & Downloads

Download the Installation Instruction Pdf File

Add-Ons

Crosswater Design-8 Double Panel Fully Folding Hinged Bath Screen - 1060mm x 1500mm

£476.26

RRP: ~~£635.00~~

Stock Availablity: 7 Working Days Approx

QS Supplies

3 Features Included In This Product Explained

Reversible Design

It is a design which allows the product to be fitted either to the right or left, depending on the dimensions of your space.

Power Shower Proof

Power Shower Proof shower enclosures are built with stronger materials and reinforced construction to withstand increased water pressure without leaking or sustaining damage.

Aluminium Frame

Aluminium frames are durable and naturally form a protective oxide coating, making them highly resistant to corrosion and a perfect fit for a bathroom.

Questions & Answers

Submit Your Questions 3 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Paul Asked :
Can you tell me how wide the individual panels are, please?

Answered By QS Team

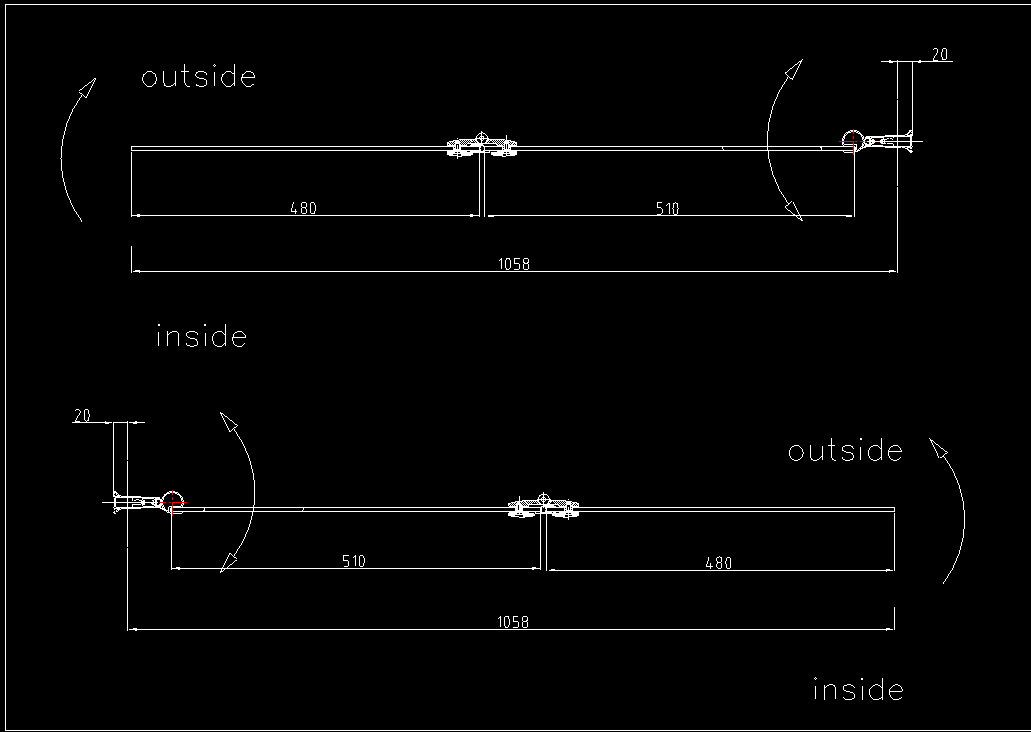

Please refer to the attached technical drawing for the information required.

Was this answer helpful?

Dawn Asked :
Can you please tell me how the bottom seal between the bath and bath glass panel is fixed, as it will be in two sections and how it guards against leaking water?

Answered By QS Team

Please refer to the attached image. The two seals are different on this screen. You only cut one end of part "I"; the other end (highlighted) goes under the centre part stopping water from leaking out.

Was this answer helpful?

Ersagun Asked :
Hi, Do both glass panels of DBVSC1060+ model shower screen pivot? The model name is "Crosswater Design Plus 1060mm x 1500mm Double Bath Screen" Many thanks, Ersagun

Answered By QS Team

Please refer this URL. As indicated in the picture the panel closest to the wall is hinged but only folds inwards.
