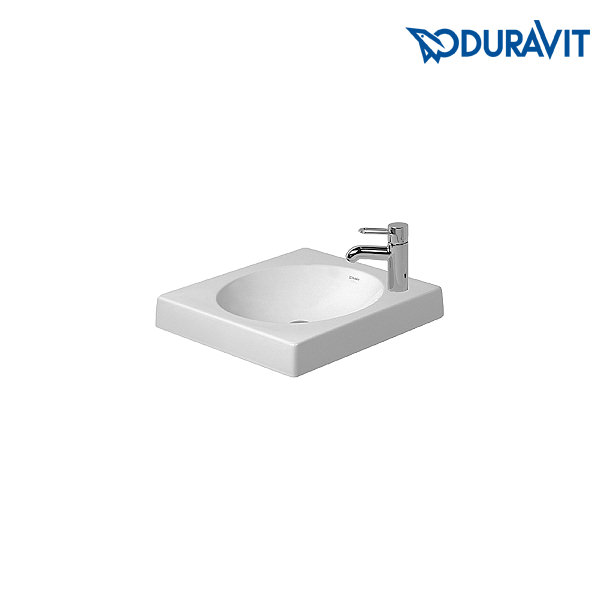

Duravit Architec 500mm Above Counter Basin

Available Variations : No Tap Hole / 1 Tap Hole


MFC CODE: 0320500000


RRP: £297.60


7 Working Days Approx

Not Yet Rated No Rating

Review this Product

Shipping: £29.95

OP-204459 - Without Tap Hole
+  Read what's included.. & options available
Please Note all the measurements are in 'mm'
Colour White
Weight in kg 12.4
Shape Square
Country of Origin Germany
Warranty/Guarantee 5 Years
Theme Modern
Waste Included Sold Separately
Projection (Depth) 500
Width 500
Height 145
Fixings included Yes
Distance rear edge to centre of waste hole 250
Number of bowls 1

INFO / SIZE (mm)

  • Basin
  • Width: 500 mm
  • Depth: 500 mm
  • Height: 145 mm

Duravit Architec 0320500000 DETAILS

The futuristic design of this Above Counter Washbasin from Duravit Architec is instantly appealing. Its 500mm square form is convenient for installation and comes with a tap platform. The versatile basin comes with tap hole options located on the side of your choice, a continuous flow waste in chrome and left or right-placed soap dispenser hole on request. Beautifully crafted and finished in White, it comes ready for easy installation. Available at an excellent price at QS Supplies, and comes with 5 years of Warranty by Duravit, it is a ‘must-have’ for modern households.

  • Comes in white alpine finish
  • Ground
  • Without overflow
  • With tap platform
  • Fixings included
  • Designed by Prof. Frank Huster
  • Weight : 12.4 kg
  • Size : 500 x 500 x 145mm [Width x Depth x Height]
  • Right hand side and Left hand side tap hole - [See Option]
  • Tap and waste shown in the image are not included

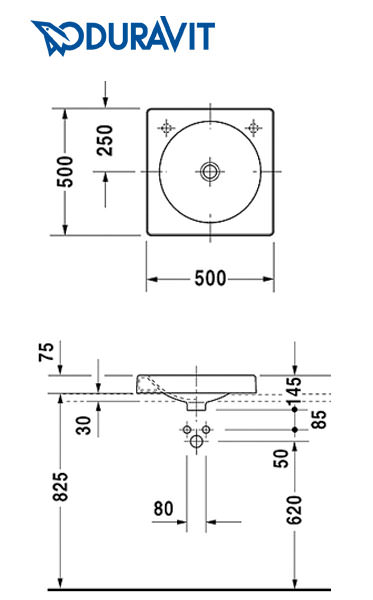

  • Refer technical diagram for complete technical dimensions
  • 5 years warranty against any manufacturing defects.

Infobox: Soap dispenser hole Ø 30 mm right or left available on request / Max. Ø 70 mm for lotiontank approved.

  • Available Variations :
  • Without Tap Hole - 0320500000
  • 1 Tap Hole On Right Side - 0320500008
  • 1 Tap Hole On Left Side - 0320500009
