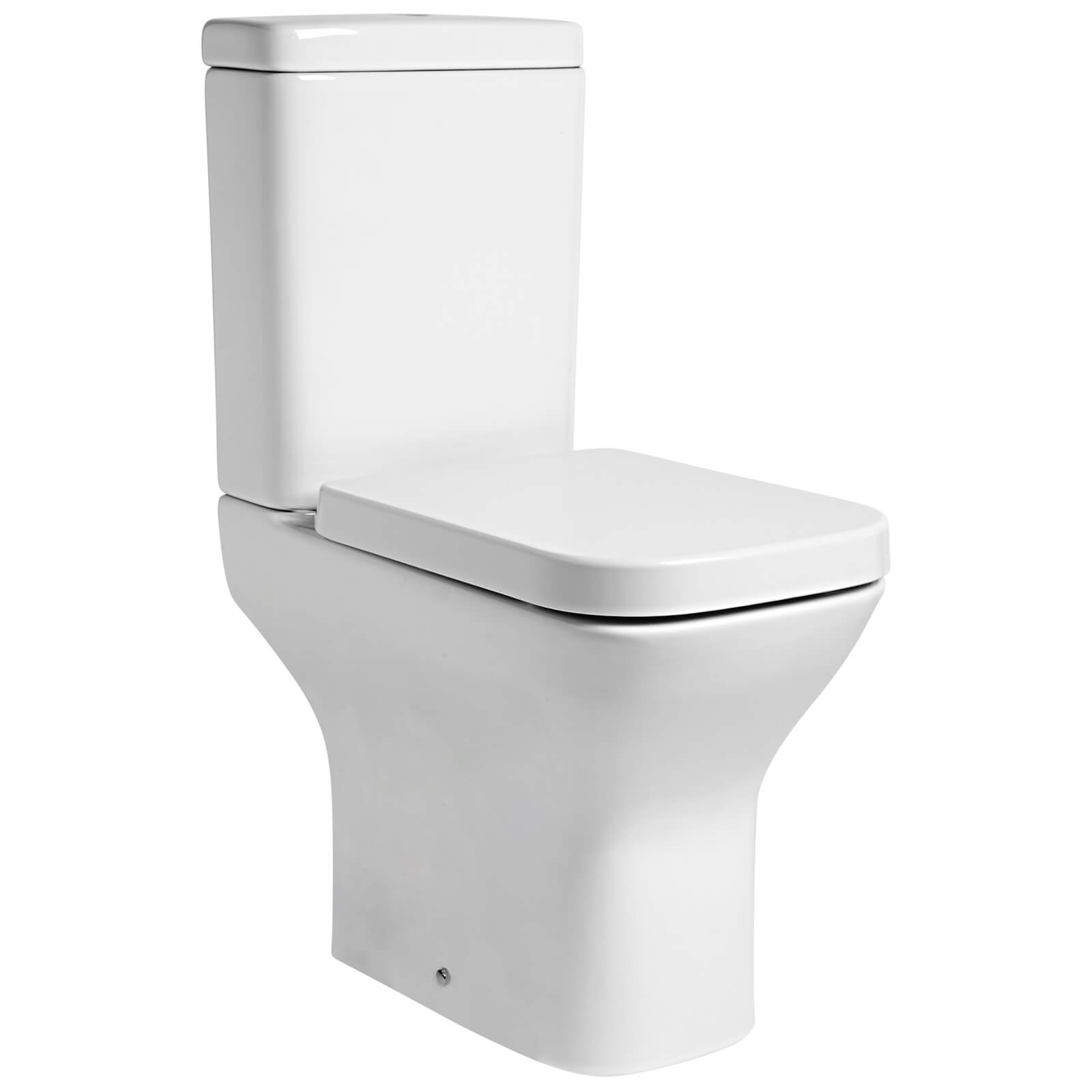

Tavistock Structure White Close Coupled WC Pan with Cistern & Seat

Tavistock Structure Details

MFC: PC455S|C450S|TS450S-SF

Tavistock Structure White Comfort Height Close Coupled WC Pan with Cistern and Seat

Supplied with Fixings
Hygienic and Easy to Clean
Overall Height: 910mm [91cm]
Ideal for Taller, Less-Abled or Elderly Users
Refer to the Technical Drawing for More Technical Details
Download the Technical Data Sheet PDF File from the Additional Info Section
Details of WC Pan:
Rim Style: Box Rim
Short Projection
Outlet: Horizontal
Size [mm]: 345 x 455mm [Width x Height]
Size [cm]: 34.5 x 45.5cm [Width x Height]
Projection [Depth]: 640mm [64cm]
Weight: 27kg
20 Years of Guarantee from the Manufacturer Against any Manufacturing Defect
Details of Cistern:
Dual Flush System
Flush Volume: 4.5/3L
Size [mm]: 355 x 137 x 440mm [Width x Depth x Height]
Size [cm]: 35.5 x 13.7 x 44cm [Width x Depth x Height]
Weight: 13kg
Ideal for Compact Spaces
Supplied with a Chrome Flush Button
Provided with Air Gap Technology Fittings
Spigot Distance from Wall: 185mm
5 Years of Guarantee from the Manufacturer Against any Manufacturing Defect
Details of Seat:
Wrap Over Design
Seat Shape: D Shaped
Size [mm]: 346 x 426mm [Width x Projection]
Size [cm]: 34.6 x 42.6cm [Width x Projection]
Weight: 2.7kg
Overall Thickness: 47mm [4.7cm]
Made Using High-Quality Thermoset Plastic Material
Supplied with Chrome Hinges
Comes with Fixings Included
Maximum Test Load of the Seat: 150kg
Quick-Release Toilet Seat for Easy Removal and Cleaning
Features Soft-Close WC Seat for Quiet and Controlled Closure
5 Years of Guarantee from the Manufacturer Against any Manufacturing Defect

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Toilet Design
: Open Back
⤷ Range
: Structure
⤷ Colour
: Alpine White
⤷ Weight in kg
: 42.7
⤷ Warranty/Guarantee
: 20 Years[WC], 5 Years[Cistern] & [Seat]
⤷ Material
: Vitreous China, Ceramic
⤷ Theme
: Modern
⤷ Installation Type
: Floor Mounted
⤷ Pan Width
: 345
⤷ Pan Height
: 455
⤷ Toilet Overall Height
: 910
⤷ Projection (Depth)
: 640
⤷ Cistern Included
: Yes
⤷ Cistern Width
: 355
⤷ Cistern Height
: 440
⤷ Flush Type
: Dual Flush
⤷ Full Flush Volume in litres
: 4.5
⤷ Half Flush Volume in litres
: 3
⤷ Flush Mechanism
: Push Button

⤷ Cistern Lever Or Button Placement
: Top
⤷ Outlet
: Horizontal
⤷ Comfort Height
: Yes
⤷ Configuration
: Pan, Cistern, Seat
⤷ Seat Included
: Yes
⤷ Seat Type
: Soft Close
⤷ Seat Finish
: White
⤷ Fixings included
: Yes
⤷ Barcode
: 5016519500424
⤷ Bowl Shape
: Rectangular
⤷ Product Type
: Close Couple Toilet
⤷ Cistern Depth (projection)
: 137
⤷ Seat Post Hole Centers
: 155
⤷ Front Of Bowl To Centre Of Seat Holes
: 430
⤷ Base width
: 220
⤷ Base Depth (projection)
: 403
⤷ Outlet Diameter
: 102
⤷ Base to centre of outlet
: 185

Additional Info & Downloads

Download the Product Data Sheet Of WC Pan & Cistern Pdf File Download the Product Data Sheet Of Seat Pdf File

This item can also be found in:

Technical Images

WC Pan with Cistern

Seat

£578.40

RRP: ~~£723.00~~

Stock Availablity: 5-7 Working Days Approx

QS Supplies

7 Features Included In This Product Explained

Comfort Height

These toilets are usually a little higher than regular toilets. They measure from 17 to 19 inches off the ground.

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Thermoset (Urea)

UREA is a plastic moulded under high pressure and offers durability and rigidity with scratch and chemical resistance. It is also antimicrobial and anti-bacterial.

Soft-Close Seat

Soft-closing seats are a new alternative to classic seats. Their modern design hinges allow them to close slowly and gently.

Vitreous-China Material

Vitreous china is an innovative glass-based enamel coating applied to porcelain. This glazed coating makes the base material durable, denser, and very glossy. When ceramics are coated with vitreous enamel, the resulting product is called vitreous china. This enamel is created by applying heat to powdered glass.

Sanitary Ceramic

Sanitary ceramic material is a type of ceramic used in the manufacture of sanitary ware or bathroom ware. It is mainly composed of ceramic, and is waterproof and durable. Its surface is hard, smooth and non-porous, making it hygienic and easy to clean.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.
