Geberit Sigma50 Square Mains Powered Touchless Urinal Flush Plate with Electronic Actuator - 130 x 130mm

Here again from Geberit is a quality flush control, this time the Sigma50 130 x 130mm Hytouch Infra-Red Urinal Flush Control Chrome. This mains powered control is both superbly designed and offers premium level functionality. Finished in brushed chrome, this fixture is the perfect addition to any modern interior.

• Size: Width 130mm (13cm) x Height 130mm (13cm)
• Thickness: 10mm (1cm)
• Suitable for Automatic Flush Actuation of Urinals
• Compatible with Geberit Frames for Urinal with Front Actuation
• For Installation in Installation Sets for Geberit Urinal Flush Controls
• Cover Plate with Securing Bar
• Reliable Infa-Red Distance Detection
• Self-Adjusting Infa-Red Sensor
• Water-Saving Hybrid Mode can be Set
• Flush Time can be Set
• Adjustable Interval Flush
• Dynamic Flushing Time Adjustment
• Pre-Flush can be Set
• Can be Switched to Operation with a Covered Urinal
• Power Supply via Mains Connection
• Ready for Operation Upon Connection to Mains
• Power Supply Unit with LED Display
• Power Failure Control Unit
• Valve-Closing Function when Power Fails
• One-Time Flush after Activation of the Power Supply
• Functions can be Set and Queried with the Geberit Service Handy
• Device Settings and Operation with a Mobile Device via the Integrated Bluetooth Interface
• Compatible with Geberit Control App
• Wired Network able with Geberit Gateway via GEBUS Converter
• Wirelessly Connectable with Geberit Gateway via Bluetooth
• Compatible with Geberit Connect
• Flush Actuation can be Deactivated
• Flush Volume can be Reduced to 0.5 l Per Flush with Regulating Screw of Installation Set
• Protection Degree: IP45 Rated
• Power Consumption: ≤ 0.5 Watts
• Nominal Voltage: 110–240V AC
• Mains Frequency: 50–60Hz
• Operating Voltage: 4.5V DC
• Flow Pressure: 1–8 Bar
• Maximum Test Pressure of Water: 16 Bar
• Maximum Test Pressure of Air / Inert Gas: 3 Bar
• Maximum Operating Temperature of Water: 30° Celsius
• Flow Rate at 1 Bar without Flow Limiter: 0.3 l/s
• Flow Rate at 1 Bar with Flow Limiter: 0.18 l/s
• Minimum Flow Pressure: 1 Bar
• Relative Humidity: ≤ 100 %
• Calculated Flow Rate: 0.23 l/s
• Interval Flush Adjustment Range: 1–168 h
• Interval Flush Factory Setting: 24 h
• Interval Flush Time Adjustment Range: 3–180s
• Interval Flush Time Factory Setting: 5s
• Detection Time Adjustment Range: 3–15s
• Detection Time Factory Setting: 7s
• Flush Time Adjustment Range: 1–15s
• Flush Time Factory Setting: 7s
• Refer to the Technical Drawing for More Details
• 2-Year Guarantee from Geberit Against Manufacturing Defect

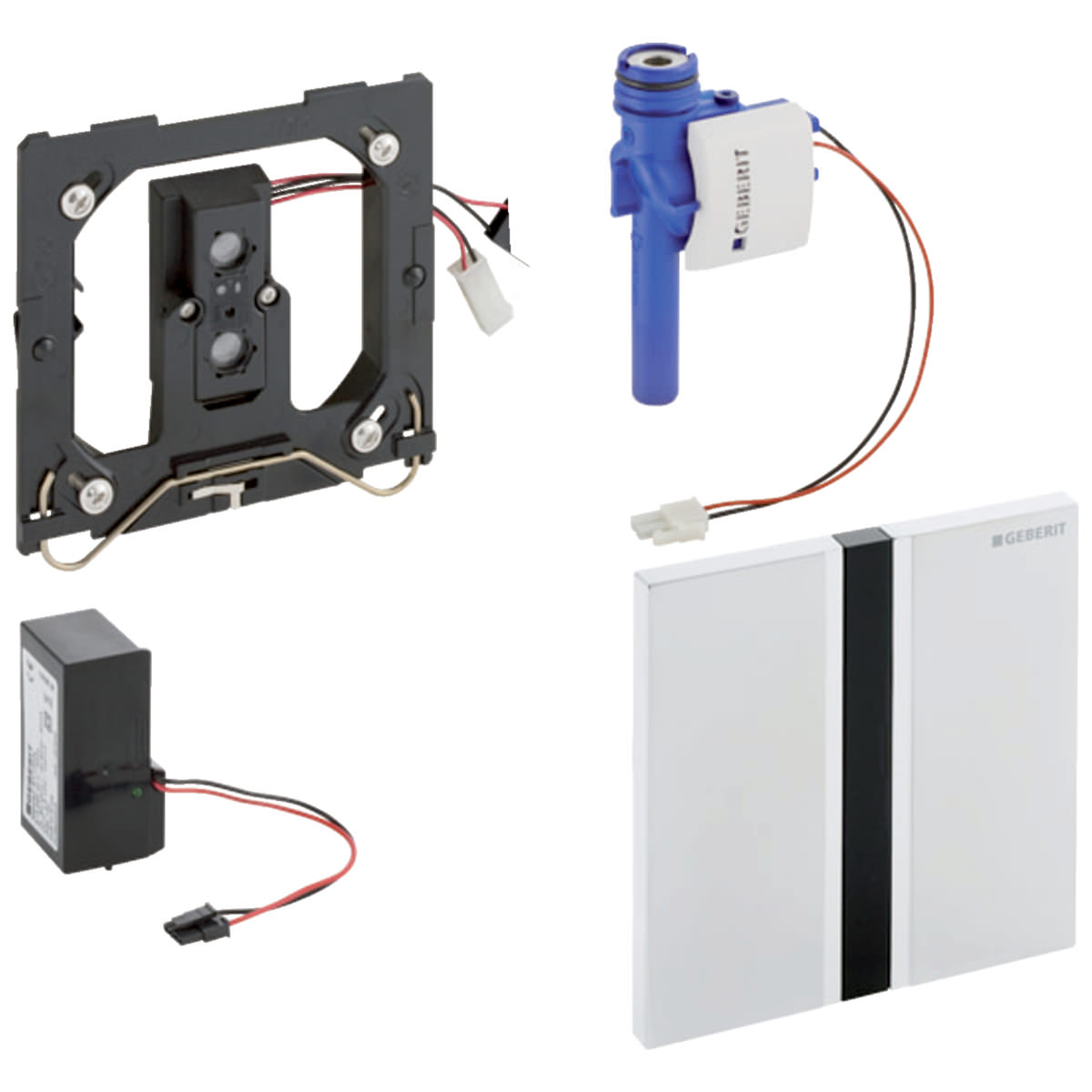

• Scope of Delivery:
• Type 50 Cover Plate with IR Window
• Mounting Frame
• Infrared Control is Pre-Mounted on the Mounting Frame
• Solenoid Valve
• Power Supply Unit
• Fastening Material

Note: Can be operated with used water rainwater provided it is passed through a filter system first
