Geberit Sigma50 HyTouch Urinal Flush Control With Pneumatic Actuation

QS-V93570

MFC CODE: 116.016.DW.5

£198.64

RRP: £385.69

STOCK AVAILABILITY

3-4 Working Days Approx

Not Yet Rated No Rating

Review this Product

Shipping: £5.95

Variations
Technical
Select Material Designation Step 1

Select Finish Step 2

Download the Installation Instruction Pdf File

Please Note all the measurements are in 'mm'
Colour Jet Black RAL 9005
Shape Square
Country of Origin Germany
Material Die-cast zinc / plastic
Flush Type Single Flush
Width 130
Height 130
Operation Type Pneumatic
Actuation force < 12 Newton

Geberit Sigma50 116.016.DW.5 DETAILS

The Geberit Sigma50 Glass Urinal Flush Control Pneumatic Actuation includes a flush plate with securing bar made from die-cast zinc. It has a low flush actuation force with short stroke movement. Flush actuation occurs when the actuator button is released. The maximum water test pressure is 16 bar, and the flow pressure is 1-8 bar. For added water saving capabilities, the Geberit Sigma50 flush volume can be reduced to 0.5L per flush with a regulating screw. You can get it in 3 different materials as per your choice and requirement.

  • Choice of four different finishes available [Refer Option]
  • Material:  Die-cast zinc / plastic, Die-cast zinc / glass and Die-cast zinc / brass [Refer Option]
  • Size: Width 130mm x Height 130mm
  • Flush plate with securing bar
  • Flush time setting with air nozzles (pneumatic)
  • Low flush actuation force
  • Short stroke movement
  • Flush actuation when the actuator button is released
  • Flush volume can be reduced to 0.5 l per flush with regulating screw of installation set
  • Flow pressure 1-8 bar
  • Maximum test pressure, water 16 bar
  • Maximum test pressure, air / inert gas 3 bar
  • Relative humidity < 100 %
  • Maximum operating temperature, water 30 °C
  • Actuation force < 12 N
  • Flow rate at 1 bar without flow limiter 0.3 l/s
  • Flow rate at 1 bar with flow limiter 0.24 l/s
  • Calculated flow rate 0.3 l/s
  • Minimum flow pressure for calculated flow rate 1 bar
  • Flush time, adjustment range 4/8/12 s
  • Refer technical drawing for more technical specification
  • Download Installation Instructions PDF from technical tab
  • For more details refer PRODUCT VARIATIONS INFO & MFC CODE table given below.
  • Application purposes:
  • For manual flush actuation of urinals
  • For Geberit frames for urinal with front actuation
  • For installation in installation sets for Geberit urinal flush controls

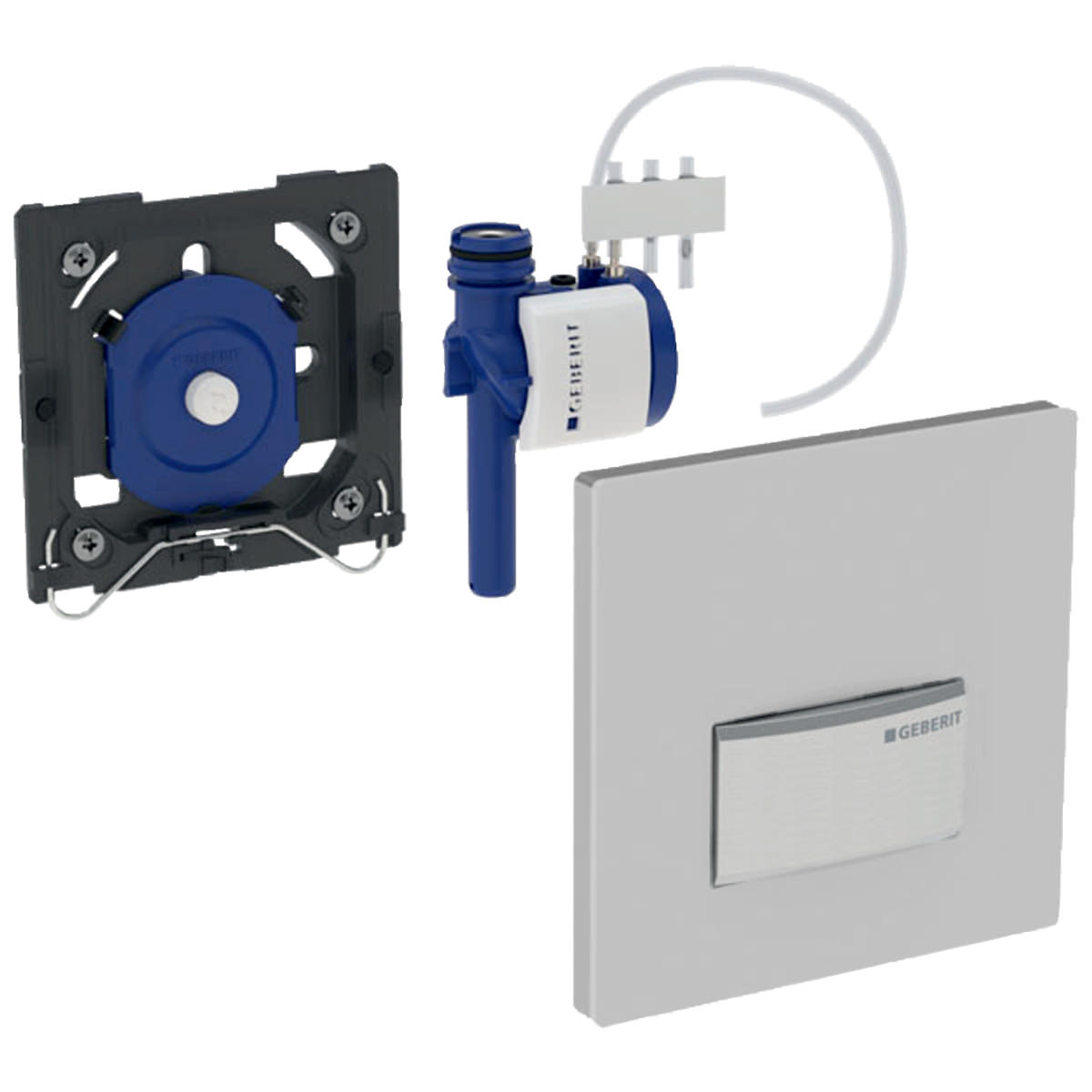

  • Scope of delivery:
  • Flush plate type 50
  • Pneumatic flush actuation, pre-mounted on mounting frame
  • Pneumatic valve
  • Fastening material.



Technical Images


ADDITIONAL INFO


PRODUCT VARIATIONS INFO & MFC CODE
Available Finishes Along With Manufacturing Code
Colour / Surface Material Designation Thickness - mm MFC

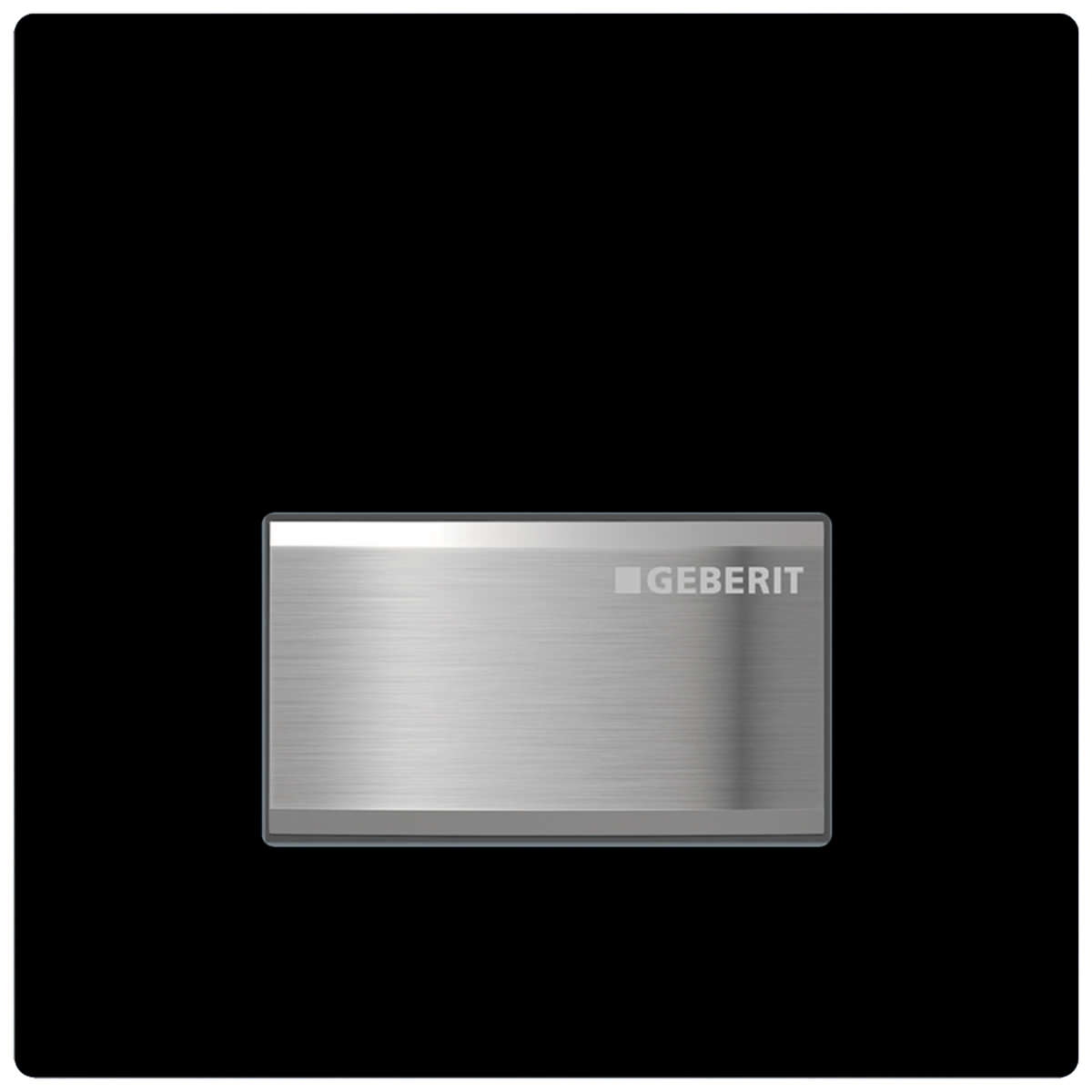

Jet Black RAL 9005 Die-Cast Zinc / Plastic 11 116.016.DW.5

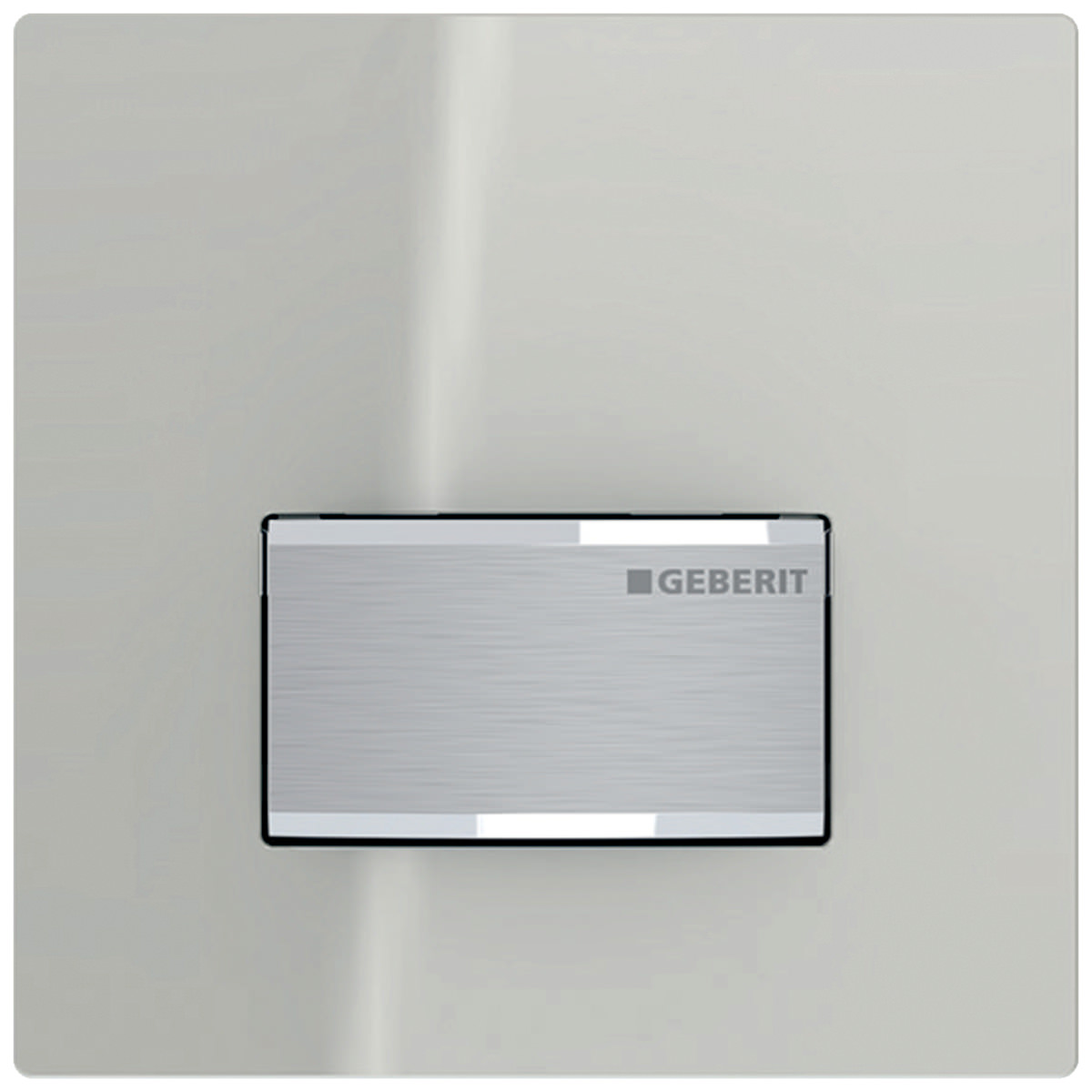

Green Satinised Die-Cast Zinc / Glass 11 116.016.SE.5

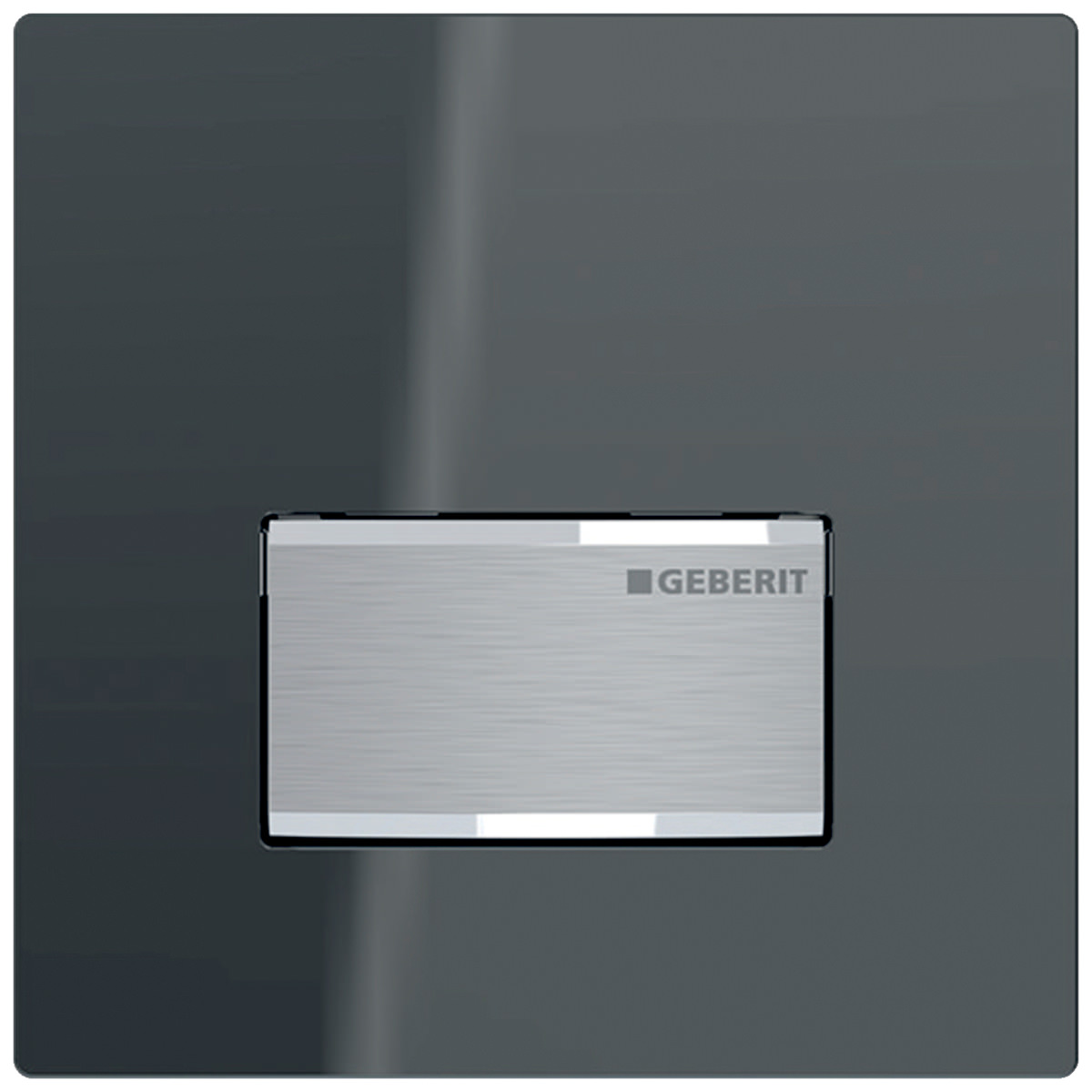

Umber Die-Cast Zinc / Glass 11 116.016.SQ.5

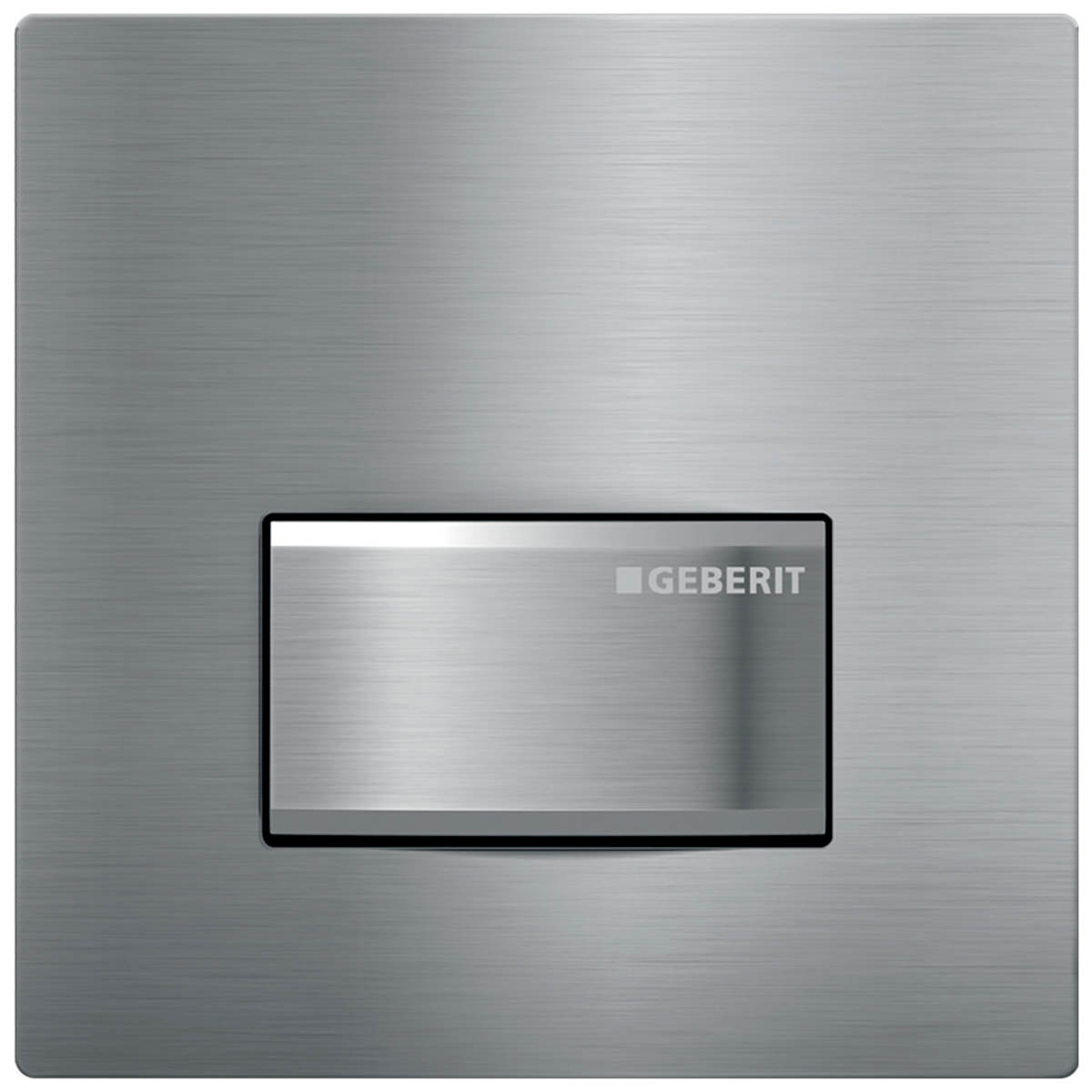

Brushed Chrome-Plated Die-Cast Zinc / Brass 10 116.016.GH.5
