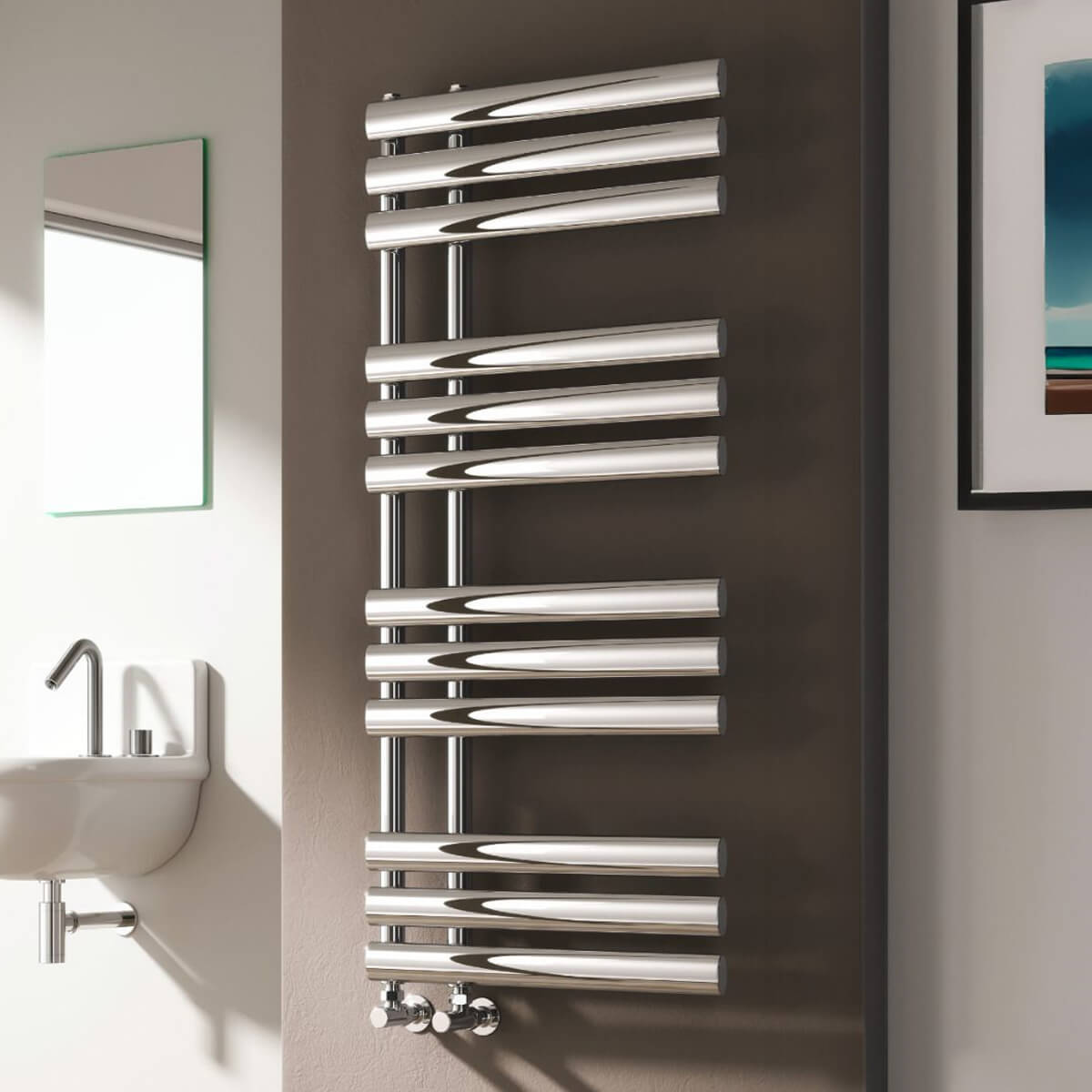

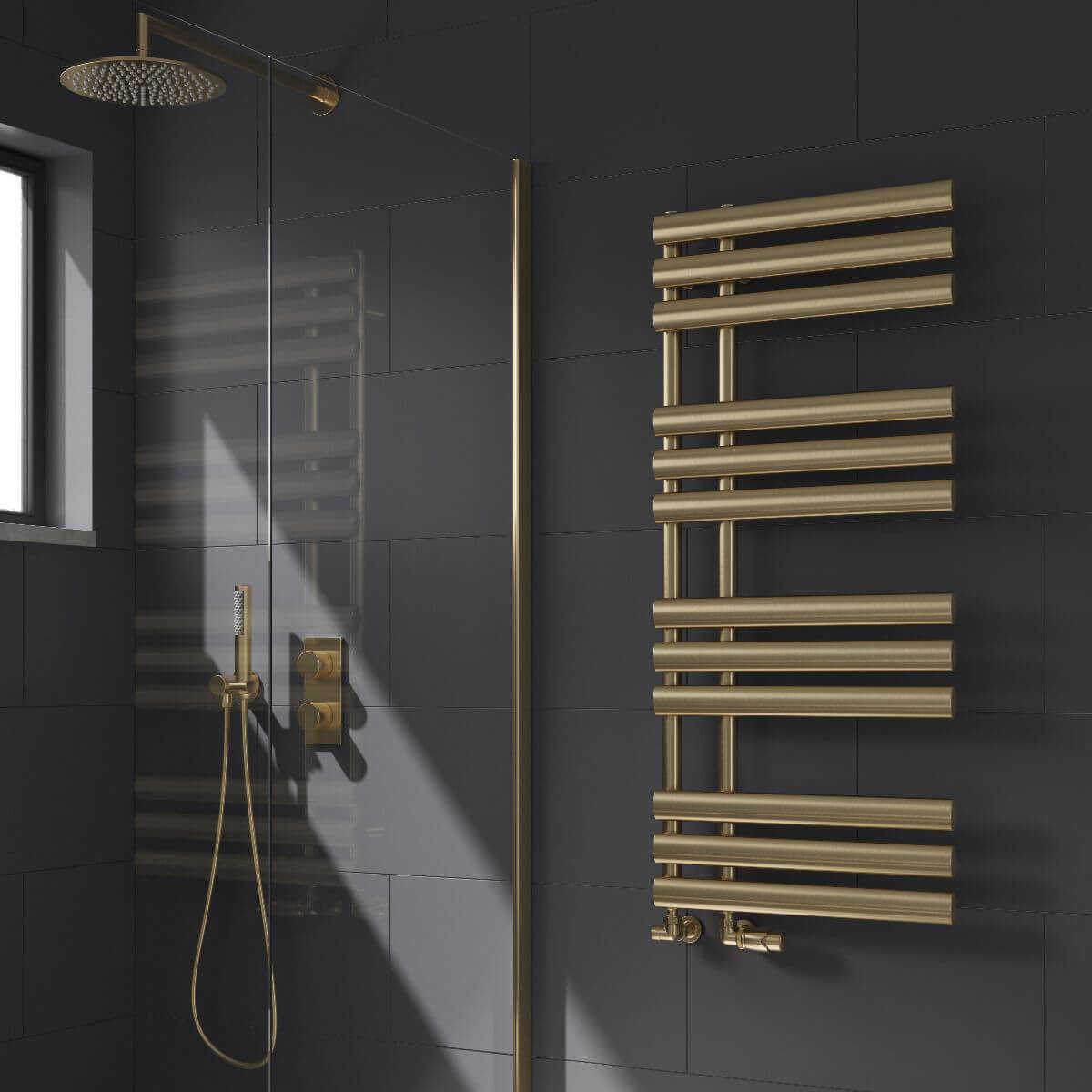

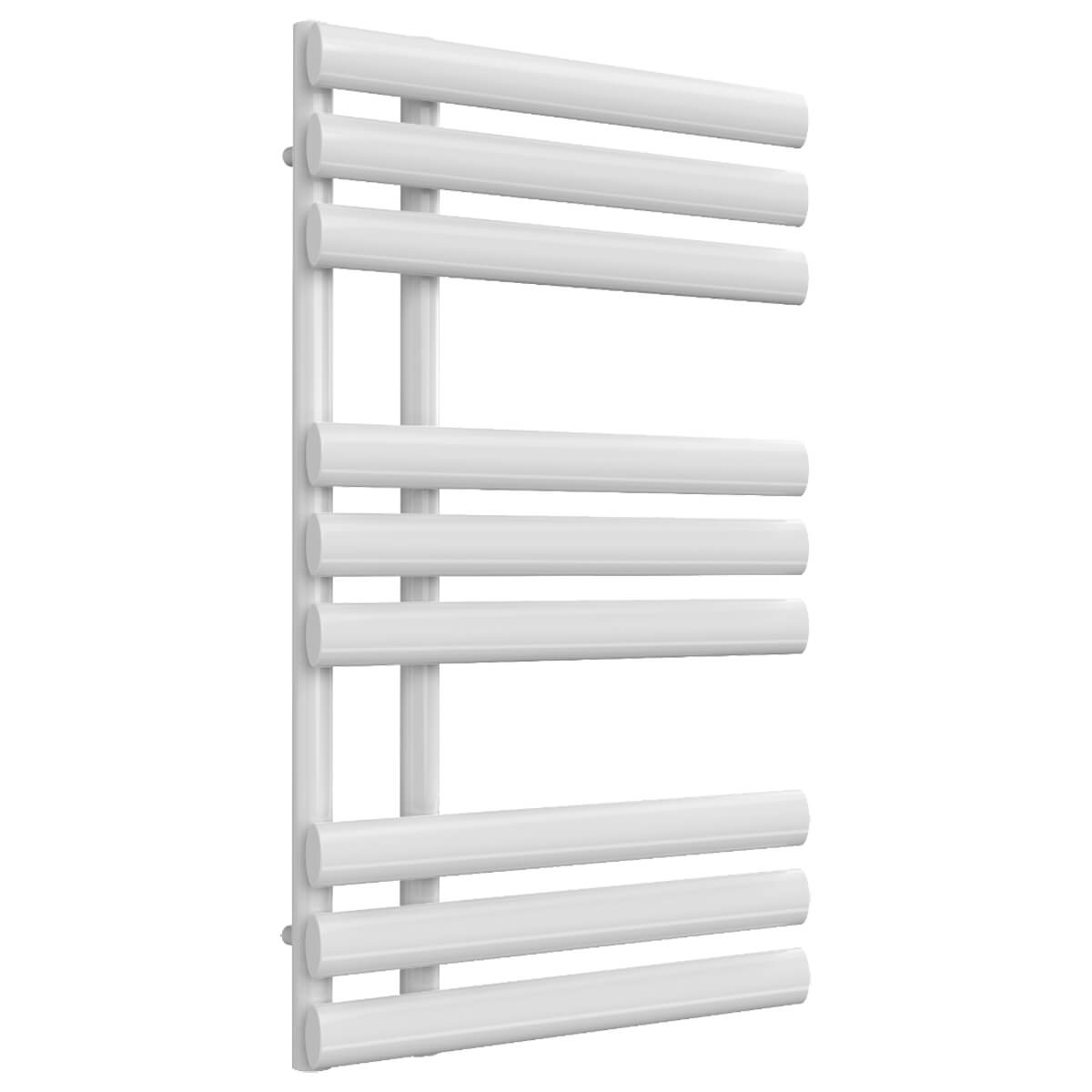

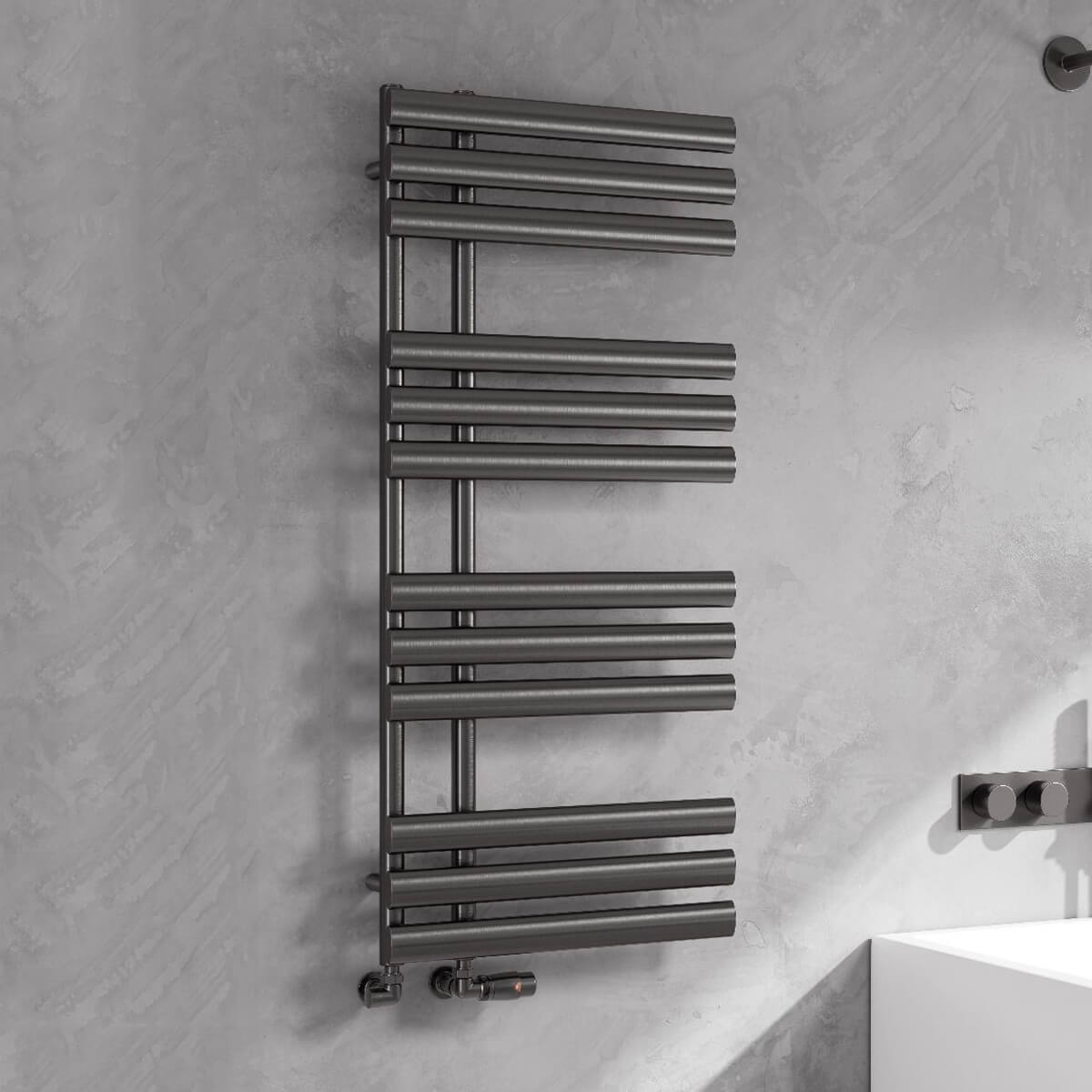

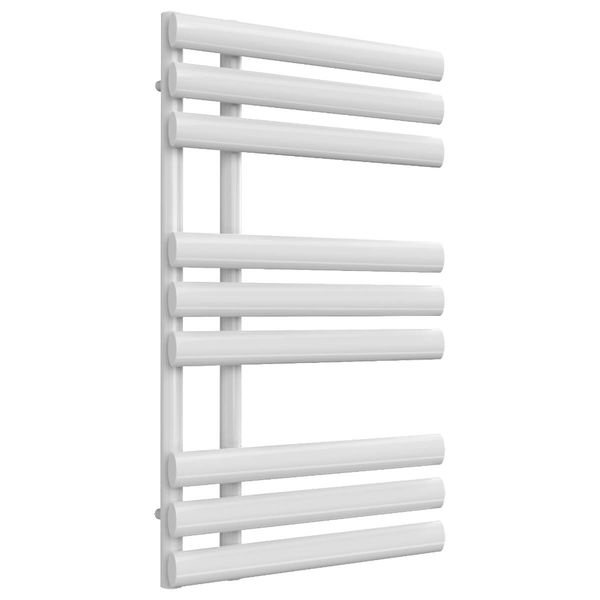

Reina Chisa 500mm Wide Steel Designer Radiator

Reina Chisa RND-CHS082W Details

The free form design of the Reina Chisa 500mm Wide Steel Designer Radiator turns everything you love about traditional radiators into something better suited for your contemporary space. The stainless steel radiator is resistant to damages from water or any moisture in the air, while its elegant finish eliminates the risk of signs of wear and tear. It measures 500 millimetres in width and can be purchased in your choice of heights between the options of 820 millimetres and 1130 millimetres. It is designed for central heating, electric and dual-fuel systems alike.

Key Features

✔Choice of different finish: White, Anthracite and Chrome
✔Manufactured using stainless steel material
✔Supplied with Air vent and End plug
✔Five-year guarantee from Reina against manufacturing defects

Available in different heights: 820mm and 1130mm - [Optional].
Width: 500mm (50cm).
Available variants: Central heating, Dual Fuel and Electric - [Optional].
Heating element type: Heating element type: Standard, On/Off Touch, LST Mini Round Thermostatic, Mini Round, Touch Thermostatic, LST Weekly Thermostatic and Weekly Thermostatic - [Optional].
The valves shown in the image are not included.
Pipe Centre: 100mm (10cm).
Wall to pipe centres: 61mm-76mm (6.1cm-7.6cm).
Distance from wall: 102mm-117mm (10.2cm-11.7cm).

EN 442 compliant product.
For BTU and Watts, Please refer to the Product Variations Info and MFC Code section.
Brackets for radiator included.
For the Dual Fuel and Electric model, Heating Elements are highly recommended in combination with T-Piece.
For Electric models, Optional Liquid Filling is required with the heating element.
Valves, Heating Elements and T piece connection [Optional].
Download the Heating Element PDF files from the Additional Info section.

Please Note: The appropriate wattage of the element (if selected) will be decided by the manufacturer, once the order is placed.

Radiator Calculator

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Chisa
⤷ Colour
: White
⤷ Shape
: Straight
⤷ Country of Origin
: Turkey
⤷ Warranty/Guarantee
: 5 Year
⤷ Material
: Stainless Steel
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Width
: 500
⤷ Height
: 820
⤷ Fixings included
: Yes
⤷ Orientation
: Vertical

⤷ Barcode
: 8800161174815
⤷ BTU Output
: 1815
⤷ Watts
: 532
⤷ No. Of Bars
: 9
⤷ Tapping / Pipe Centres
: 100
⤷ Valves Included
: Sold Separately
⤷ Fuel Type
: Central Heating | Electric | Dual Fuel
⤷ Wall to Centre of Inlet
: 61-76
⤷ Heating Element Included
: Sold Separately
⤷ Element Type
: Standard | Thermostatic
⤷ Brackets Included
: Yes

Additional Info & Downloads

Download the Installation Instructions Pdf File Download the Heating Element Manual Instructions Pdf File Download the Details Of Heating Elements Pdf File

Technical Images

Reina Chisa 500mm Wide Steel Designer Radiator

Customise Your Product

Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

No Option Selected
OP-113634 - 200mm Chrome Pipe Kit + £14.14

Total: £137.64 5 Working Days Approx QS Supplies

Product Variations Info & MFC Code

Finishes	Anthracite	White	Chrome
Pipe Centres	100mm	100mm	100mm
Wall To Pipe Centre	61-76mm	61-76mm	61-76mm
Wall Distance	102-117mm	102-117mm	102-117mm
Tube Quantity	9	9	9
Total Gap	2	2	2
Watts - Delta-70	595	595	416
BTU - Delta-70	2028	2028	1419
BTU - Delta-60	1662	1662	1163
BTU - Delta-50	1308	1308	915
BTU - Delta-45	1139	1139	797
BTU - Delta-40	984	984	689
BTU - Delta-35	824	824	577
BTU - Delta-30	669	669	468
BTU - Delta-25	261	261	182
MFC	RND-CHS082A	RND-CHS082W	RND-CHS082C

Finishes	Anthracite	White	Chrome
Pipe Centres	100mm	100mm	100mm
Wall To Pipe Centre	61-76mm	61-76mm	61-76mm
Wall Distance	102-117mm	102-117mm	102-117mm
Tube Quantity	12	12	12
Total Gap	3	3	3
Watts - Delta-70	859	859	593
BTU - Delta-70	2930	2930	2021
BTU - Delta-60	2402	2402	1657
BTU - Delta-50	1890	1890	1304
BTU - Delta-45	1646	1646	1135
BTU - Delta-40	1422	1422	981
BTU - Delta-35	1191	1191	822
BTU - Delta-30	967	967	667
BTU - Delta-25	377	377	260
MFC	RND-CHS113A	RND-CHS113W	RND-CHS113C

7 Features Included In This Product Explained

Stainless Steel Material

Stainless Steel is an iron alloy with anti-rust and anti-corrosive properties, unlike iron. It contains a minimum of 10.5% of chromium and less than 1.2% of carbon and other metal alloys. Its corrosion resistance and mechanical properties can be improved by adding nickel, molybdenum, titanium, niobium, or manganese. This robust, hygienic, hard-wearing base material is popular in the construction of steel products.

Central Heating

'Standard' radiators and towel warmers are connected to your central heating system, so hot water flows through them to heat them.
Read more...

Optional: Dual Fuel

These radiators or towel warmers can run on a conventional gas-powered central heating system or via your mains electrical supply. You can choose whether or not you want your radiator or towel warmer to come on independently of your central heating system, which is especially useful in summer. These radiators are compatible with heating and hot water, whether the system is open (direct) or closed (indirect).

BTU Output

It is the short form of a British thermal unit (BTU or Btu) and is defined as the amount of heat required to raise the temperature of one pound of water by one degree Fahrenheit. It is a standard unit against which radiator efficiency is measured.
Read more...

Watts Output

Unit of power to measure electric current.

Optional Sleeving Kit

A sleeving kit in a radiator heating system are components or materials used to sleeve or insulate the pipes or tubes that circulate hot water or steam from the central heating source to the radiators or heating units. The sleeving kit provides thermal insulation and prevents heat loss, adding to the heating systems efficiency.

Optional: Radiator Valve

Radiator valves help control how much hot water enters and leave it, and the flow of water controls how much heat the radiator generates. These are usually found at the radiator's bottom left, and right corners, where the water pipes enter and exit, or can also be present at the bottom near the centre.
Read more...

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Andy Asked :
To fit an electric-only fluid-filled towel radiator - Reina Chisa, other than the touch heater element unit - are there other valves to buy?

Answered By QS Team

For Electric Towel Rail, you will need either Standard Heating Element, Thermostatic Touch Element, or Thermostatic Touch Element with a remote and in addition, you will require liquid filling.
