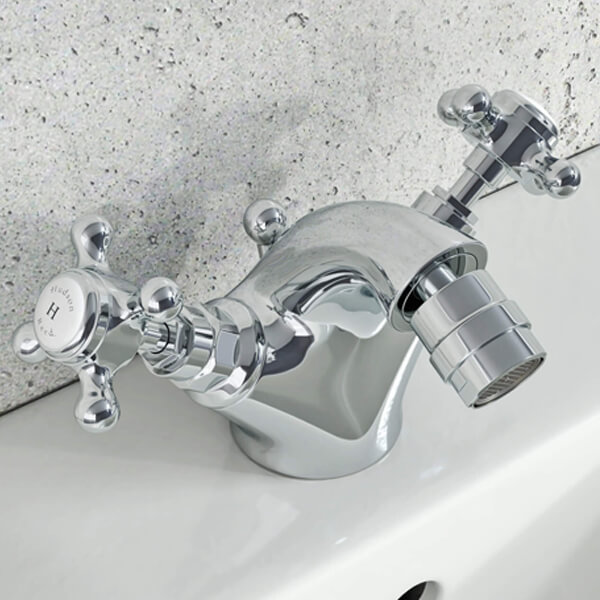

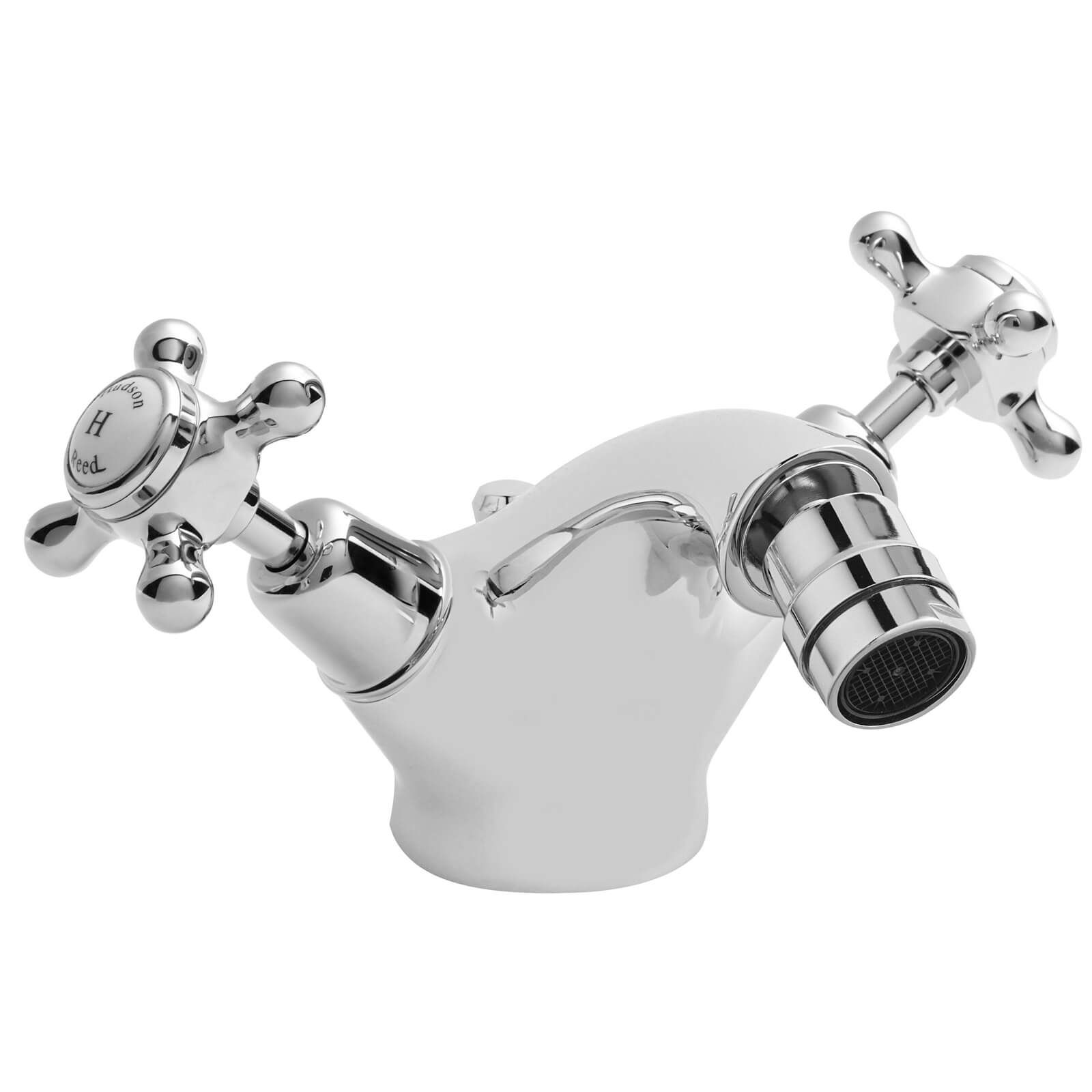

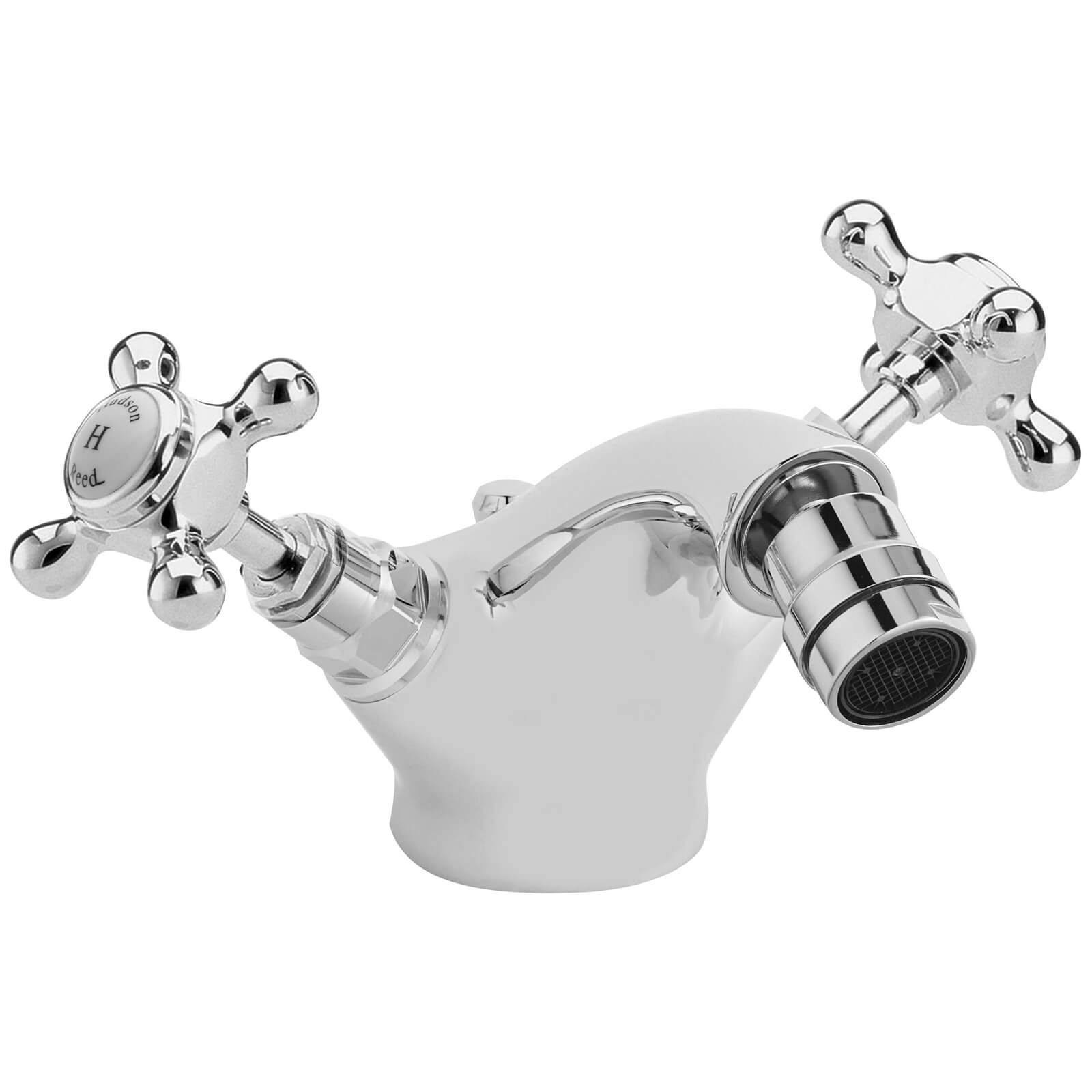

Hudson Reed Topaz Traditional Bidet Mixer Tap with Pop Up Waste, Crosshead Handles

Hudson Reed Topaz Details

MFC: BC306HX

The Hudson Reed Topaz Bidet Tap with Pop Up Waste is available for purchase with either crosshead handles, and the tap can come with a hexagonal or dome collar as an option. A sleek and versatile unit designed for deck mounted installation includes pop-up waste and the users' choice of handle colour with black and white options available. Complete with a ¼ turn ceramic disc installed within it, this model is designed to offer truly smooth operation and long life. Suitable for use in low-pressure water systems that produce water pressure levels of 5 litres per min at 0.1bar for functionality.

Key Features

✔1/4-Turn Ceramic Disc
✔Manufactured using Brass Material
✔Ceramic Disc Technology for Long-Lasting and Smooth Operation
✔20-Year Guarantee for Chrome finish and 3-Year Other Finishes Against Manufacturing Defects

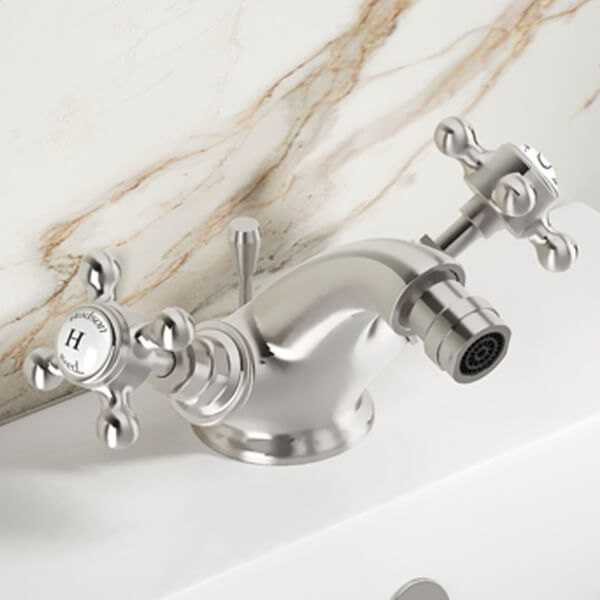

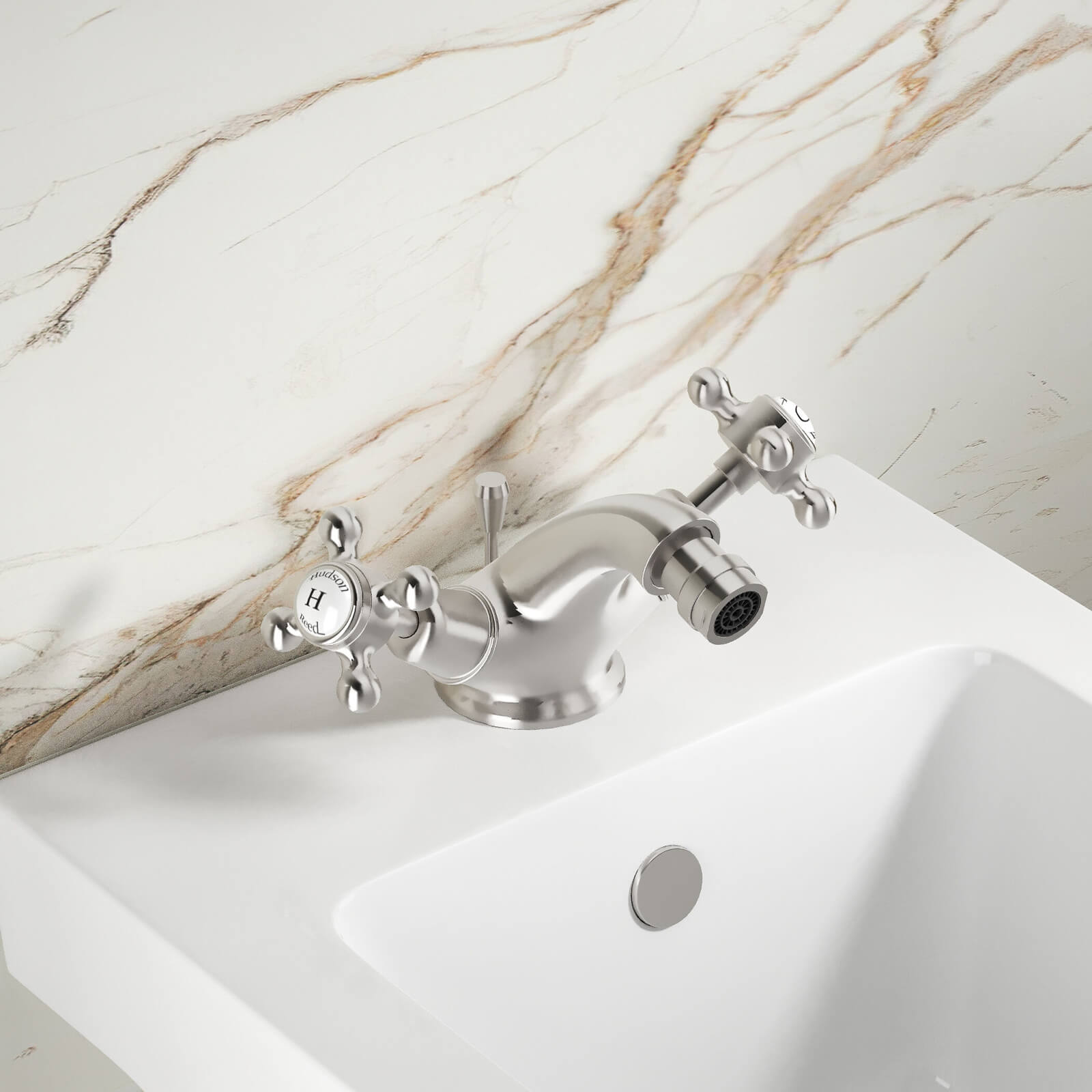

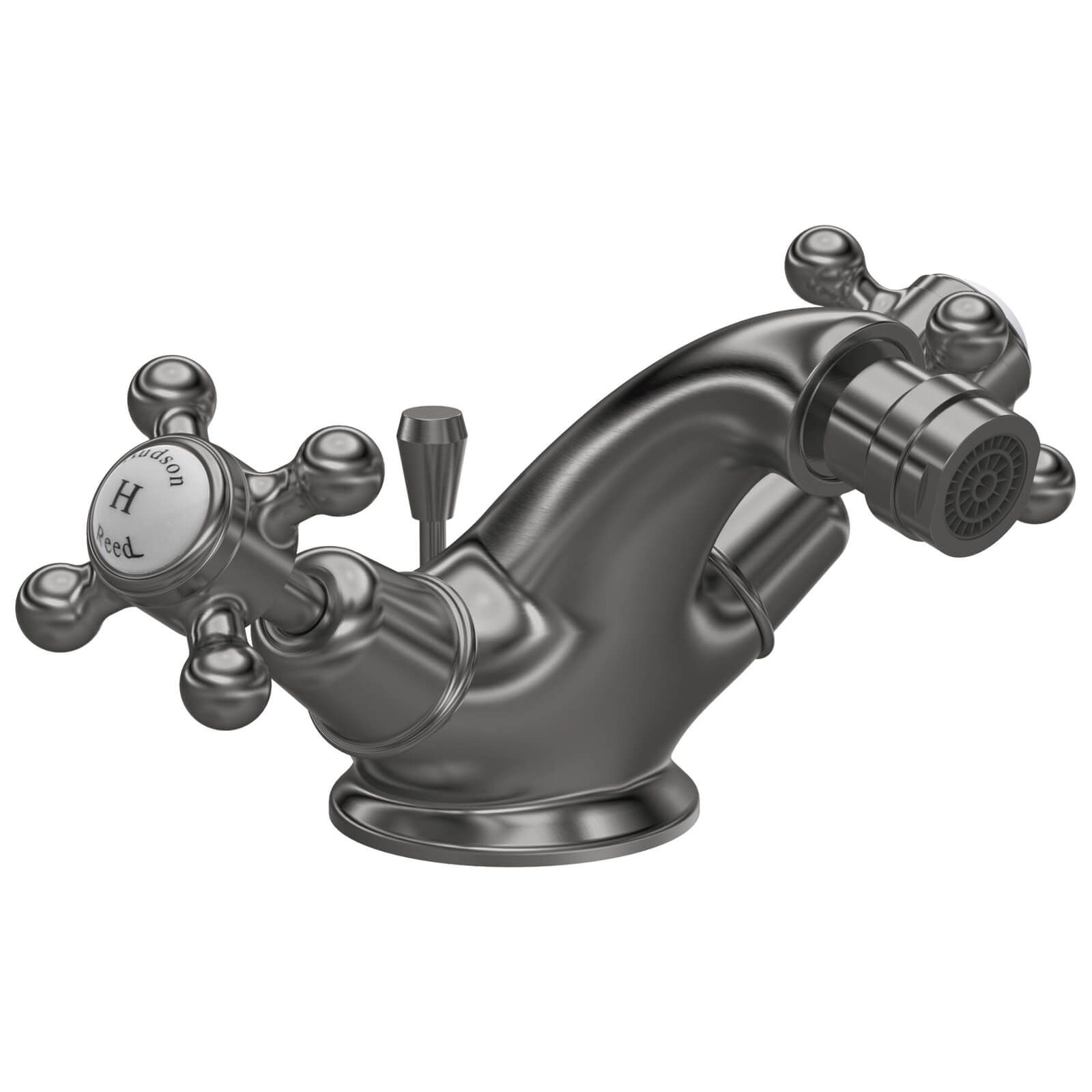

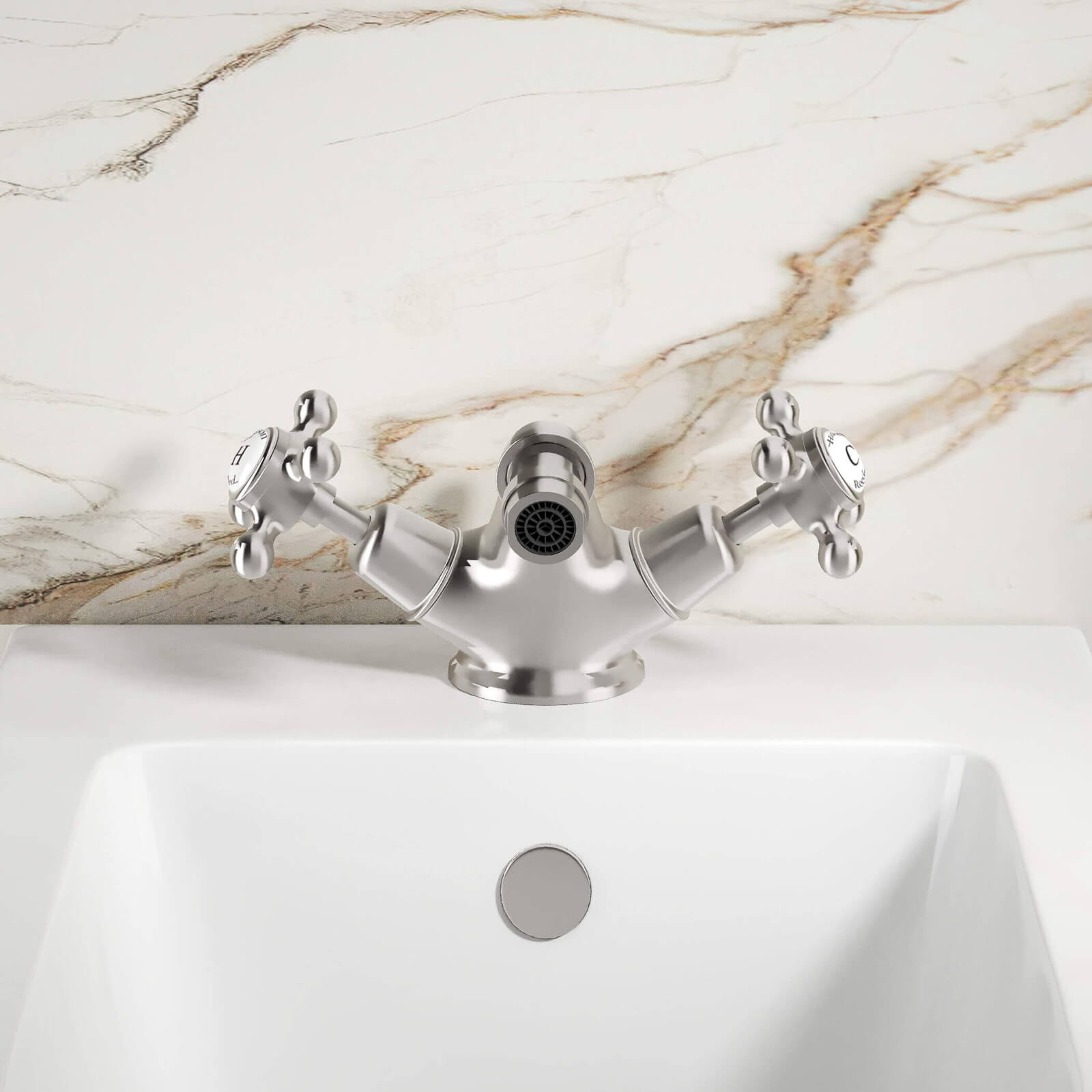

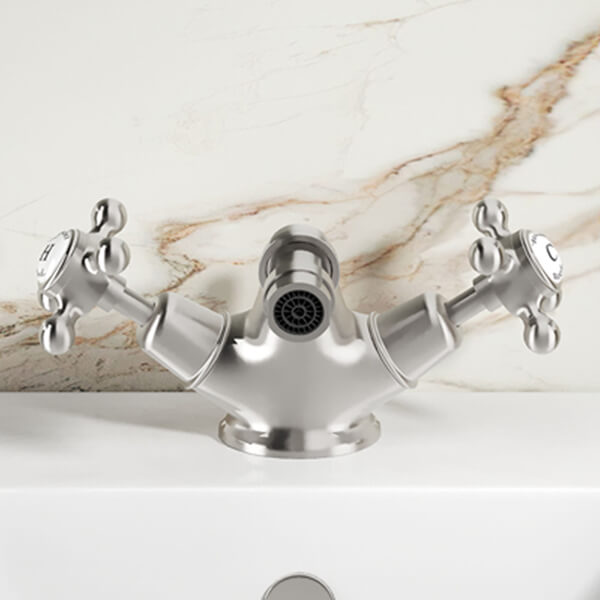

Choice of Finishes: Chrome, Brushed Pewter and Brushed Brass

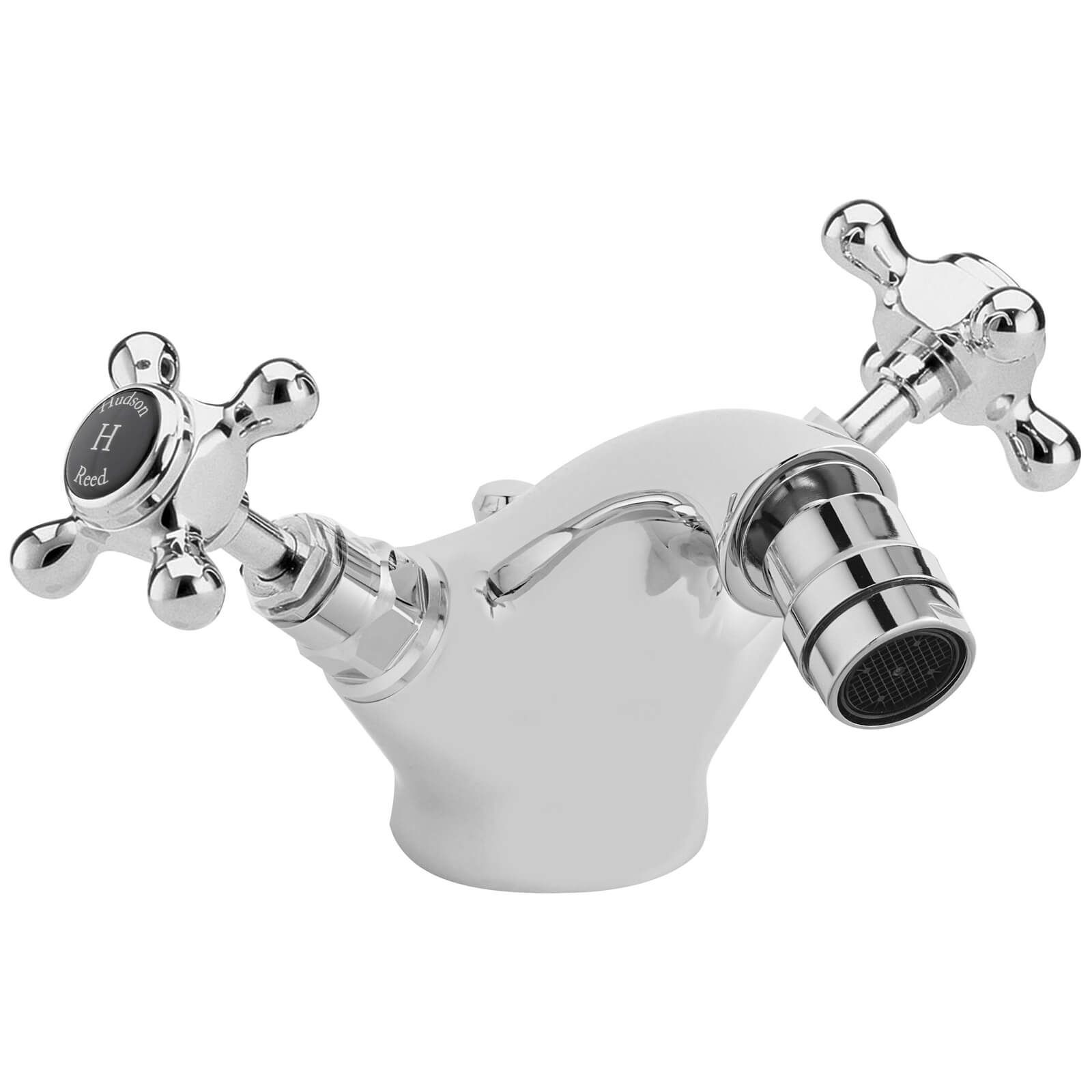

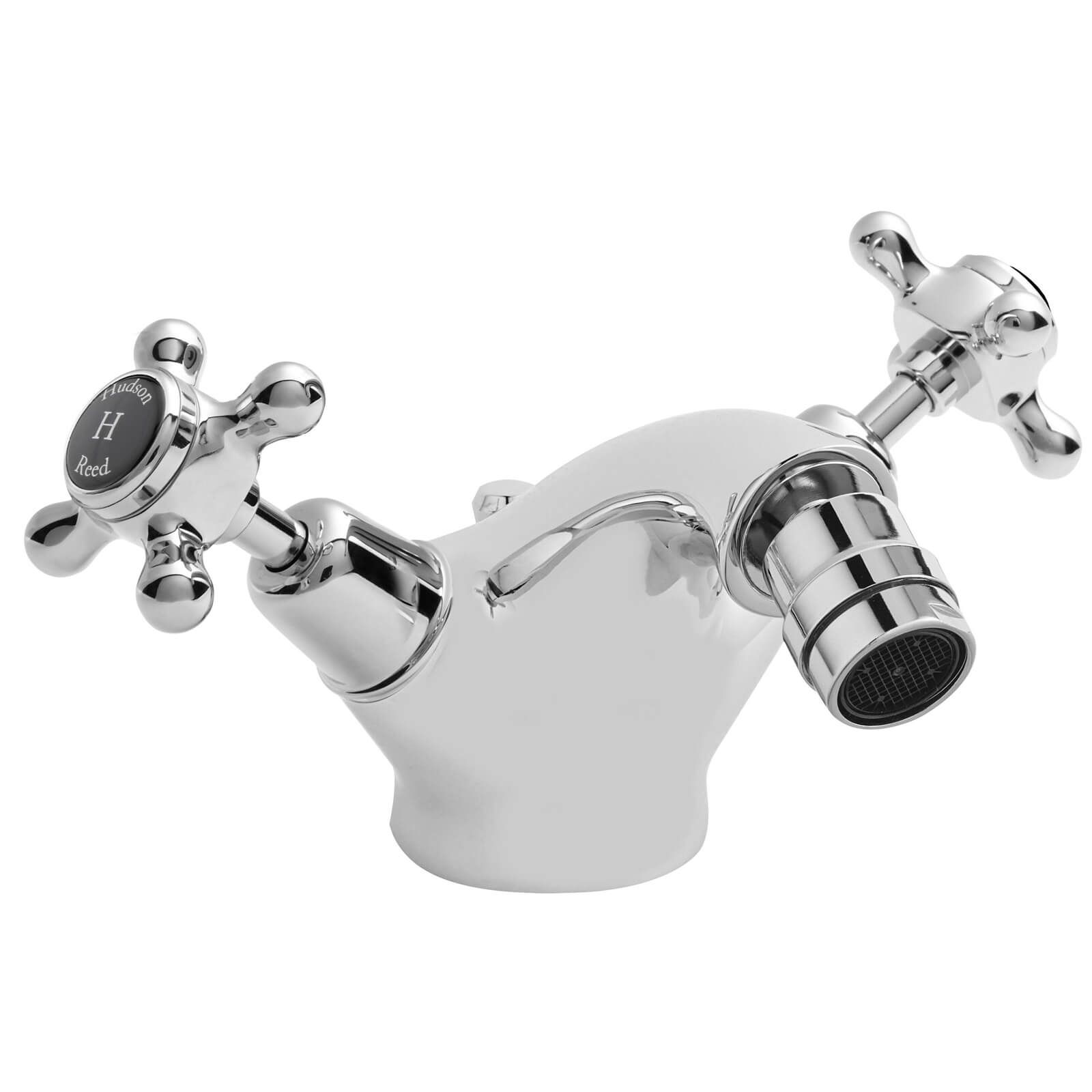

Choice of Indices: White and Black
Choice of Collar Type: Hexagonal or Dome
Traditional Design
Height: 97mm (9.7cm)
Base to Spout: 70mm (7cm)
Centre of the Inlet to the Centre of the Outlet: 105mm (10.5cm)
Pipe Size: 15mm (1.5cm) (1/2 Inch BSP)
Suitable for Deck-Mounted Installation
Comes with a Pop-Up Waste
Suitable for Low-Pressure Systems
Requires a Minimum of 0.1 Bar of Water Pressure for Smooth Flow
Minimum Flow Rate is 5 Litres Per Minute at 0.1 Bar Water Pressure
Download the Customer Data Sheet and Installation Instructions PDF File from the Additional Info Section
Refer to the Technical Diagram for Complete Technical Details

Info / Size (mm)

Tap
Pipe Center: 105 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: Rotating
⤷ Tap Body Shape
: Round
⤷ Range
: Topaz
⤷ Handle Position
: Left | Right
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 20-Year
⤷ Material
: Brass
⤷ Theme
: Traditional
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Fixed
⤷ Valve Included
: Yes

⤷ Valve/Cartridge Type
: Ceramic Disc Cartridge
⤷ Base To Spout
: 70
⤷ Spout Reach
: 105
⤷ Overall Height
: 97
⤷ Width
: 197
⤷ Minimum Operating Pressure (Bar)
: 0.1
⤷ Waste Type
: Pop-Up
⤷ Flow Rates (l/min)
: 0.1 bar - 5 | 0.5 bar - 16 | 1 bar - 24 | 2 bar - 33 | 3 bar - 38
⤷ Waste Included
: Yes
⤷ Barcode
: 5055275894613
⤷ Product Type
: Bidet Mixer Tap

Additional Info & Downloads

Download the Customer Data Sheet for Hexagonal Collar Pdf File Download the Customer Data Sheet for Dome Collar Pdf File Download the Installation Instruction Pdf File

This item can also be found in:

Technical Images

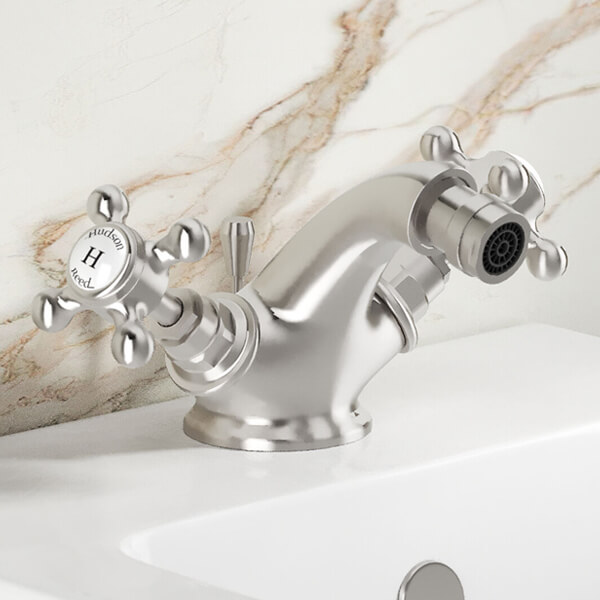

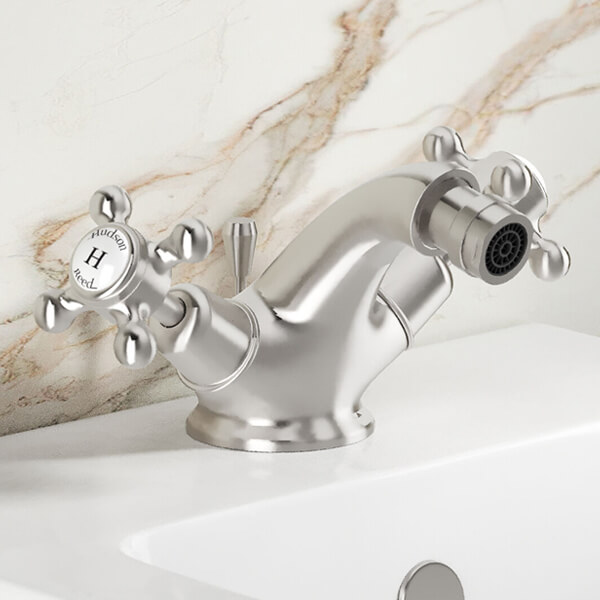

Hudson Reed Topaz Traditional Bidet Mixer Tap with Pop Up Waste - Crosshead Handles

Hexagonal Collar

Dome Collar

£343.20

RRP: ~~£429.00~~

IN-STOCK

Delivery in 4 Working Days Approx.

QS Supplies

3 Features Included In This Product Explained

Ceramic Disc Cartridge

It has two ceramic discs, one fixed in place and the other moveable with the tap or valve handle. It is the most common technology used in modern tapware as it offers unmatched advantages such as no leaks and drips and saves on water and money.
Read more...

Pop-Up Waste

The Pop-Up waste or pop-up assembly refers to the type of pipe fitting for a sink, basin or bidet connected to a waste pipe at the plughole. It comes with a lever or knob-controlled plug or stopper and operates using a lever that can be lowered or lifted to close and open the plug.
Read more...

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
Read more...
