Reina Capo 500mm Wide Curved Towel Rail Chrome

£60.25

STOCK AVAILABILITY

3-4 Working Days Approx

Not Yet Rated No Rating

Shipping: FREE* Check Postcodes

Product Variants
Select Height Step 1
Select Towel Rail Variant Step 2
Select Heating Element Type Step 3
Select Essential Accessories Step 4
SKU Code: QS-V90601

MFC Code: CPO0850CC

Reina Capo CPO0850CC Details

The Reina Capo Chrome Curved Heated Towel Rail comes in a perfectly curved design that allows for an impressive area for use to warm towels or similar cloth-based items. Manufactured from sturdy steel material and offered in a stylish chrome finish, this unit comes supplied with an air vent and end plug as well as your choice of different heights as an option too. Though not included with the product upon purchase, there are several optional valves, heating elements or t-piece connections available separately for full functionality of the unit if required.

Key Features
  • Curved towel rail
  • It comes in a chrome finish
  • Manufactured using steel material
  • Supplied with Brackets, Air vent, and End plug
  • Five-year guarantee from Reina against manufacturing defects
  • Available in different widths: 800mm, 1000mm, 1200mm and 1600mm - [Optional].
  • Available variants: Central heating, Dual Fuel, and Electric - [Optional].
  • Heating element type: Standard and Touch thermostatic - [Optional].
  • Width: 500mm (50cm).
  • Wall to pipe centres: 70-85mm (7-8.5cm).
  • Tube diameter: Ø22mm (2.2cm).
  • Heat Output is measured at 70 Degrees Celsius.
  • For 800mm height: BTU @ 70°C 1081 and Watts: 317.
  • For 1000mm height: BTU @ 70°C 1343 and Watts: 393.
  • For 1200mm height: BTU @ 70°C 1548 and Watts: 453.
  • For 1600mm height: BTU @ 70°C 2044 and Watts: 599.
  • The image shown is for illustration purposes only.
  • The valves and Towel hook shown in the image are not included.
  • Sleeving kit and chrome pipe kit [Optional].
  • For Central Heating And Dual fuel, Radiator valves are highly recommended.
  • Refer to Compatible Valves available in the product.
  • For the Dual Fuel and Electric model, Heating Elements are highly recommended in combination with T-Piece.
  • For Electric models, Optional Liquid Filling is required with the heating element.
  • For more details, please refer to the Product Variations Info and MFC Code table given below.
  • Download the Installation Instruction PDF File from the Additional Info Section.

Technical Specifications

Please note all the measurements are in 'mm'
  • ⤷ No. of Tubes
  • : 12
  • ⤷ Range
  • : Capo
  • ⤷ Colour
  • : Chrome
  • ⤷ Shape
  • : Curved
  • ⤷ Country of Origin
  • : Turkey
  • ⤷ Warranty/Guarantee
  • : 5 Years
  • ⤷ Material
  • : Steel
  • ⤷ Theme
  • : Modern
  • ⤷ Installation Type
  • : Wall Mounted
  • ⤷ Width
  • : 500
  • ⤷ Height
  • : 800
  • ⤷ Fixings included
  • : Yes
  • ⤷ Orientation
  • : Vertical
  • ⤷ Barcode
  • : 5057199945488
  • ⤷ BTU Output
  • : 70°C - 1081
  • ⤷ Watts
  • : 317
  • ⤷ Tapping / Pipe Centres
  • : 455
  • ⤷ Valves Included
  • : Sold Separately
  • ⤷ Fuel Type
  • : Central Heating | Electric | Dual Fuel
  • ⤷ Tube Diameter
  • : 22
  • ⤷ Heating Element Included
  • : Sold Separately
  • ⤷ Element Type
  • : Standard | Thermostatic
  • ⤷ Brackets Included
  • : Yes

Additional Info & Downloads

Download PDF Download the Installation Instruction Pdf File


Technical Images


Customise Your Product

Optional Accessories
Optional Accessories

Reina provides optional accessories that you may require for the installation. The manufacturer highly recommends these Accessories. Please Note: The image shown is for illustration purpose only.

Total: £60.25 3-4 Working Days Approx QS Supplies

Product Variations Info & MFC Code
Details For Central Heating Towel Rail
Height -mm 800 1000 1200 1600
Pipe Centres - mm 455 455 455 455
Wall To Pipe Centre - mm 70-85 70-85 70-85 70-85
Wall Distance - mm 85-100 85-100 85-100 85-100
Tube Dimension - mm 22 22 22 22
Tube Quantity 12 16 18 24
Total Gap 2 3 3 4
BTU - 70 Deg.C 1081 1343 1548 2044
Watts 317 393 453 599
MFC CPO0850CC CPO1050CC CPO1250CC CPO1650CC
Details For Dual Fuel Towel Rail
Height - mm 800 1000 1200 1600
Wall Distance - mm 85-100 85-100 85-100 85-100
Tube Quantity 12 16 18 24
Total Gap 2 3 3 4
MFC CPO0850CC CPO1050CC CPO1250CC CPO1650CC

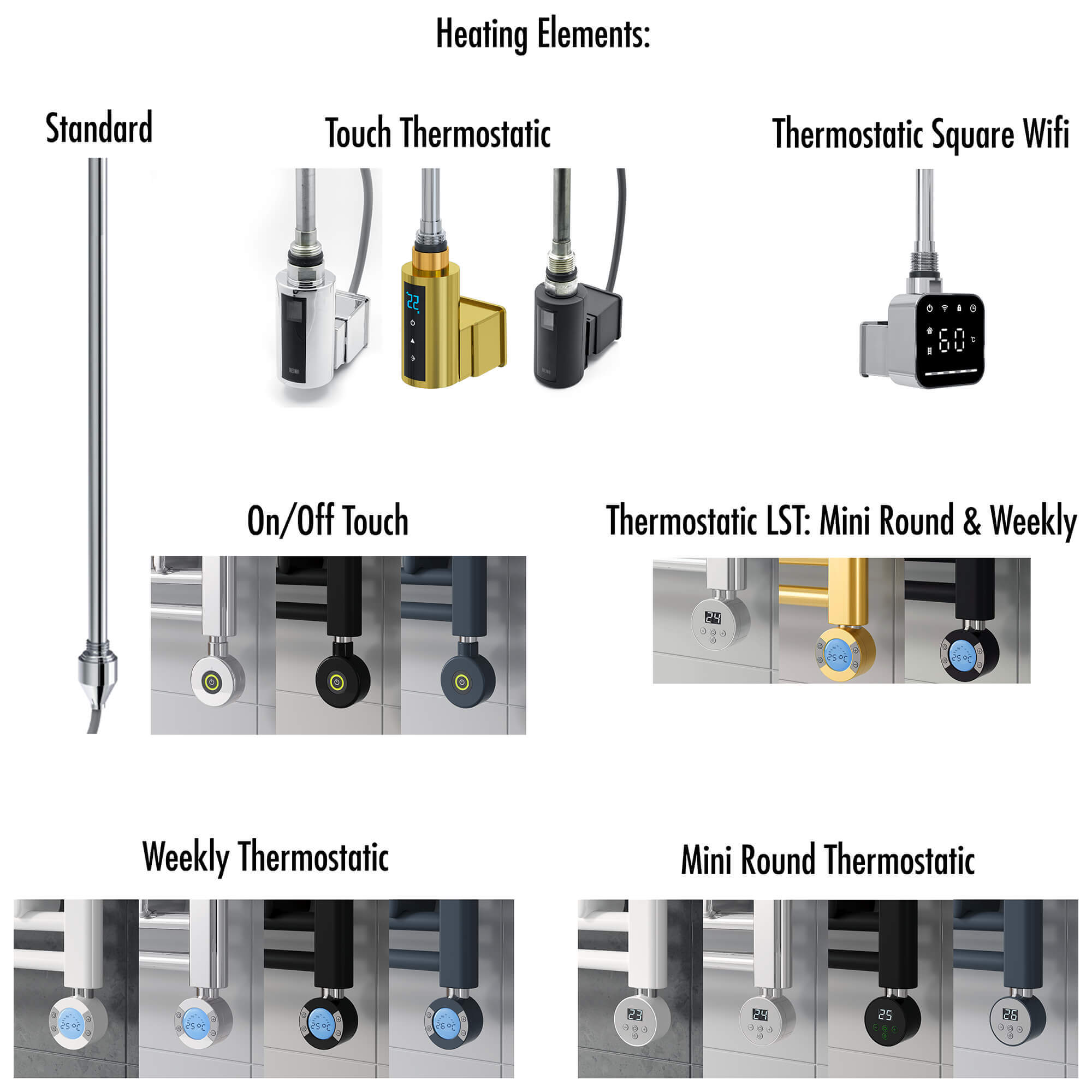

Standard Heating Element - Watts 150 400 250 400
Standard Heating Element - MFC ELM/S150W ELM/S400W ELM/S250W ELM/S400W
Touch Thermostatic Heating Element - Watts 300 - 600 600
Touch Thermostatic Heating Element - MFC ELMTCH030C - ELMTCH060C ELMTCH060C
Thermostatic Heating Element With Remote - Watts 300 600 600 600
Thermostatic Heating Element With Remote - MFC ELM/T300C ELM/T600C ELM/T600C ELM/T600C
T Piece - Chrome Finsh - MFC ACCS/TP ACCS/TP ACCS/TP ACCS/TP
Details For Electric Towel Rail
Height 800mm 1000mm 1200mm 1600mm
Wall Distance - mm 85-100 85-100 85-100 85-100
Tube Quantity 12 16 18 24
Total Gap 2 3 3 4
Standard Heating Element - Watts 150 400 250 400
Towel Rail With Standard Heating Element - MFC CPS0850CC CPS1050CC CPS1250CC CPS1650CC
Touch Thermostatic Heating Element - Watts 300 - 600 600
Touch Thermostatic Heating Element - MFC ELMTCH030C - ELMTCH060C ELMTCH060C
Towel Rail With Touch Thermostatic Heating Element - Pack Code MFC CPH0850CC - CPH1250CC CPH1650CC
Thermostatic Heating Element With Remote - Watts 300 600 600 600
Towel Rail With Thermostatic Heating Element With Remote - MFC CPT0850CC CPT1050CC CPT1250CC CPT1650CC
Liquid Filling - MFC A/FILLING1 A/FILLING1 A/FILLING1 A/FILLING1

5 Features Included In This Product Explained

Optional: Radiator Valve

Optional: Radiator Valve

Radiator valves help control how much hot water enters and leave it, and the flow of water controls how much heat the radiator generates. These are usually found at the radiator's bottom left, and right corners, where the water pipes enter and exit, or can also be present at the bottom near the centre.
Read more...

Central Heating

Central Heating

'Standard' radiators and towel warmers are connected to your central heating system, so hot water flows through them to heat them.
Read more...

Optional: Dual Fuel

Optional: Dual Fuel

These radiators or towel warmers can run on a conventional gas-powered central heating system or via your mains electrical supply. You can choose whether or not you want your radiator or towel warmer to come on independently of your central heating system, which is especially useful in summer. These radiators are compatible with heating and hot water, whether the system is open (direct) or closed (indirect).

Air Vent

Air Vent

An air vent or a radiator air valve or bleed valve, is a small part of the radiator. Its role is to release trapped air or gases from inside the radiator, keeping the appliance heating efficiently and evenly. An Air vent can be an automatic air vent or manually opened to release air and are made of metal or plastic.

Optional Sleeving Kit

Optional Sleeving Kit

A sleeving kit in a radiator heating system are components or materials used to sleeve or insulate the pipes or tubes that circulate hot water or steam from the central heating source to the radiators or heating units. The sleeving kit provides thermal insulation and prevents heat loss, adding to the heating systems efficiency.
