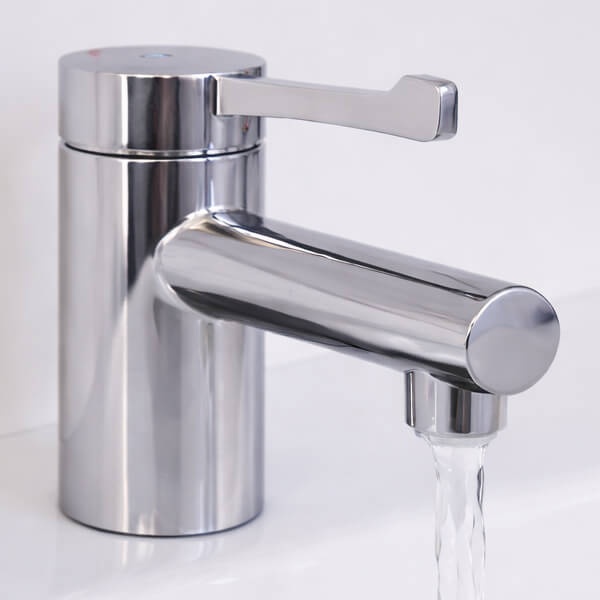

Bristan Commercial Solo Chrome Finish Basin Mixer Tap

Bristan Solo SOLO2-T3SL Details

The Bristan Solo Basin Mixer Tap is a modern tap that can add contemporary flair to your bathroom or kitchen areas. WRAS approved, this durable faucet comes in a beautiful chrome finish and offers a brilliant shine and clean look because of it. It can get as hot as 80 degrees Celsius and is suitable for any plumbing systems for your convenience. It comes with 15-millimetre compression inlet connections and is suitable for high and low water pressure systems. There is a simple-to-use sequential control for both flow and temperature settings.

Available in 2 variations: Short Lever Tap and Long Lever Tap.
Centre of the inlet to centre of outlet: 110mm - (11cm).
Base to spout: 55mm - (5.5cm).
Complies with HTM04-01.
Automatic thermostatic shutoff in the event of hot or cold water failure.
Above basin access to serviceable parts, limiting downtime.
Inlet connection: 15mm (1.5cm) compression copper tails.

Connection outlet: Open or aerator options available.
Valve/cartridge type: Thermostatic cartridge.
Plumbing System Requirements: Suitable for all plumbing systems, ideally balanced.
Maximum hot water temperature: 60°C.
Suitable for low and high water pressure.
Required minimum 0.2 bar to maximum 5.0 bar water pressure.
Refer to the technical diagram for complete technical dimensions.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Commercial
⤷ Tap Body Shape
: Round
⤷ Handle Position
: Upwards
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 1 Year
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1

⤷ Spout type
: Fixed
⤷ Base To Spout
: 55
⤷ Spout Reach
: 110
⤷ Overall Height
: 155
⤷ Minimum Operating Pressure (Bar)
: 0.2,0.2 Bar
⤷ Flow Rates (l/min)
: 0.2 bar - 2.2 0.5 bar - 2.2 1.0 bar - 4.1
⤷ Handle Style
: Lever
⤷ WRAS Approved
: Yes
⤷ Barcode
: 5014868043838
⤷ Product Type
: Commercial Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £207.48 2 Working Days Approx QS Supplies

4 Features Included In This Product Explained

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
Read more...

TMV3 Approved Product

TMV3 approval means a thermostatic valve is certified and approved for use in healthcare and commercial situations.

Sequential Control In Showers

Sequential Control lets you turn the shower on and off and regulate the temperature by turning the same knob. The built-in integral check valves and strainers make it easy to use. The first movement of the knob turns the shower to the cold position, and any subsequent anti-clockwise movement increases the temperature to a set maximum.

Low Water Pressure

Water systems operating at a pressure between 0.1 and 0.4 bar are considered low pressure. Products usually come labelled if they are suitable to use under such pressure.
