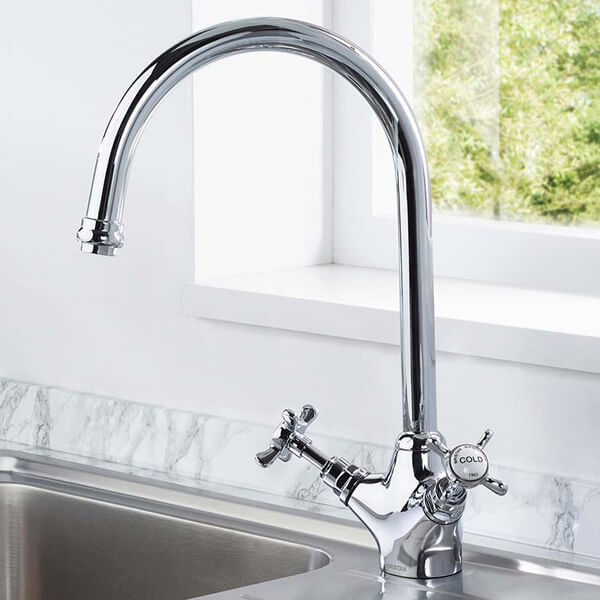

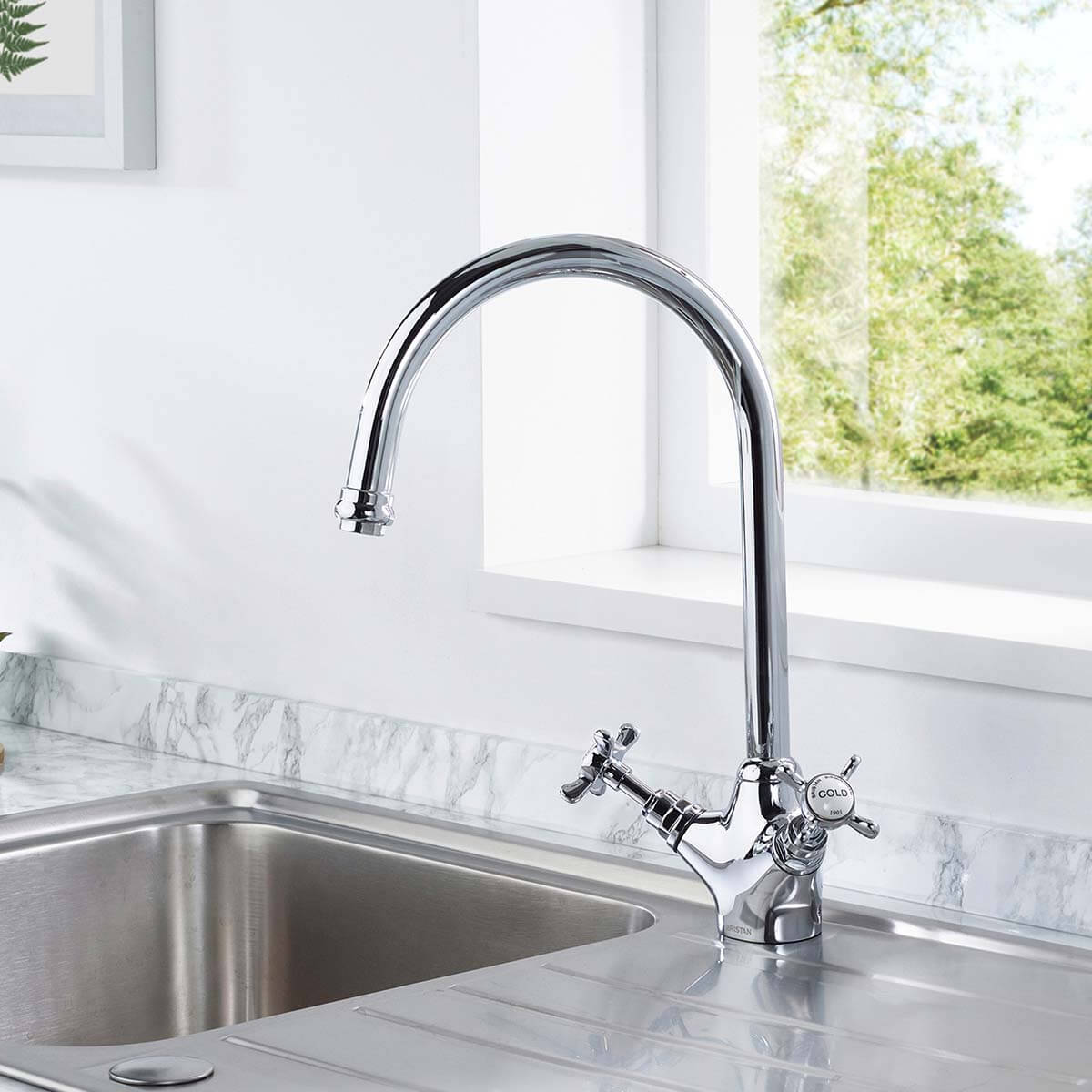

Bristan 1901 Kitchen Sink Mixer Tap With Easyfit Base

Bristan 1901 N SNK EF C Details

Finish your washing and cleaning chores in a matter of minutes by installing this Kitchen Sink Mixer Tap from the beautiful 1901 range of Bristan. This unit is meticulously crafted from good quality brass for delivering exceptional long-term performance. For imparting a designer appeal to your kitchen, this unit comes in glistening chrome finish and is also available in gold finish option. It works with all plumbing systems and is suitable for a low water pressure system. The manufacturer backs this unit with a 10-year guarantee against any manufacturing defects. Suitable to use with all types of kitchen sinks.

Unique patented top fix design, for simple installation from above the sink.
Simply drop and twist the top fix base into the tap hole from above, and lock into place with the Allen key provided.
Height: 355mm - (35.5cm).
Base to spout: 220mm - (22cm).
Swivel spout for easy use.
Flow type: Single flow.
Isolation included: Yes.
The centre of the inlet to the centre of the outlet: 205mm - (20.5cm).
Inlet connection: 1/2 inch BSP flexible tails.

High quality metal fixings for security and durability.
Push the tap on to the base and secure into position with the supplied Easyfit tool and screws.
Two supplied isolation valves and flexi tails mean you can connect to the water supply at this point and isolate the base.
Maximum hot water temperature: 65°C.
Maximum static pressure: 10 bar.
Suitable for low and high water pressure.
Required minimum 0.3 bar to maximum 5.0 bar water pressure.
Refer to the technical diagram for complete technical dimensions.

Info / Size (mm)

Tap
Pipe Centre: 205 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: 1901
⤷ Water Activation
: By Rotating
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome, Gold
⤷ Warranty/Guarantee
: 10 years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck mounted
⤷ No. of Holes Required
: 1
⤷ Valve/Cartridge Type
: Ceramic Disc Valve

⤷ Handle Material
: Metal
⤷ Base To Spout
: 220
⤷ Spout Reach
: 205
⤷ Overall Height
: 355
⤷ Width
: 210
⤷ Minimum Operating Pressure (Bar)
: 0.3
⤷ Handle Style
: Crosshead
⤷ WRAS Approved
: Yes
⤷ Barcode
: 5014868039480
⤷ Product Type
: Sink Mixer Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £151.85 2 Working Days Approx QS Supplies

5 Features Included In This Product Explained

Quick Change

The product can be simply removed and another one fixed in its place. All you need to do is turn off the water supply.

Precise Glide

It comes incorporated with ceramic cartridges for long life with precise control for smooth, leak-free use.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

Easyfit

Step1: Fitting the Base The first step is to slot the base of the tap into the sink. For this, detach the plain barrel from the EasyFit Base. Unscrew the fitting and push it through the hole in the sink or work surface. It must be in the central position, indicated by the word FRONT facing forward. Now tighten the fitting to the surface with a hex key, and replace the plain barrel. Step 2: Fitting the Tails Next, you need to connect the integral flexible tails to the hot and cold water sources after you have closed the built-in valves. Step 3: Fitting the Tap Body Push and secure the tap body to the base using grub screws, which are present on either side of the tap body. The grub screws must be tightened using the hex key.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
