Ideal Standard Gusto Imx L-Shaped Kitchen Mixer Tap with Swivel Spout, Flat Handle

Ideal Standard Gusto Details

MFC: A7818AA

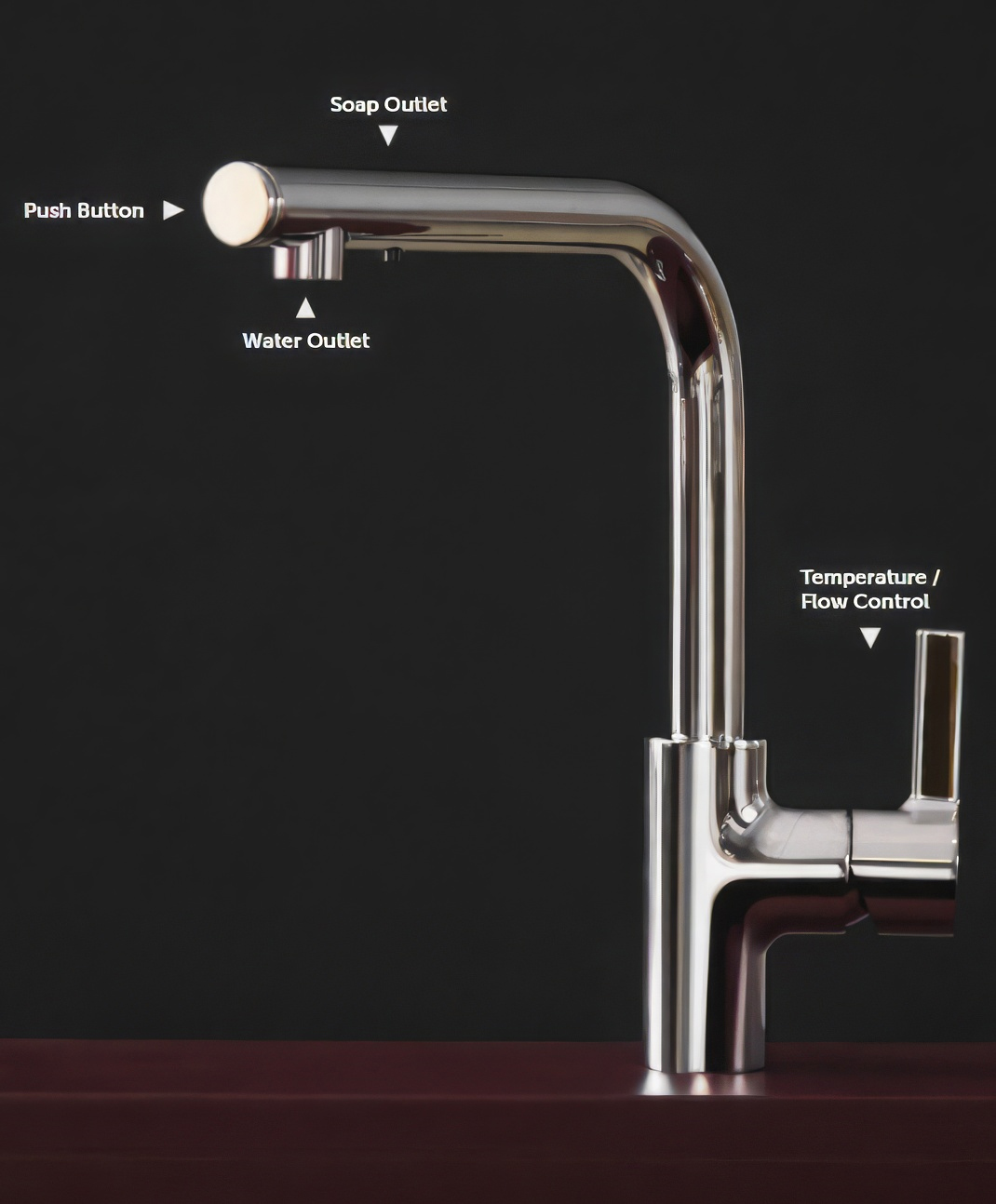

Ideal Standard Gusto Imx Single Lever Kitchen Mixer Tap.

Key Features

✔Elegant Brass Body with a Diameter of 47mm

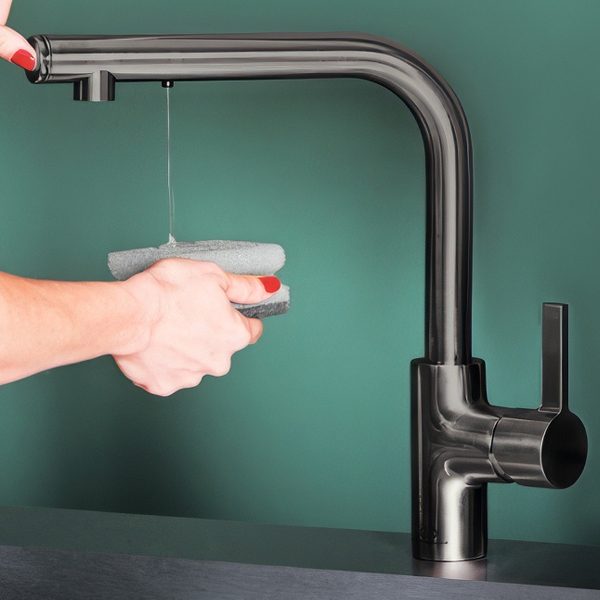

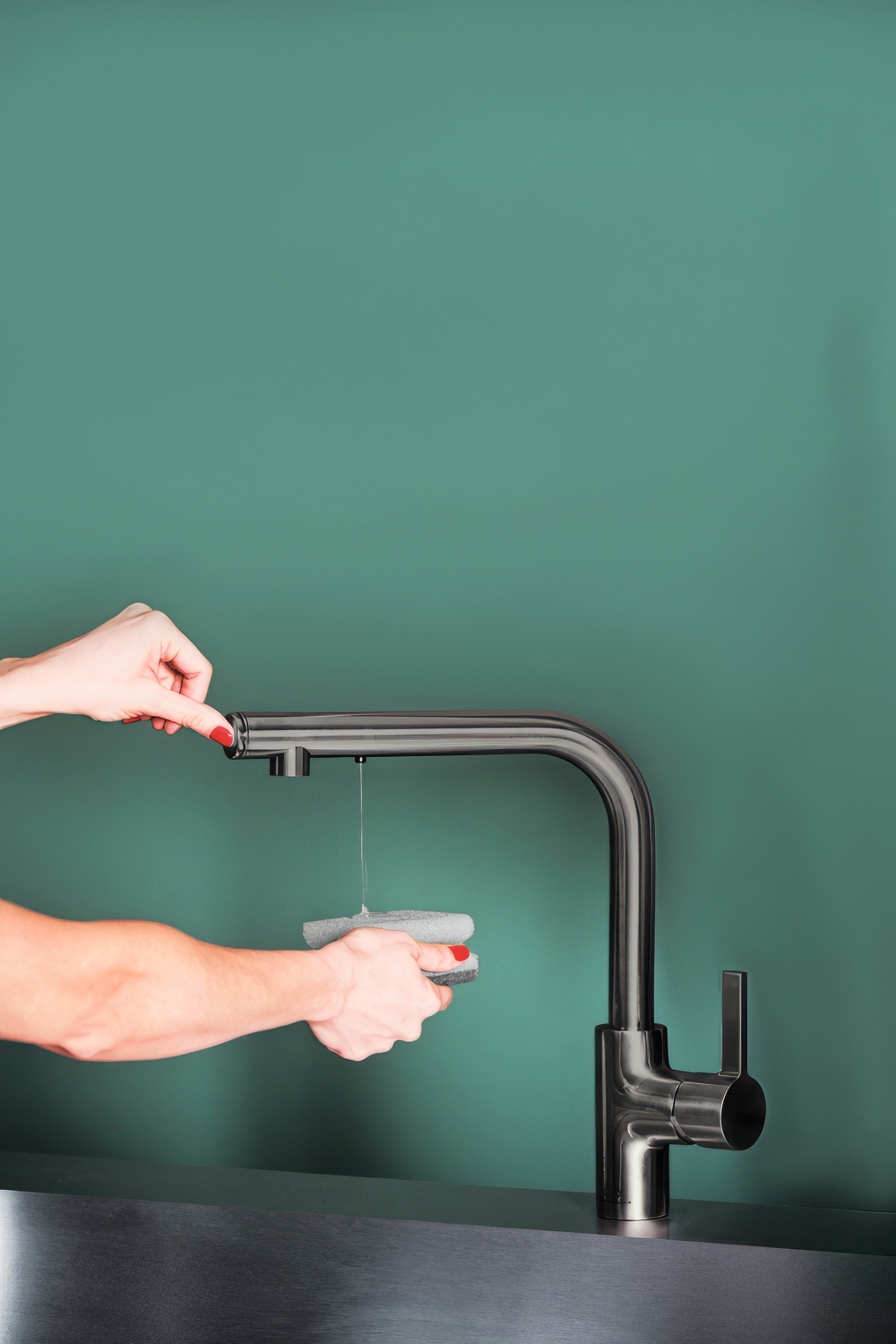

✔Integrated 1L Soap Dispenser with an Easy-Push Metal Button
✔Temperature Limit Stops can be Pre-Set for Comfort and Safety
✔5-Year Guarantee from the Manufacturer Against any Manufacturing Defects

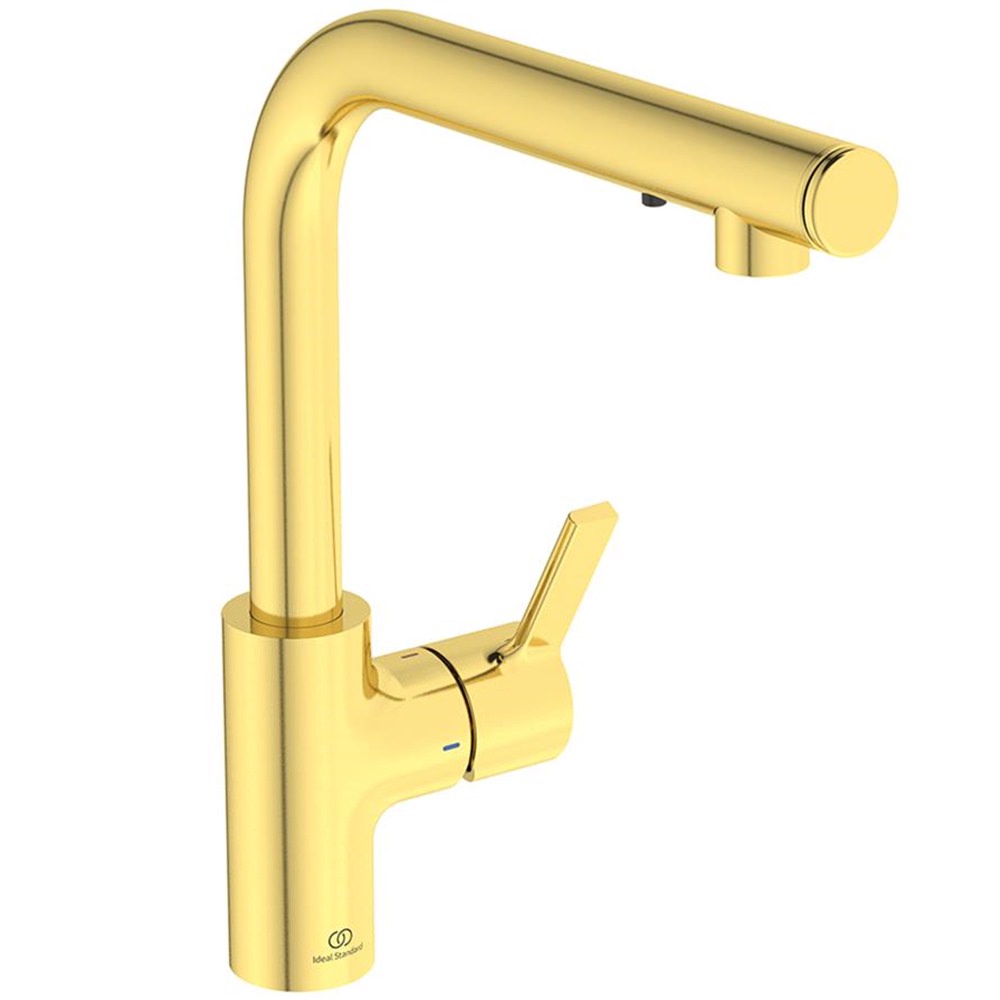

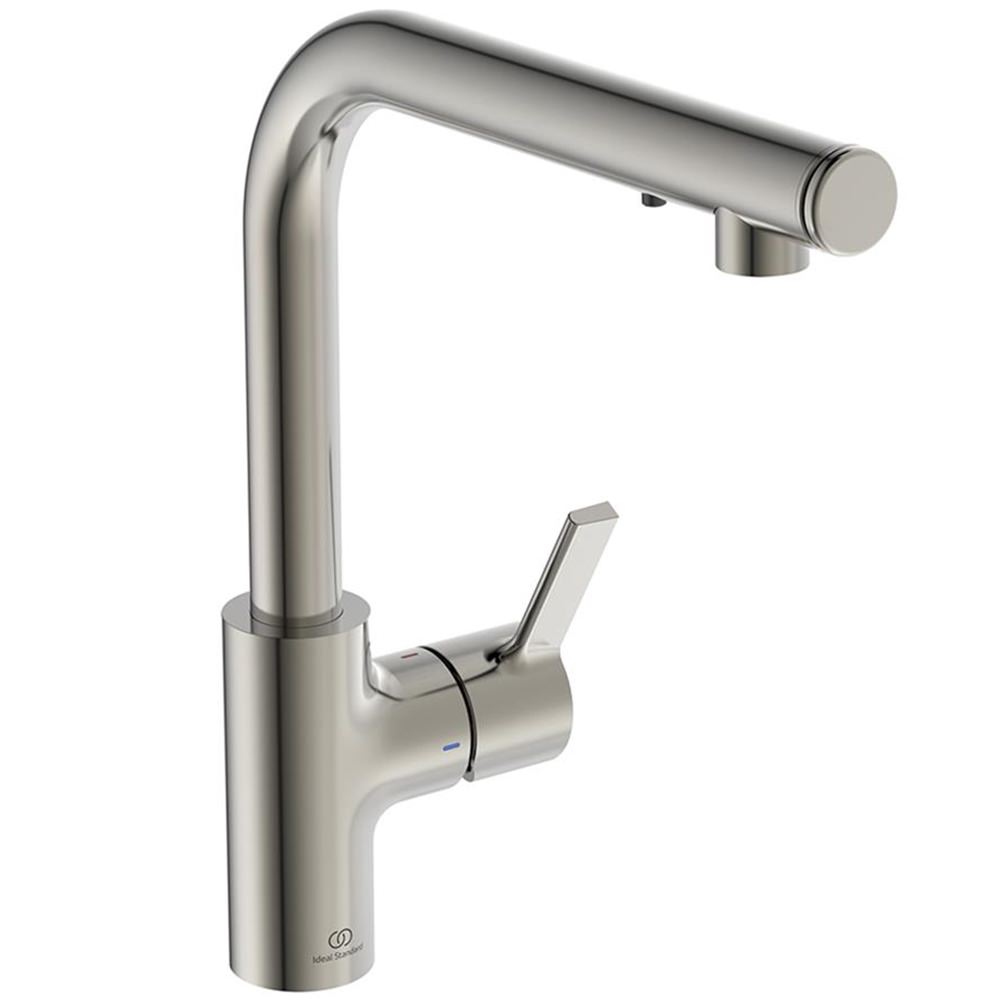

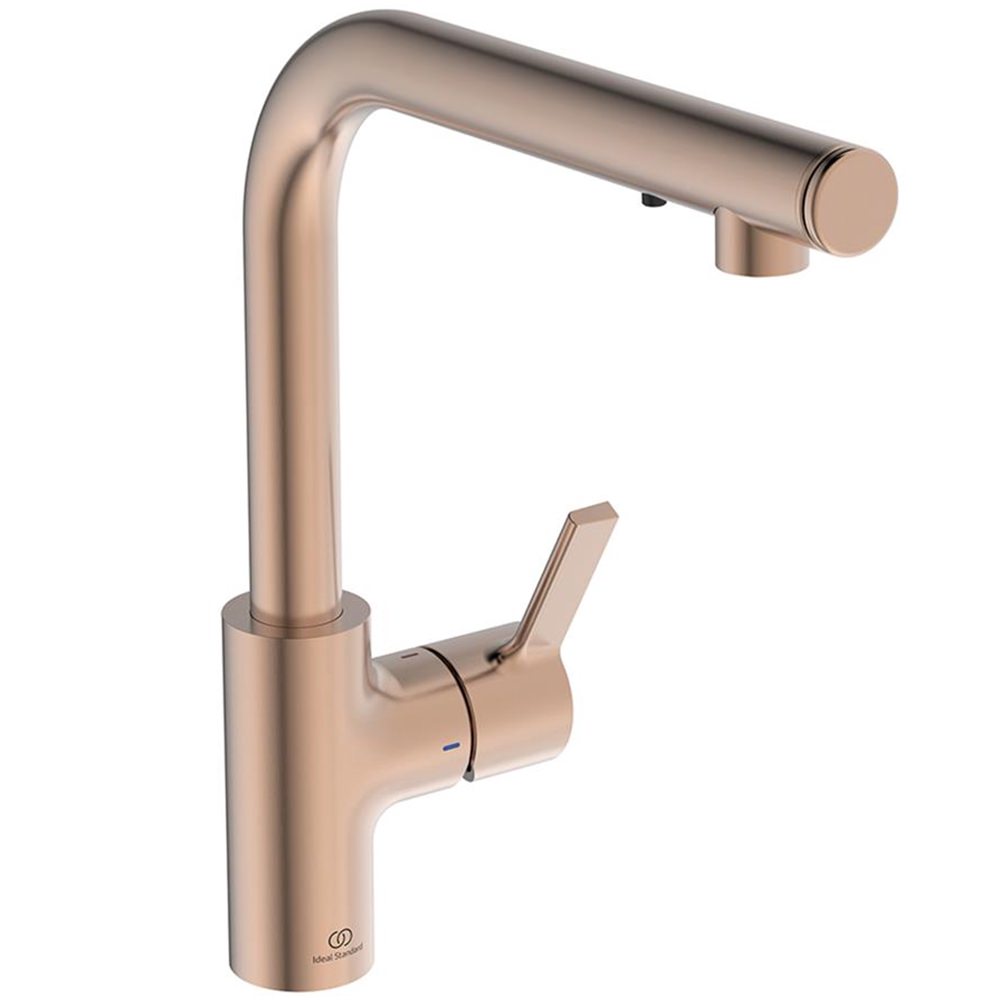

✔Choice of Finishes - Chrome, Brushed Gold, Silver Storm, Sunset Rose and Magnetic Grey

Metal Lever with Red and Blue Indicators for Intuitive Hot and Cold Control
Installation Type: Deck-Mounted
Size [mm]: 271 x 334mm [Depth x Height]
Size [cm]: 27.1 x 33.4cm [Depth x Height]
The Centre of the Inlet to the Centre of the Outlet: 232mm (23.2cm)
Base to Spout: 293mm (29.3cm)
Round Spout Ø29mm
360° Swivel Angle
Hidden Aerator
Soap Nozzle
AC Adapter 100 – 240Vac / Out 6.5Vdc
Suitable for High Water Pressure Systems
Flow Rate: 6.6 Litres Per Minute at 3 Bar Pressure System
Operates with a Minimum Water Pressure of 0.5 Bar and a Maximum of 10 Bar
Weight: 3.10 Kg
Ideal for Both Home and Hotel Use
Download the Installation Instruction PDF File from the Additional Info Section
Refer to the Technical Drawing for More Technical Details
Features:
FirmaFlow Ceramic Cartridges Fitted for a Long, High-Performance Lifespan are Tested to 500,000 cycles, equivalent to 10-15 Years of Daily Use
Light Move - Enjoy a Great Experience thanks to the Light, Smooth Cartridge, which Ensures that the Water Flow is just proper for you
EasyFix+ System Makes Fitting Quicker and Easier than Ever. It's Up to 50% Faster than Standard Fitting and 15% Faster than our Original EasyFix System
SmartShine - The High-Quality Chrome Finish Makes our Taps More Scratch-Resistant and Easier to Clean, Providing you with Years of enjoyment

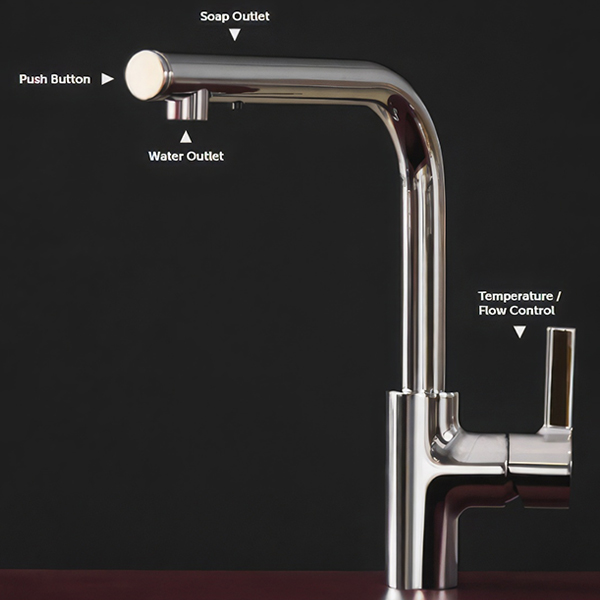

IMX Technology - Features an Integrated dispenser for Soap or Washing-Up liquid, enhancing hygiene, cleanliness, and Comfort while Creating a neater Kitchen Surface
Vibrant, Long-Lasting shades Using Advanced PVD [Physical Vapour Deposition] Technology
Superior Scratch and abrasion Resistance with Fine Layers of Metal applied atom by atom
Enhanced Surface Durability by precisely controlling composition, hardness, and Coating compounds
Proven Durability independent testing Shows Ideal Standard PVD Taps remain Scratch-Free after 10,000 Use cycles
Tested to international Standards, the Hand abrasion Test conducted by Tribotron AG [IEC 68-2-70]

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Rotating
⤷ Range
: Gusto
⤷ Handle Position
: Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 5 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Spout type
: Swivel
⤷ Valve Included
: Yes

⤷ Valve/Cartridge Type
: Ceramic Disc
⤷ Handle Material
: Metal
⤷ Base To Spout
: 293
⤷ Spout Reach
: 232
⤷ Overall Height
: 334
⤷ Max. Deck Thickness
: 40
⤷ Inlet Connections
: G 3/8"
⤷ Minimum Operating Pressure (Bar)
: 0.5
⤷ Flow Rates (l/min)
: 3 Bar - 6.6 Ltr
⤷ Handle Style
: Lever
⤷ Barcode
: 4015413353205
⤷ Product Type
: Kitchen Mixer Tap

Additional Info & Downloads

Download the Installation Instruction Pdf File Download the Flow Rate Diagram Pdf File

Ideal Standard Gusto Imx L-Shaped Kitchen Mixer Tap with Swivel Spout - Flat Handle

£342.08

RRP: ~~£570.14~~

STOCK AVAILABLITY: 5 Working Days Approx

QS Supplies

4 Features Included In This Product Explained

Swivel-Spout

The respective apparatus is engineered to move sideways or at certain angles, which helps the spout cover a greater area than would be possible in a fixed position.

High Water Pressure

Water systems operating at 1.0 bar or higher pressure are considered high-pressure systems. Products usually come labelled if they are suitable to use under such pressure.

FirmaFlow Ceramic Cartridge

The firmaFlow ceramic disc cartridge uses Click Technology with a mechanical stop to limit the tap water flow at the basin to just the amount needed to wash hands. It maintains flow consistency, reduces use by up to 50%, and offers the utmost temperature precision and safety. It can fine-tune the temperature between 34°C and 42°C. This cartridge has almost double the lifespan as the industry standard lasts– 500,000 cycles, compared to 300,000 cycles. It has a high hot water resistance of greater than 95°C.

Easy-Fix Fixation System

With the easy-fix system, tap assembly is fast and easy. It is so simple that the tap can be assembled with one hand with the rubber membrane on the "screw-nut". Using the sealing component, you can secure the tap in the best possible way on the porcelain and get the perfect sealing.
