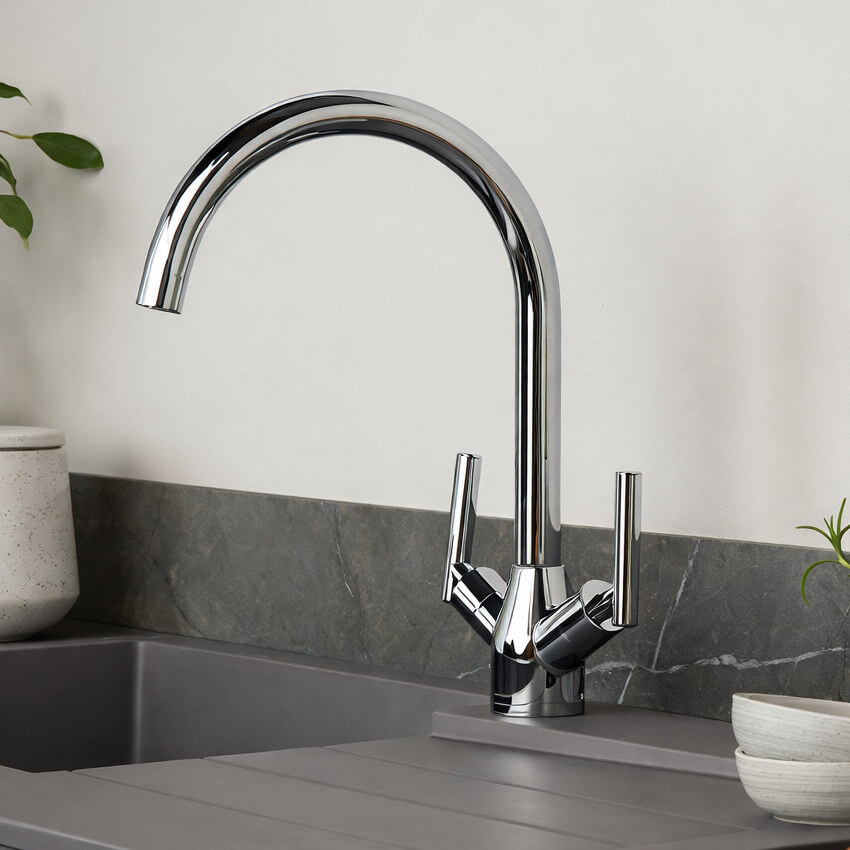

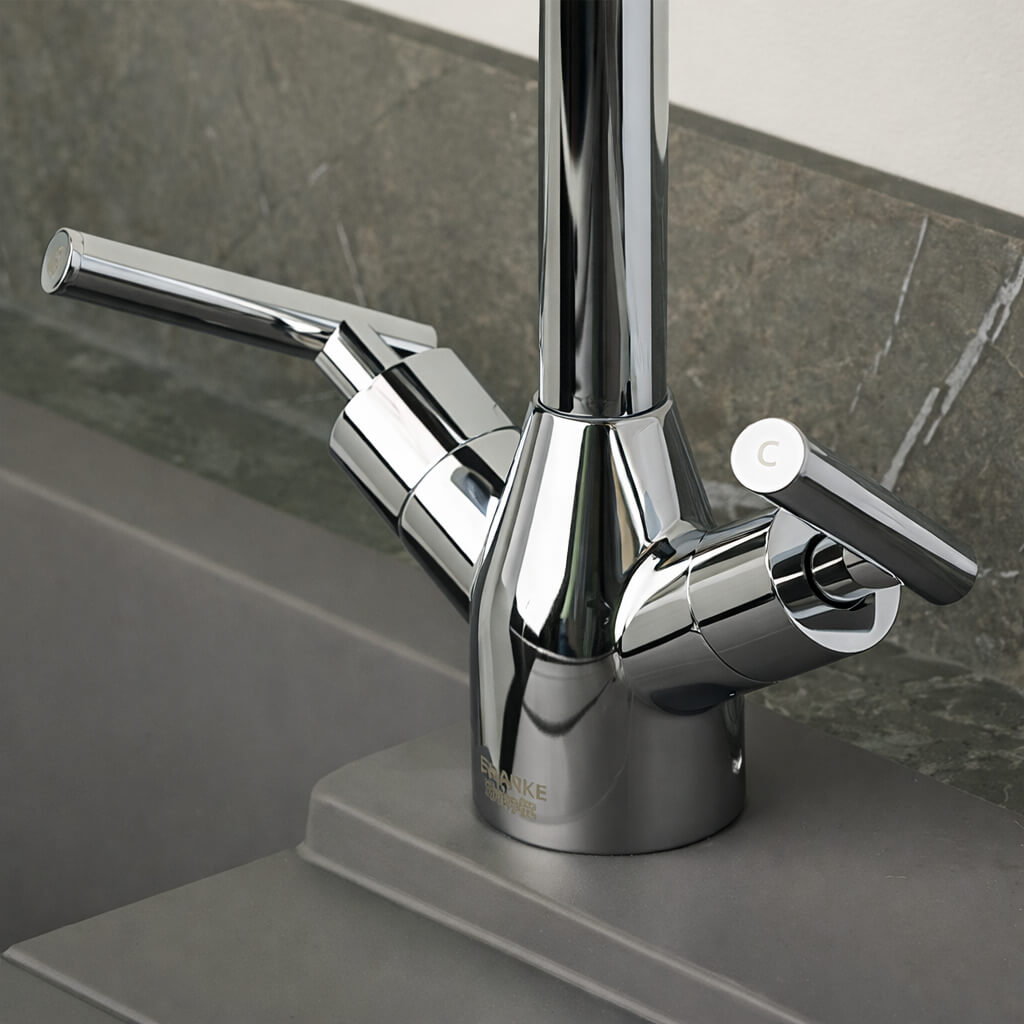

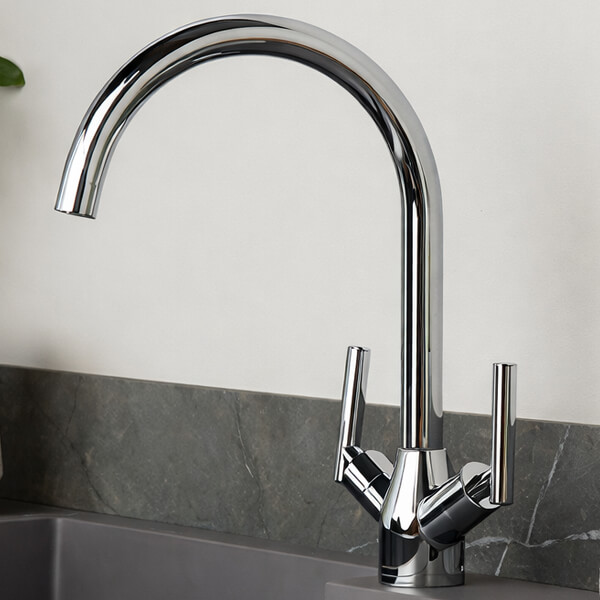

Bristan Chive Kitchen Sink Mixer Tap With Easyfit Base

Bristan Chive CHV EFSNK C Details

Now you can make your cleaning and washing chores easy with this Bristan Chive Kitchen Sink Mixer Tap. This aqua adornment is meticulously crafted from good quality brass for pleasing you with years of excellent performance. It is suitable for low water pressure system and works with all plumbing systems. The gleaming chrome finish will impart a designer appeal to your bathroom. This unit is fully supported by the manufacturer with a 10 years guarantee against any manufacturing faults.

Manufacturing code of this product: CHV EFSNK C.
It comes in a fabulous chrome finish.
Deck mounted installation.
Maximum Hot Water Temperature: 65°C.
Maximum Static Pressure: 10.
Complete with 1/2 inch ceramic disc valves.
Height: 350mm - (35cm).
Centre of the inlet to centre of outlet: 220mm - (22cm).

Base to spout: 230mm - (23cm).
Inlet connection: 1/2 inch BSP Flexible Tails.
Suitable for all plumbing systems.
Suitable for low water pressure system.
Required minimum 0.3 bar or above 5.0 bar water pressure.
Download the Installation Instruction PDF File From The Additional Info Section.
Refer to the technical diagram for complete technical dimensions.

Info / Size (mm)

Tap
Pipe Centre: 235 mm

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Water Activation
: By Lifting/Tilting
⤷ Range
: Chive
⤷ Handle Position
: Left & Right
⤷ Tap Body Shape
: Round
⤷ Colour
: Chrome
⤷ Warranty/Guarantee
: 10 Years
⤷ Material
: Brass
⤷ Theme
: Modern
⤷ Installation Type
: Deck Mounted
⤷ No. of Holes Required
: 1
⤷ Valve/Cartridge Type
: 1/2 Inch Ceramic Disc Valve

⤷ Base To Spout
: 230
⤷ Spout Reach
: 220
⤷ Overall Height
: 350
⤷ Inlet Connections
: 1/2 Inch BSP
⤷ Minimum Operating Pressure (Bar)
: 0.3
⤷ Flow Rates (l/min)
: 10.4 (l/min) at 0.3 bar
⤷ Handle Style
: Stick
⤷ WRAS Approved
: Yes
⤷ Barcode
: 5014868044170
⤷ Product Type
: Sink Mixer Tap
⤷ Tails
: Flexible Tails

Additional Info & Downloads

Download the Installation Instruction Pdf File

Total: £136.86 2 Working Days Approx QS Supplies

5 Features Included In This Product Explained

Easyfit

Step1: Fitting the Base The first step is to slot the base of the tap into the sink. For this, detach the plain barrel from the EasyFit Base. Unscrew the fitting and push it through the hole in the sink or work surface. It must be in the central position, indicated by the word FRONT facing forward. Now tighten the fitting to the surface with a hex key, and replace the plain barrel. Step 2: Fitting the Tails Next, you need to connect the integral flexible tails to the hot and cold water sources after you have closed the built-in valves. Step 3: Fitting the Tap Body Push and secure the tap body to the base using grub screws, which are present on either side of the tap body. The grub screws must be tightened using the hex key.

Luminance Chrome

It is a hard-wearing chrome plating which is salt-tested and scratch-proof for durable, long-lasting use.

Precise Glide

It comes incorporated with ceramic cartridges for long life with precise control for smooth, leak-free use.

Quick Change

The product can be simply removed and another one fixed in its place. All you need to do is turn off the water supply.

WRAS Approved Product

WRAS Approval means that the particular water fitting or product complies with or meets the requirements specified by the Water Supply (Water Fittings) Regulations or Scottish Byelaws. Such compliance is based on certain tests that prove that the product or fitting does not cause waste, misuse, contamination or undue consumption of the public water supply system in the UK.
