Roca Meridian-N In-Tank Wall Hung White WC With Cistern And I-Type Support For Solid Walls

Roca Meridian-N 893302000 Details

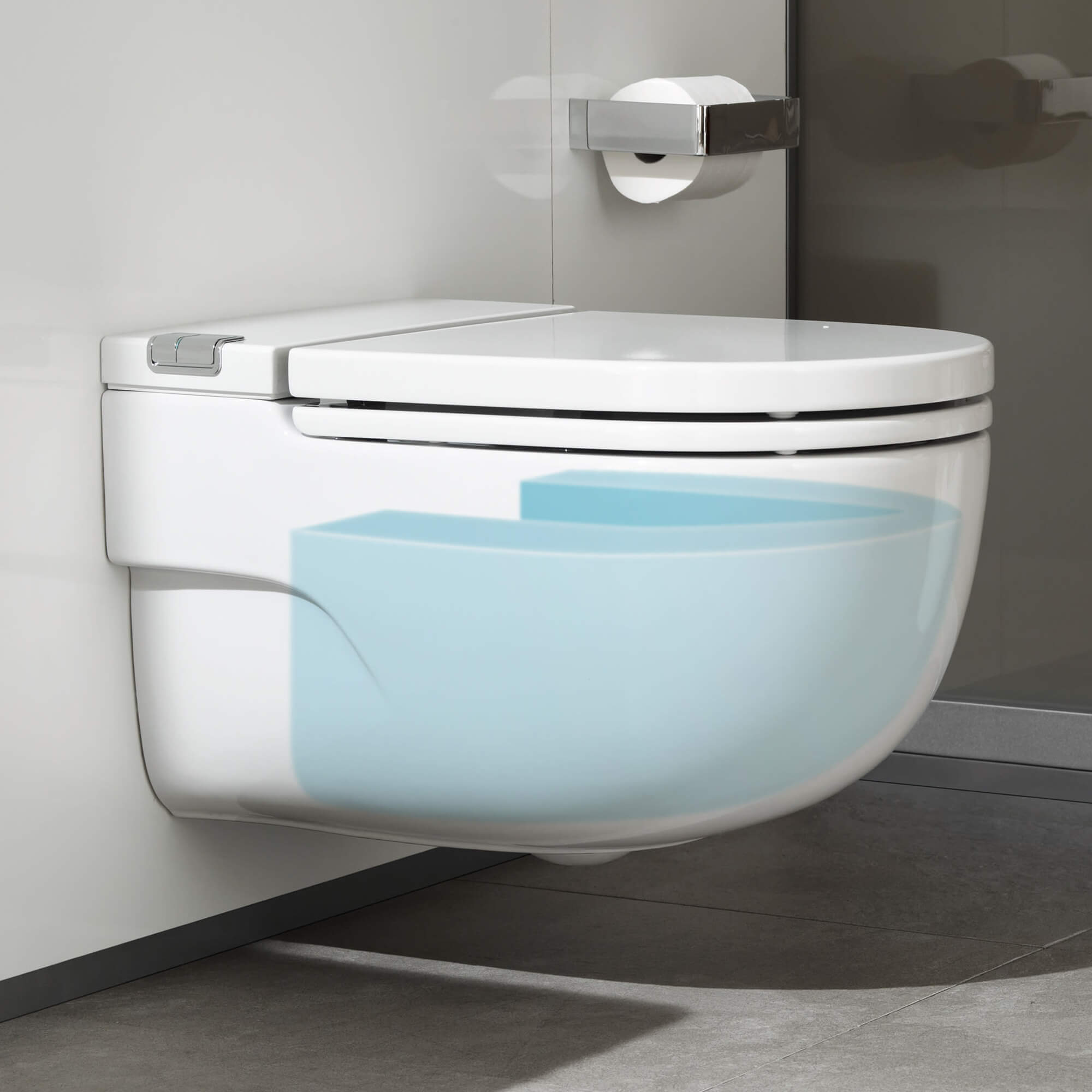

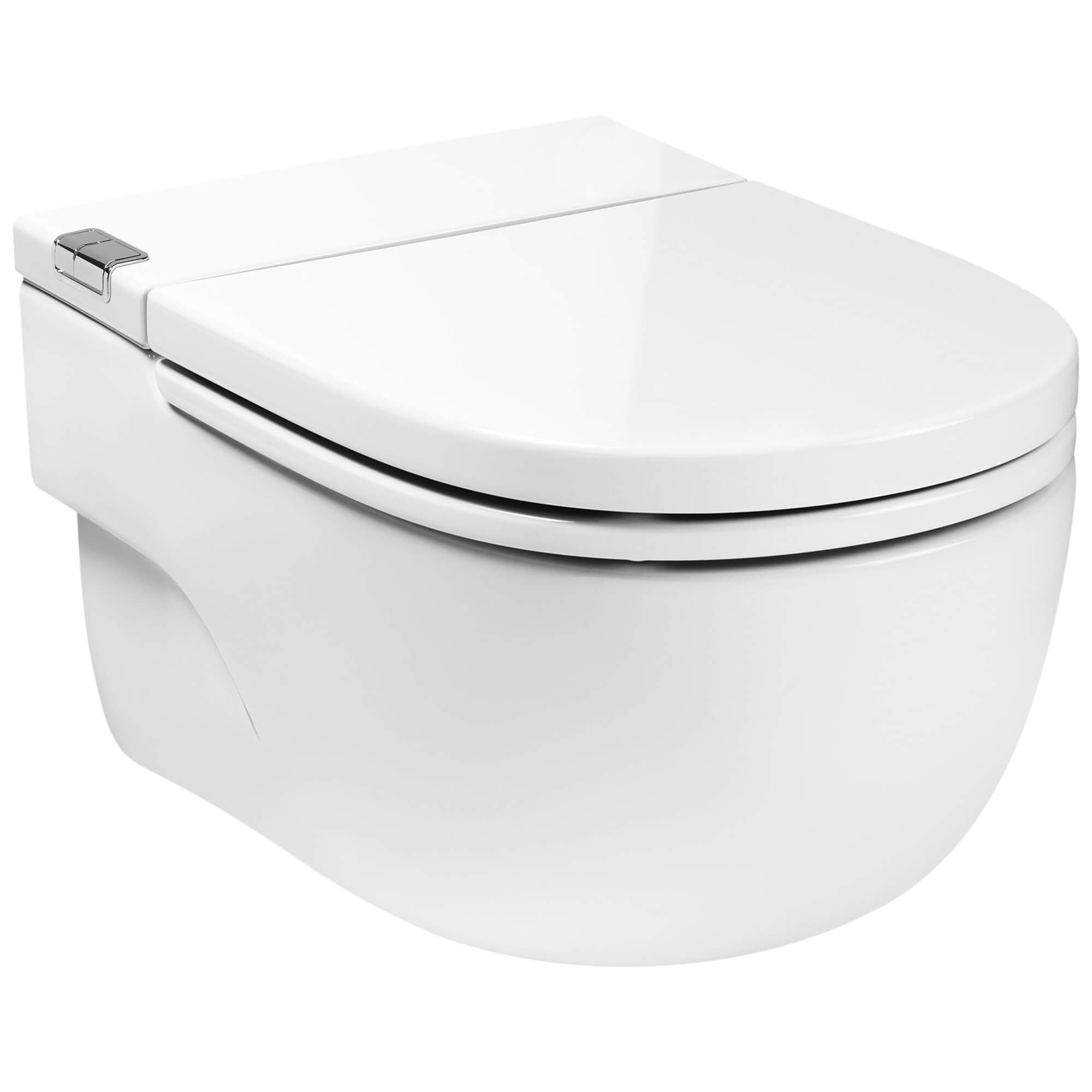

The Roca Meridian-N Wall Hung WC and Cistern is a revolutionary product that adds style and luxury and functionality to any modern bathroom environment. This In-Tank round-shaped toilet requiring a power source uses cutting edge technology to integrate the cistern and the flushing mechanism in the WC itself, obviating the need for a concealed/exposed tank and separate flush plate thus creating a streamlined and seamless look. The wash-down flushing system ensures a quick and efficient evacuation of waste for a hygienic and clog-free toilet. The dual flush mechanism of 4.5/3 litres provides for long or short flushes leading to water conservation.

Available in 2 Variations: WC with I-shaped frame, WC with L-shaped frame.
White finish.
Horizontal outlet.
Flushing type: Dual flush 4.5/3 litre.
Requires electricity for the air pump used in the flushing process.
Works on mains pressure only.

Installation videos and information (including pre-installation) are provided in the technical tab section.
Dimension: Width 400mm x Height 400mm.
Projection from the wall: 595mm.
Wall mounted installation.

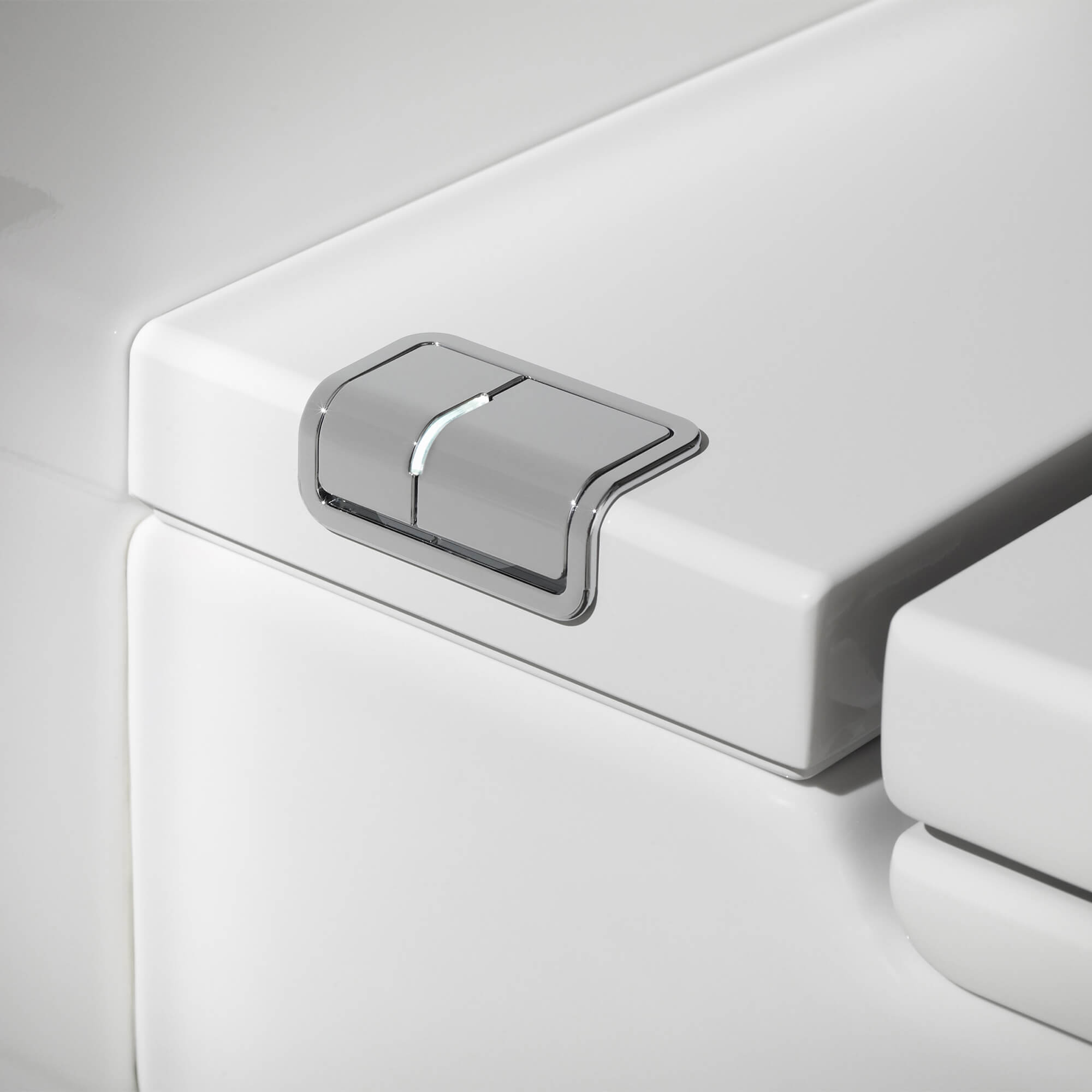

Please Note: Rear plate allows access for maintenance and is reversible so that a flush button can be installed on the left or right-hand side.
Installation manual provided in the technical tab section.

Technical Specifications

Please note all the measurements are in 'mm'

⤷ Range
: Meridian-N
⤷ Coating
: Without Coating
⤷ Colour
: White
⤷ Country of Origin
: Spain
⤷ Warranty/Guarantee
: 25 Years
⤷ Material
: Vitreous china
⤷ Theme
: Modern
⤷ Installation Type
: Wall Mounted
⤷ Projection (Depth)
: 592.5
⤷ Cistern Included
: Yes
⤷ Width
: 400
⤷ Outlet
: Horizontal

⤷ Configuration
: WC Pan Only
⤷ Height
: 400
⤷ Seat Included
: Yes
⤷ Seat Finish
: White
⤷ Fixings included
: Yes
⤷ Fixing Holes Centre
: 330
⤷ Barcode
: 8414329926545
⤷ Distance from floor to centre of fixing hole
: 359
⤷ Bowl Shape
: Round
⤷ Product Type
: Wall Hung Toilet
⤷ Base to centre of outlet
: 230

Additional Info & Downloads

Download the Spare parts manual Pdf File Download the Installation Instructions Pdf File Download the User Manual Pdf File

Total: £1157.38 2-3 Working Days Approx QS Supplies

4 Features Included In This Product Explained

Dual-Flush

A toilet with a flushing mechanism with two different buttons for flushing solid and liquid waste, thereby saving water.

Soft-Close Seat

Soft-closing seats are a new alternative to classic toilet seats. Their modern design allows them to close slowly, while their controlled manner of closing does not require you to assist them. It also shuts automatically, allowing it to come down at a pace that does not make much noise.

Horizontal Outlet

When the pan has piping at the back, inside the wall, it is called a horizontal outlet toilet or pan. As the cisterns are concealed or placed against the wall, most plumbing is hidden out of sight.

Washdown Model

A washdown toilet uses the weight of the water and gravity to push out the toilet waste from the toilet bowl. The washdown toilet is designed with a short and wide trapway, so that waste can quickly enter the trapway using just the force of water from the tank. A washdown model includes a push-button flush and has a skirted design with a smaller water surface area and a short trapway and can easily handle heavy loads without getting clogged.

Product Videos

Video of In-Tank - Roca

Product Variations Info & MFC Code

Available Variations :
WC With I-Shaped Frame For Solid Walls - 893302000
WC With L-shaped frame For Stud Wall Installations - 893301000

Questions & Answers

Submit Your Questions 1 Questions Answered

Have a question about this item? Ask our technical team. We aim to reply within 72 hours.

Dr Asked :
Can this Rocca in tank WC be hung at a higher height to suit someone with back problems who requires a higher seated WC?

Answered By QS Team

Please refer our technical image tab. We have uploaded Spare parts manual, Installation Instructions & User Manual Pdf Files, which will help you to install your wall hung toilet. Hope it helps.
