Twyford Classic Low Level WC Pan With Horizontal Outlet 710mm

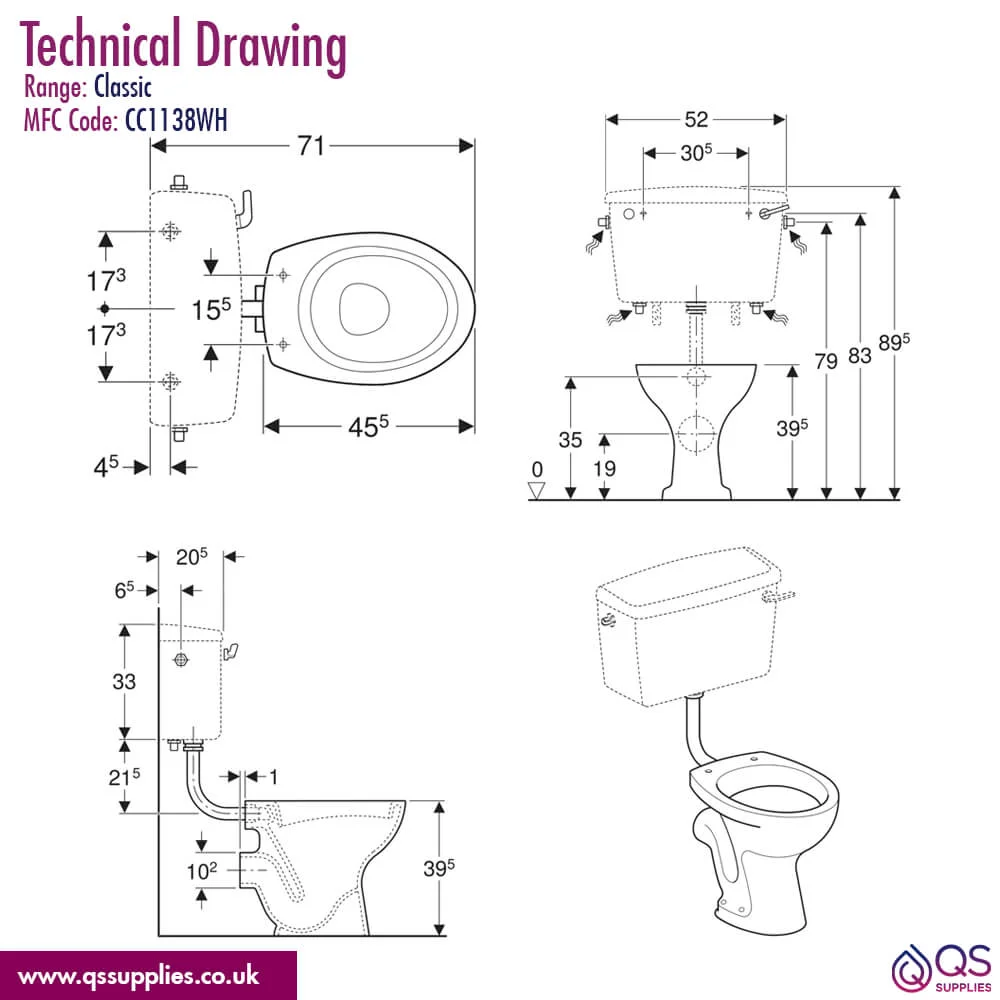

Technical drawing QS-V43355 / CC1138WH

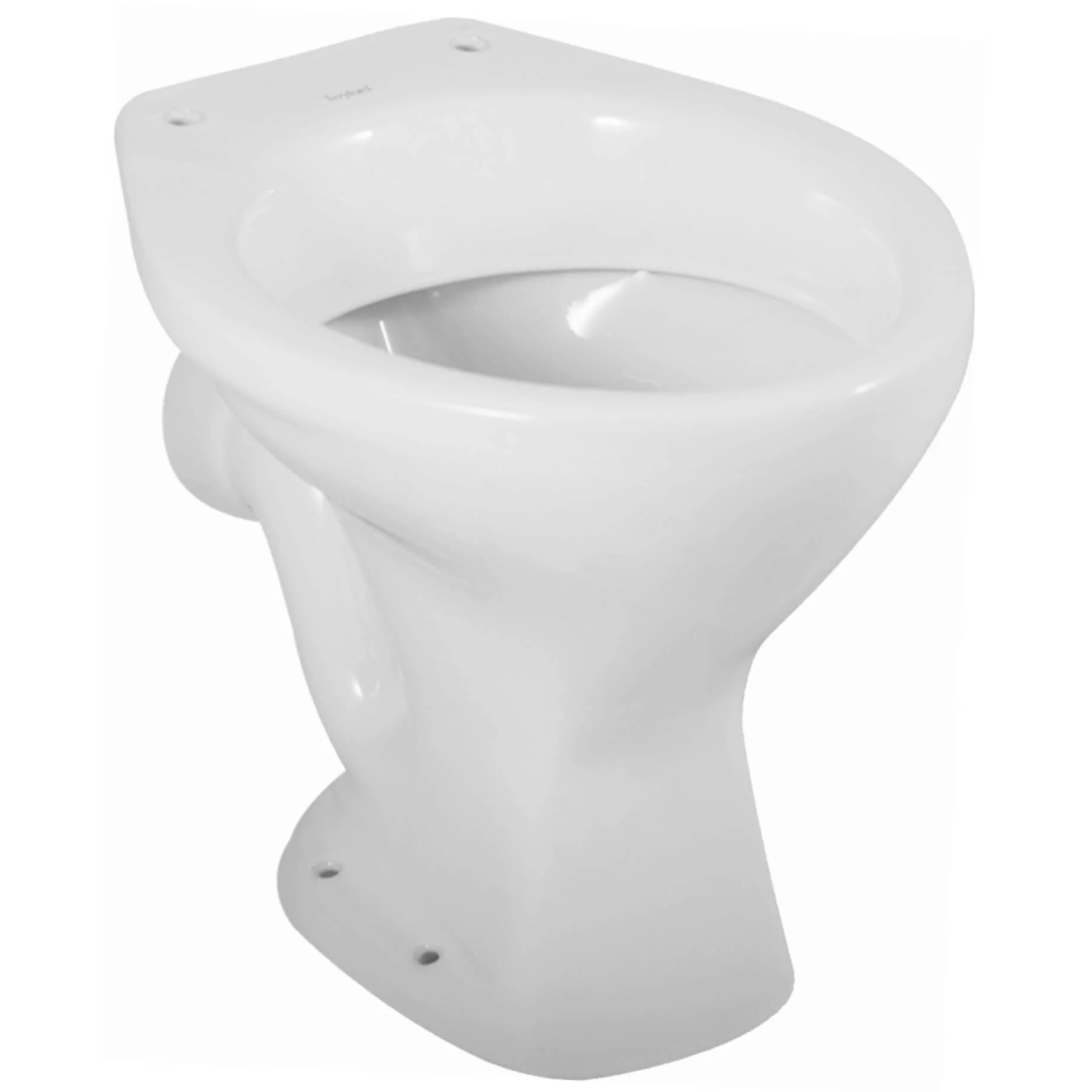

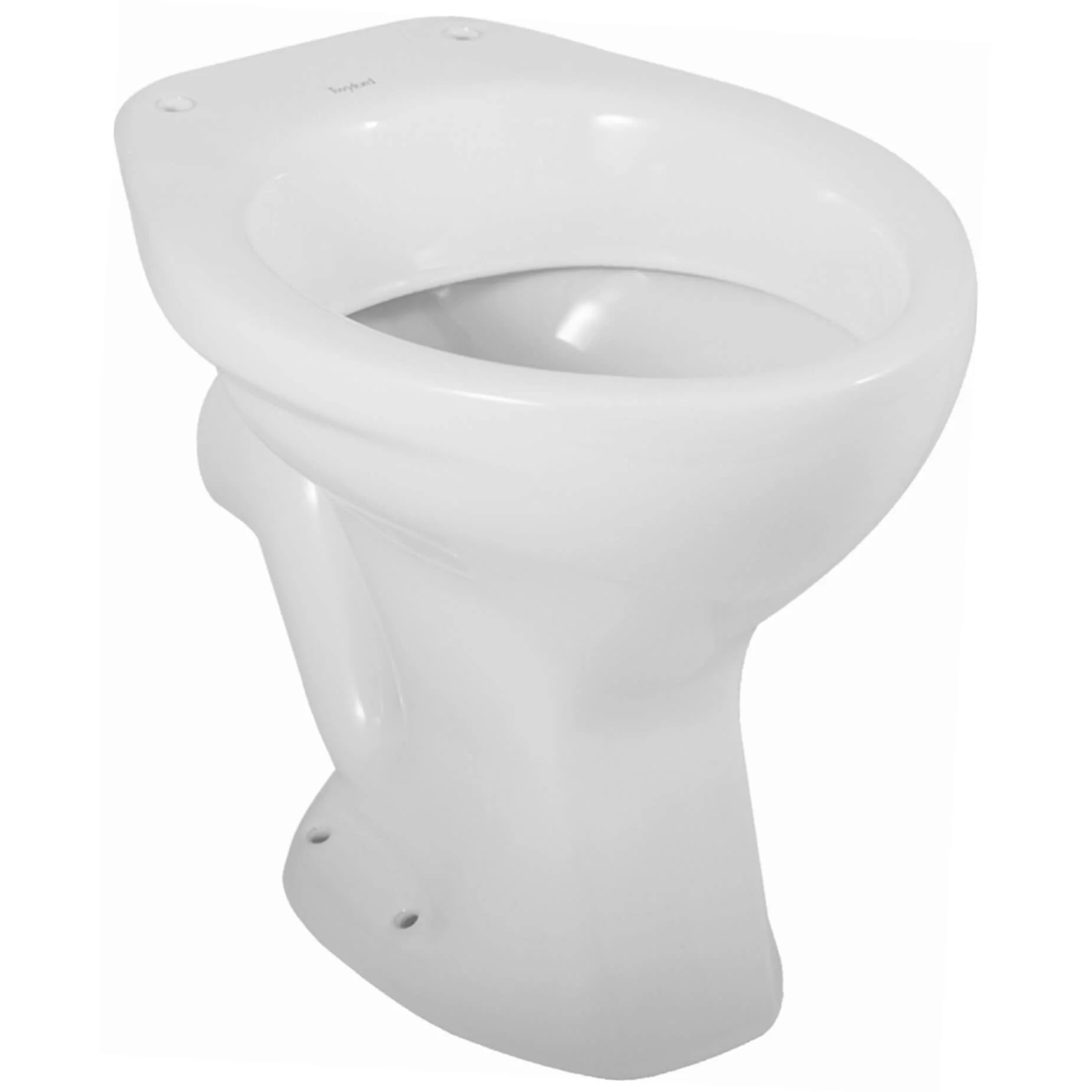

Additional image of Twyford CC1138WH
Additional image of Twyford Classic Low Level WC Pan With Horizontal Outlet 710mm
Additional image for QS-V43355 Twyford - CC1138WH
QS-V43355 small Image 1
QS-V43355 small Image 2
QS-V43355 small Image 3
Twyford Classic Low Level WC Pan With Horizontal Outlet 710mm small Image 4
CC1138WH small Image 5

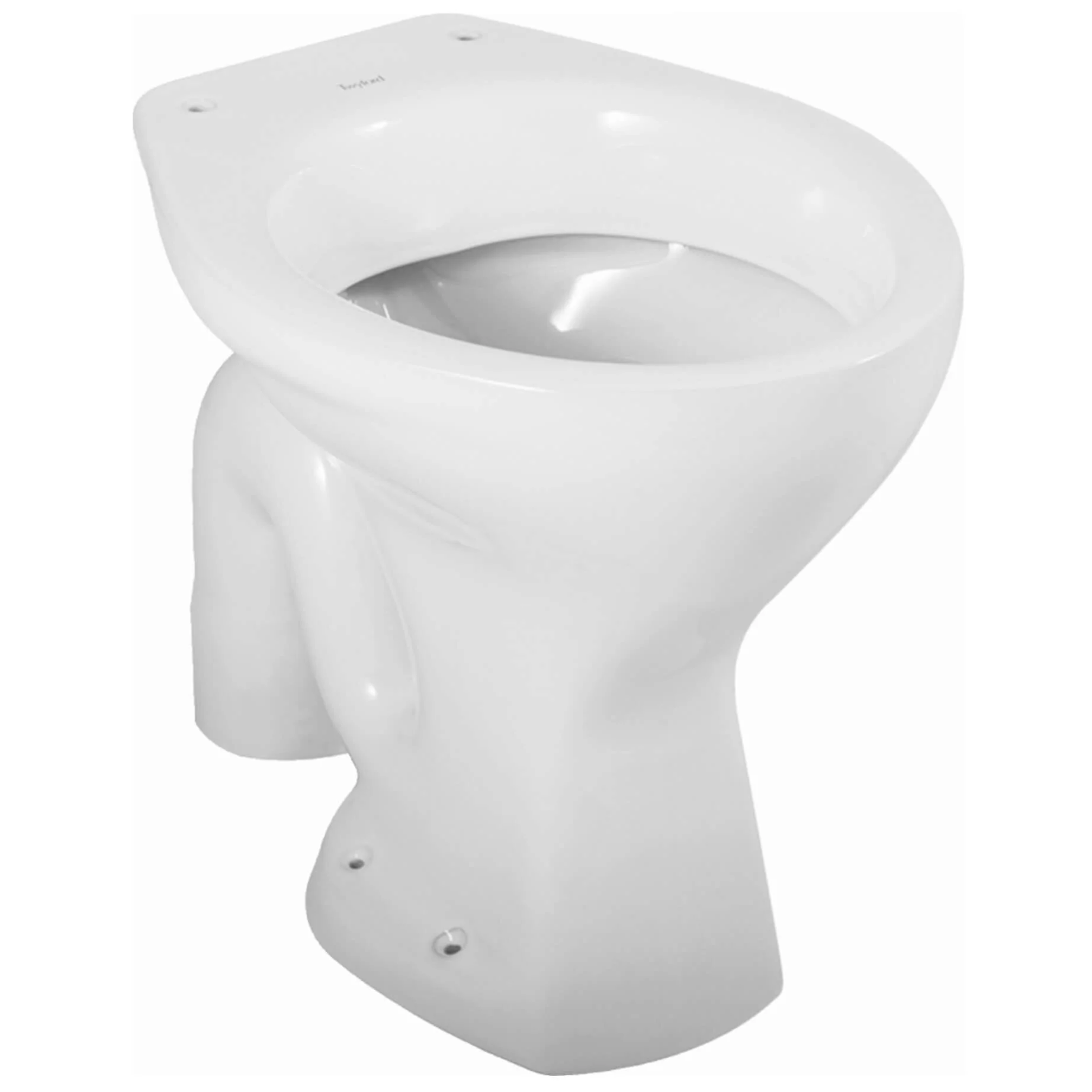

Twyford Classic Low Level WC Pan With Horizontal Outlet 710mm

QS-V43355

MFC CODE: CC1138WH

£36.29

RRP: £64.08 You Save £27.79 on RRP

4.0 out of 5

3 out of 3 customers rated 80%

Review this Product

STOCK AVAILABILITY

6 Working Days Approx

Shipping: £23.95

Description
Technical

The Classic Low-Level WC Pan from Twyford is constructed from vitreous china, is sturdy and comes with a horizontal outlet. Suitable for commercial use, it can be screwed to the floor with the cistern screwed to the wall and supported on brackets. It features washdown action with open flushing rim. Its white finish gives it a clean look while facilitating cleaning and is guaranteed for 25 years against any defect in fabrication.

+  Read what's included.. & options available
Please Note all the measurements are in 'mm'
Colour White
Country of Origin UK
Warranty/Guarantee 25 Years
Material Vitreous china
Theme Modern
Installation Type Floor Mounting
Pan Height 395
Cistern Included Sold Separately
Outlet Horizontal
Configuration Two Piece
Seat Included Sold Separately
Bowl Shape Elongated
Cistern Depth (projection) 205
Cistern Fixing Centres 346
Outlet Diameter 102
Floor to centre of cistern fixing hole 790
Base to centre of outlet 190

INFO / SIZE (mm)

  • Toilet
  • Width: 520 mm
  • Projection: 710 mm
  • Height: 895 mm

QTY

CC1138WH DETAILS

  • White colour
  • Size of this product is - Width 520mm x Depth 710mm x Height 395mm
  • Projection from wall is 710mm
  • Pan Height with Cistern: 895mm
  • Washdown action with open flushing rim
  • Made from vitreous china material
  • Cistern and toilet seat shown in the image are not included - sold separately
  • Manufacturing code of this product is CC1138WH
  • WC Pan with 'S' Trap and 'P' Trap - CC1131WH, CC1132WH Optional
  • Low level cistern and fittings, 6L, including chrome lever Optional
  • Toilet Seat and Cover, Black and White with Stainless Steel or Bottom Fix Hinges Optional
  • Suitable for commercial use
  • 25 years of guarantee from Twyford against any manufacturing defects
  • Fixings - WC screwed to floor, cistern screwed to wall and supported on brackets.

CUSTOMISE YOUR PRODUCT
WC Pan With P / S Trap

WC Pan With P / S Trap

WC pan is also available with P and S trap for customising drainage outlet. Please note : Image is for illustration purpose only.

Cistern

Cistern

Compatible cistern for your WC toilet from Twyford to choose from options. Please note: Image shown is for illustration purpose only.

Toilet Seat & Cover/Seat/Ring

Toilet Seat & Cover/Seat/Ring

Different types and finishes of toilet seats from Twyford to choose from options. Please note: Image shown is for illustration purpose only.

Total: £36.29 6 Working Days Approx QS Supplies

You've Selected which adds to a total of

View
×


REVIEWS & RATINGS

Here's what people are saying about this item.

Rate this Item.:

Hide All Reviews

Caterham Date: July 27, 2015

Great affordable toilet
Used QS Supplies on few occasions and was never let down. Will definately use again.
5 Star

Helpful? Hands Up Hands Down

OVERALL RATING 5 Stars

  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars

Caterham Date: July 27, 2015

Great item
Used QS Supplies on few occasions and was never let down. Will definately use again.
5 Star

Helpful? Hands Up Hands Down

OVERALL RATING 5 Stars

  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars

Reading Date: September 29, 2015

review
Great value, toilet. Great service and delivery
5 Star

Helpful? Hands Up Hands Down

OVERALL RATING 5 Stars

  • Quality: 5 Stars
  • Value For Money: 5 Stars
  • Style: 5 Stars

SOUTHAMPTON Date: March 9, 2018

Replacement pan
Arrived quickly and exactly as described
4 Star

Helpful? Hands Up Hands Down

OVERALL RATING 4 Stars

  • Quality: 5 Stars
  • Value For Money: 4 Stars
  • Style: 5 Stars


WRITE A REVIEW




Questions & Answers

  Submit Your Questions 2 Questions Asked

Have a question about this item? Ask our tech team. We aim to reply within 72 hours. If you want to know get answers fast, please call us on 0116 251 0051

Ian Asked :
Is the classic WC pan still available with an integral 'S' trap?

Answered By QS Team :
Yes, this WC pan is available with optional 'S' Trap, add this option code: (OP-4024 - WC Pan With S Trap - CC1131WH) and required cistern and seat before proceeding to checkout.

Was this answer helpful? Yes - No



Roy Asked :
Can the metal brackets be fitted behind the cistern to hide them, what centres should I fix them at should they miss the ridge on the bottom so the bracket is flat on the bottom, cistern is a twyford classic low level Thank you Roy

Answered By Twyford :
the brackets can only be fitted as shown

Answered by the verified manufacturer/supplier Was this answer helpful? Yes - No
